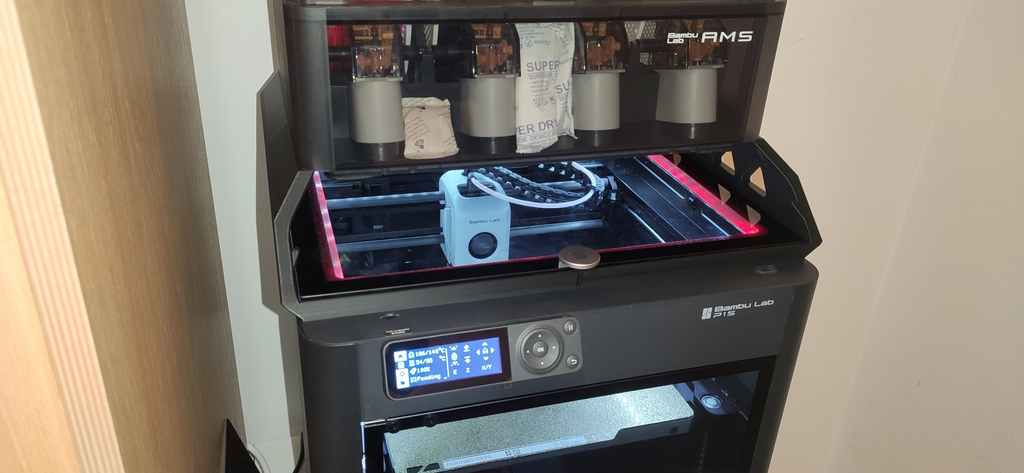

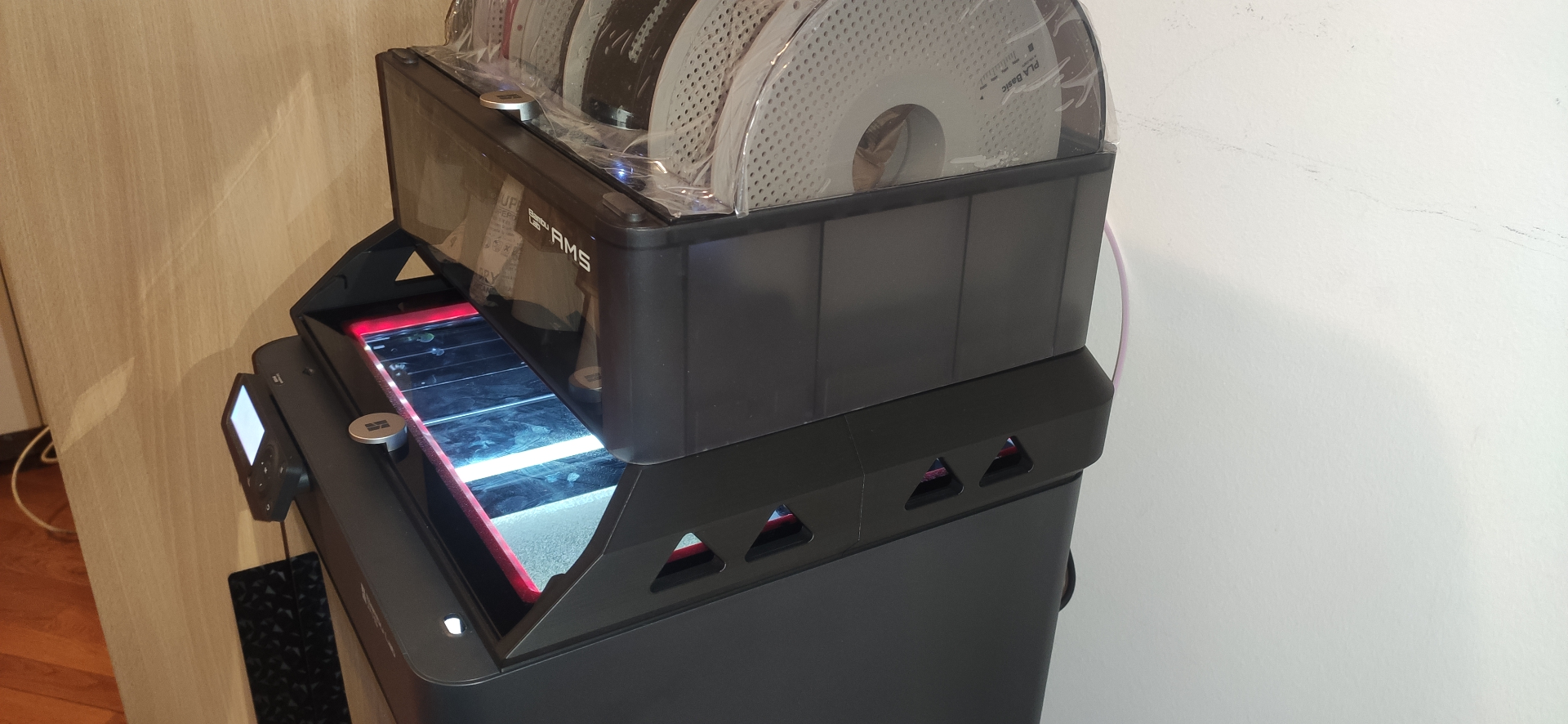

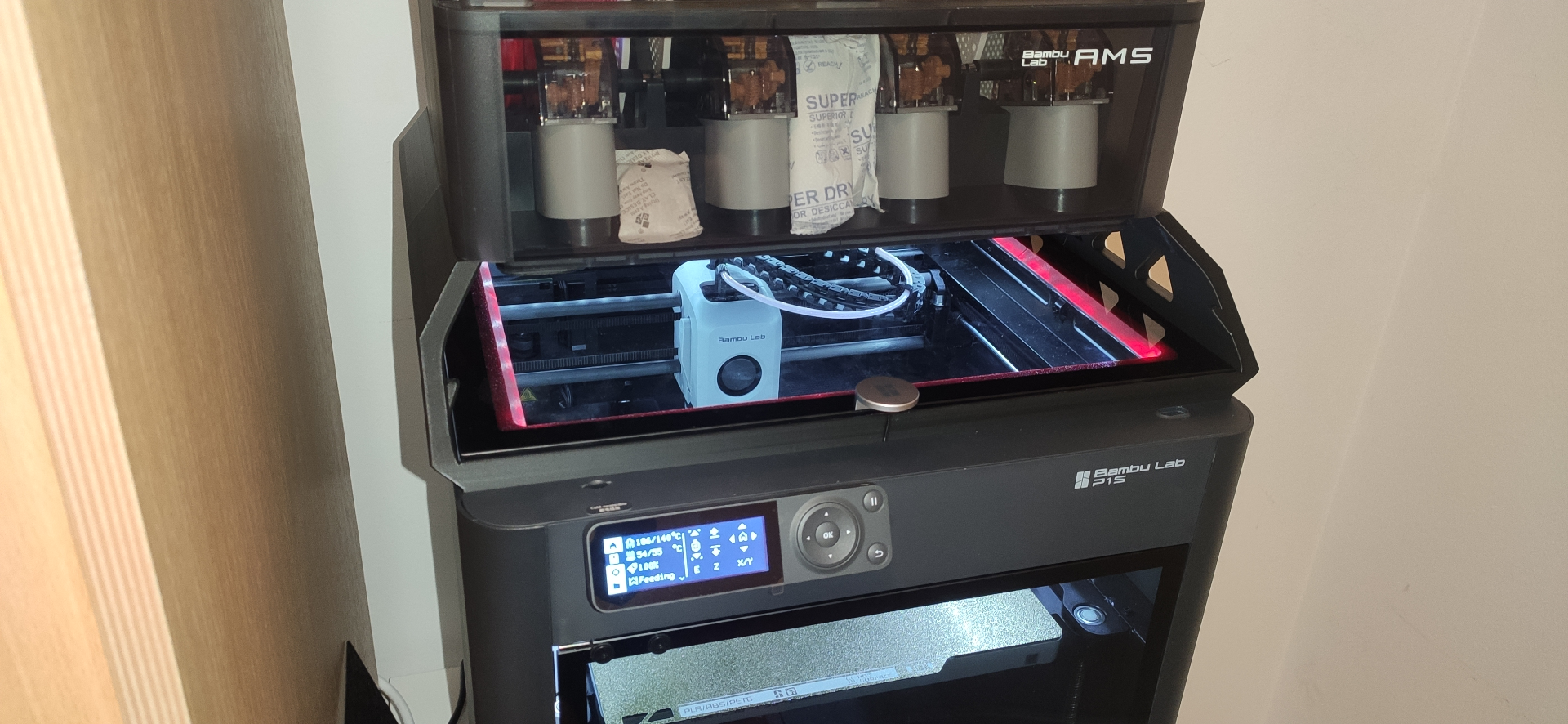

AMS RISER no supports - replacable LED channel

I love blemcheimers original design… But i wanted to add one some more features and improvements.

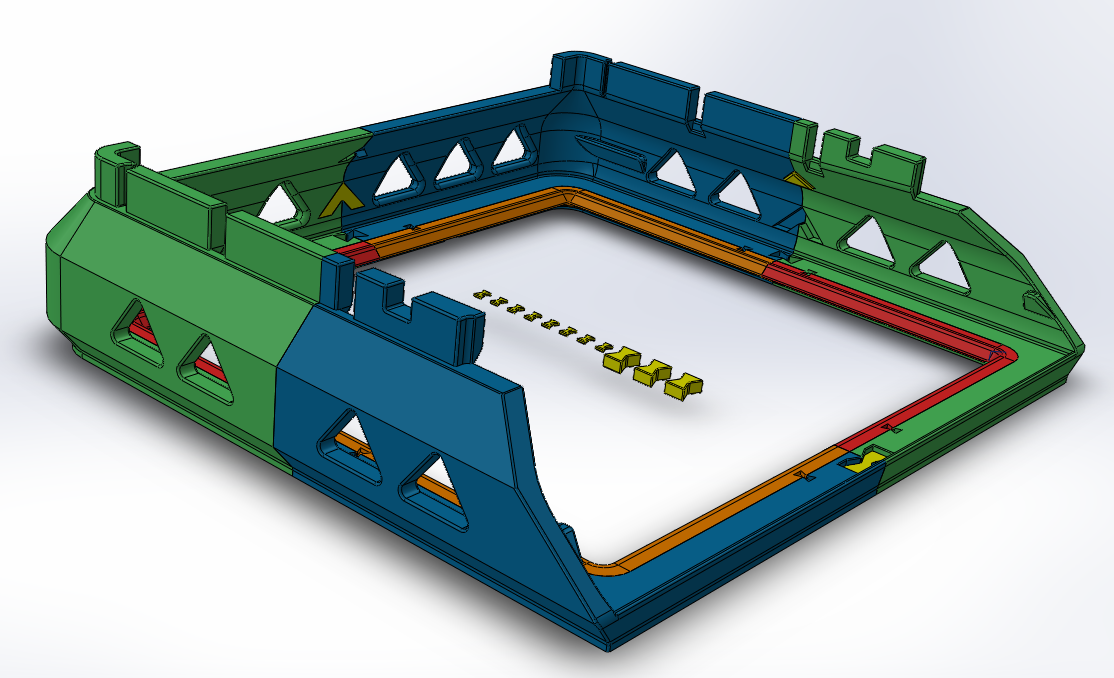

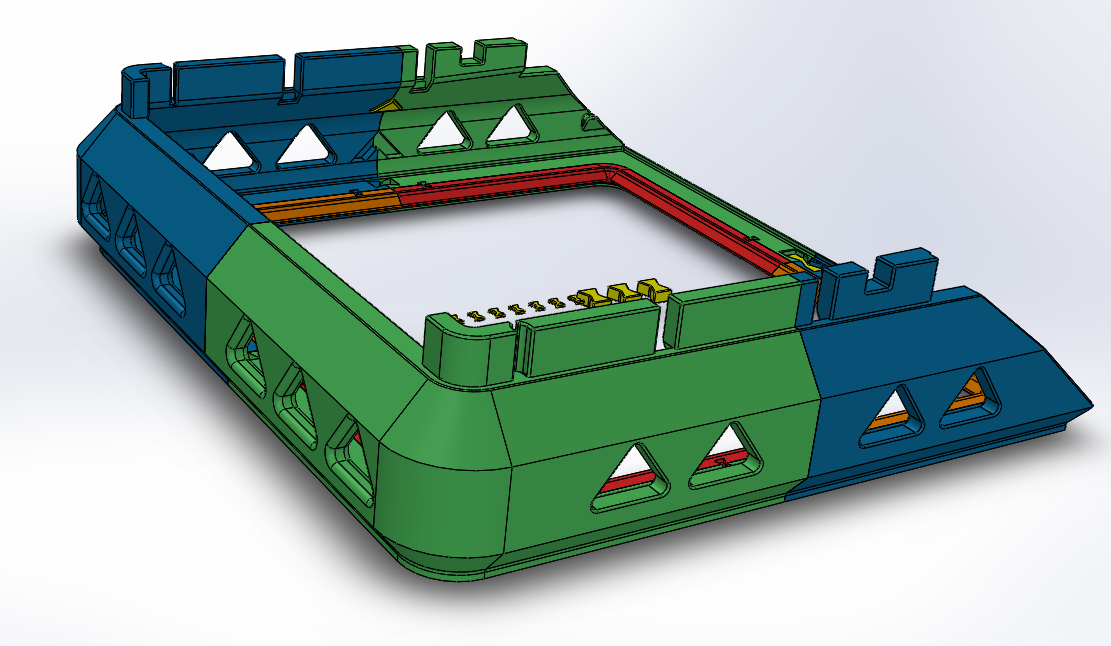

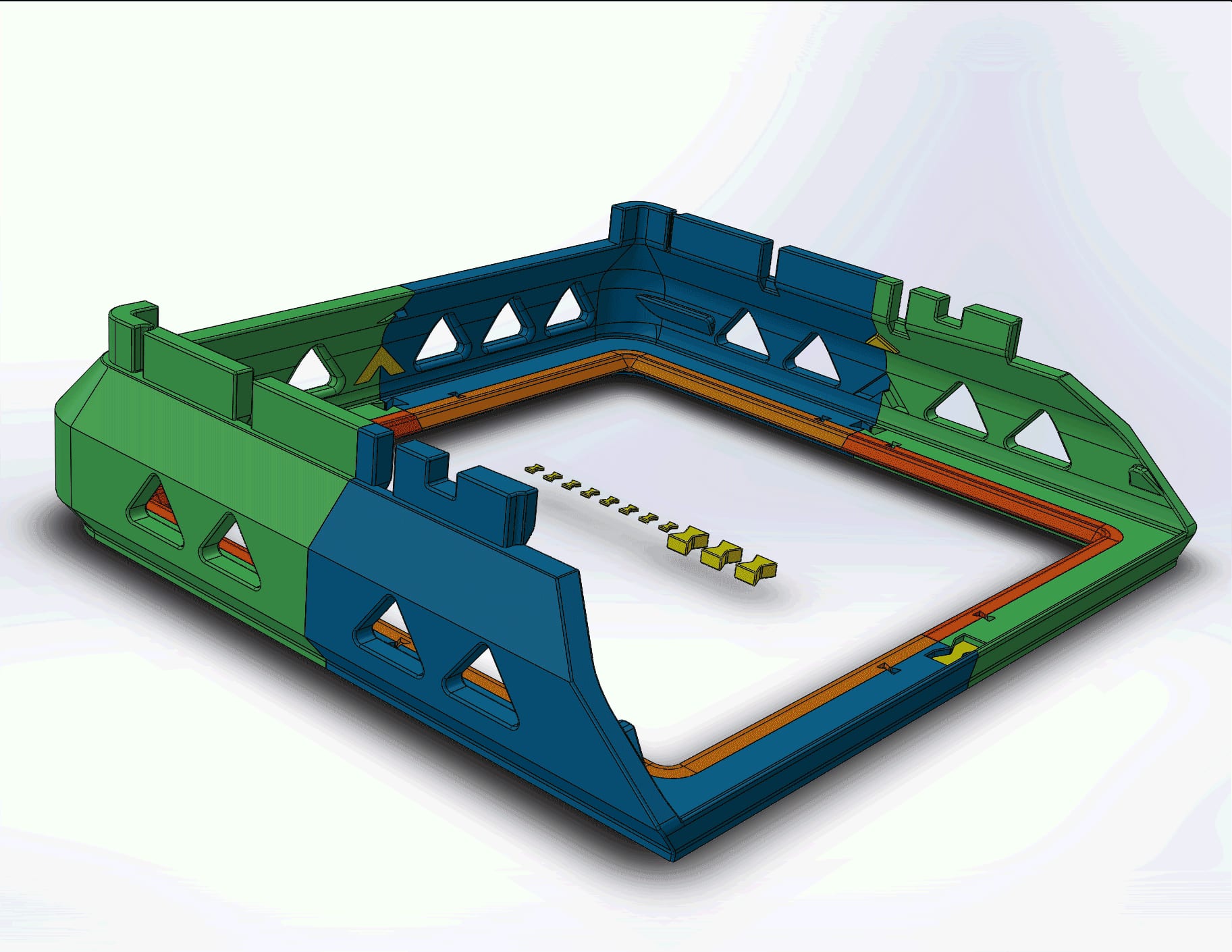

This remix includes:

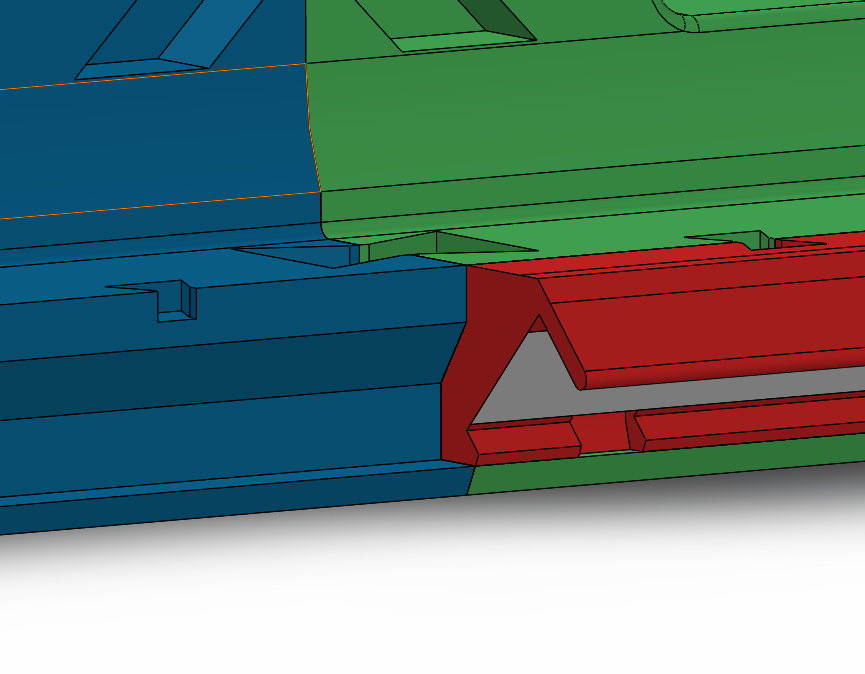

• Removable and easy to upgrade 10 mm LED channels (for future proofing)

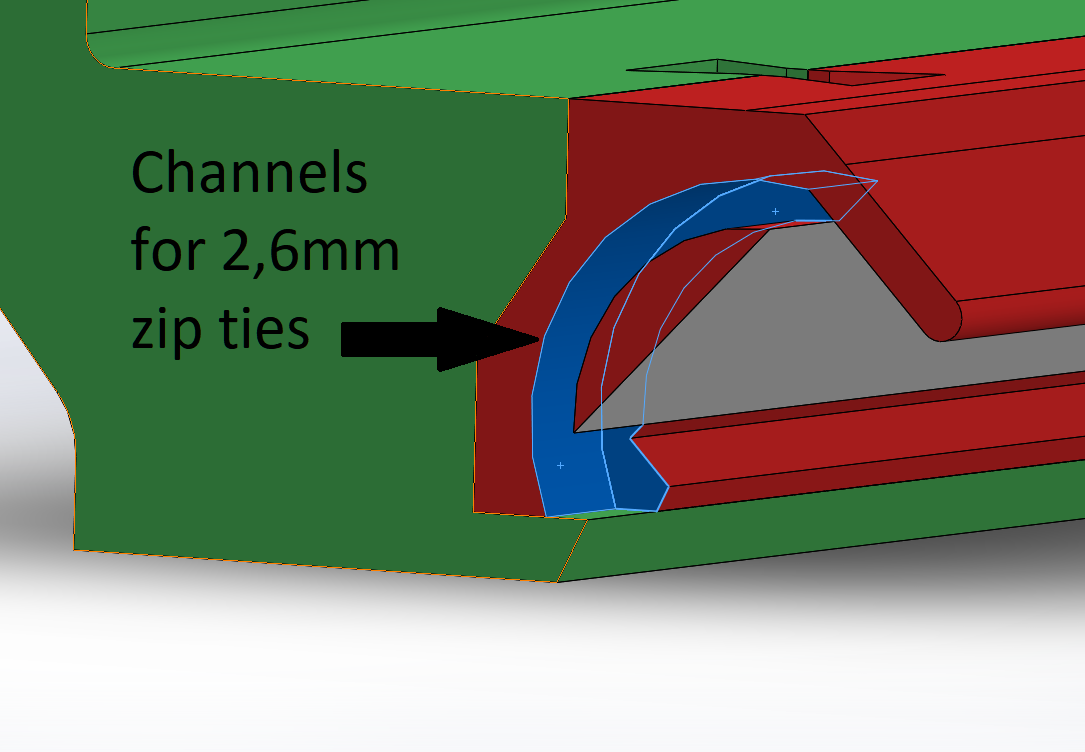

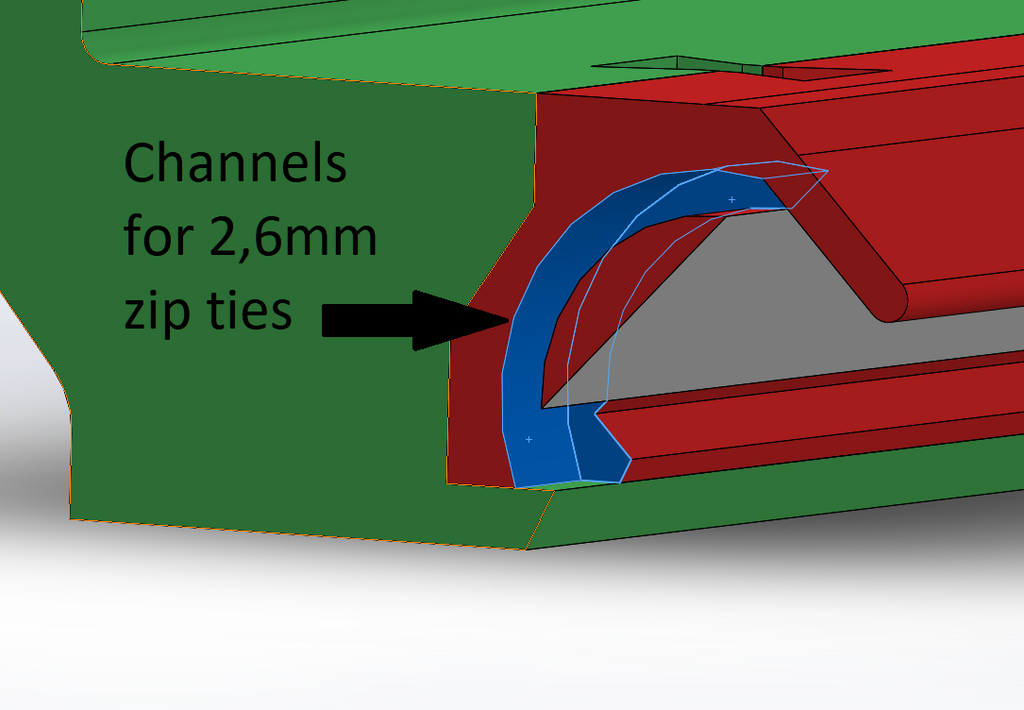

  •  Led channels include slots for 2,5mm wide zip ties (to prevent LEDs from falling out of the channel)
  •  Lip in front of the LEDs

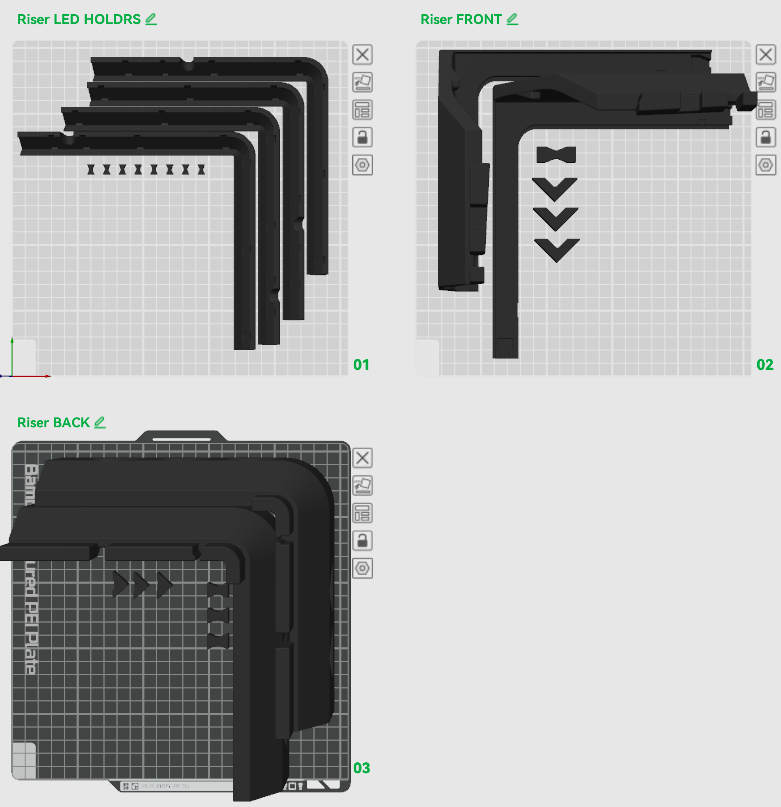

  •  Designed to be easy to print separately without supports
• Top “spike” holder for AMS (only tested on newer ams)
• Additional connectors near the top (for future build plate holder add-on)

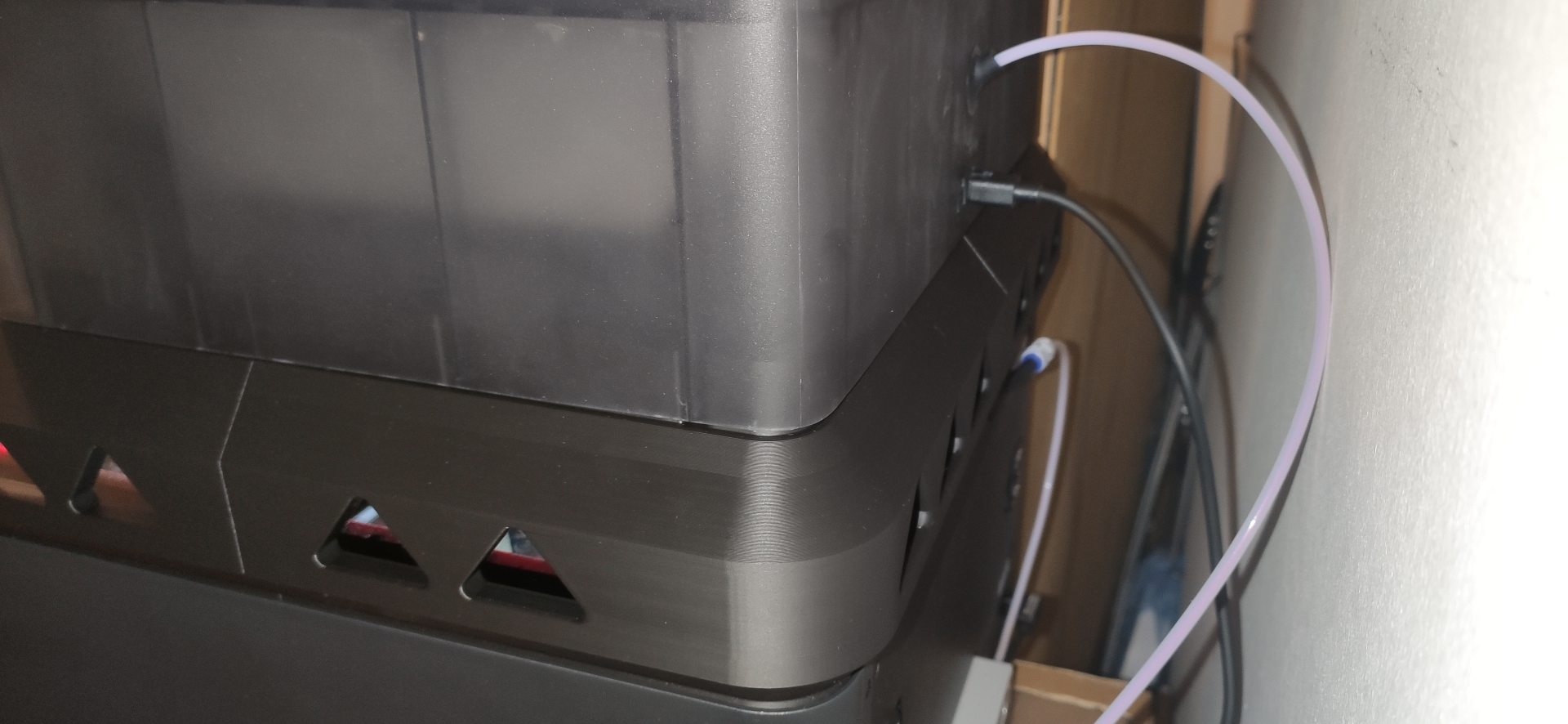

• Minimal tolerance friction fit connectors (may need lots of force to insert)

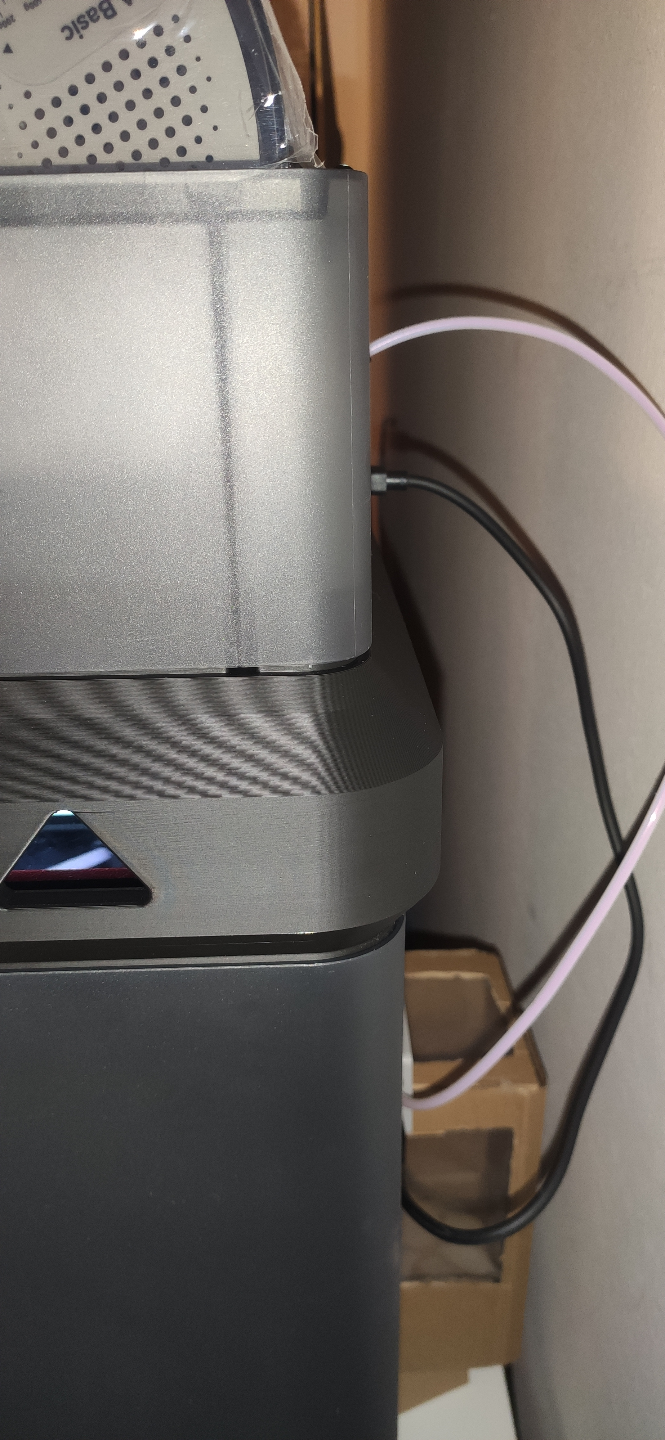

• Space for screws protruding from the glass top

Printed in PLA. Required a total of 22h to print with approximately 821g (275m) of filament being used.

I used blemcheimers print settings.

To assemble i suggest you use lots of force to insert the connectors (i used a hex screwdriver to push down on the connectors ) .

I used 10mm LEDs but i suppose you could use wider ones, you will need approximately 1.5m. From my experience the 2,5mm wide zip ties are a must because the adhesive on most generic LEDs is just trash.

Design by Namatar on MakerWorld (license: BY-SA).
