New Version!
As this model turned out turned out to be a bit inconvenient in daily use. So I decided to rethink the idea:
https://www.printables.com/model/1351529-magnetic-door-holder-for-anione-dog-box

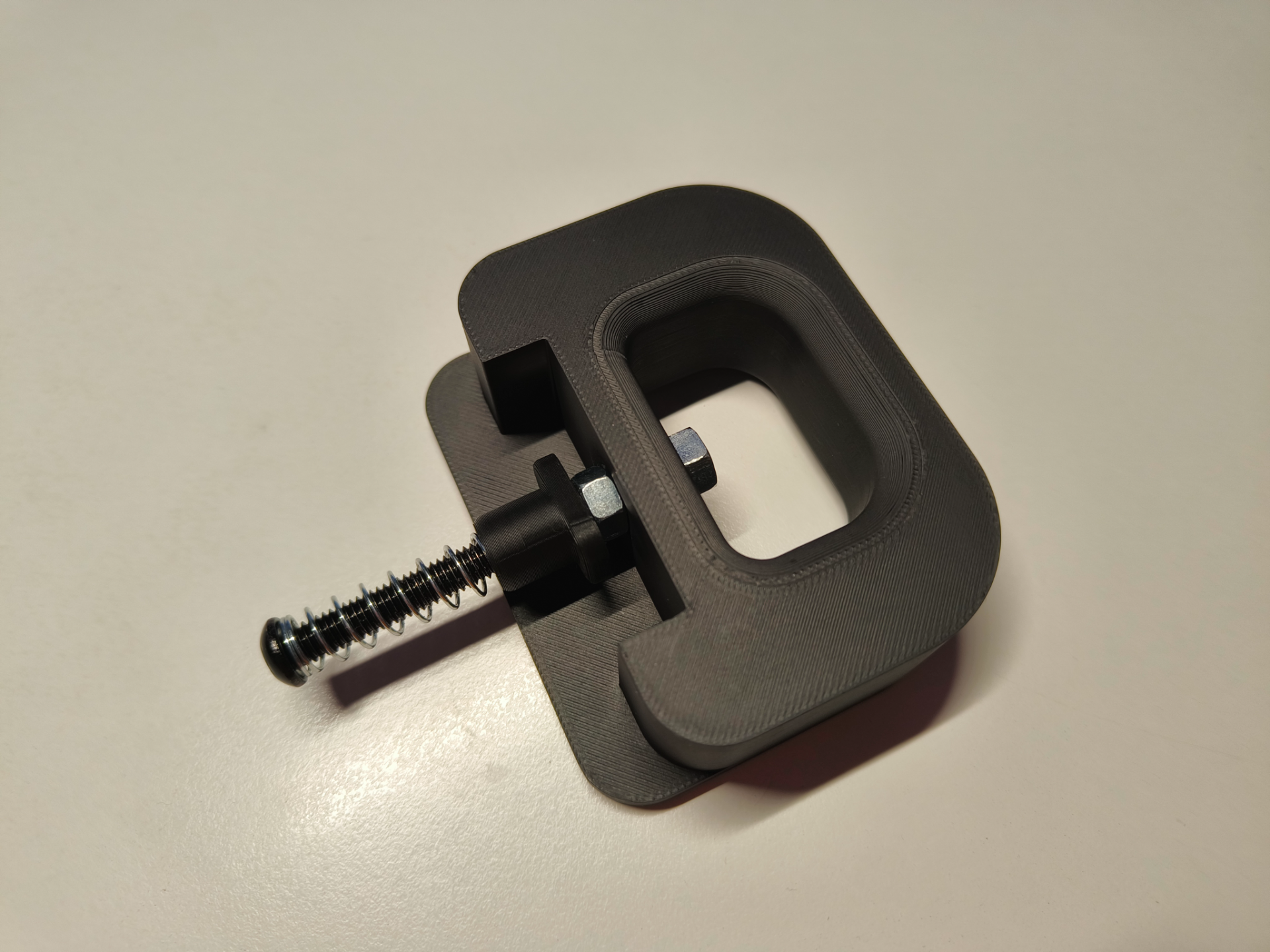

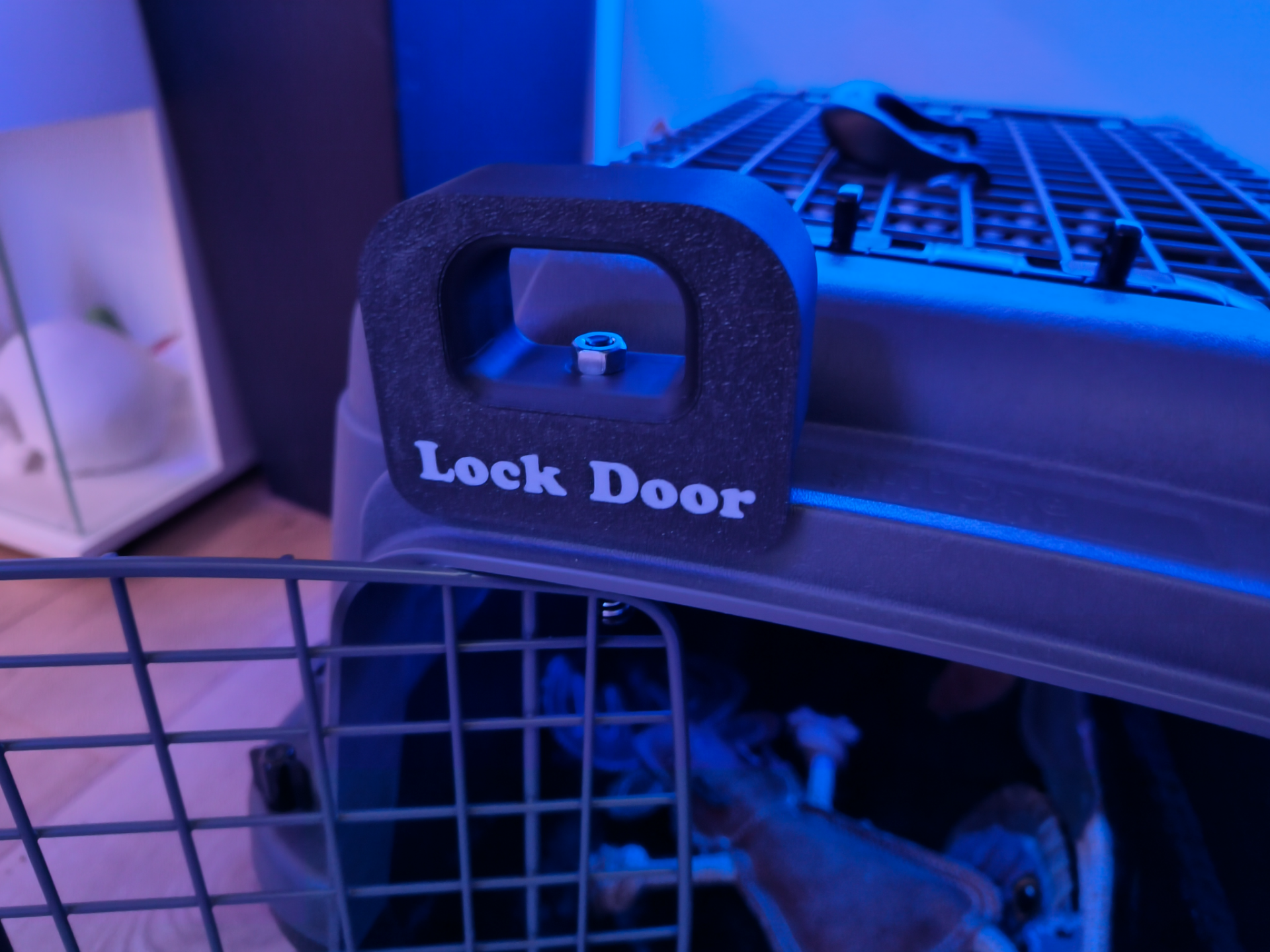

This is a simple yet effective door holder pin designed for AniOne dog boxes. It allows for easy opening and secure locking of the door with a spring-loaded mechanism. Just pull the handle up to release the pin and let go to automatically lock it back in place.
How It Works
- The pull handle lets you lift the pin effortlessly.
- The spring holder plate inside the box keeps tension on the pin.
- Once released, the spring pushes the pin back down, securing the door.
Included Files
To make modifications or direct prints easy, I provide:
✅ .3MF file optimized for Bambu Lab X1C
✅ .STL files for universal printing
✅ .SLDPRT files for SolidWorks, if you want to adjust or remix the design
Required Parts
You'll need a few extra hardware pieces to assemble it:
🔹 1x M6 65 mm screw
🔹 1x Spring (~9 mm x 35 mm)
🔹 2x M6 nuts
Installation
- Insert the M6 screw through the pre-existing hole in the dog box (above the door on the left side).
- On the inside, attach the spring and spring holder to the screw.
- On the outside, mount the pull handle and secure it with the M6 nuts.
- Test the mechanism by pulling the handle up and letting go the spring should push the pin back down.
That's it! A quick and easy way to secure your dog box door while keeping it easy to open when needed. I hope this model helps, and you are welcome to modify it to your needs! 😊
Design by marvmilo on MakerWorld (license: BY-SA).
