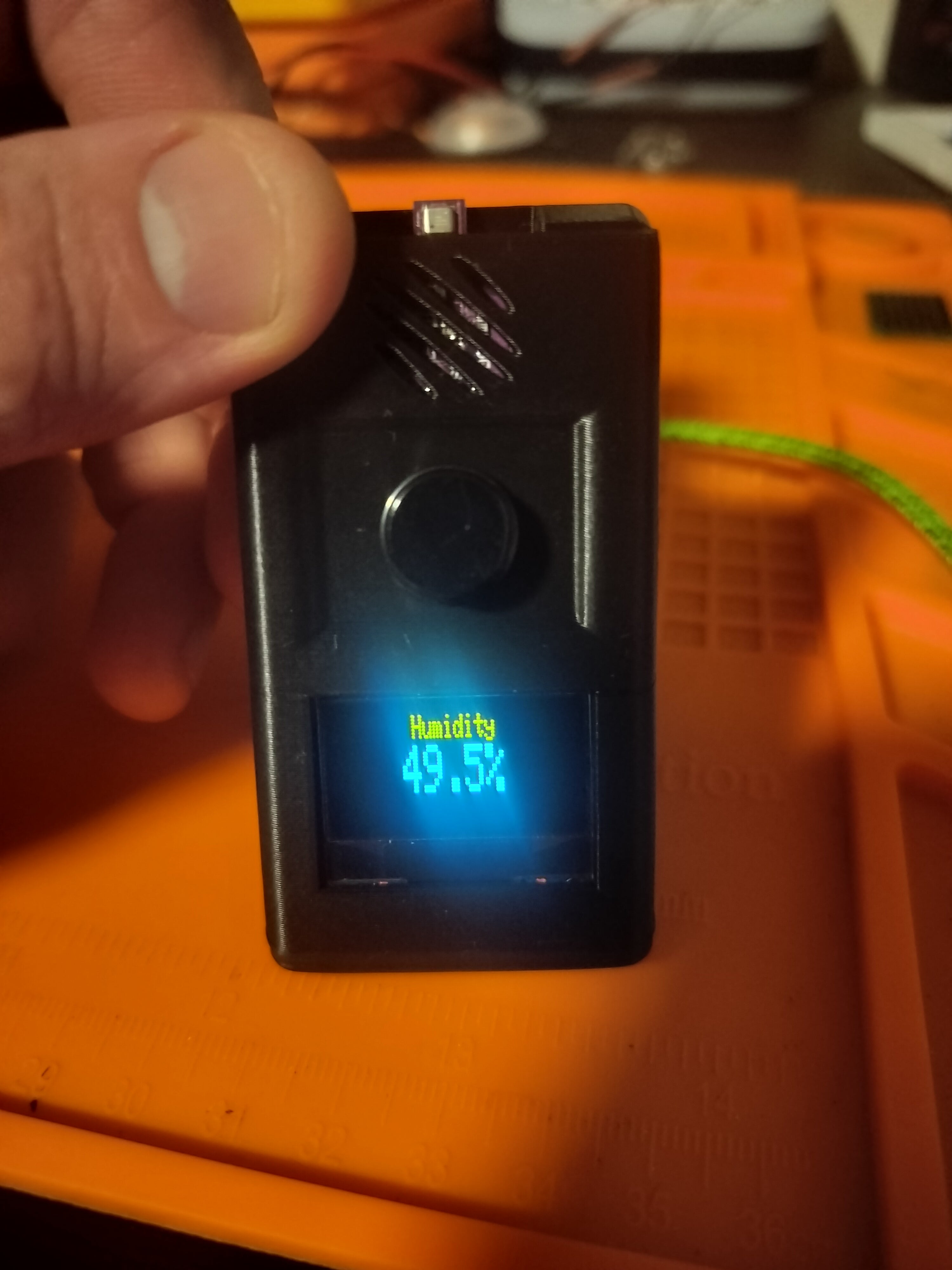

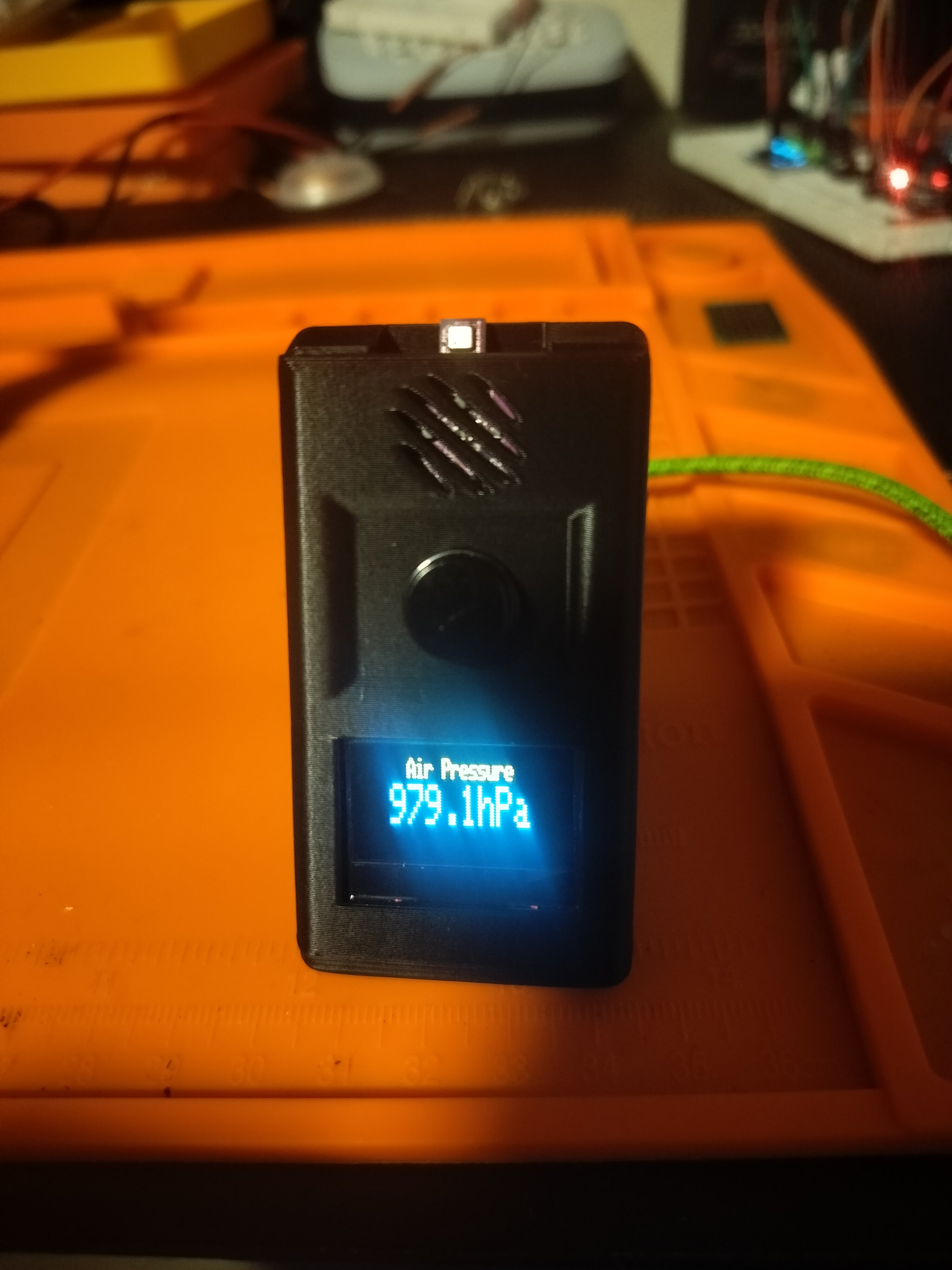

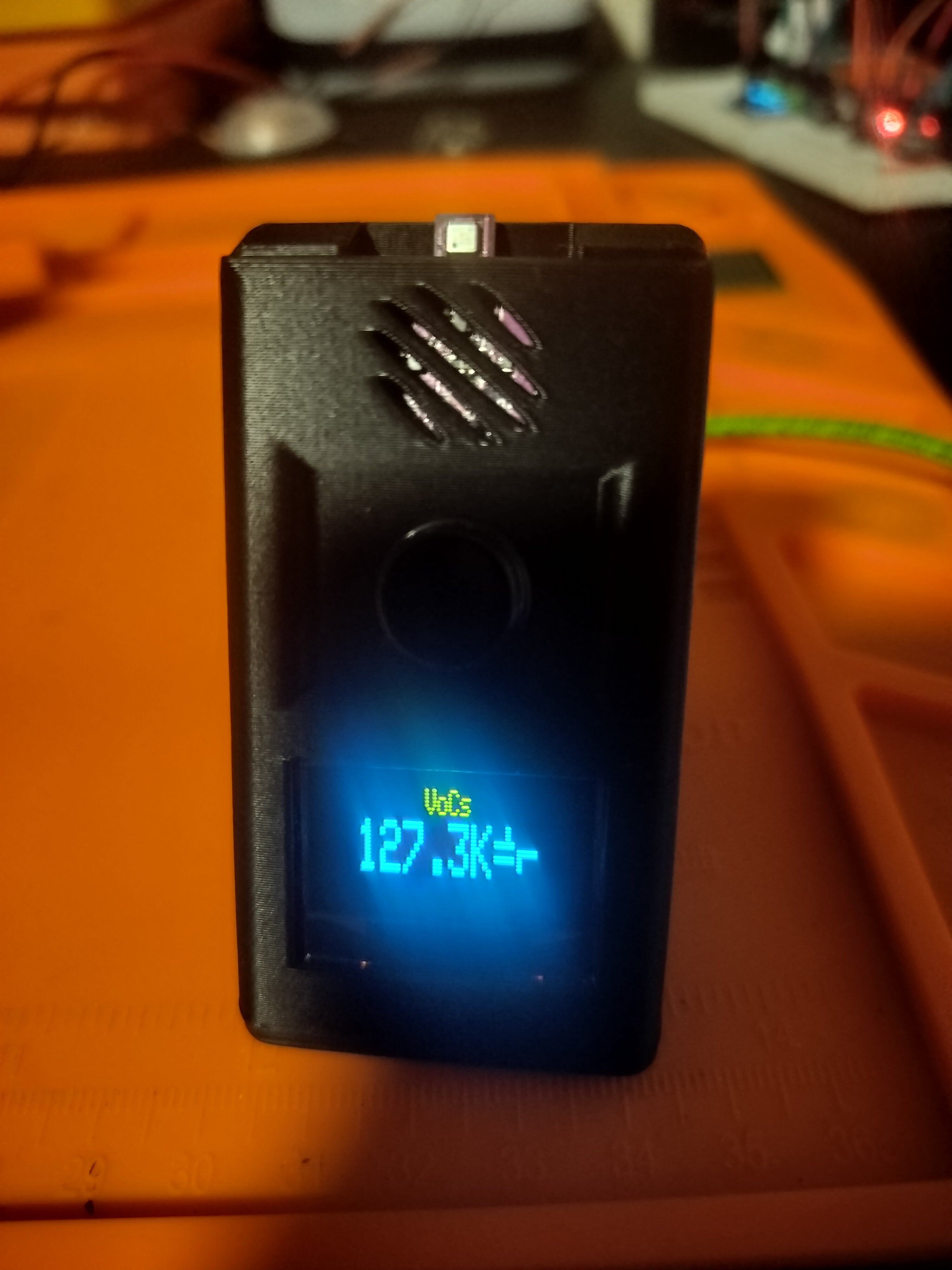

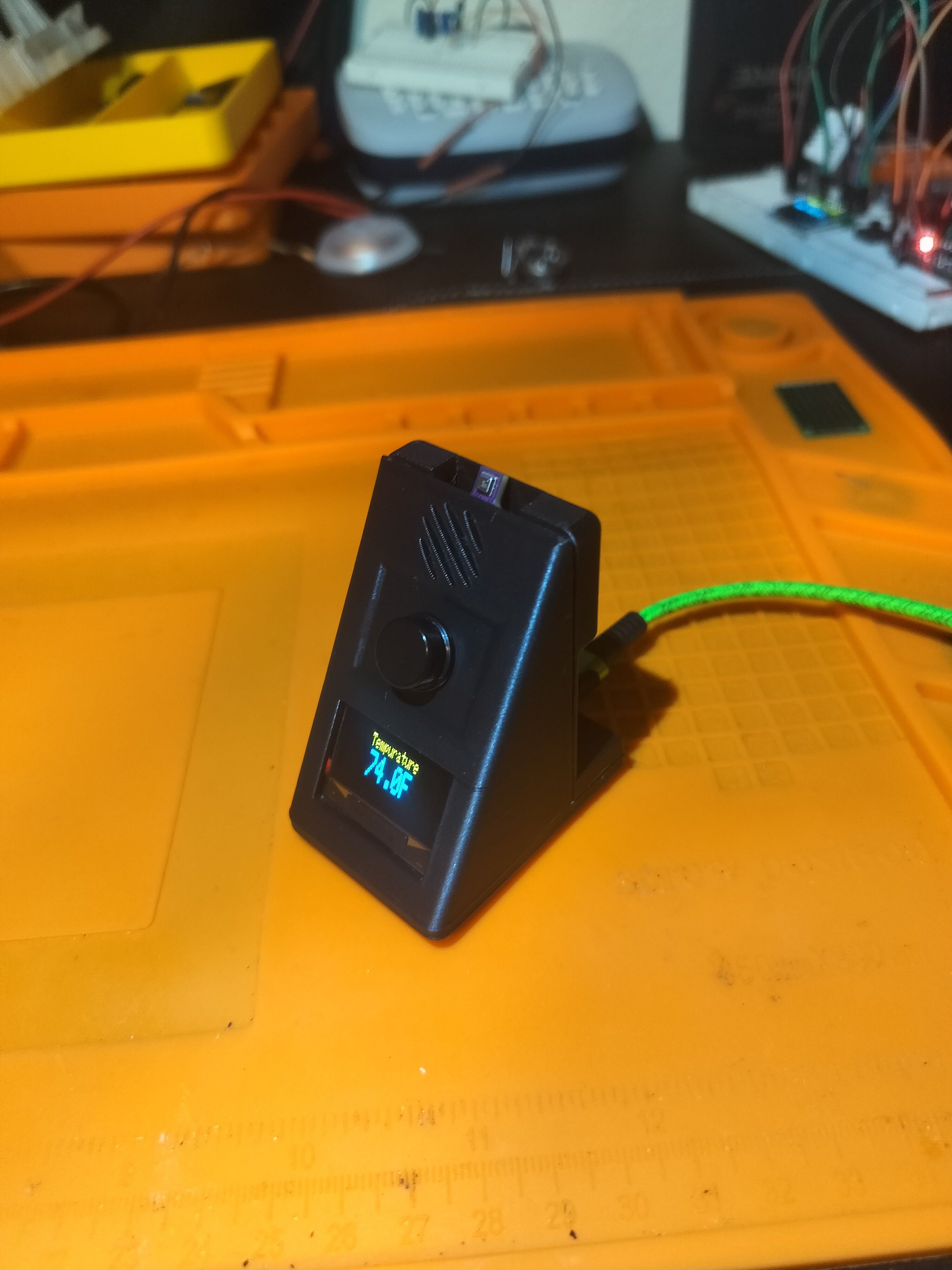

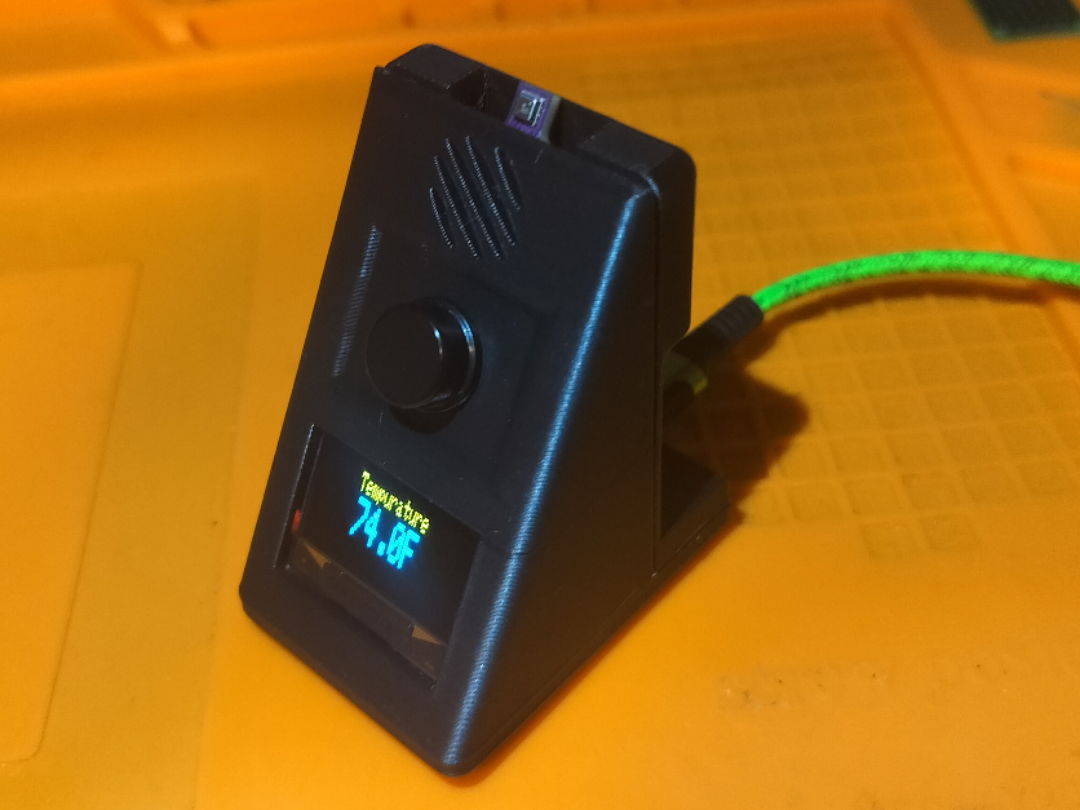

This is a Temp, humidity, air pressure, and VoC sensor. It uses the BME680 board and a push button to flip between sensors. I have attached a wiring diagram. Everything just slides into place. I didn't need any glue or screws to get it to hold.
Parts:
128x64 OLED display
BME680
Arduino nano - with USB-C
Momentary switch (push button)
.1uf capacitor (may be optional - used to make button press more responsive)

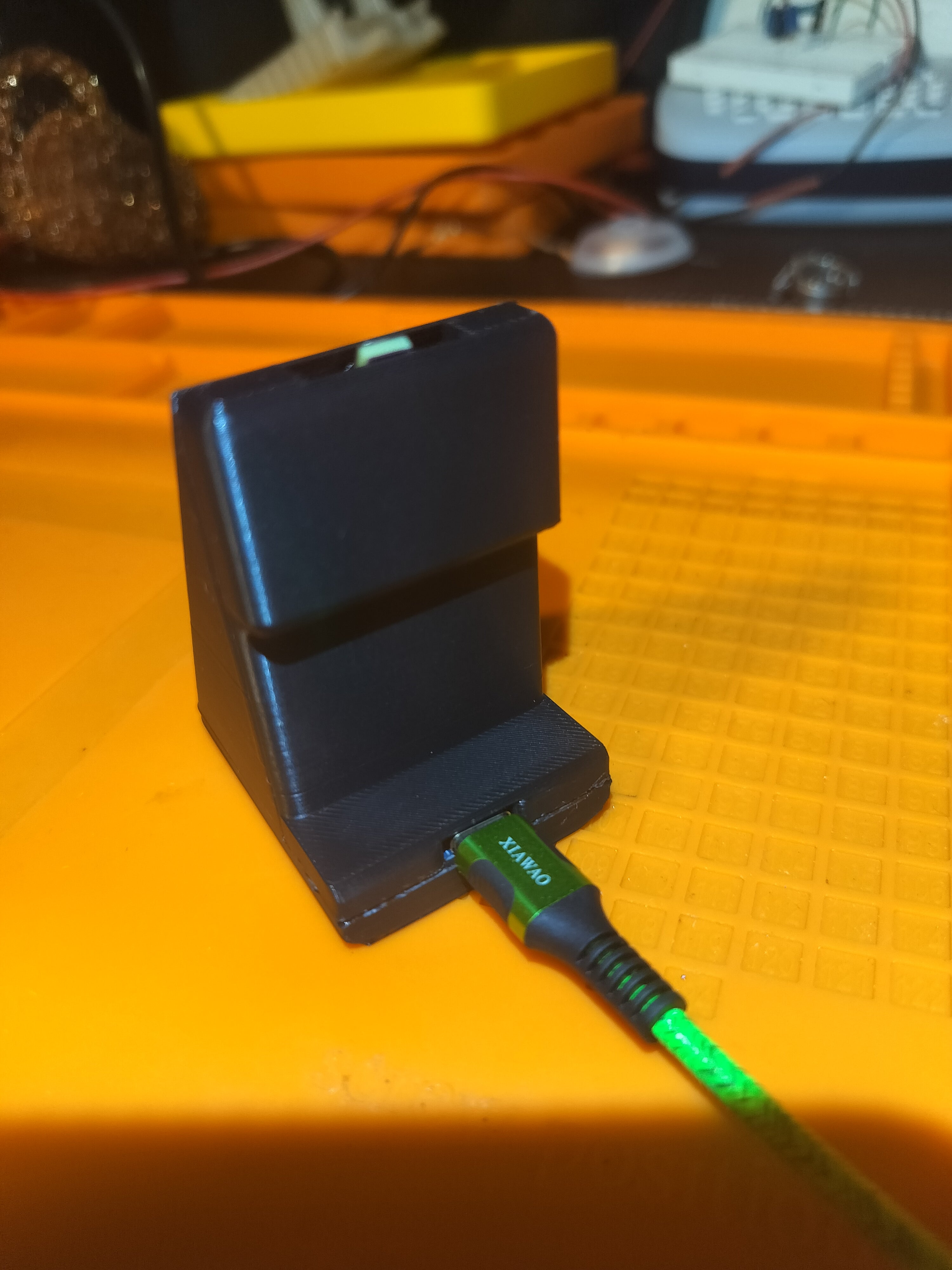

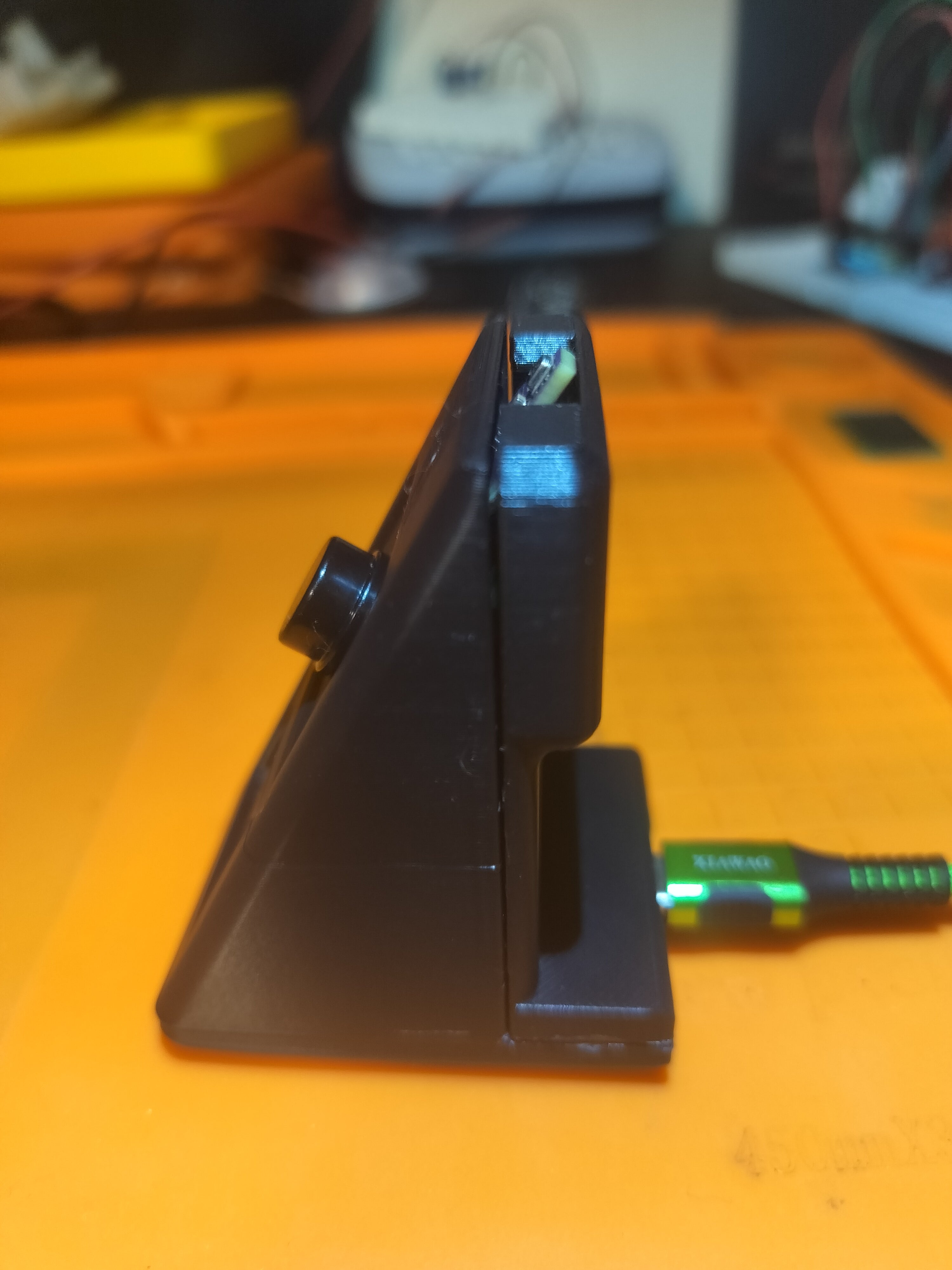

I have attached a wiring diagram and the code to be flashed via Arduino IDE. Everything gets soldered on to a breakout PCB board - minus the arduino. Then solder wires from the breakout board to the nano.Once assembled everything just slides into place and the 2 pieces click together with snap fittings - no glue or screws are required.
If there is any interest I will upload more detailed instructions and am happy to help if needed. Just reach out to me.
