Bambu Lab A1 Mini Spool Extender

Bambu Lab A1 Mini Spool Extender

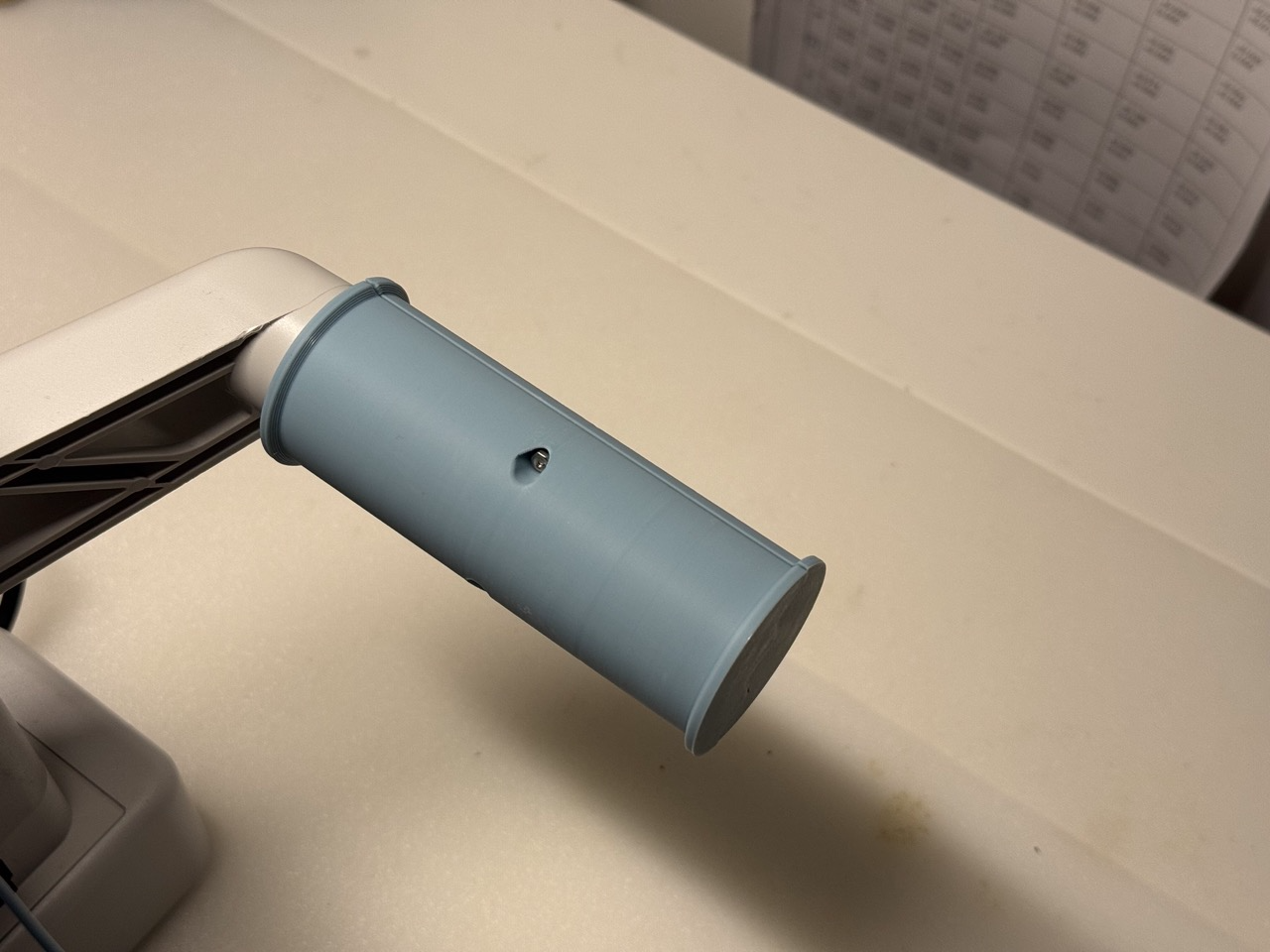

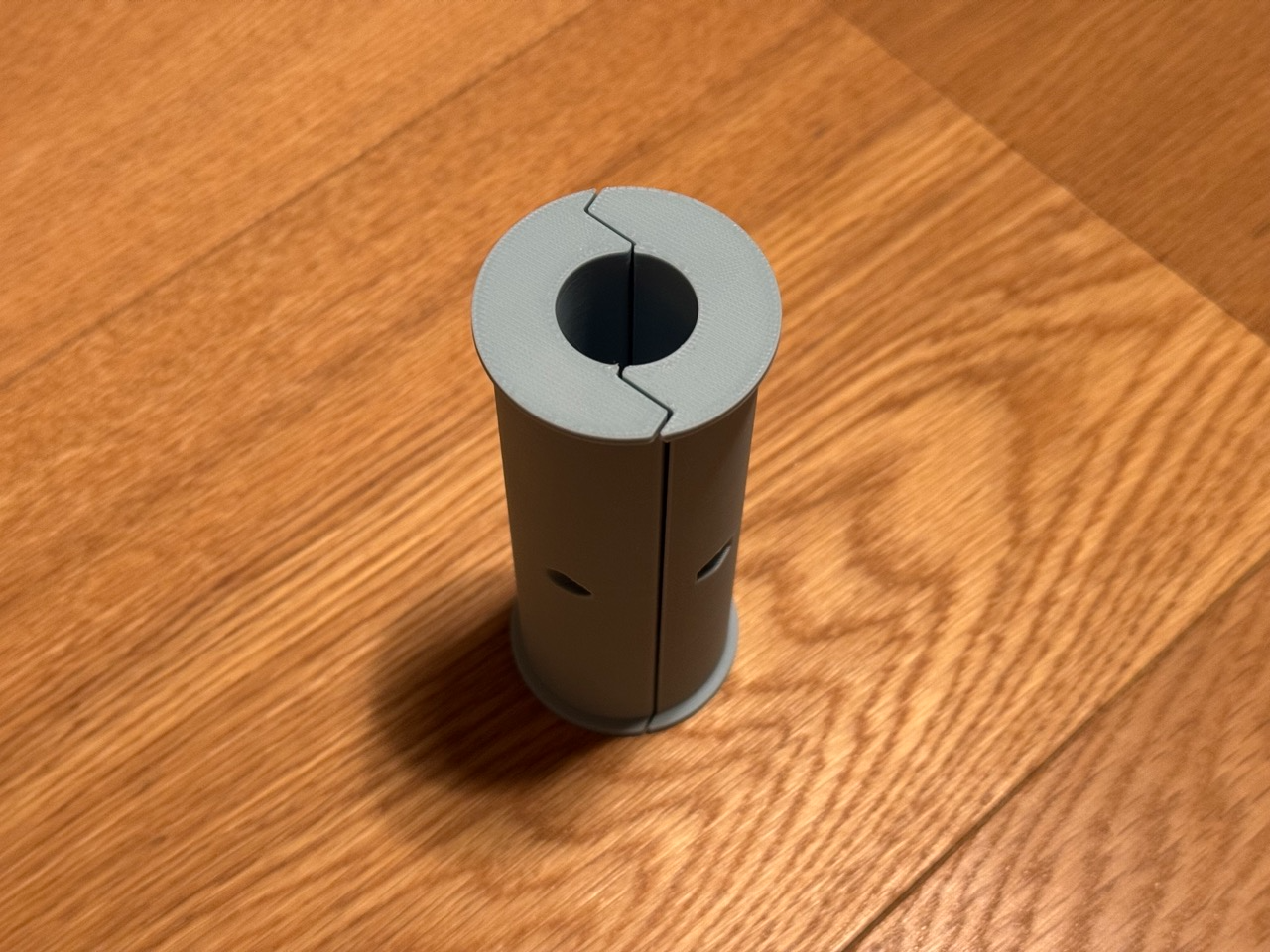

This is an attachment over the default spool holder allowing to fit bigger spools

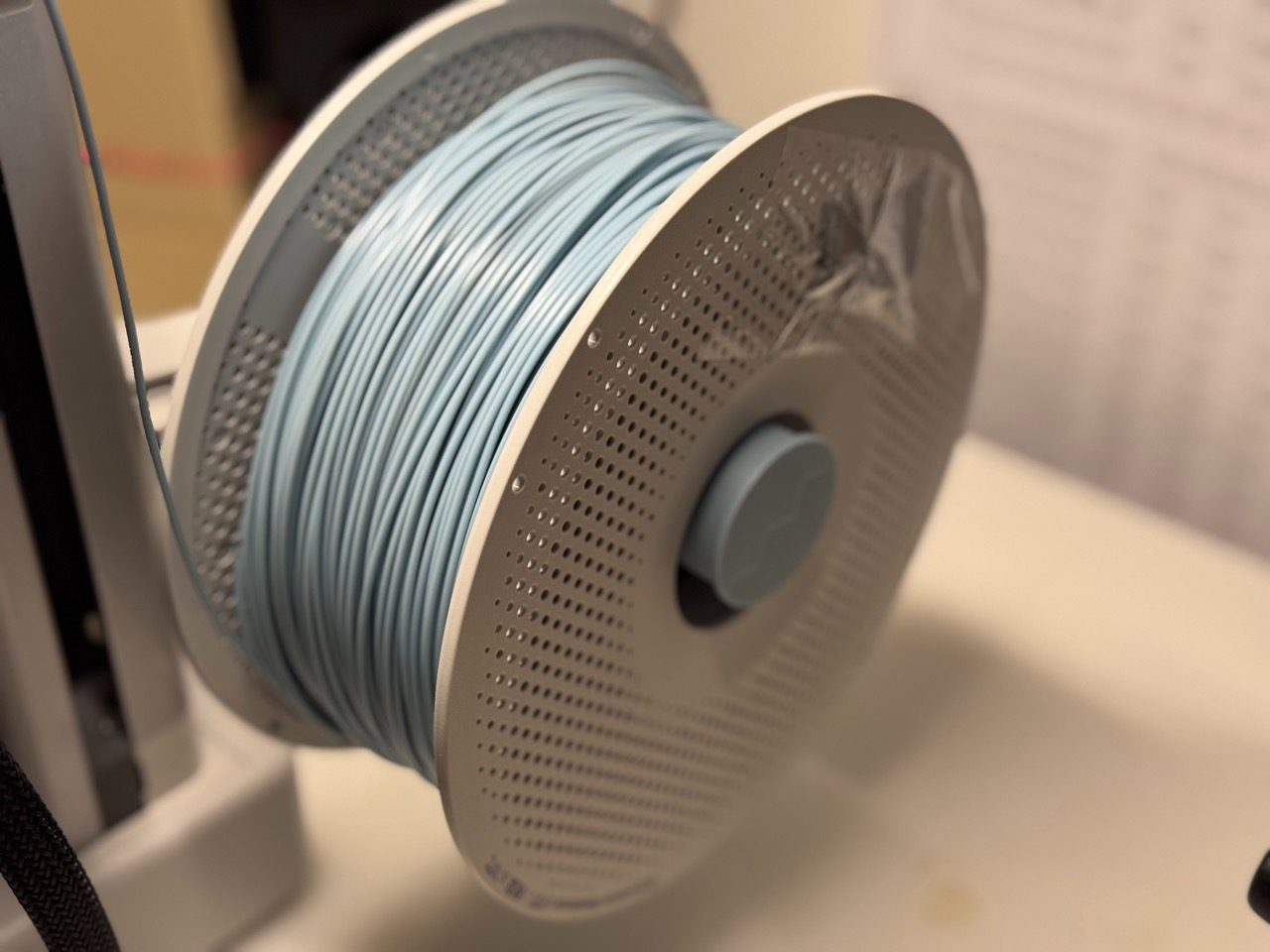

Fits spools of 100mm in width

Can be useful to mount a spool extended by a spacer

Additional parts list

• 2 x M3 10 screws + 2 x M3 nuts
• OR
• taping the parts together

Print notes

• No supports needed

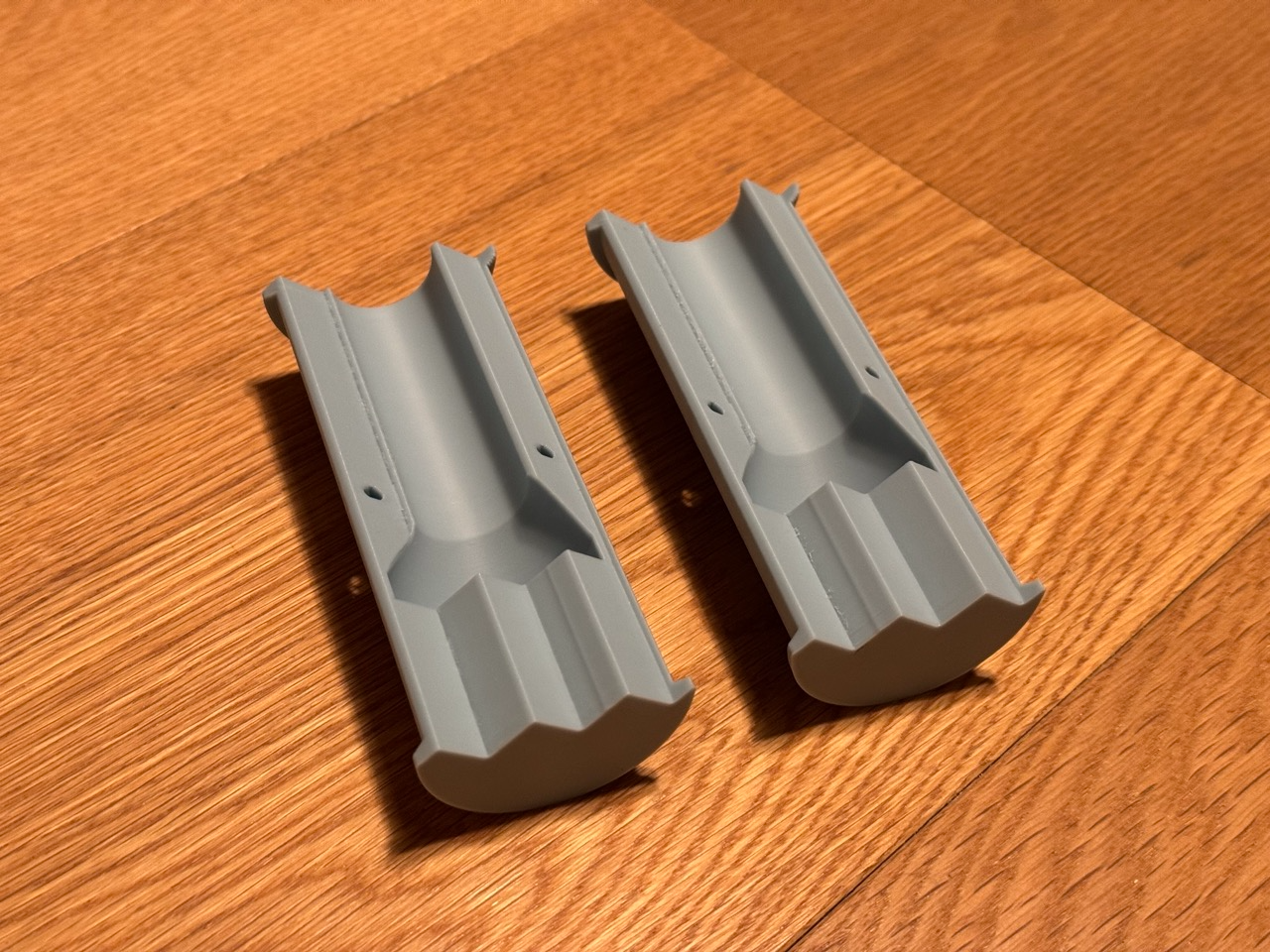

• Print in vertical position, make sure the direction is correct (drop-shaped holes are position with pointed tip up)
• Very low infill would suffice, I printed with 8% gyroid infill

Updates log

• 2025-03-20: increased sides diameter to 46mm, increased supported spool width to 100mm
• 2025-03-19: Initial version released

Support the author

The model is free to use and published under CC-BY licence, however if you want to support the model author you can do it here: BuyMeACoffee

Design by Watchmaking Planet on MakerWorld (license: BY).
