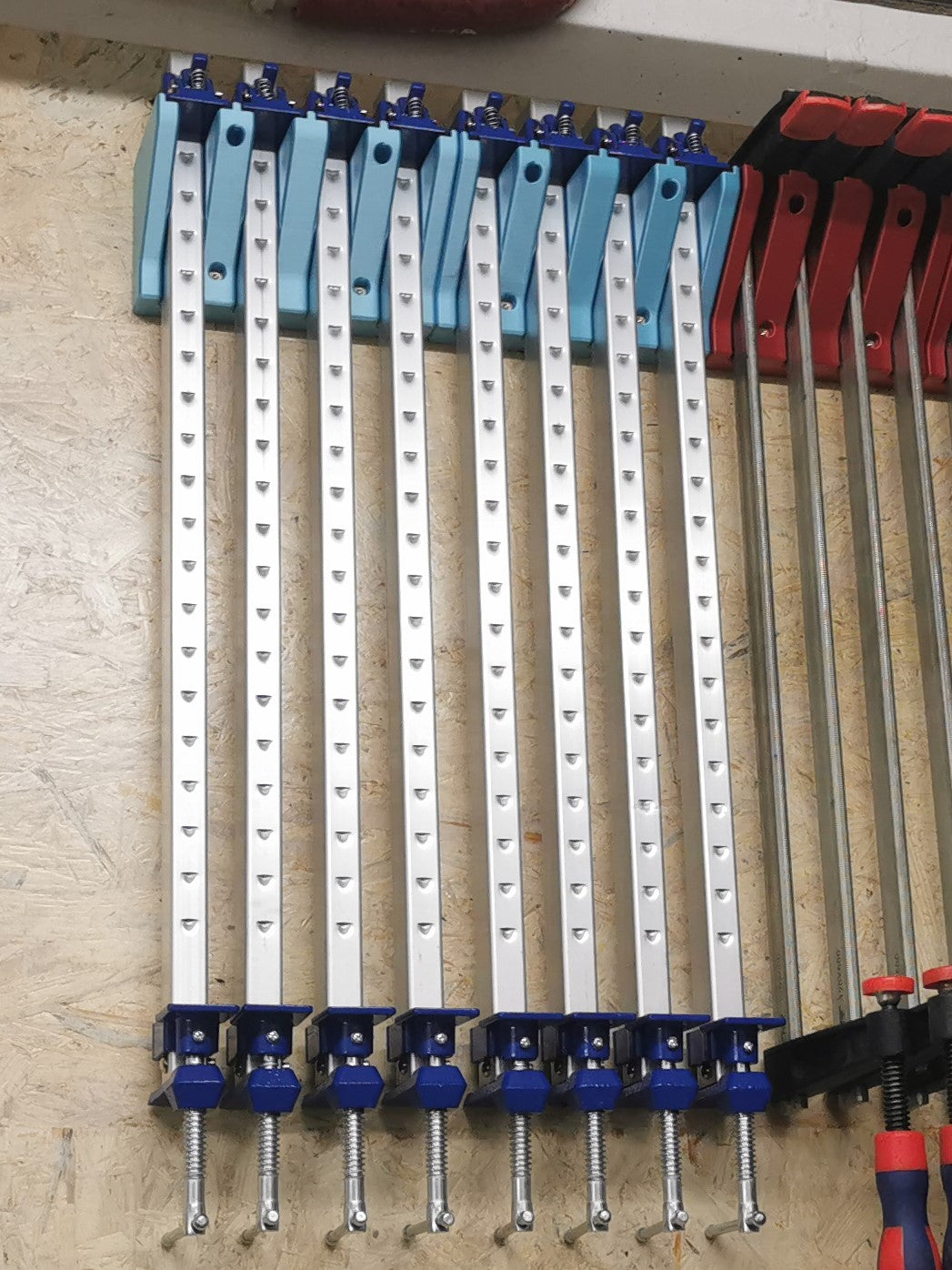

Bar Clamp Holder for Parallel Clamps or Pipe Clamp

This is a modified version of the LR2219 Compact F-Clamp Holder for Regular and Small Clamps by Lucky Resitor to allow them to be used with parallel bar clamps you find in various variants from certain vendors:

• 600 mm on Amazon
• 900 mm on Amazon
• 1200 mm on Amazon
• (affiliate Links)

What changed?

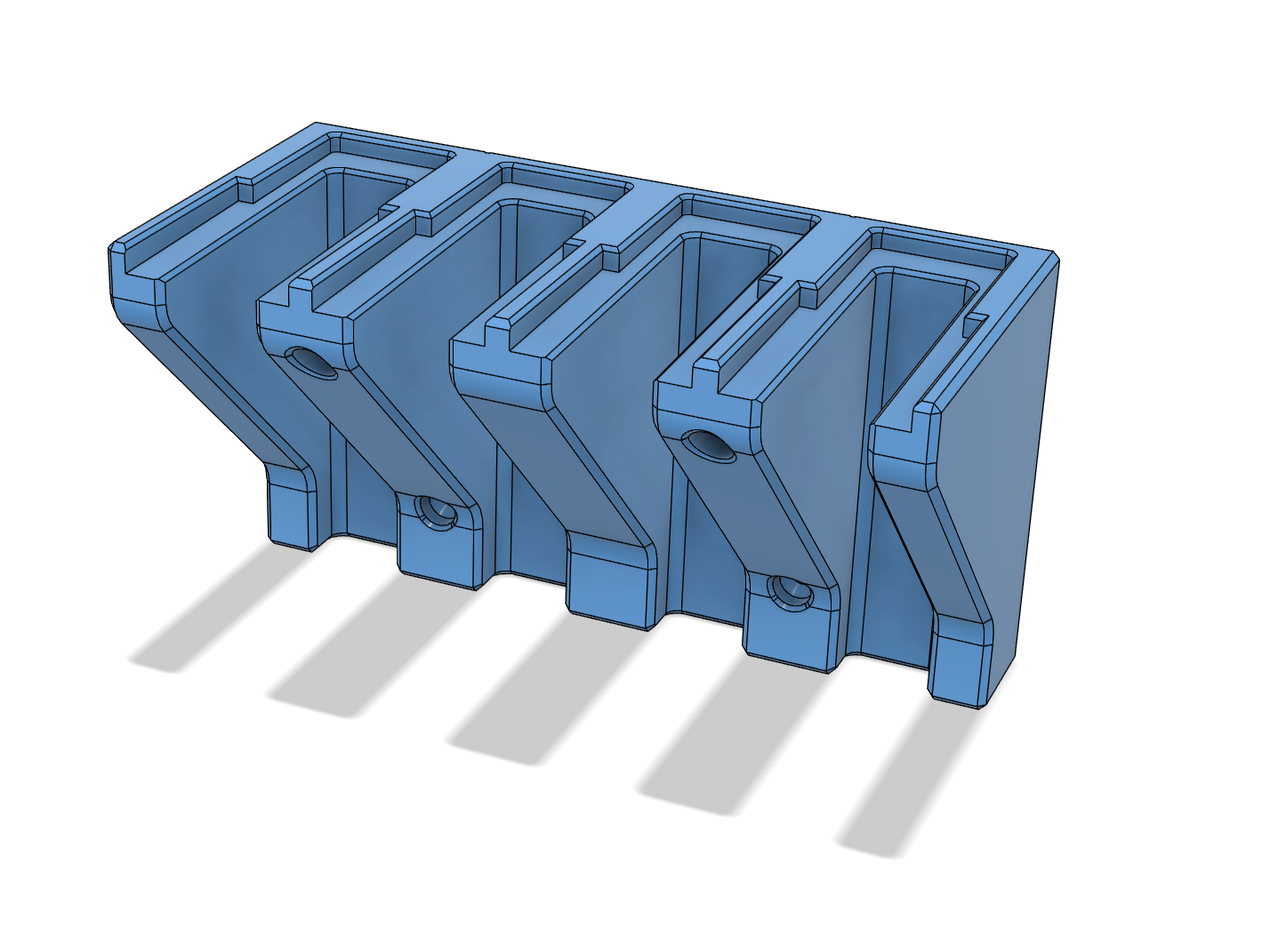

Based on f3d-file ive changed the geometry to accept the stepped bar pads, also the geometry is changed to a square-ish profile.

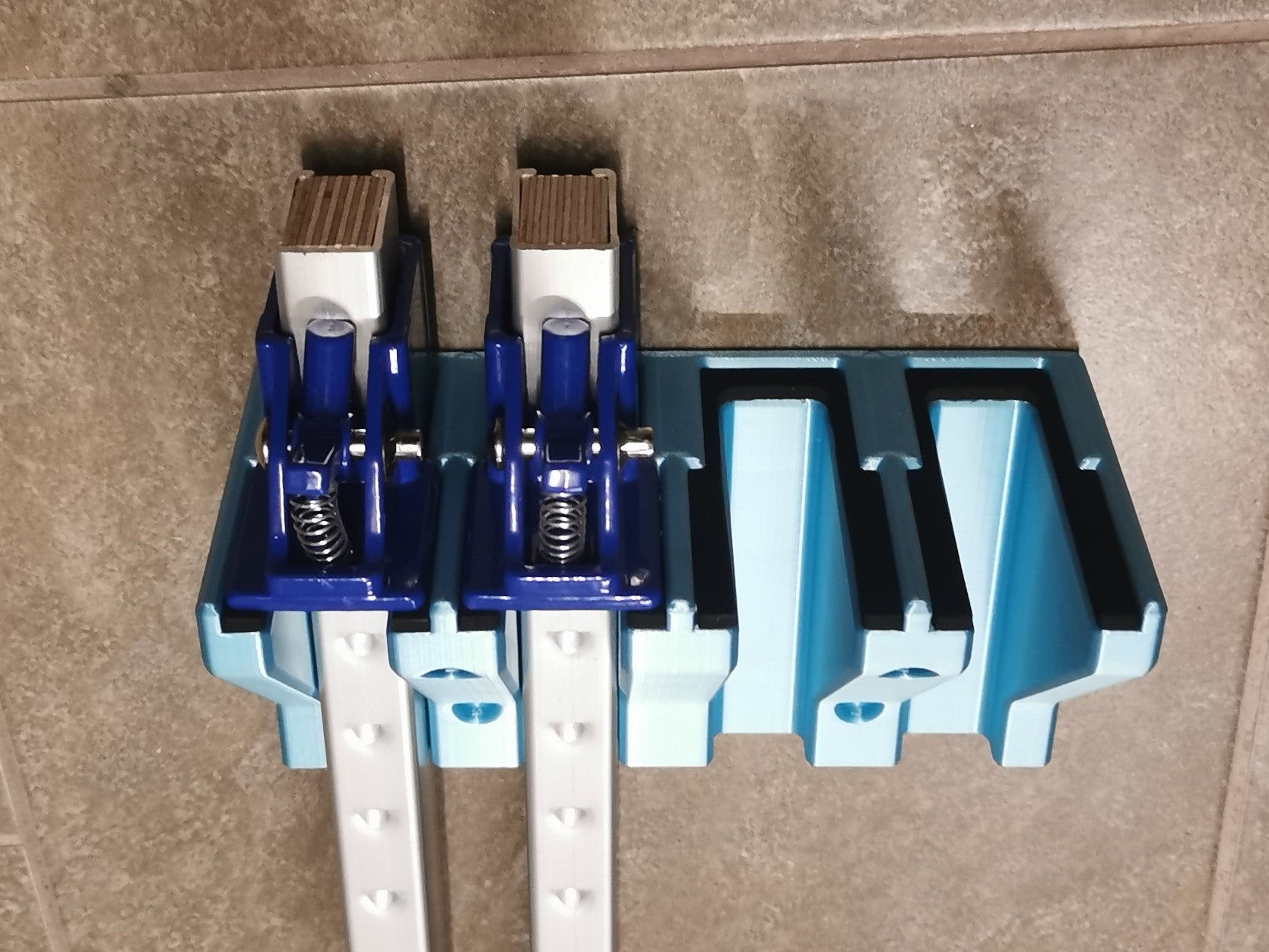

since parallel bar clamps without load are not parallel but inclined, i've also added an incline of about 1,2° to the holder and recessed it a bit more to accept an anti slip pad, so the rather lightweight aluminium clamps dont slide of due to vibration or anything like that

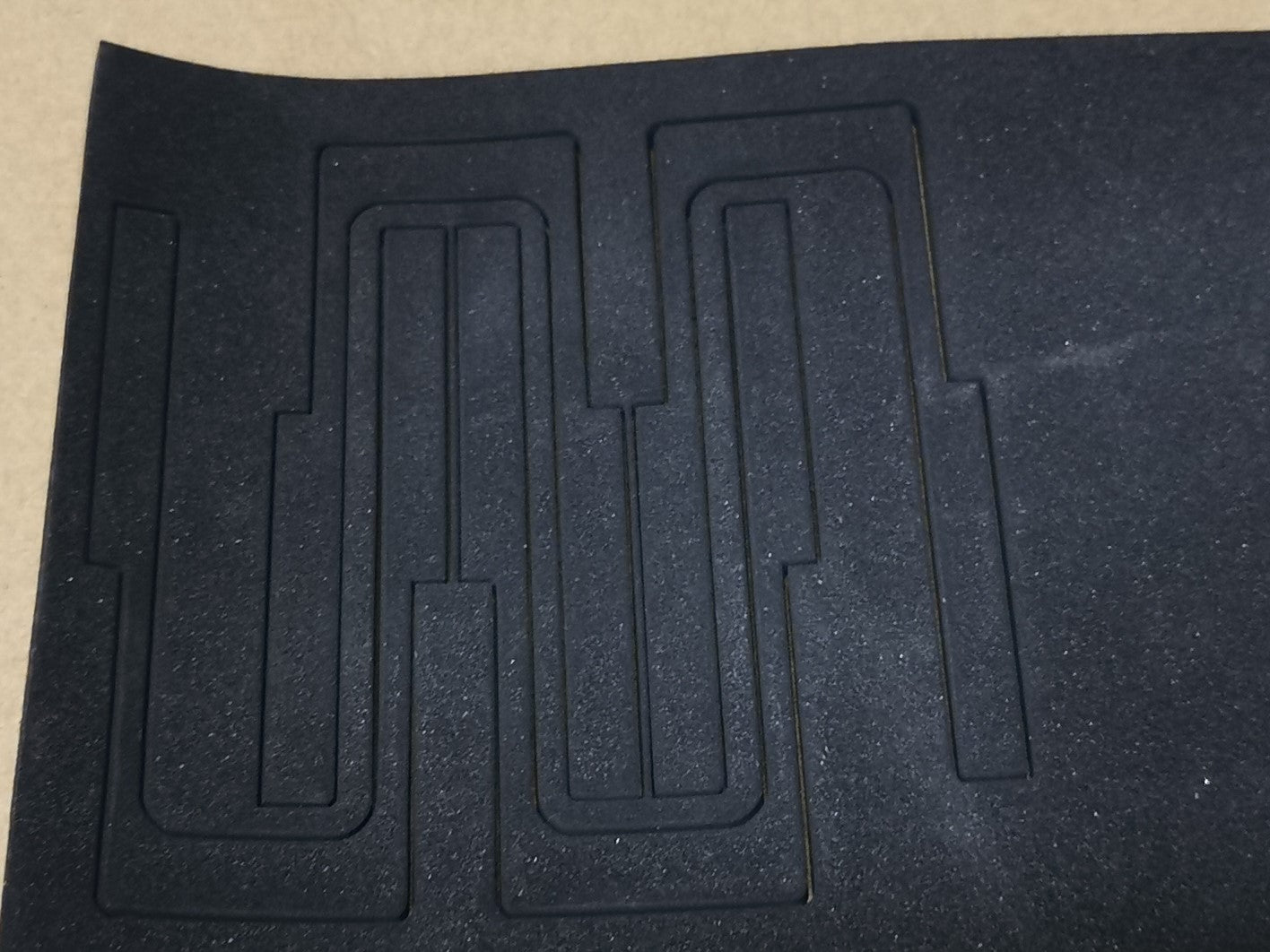

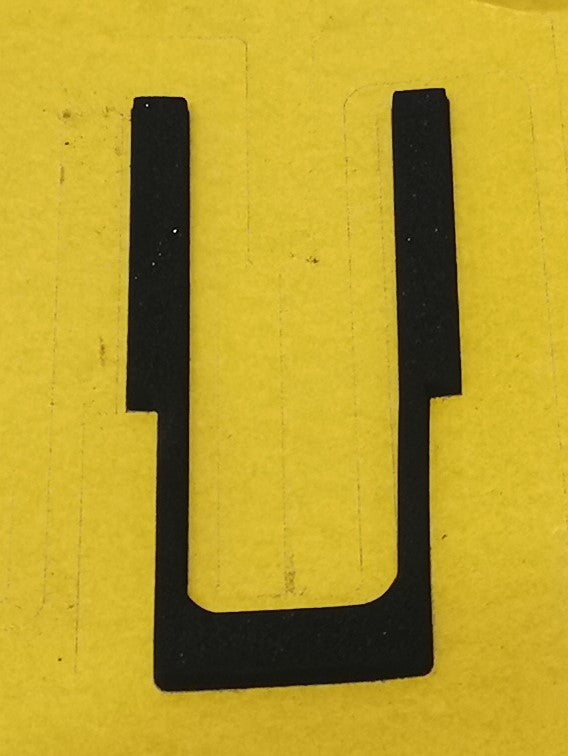

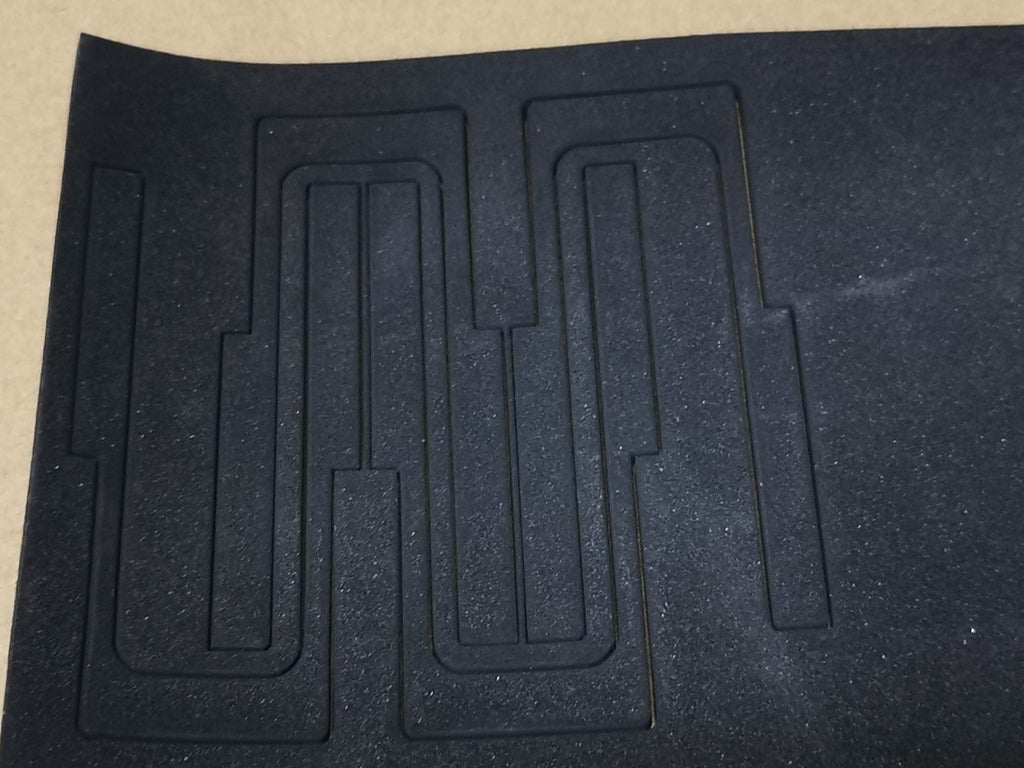

lasercut templates for 3 mm foam pads are included - if you have cork or foam directly on the clamps, then you don't need this

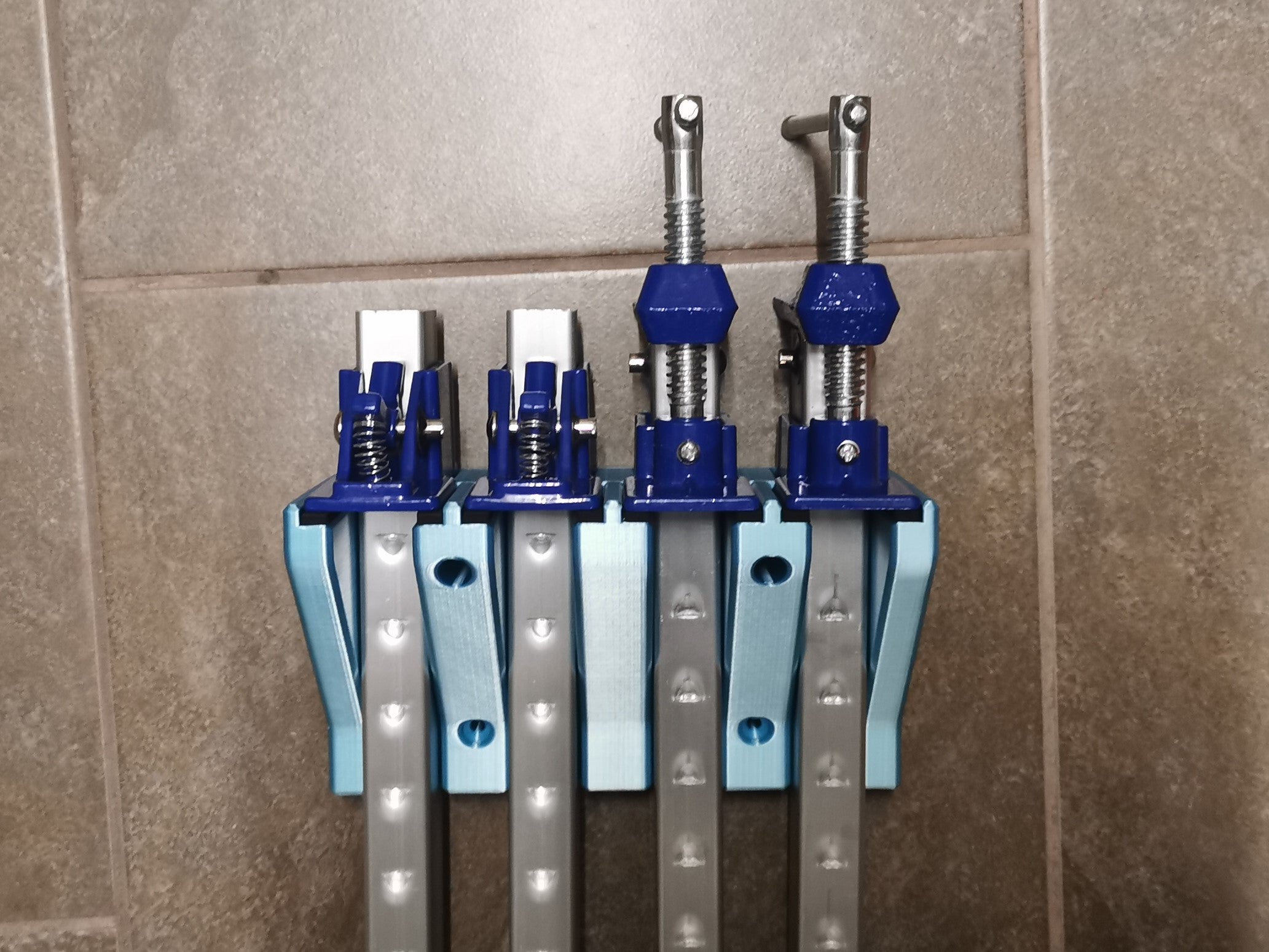

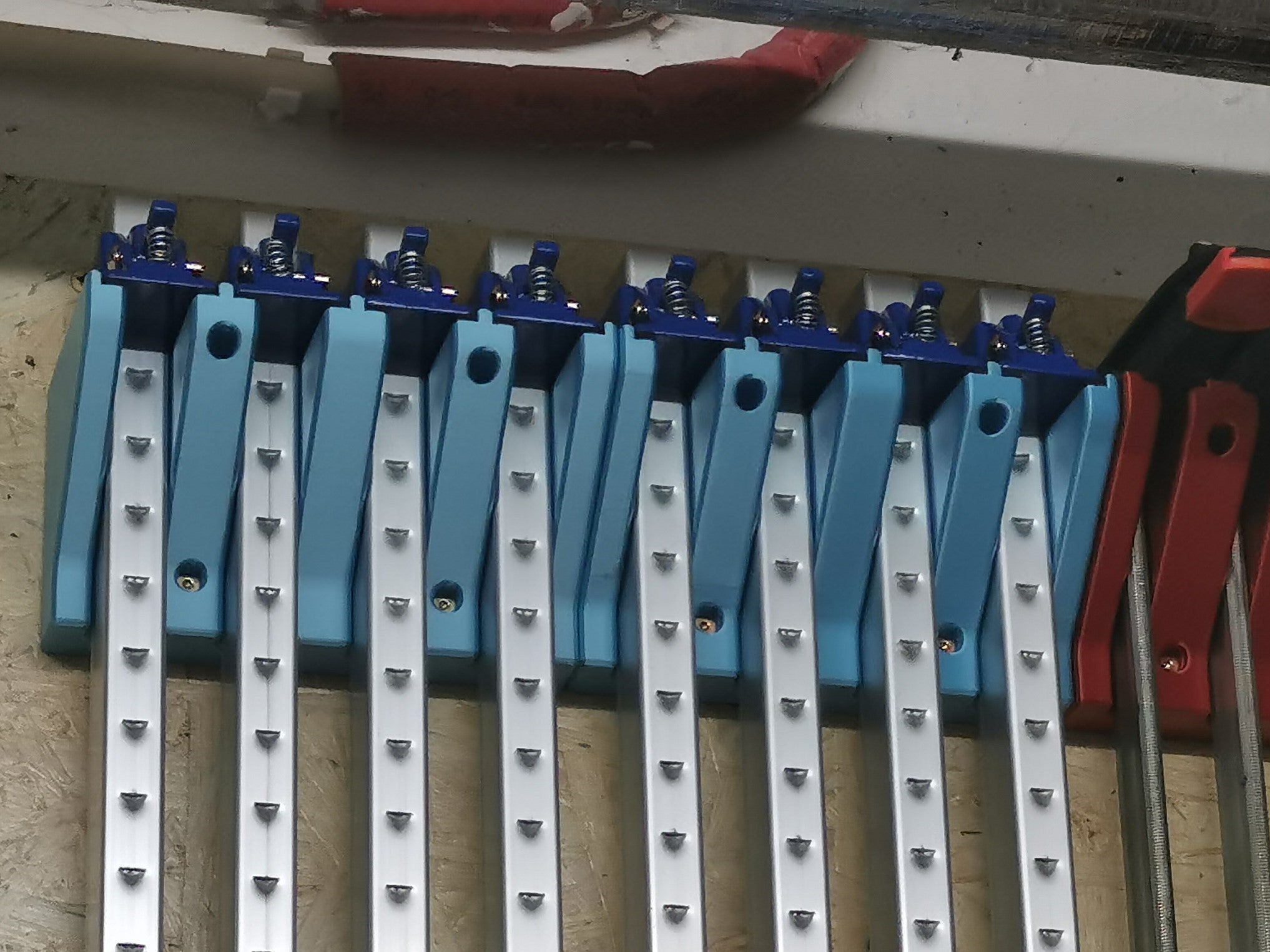

it is designed so the clamps can be hanged both ways (fixed pad up or moveable pad up)

How to print / edit etc

See the instructions over at the original Model.

i've printed mine with 3 perimeters and 20 % infill - since those clamps are very lightweight, this is probably overkill :)

Original variants by Lucky Resistor

• LR2218 Solid and Compact F-Clamp Holder for Long and Heavy Clamps
• LR2219 Compact F-Clamp Holder for Regular and Small Clamps

Design by suit1337 on MakerWorld (license: BY-SA).
