Bisley Cabinet Drawer Gridfinity Base (2 styles)

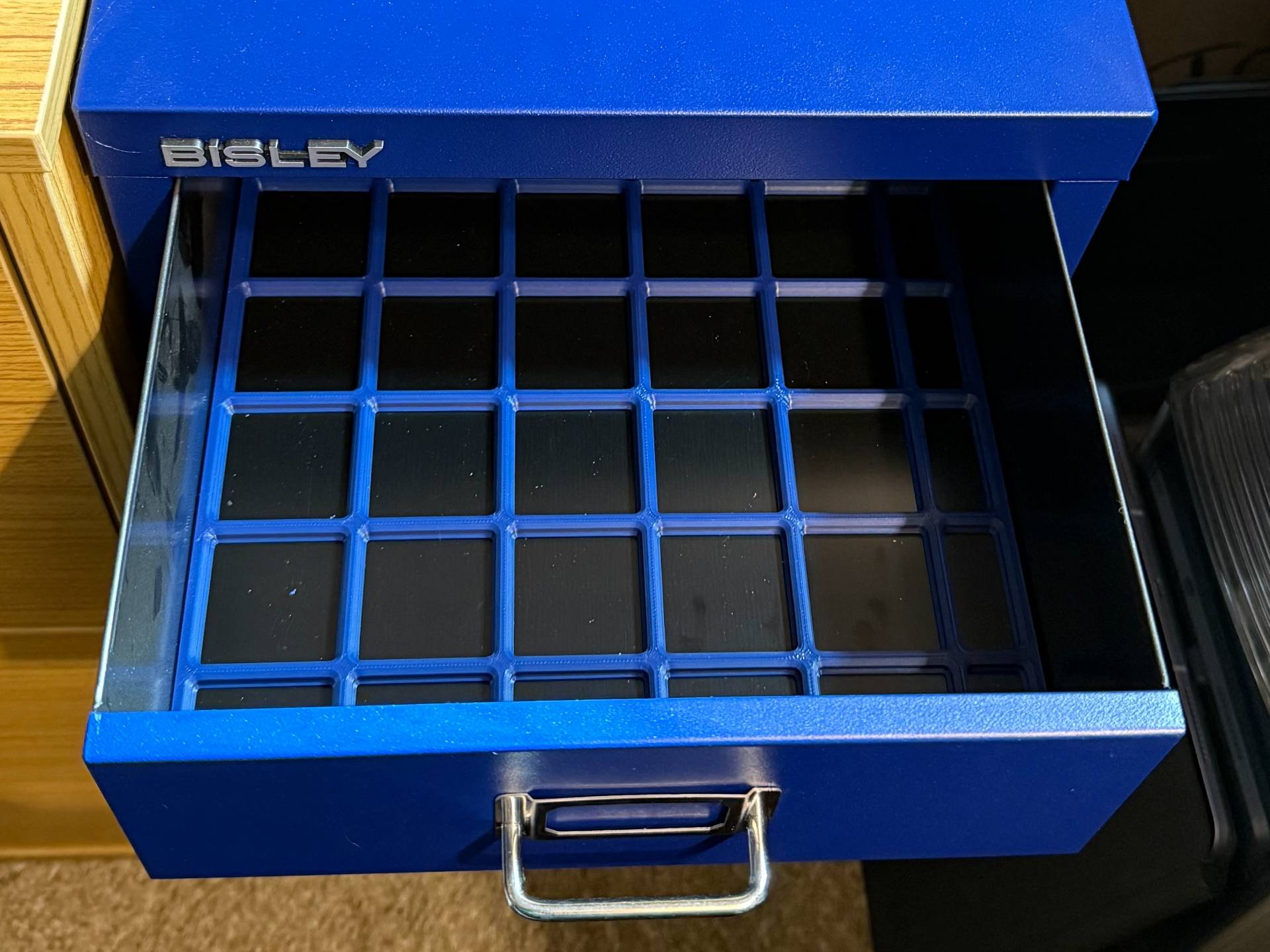

This is a pair of Gridfinity baseplates for the drawers of Bisley steel cabinets, to make it convenient to fill a Bisley cabinet with Gridfinity bins and other parts.

Provided are two styles of each plate:

• Centered, where there are extra margins around the plate to make it fit 5x8 tiles centered within the drawer.
• Fitted, where the plate is front-left aligned 5x8 regular tiles, with a row of half-unit tiles along the right and rear edges.
  • Note: you will need to use a 21mm base unit size instead of the standard 42mm in order to fit any Gridfinity parts in the extra row/column.

The front and back plates for a given style interlock to fill a complete drawer.

Together, the front and back take a bit less than 3h to print.

Design by Mikey Ward on MakerWorld (license: CC0).
