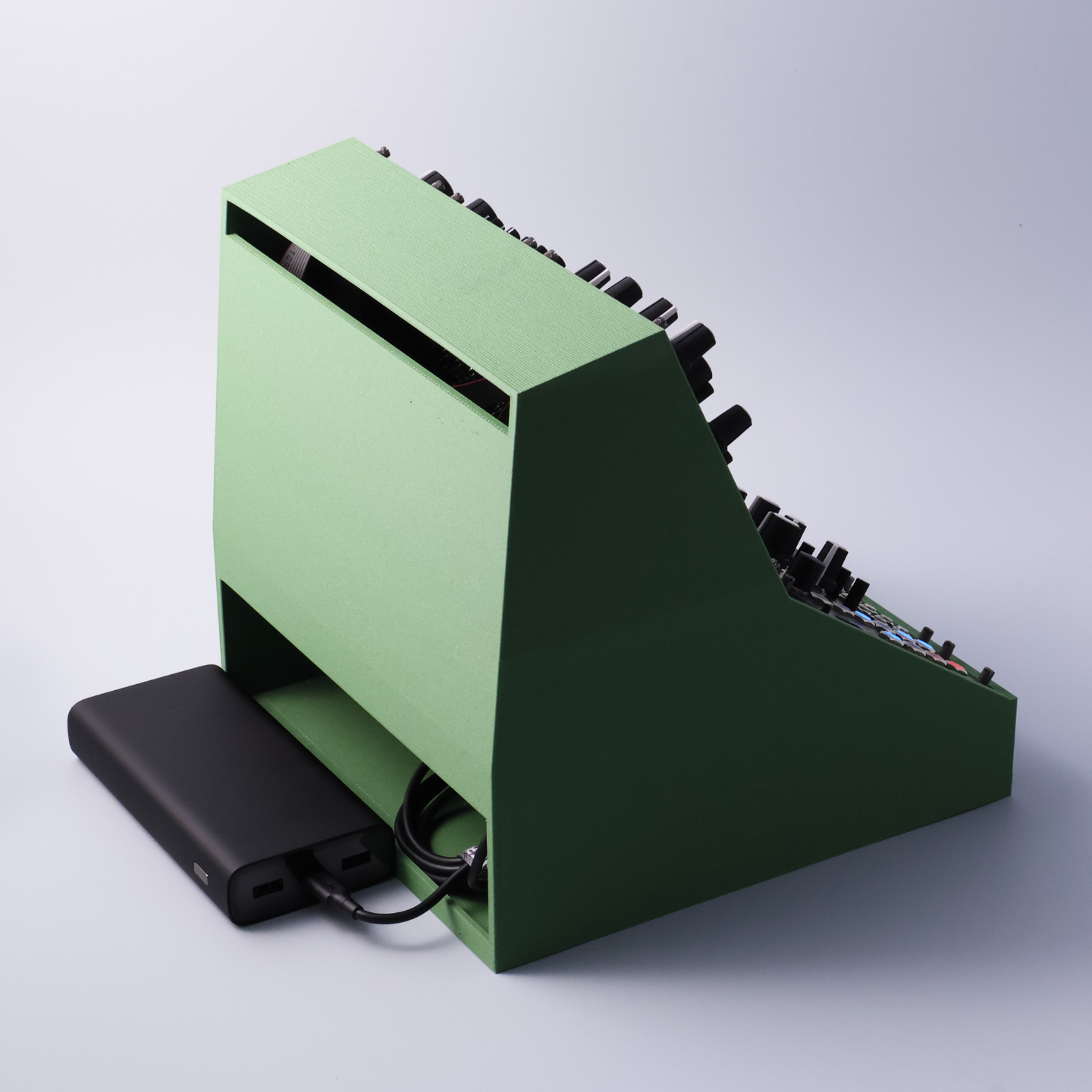

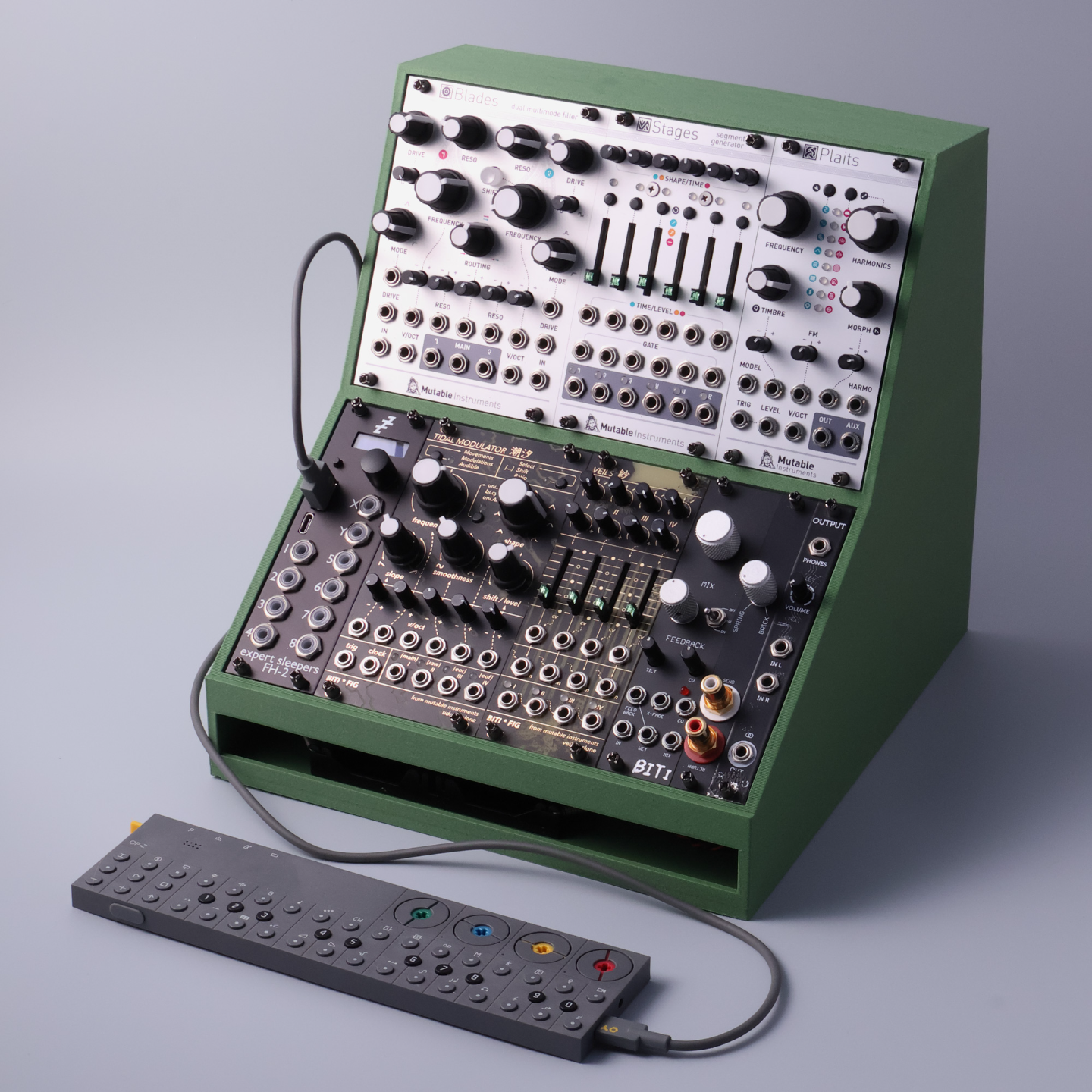

biti workshop tiny_rack eurorack synthesizer case 2x44hp (powered)

tiny_rack is a eurorack rack project for DIYer with just starting DIY eurorack modular synthesizers.

See full project (with power pcb) here: https://github.com/KevinKeWang/tiny_rack

• One-piece 3D printed, no splicing, no metal rails required.
• Maximum current: +12V 1500mA, -12V 1500mA, +5V 6500mA.
• Optional +3.3V 500mA for easy project prototyping.
• Full load tested.
• The +12V and -12V output ripple is less than 100mV under all load conditions.
• Exposed M3 screw terminals for direct connection to the test power supply. Clamps can be directly.

Design by KevinKeWang on MakerWorld (license: BY-SA).
