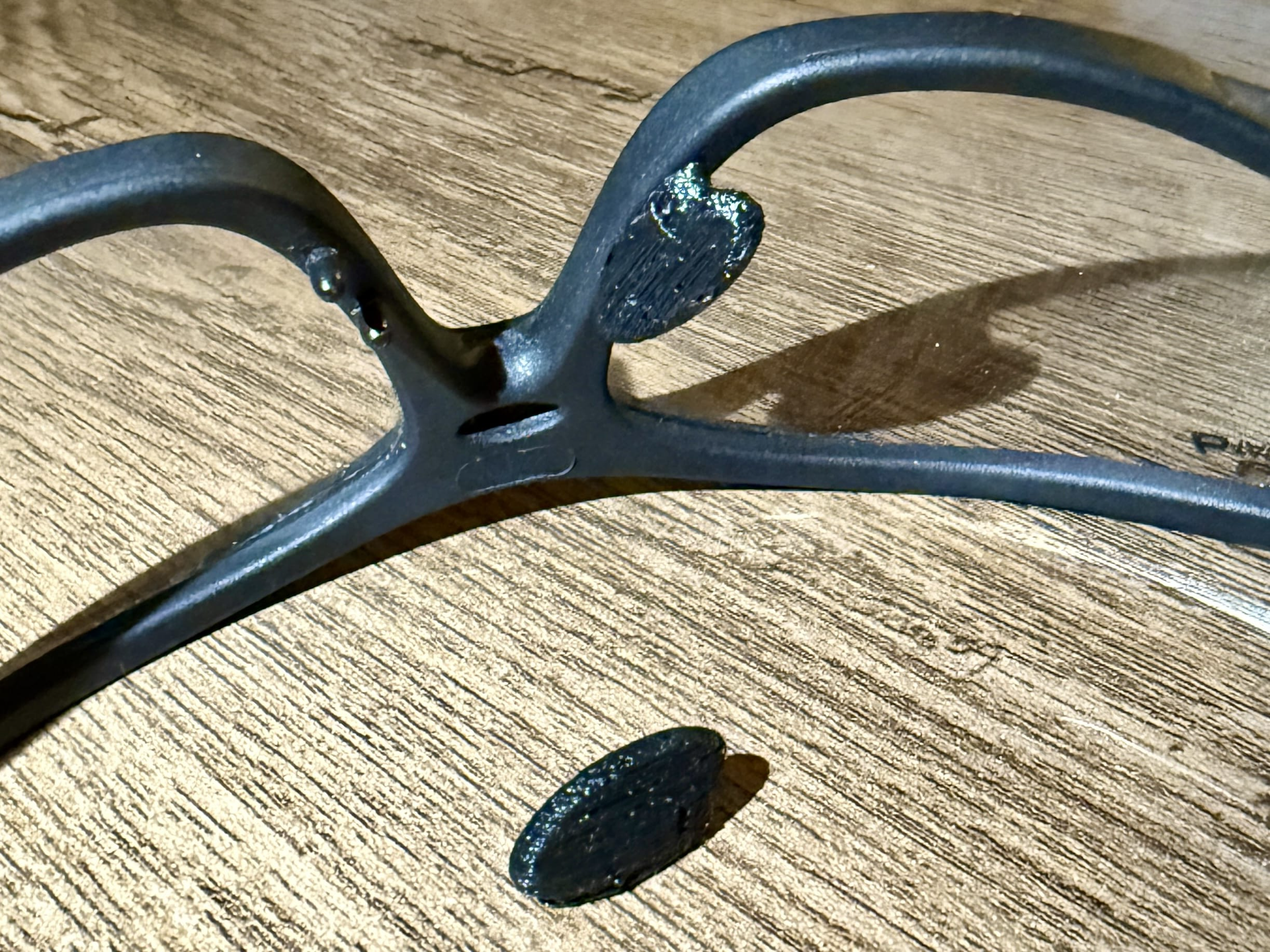

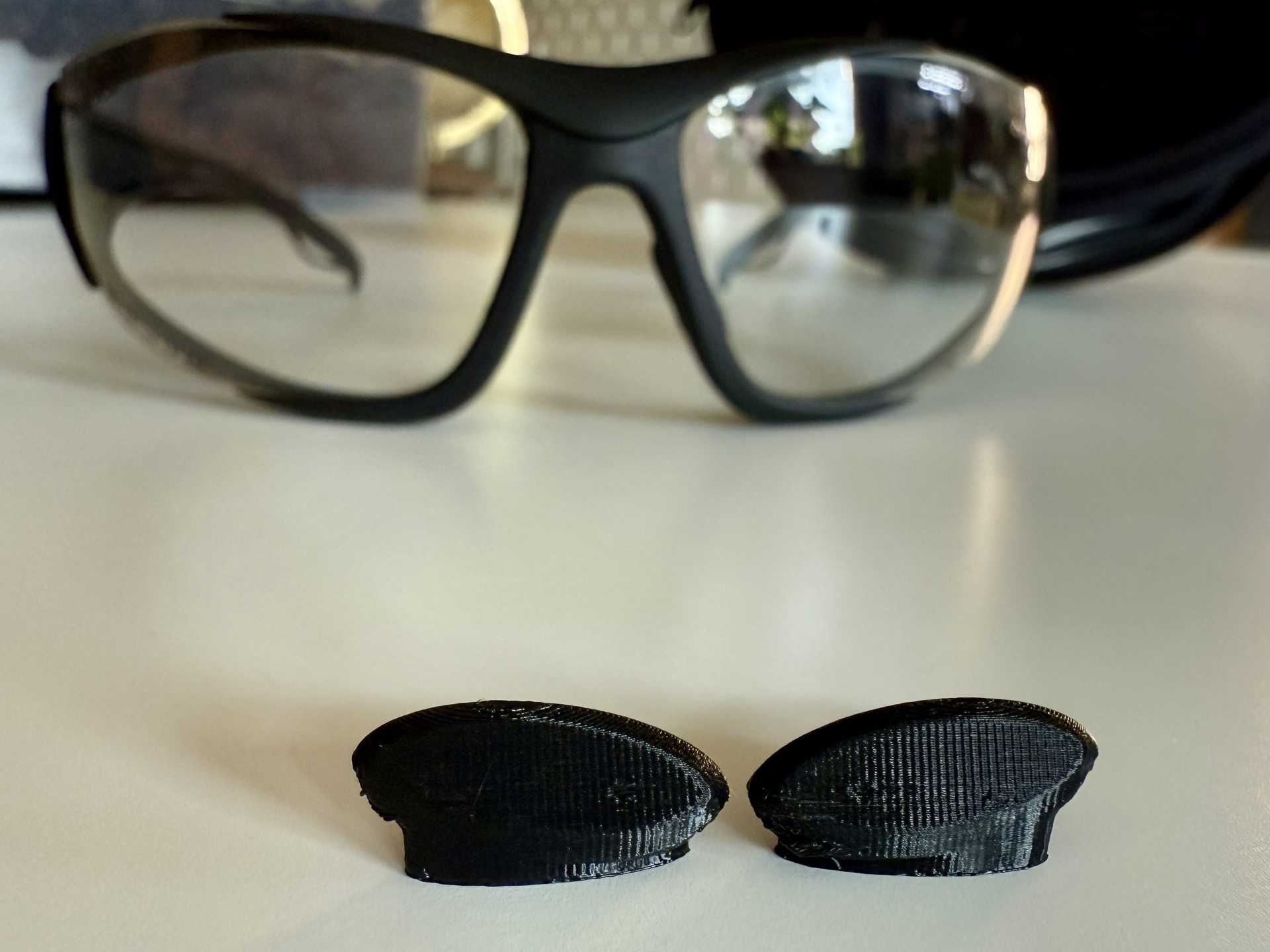

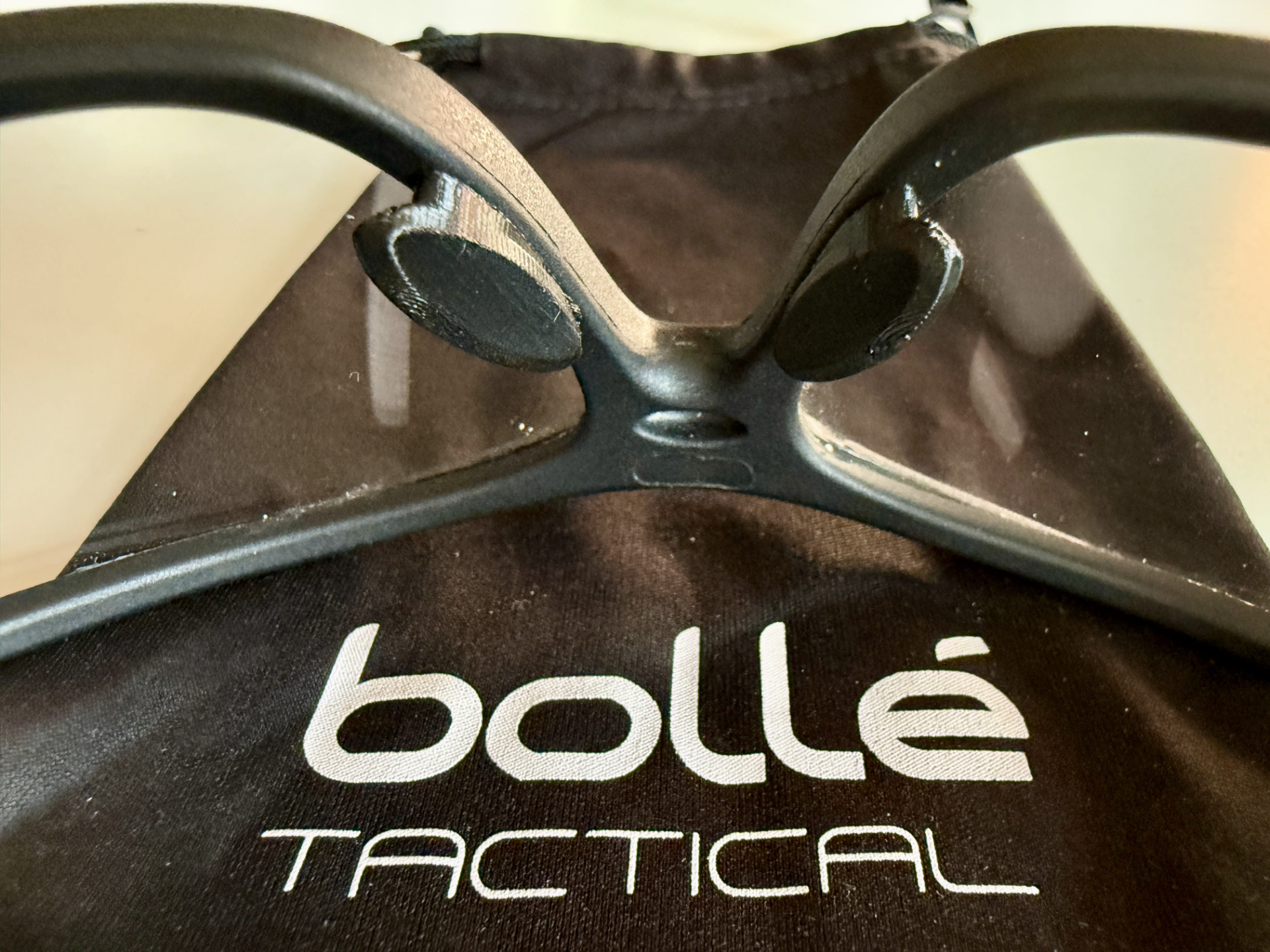

Bollé Rogue tactical goggles replacement nose pad

Replacement nose pad for discontinued model of tactical goggles, cannot be bought anymore (even the manufacturer doesn't produce replacement parts)

• Printed from TPU on low speed, with ultra high quality settings
• If you need both left and right, just mirror the model in the slicer along the X axis.
• When printing both, I highly recommend to set Print sequence to “By object” to avoid stringing between the parts.
• Print standing on the bottom part with the holes, no supports needed, only used brim.
• Dry your TPU before print

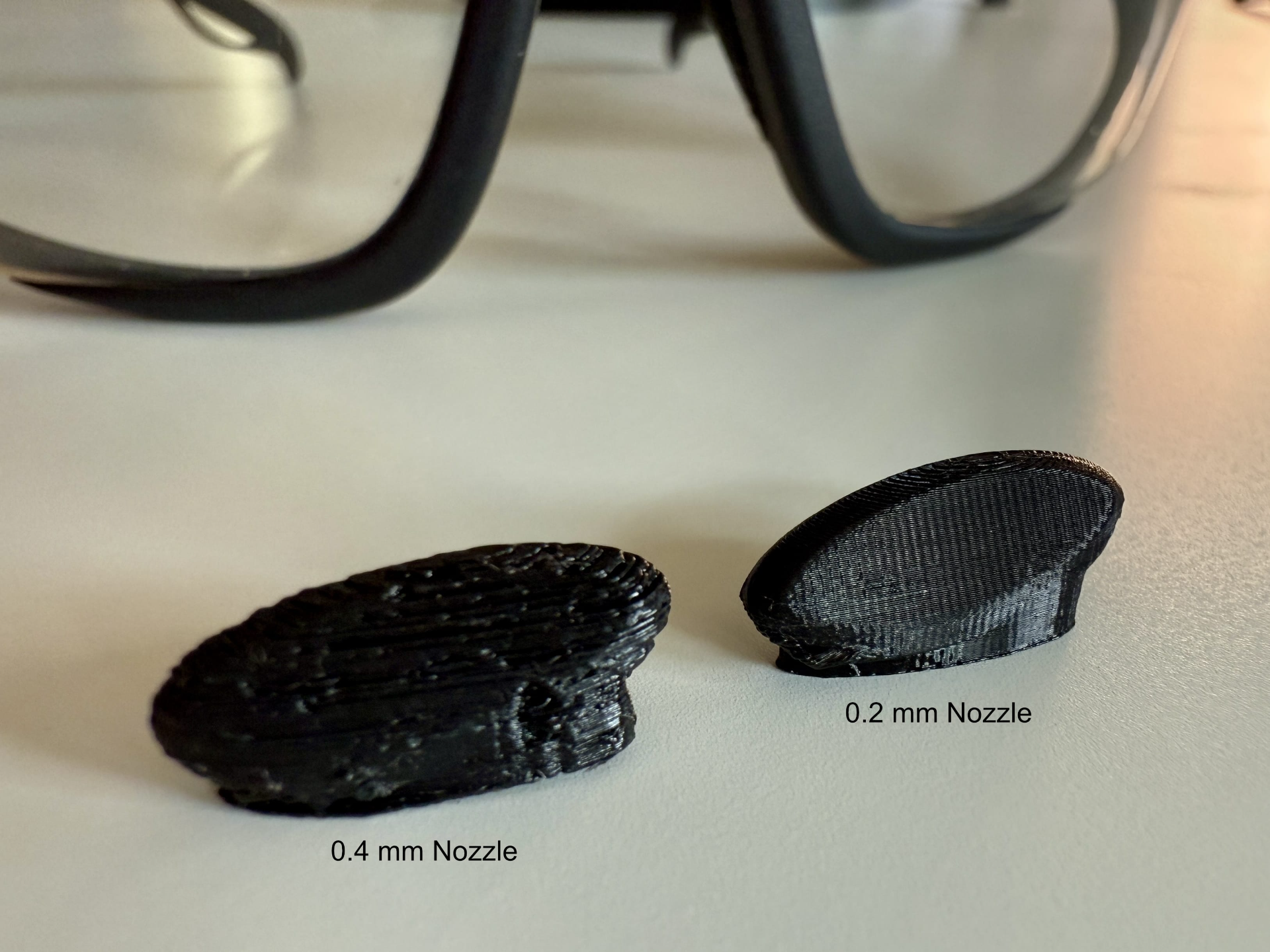

Print with 0.4 mm Nozzle:

• 0.08 mm Layer height
• Only 1-2 walls
• 15% Gyroid infill
• Snug fit - doesn't need glue

Experimental (not recommended as default) Print with 0.2 mm Nozzle:

• 0.06 mm Layer height
• Speed only 10 (Initial layer) - 20 mm/s (Other layers) + slow down for overhangs to half
• travel speed 80 mm/s
• Outer Brim with 0.2mm gap
• Print sequence By object (when printing 2 pieces)
• 3-4 Wall loops
• 5 Top and Bottom shell layers
• 0% infill
• 5% up Flow ration
• Nozzle temperature 205 C (210 C for first layer)
• Bed temperature 55 C (60 C for first layer)
• Fan speed 30 - 60 %
• Retraction speed 20 mm/s
• Retraction length 0.8 mm
• Z-hop 0 mm
• Would probably need a drop of glue to stay safely attached

⚠️ This setting is tested with SUNLU TPU 95A, if you use any other, some settings may need adjustment.

Design by Turbopstros on MakerWorld (license: BY).
