Braille D&D Dice Set

Braille D&D dice set

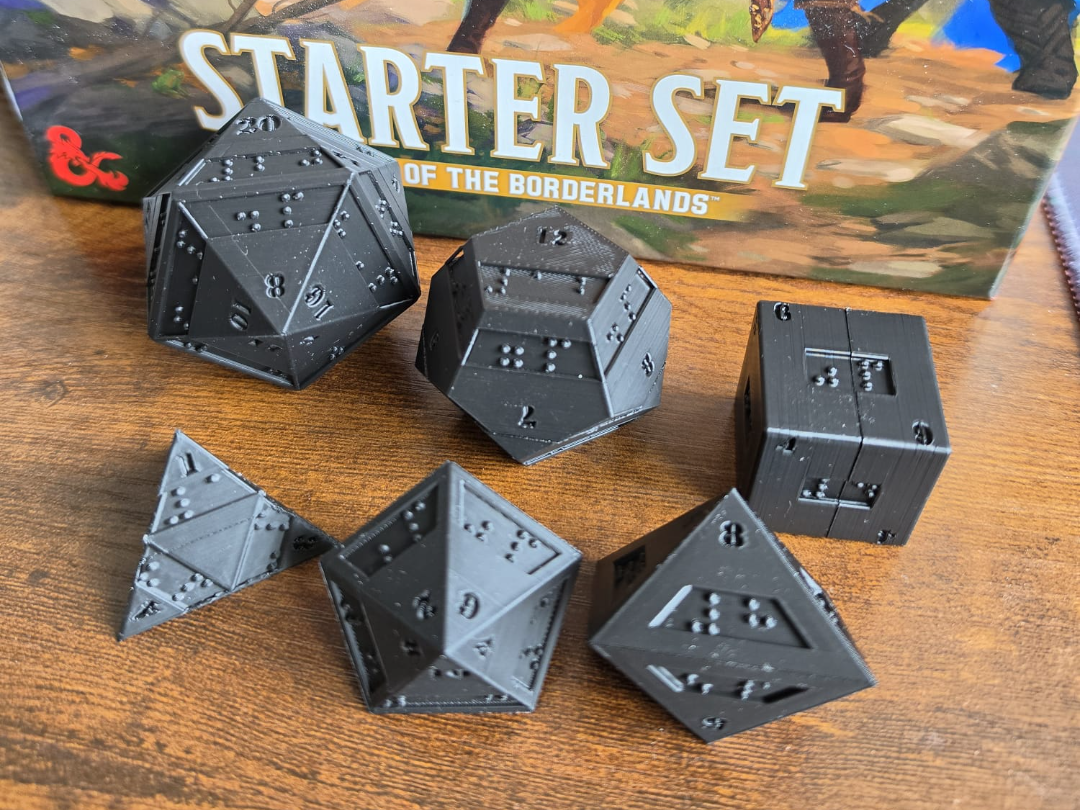

This is a remix of a fully 3D-printable Braille D&D dice set, redesigned to minimize supports and preserve a clean, smooth surface for better tactile readability.

The original model requires supports that can leave surface marks - problematic for Braille dice where feel is critical. In this version, each die is split into two parts that print with little to no support. The halves are then assembled using a printed connector and glue.

Features:

• Minimal-support printing for cleaner surfaces (only small support needed inside the connector hole)
• Improved tactile quality for Braille readability
• Two-part design for all dice (D4, D6, D8, D10, D12, D20)
• Includes connector pins for easy alignment and stronger assembly

Printing:

• Includes two print profiles:
  • 0.20mm standard quality (faster)
  • 0.12mm fine quality (better detail, especially for Braille)

Assembly:

• Print both halves, insert connector, and glue together
• Alignment Guide - For standard numbering convention, align the two halves so that opposite faces sum to the maximum value + 1:
  • D20 - opposite faces sum to 21
  • D12 - opposite faces sum to 13
  • D8 - opposite faces sum to 9
  • D6 - opposite faces sum to 7
  • D10 and D4 do not have true opposite faces, so there is no incorrect way to connect them.

Credits to the original designer (Lippo1234) and Braille standards from the Braille Authority of North America.

Happy printing and rolling!

Design by Lior Slor on MakerWorld (license: BY-SA).
