Bushing for Home Gym (Proteus Studio 5)

A replacement for the metal bushings found in Proteus Studio 5 home gyms.

These bushings fit into a circular hole with a flat side (to prevent it from spinning / locking it into place.)

This was the first model I created from scratch using Fusion. I broke-out my calipers for this one, folks!

Some of the key dimensions:

• Outside diameter of the flat, big circle: 1 inch (25.4 mm)
• Diameter of the hole (inside): 14 mm
• Diameter of the circle with the flat side: 21.5 mm

Printed in PA6-CF (carbon fiber reinforced Nylon filament) for strength and hopefully longevity.

Feel free to change the number of walls / infill level for added strength.

Description of the photos:

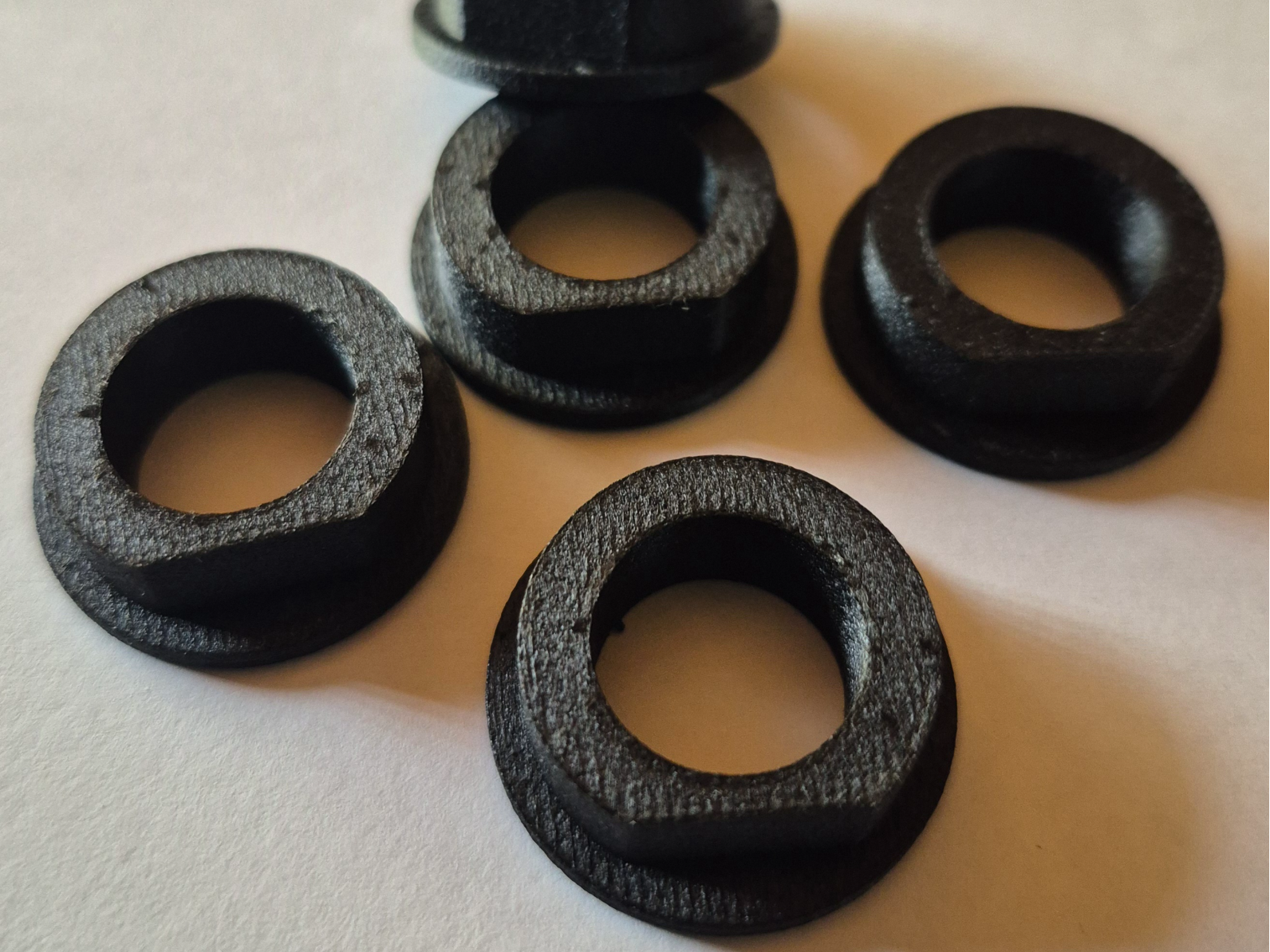

• Cover photo - 5 bushings printed in Bambu PA6-CF filament.

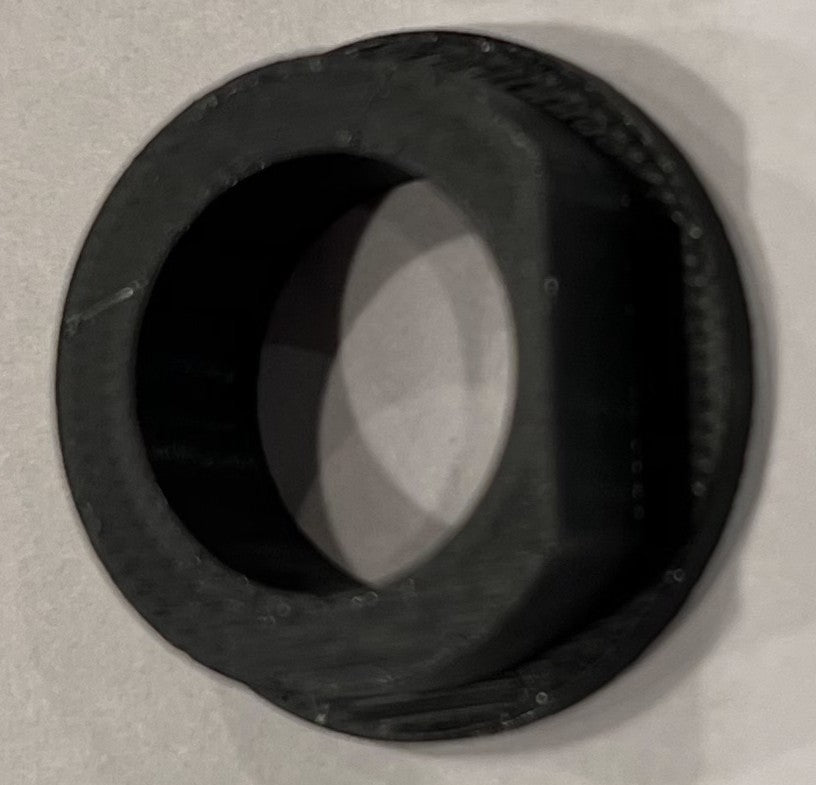

• A single bushing.

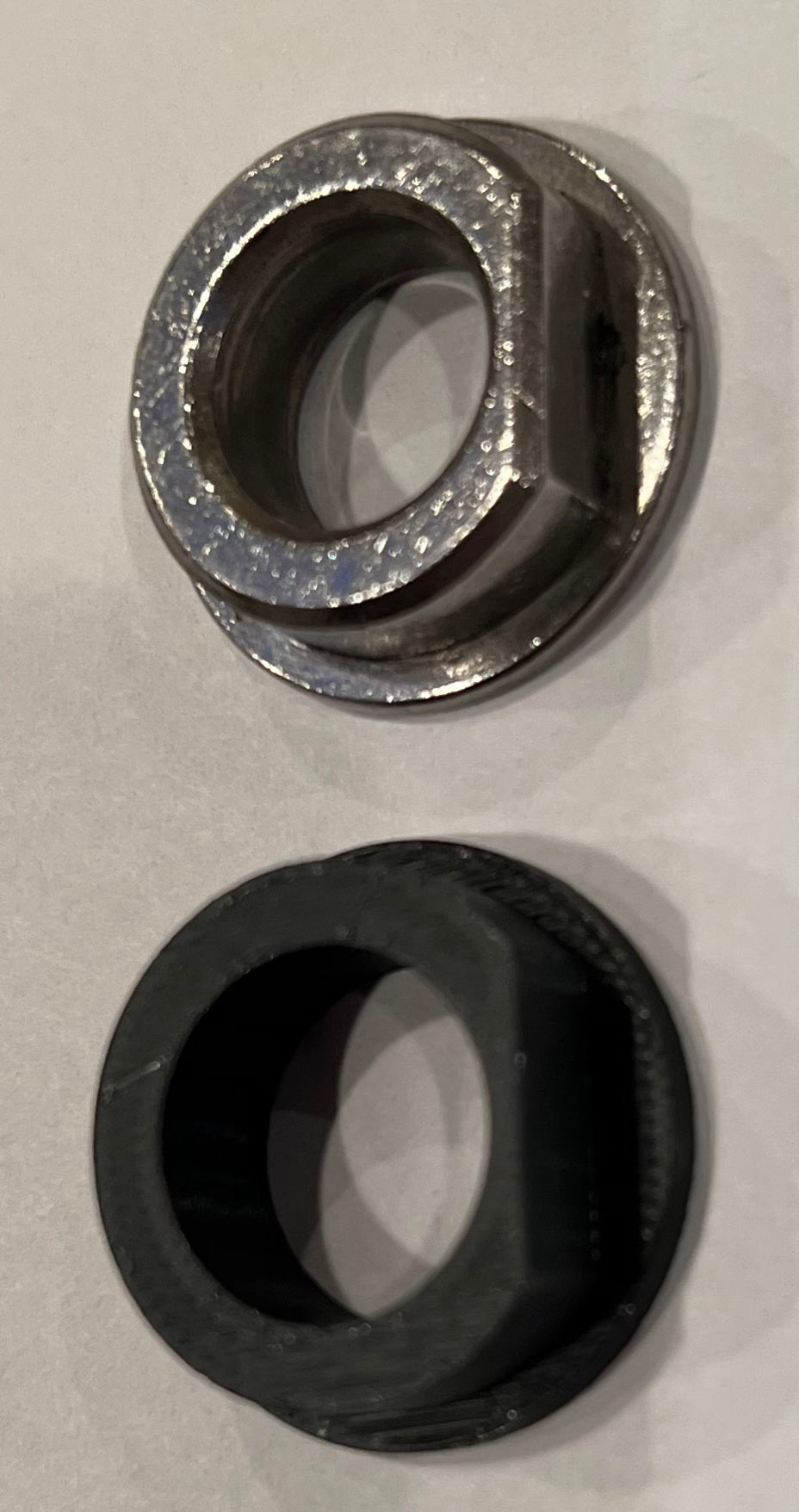

• The original, metal bushing and a new PA6-CF printed copy.

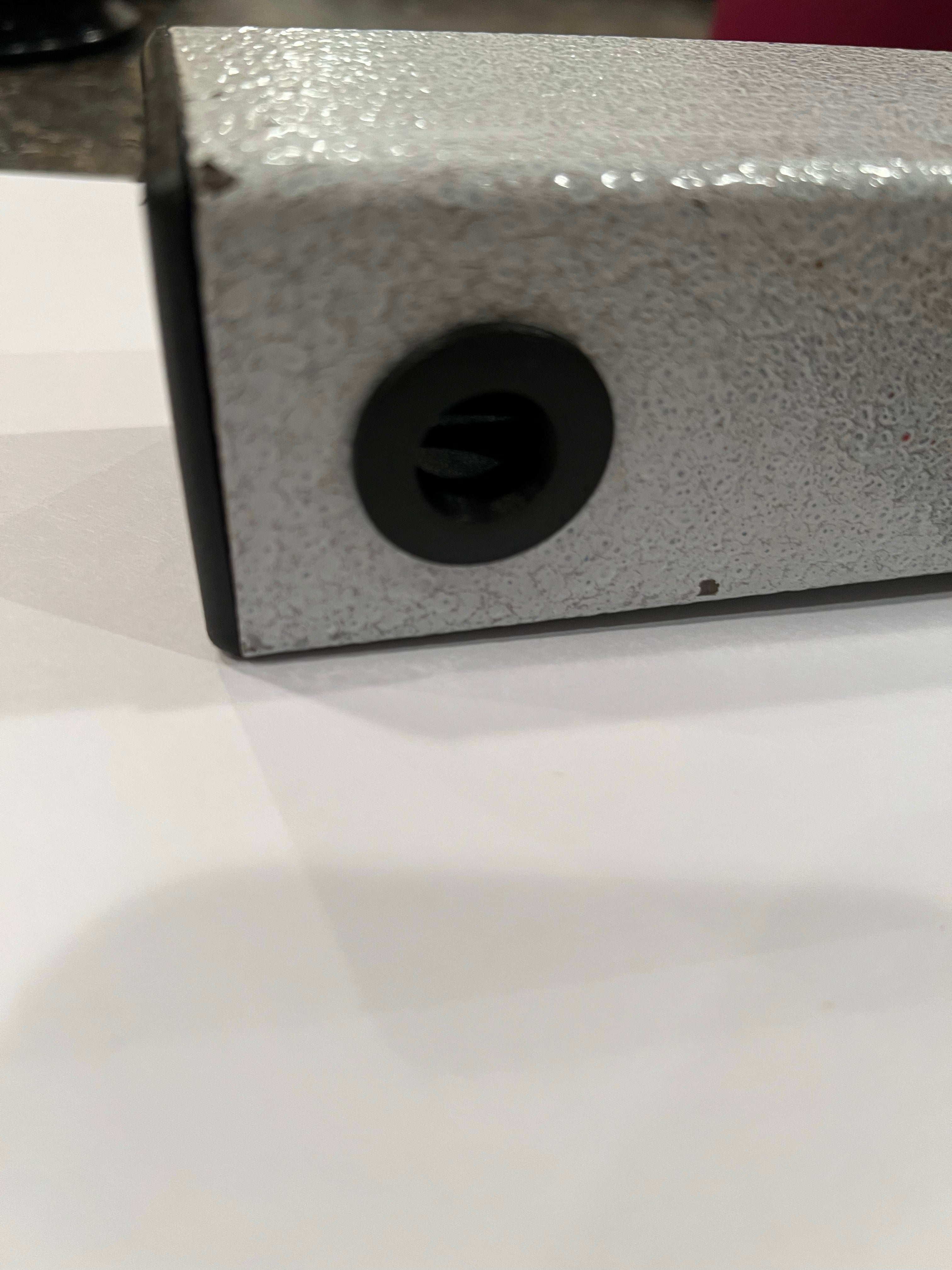

• The new printed bushing inserted into the hole in the equipment.

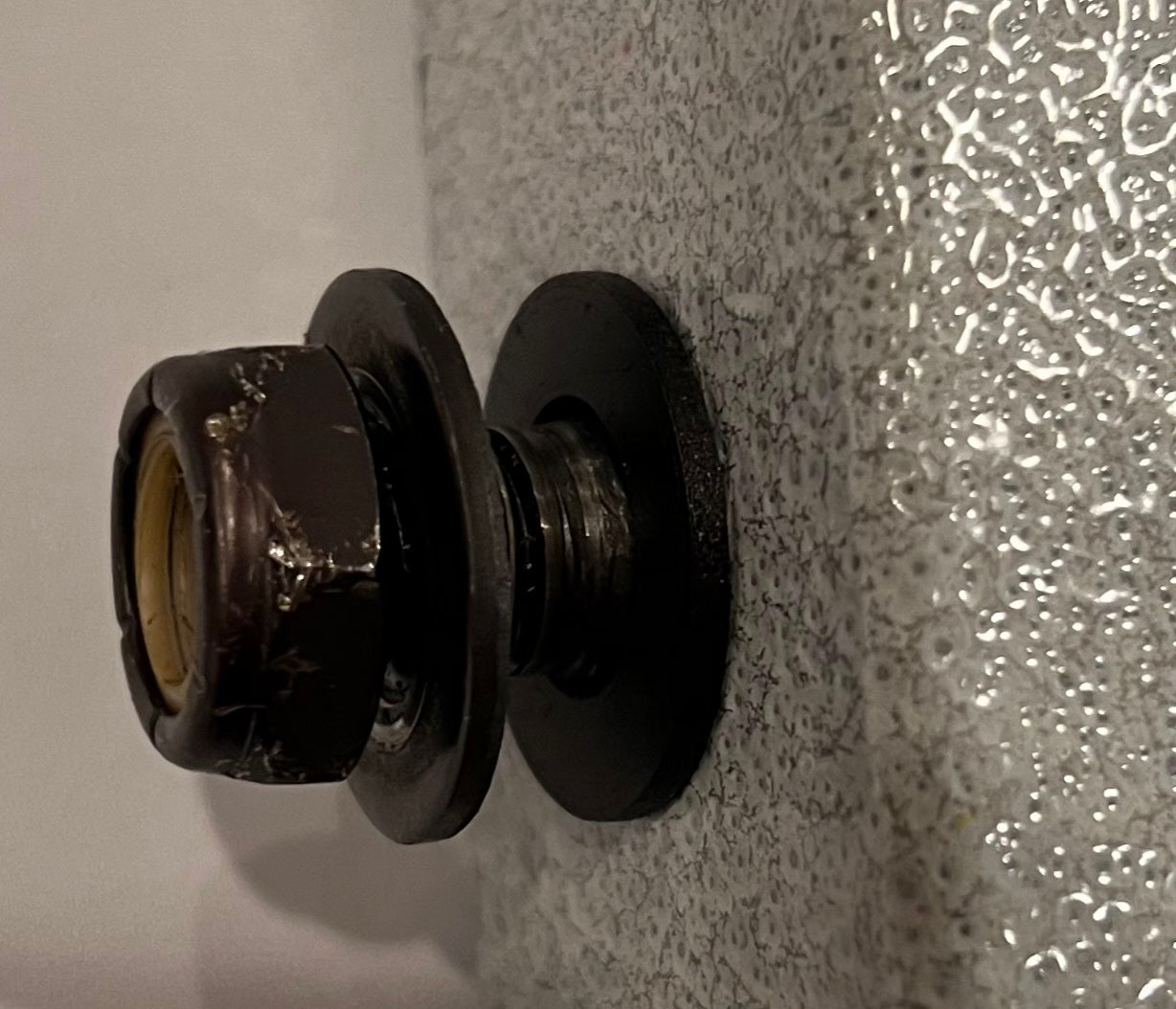

• A bolt going through the bushing.

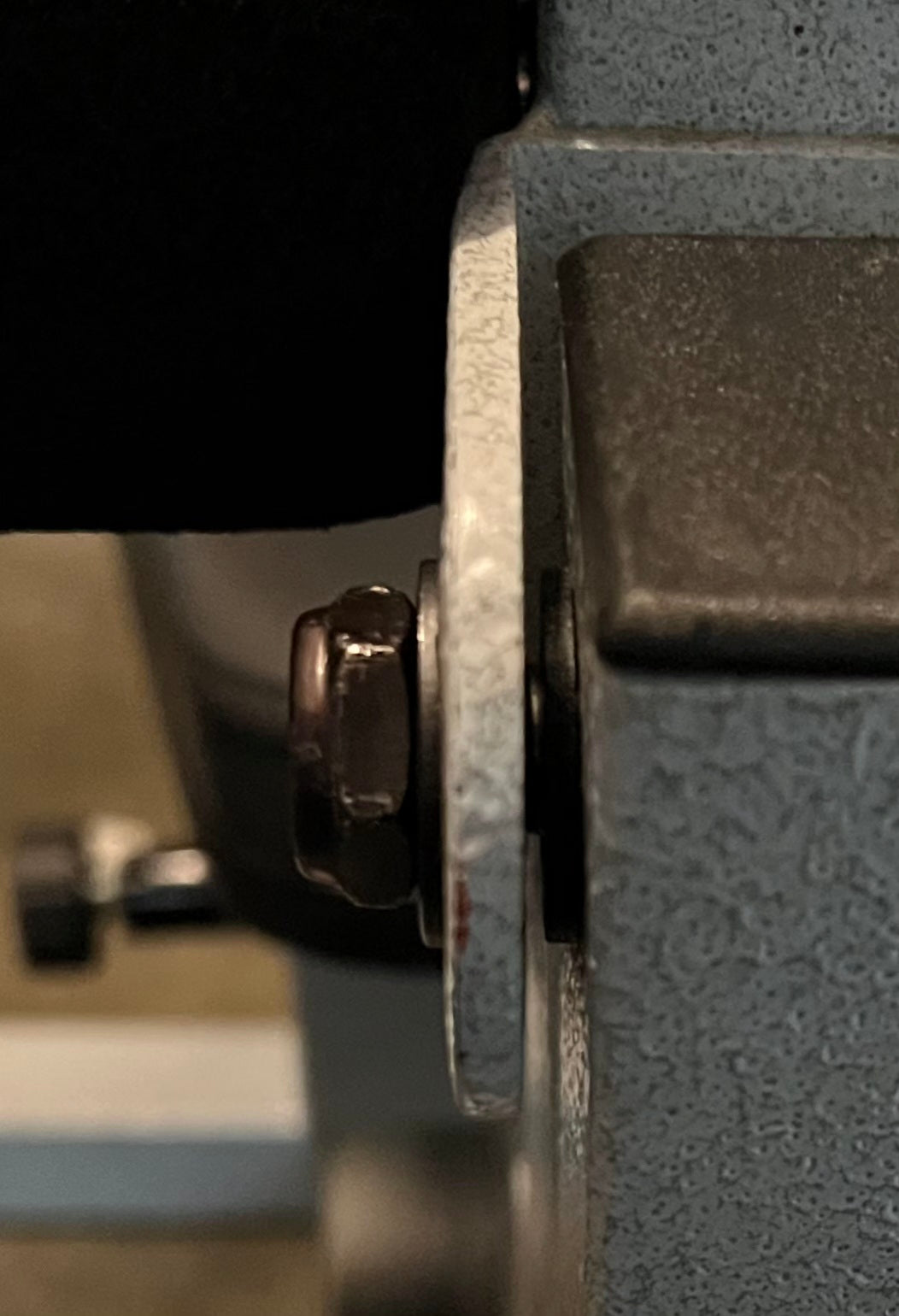

• End view: as installed on the machine.

Design by Toblerone on MakerWorld (license: BY-SA).
