Cable organizer for IKEA Skadis - Parametric

Parametric IKEA Skadis cables organizer

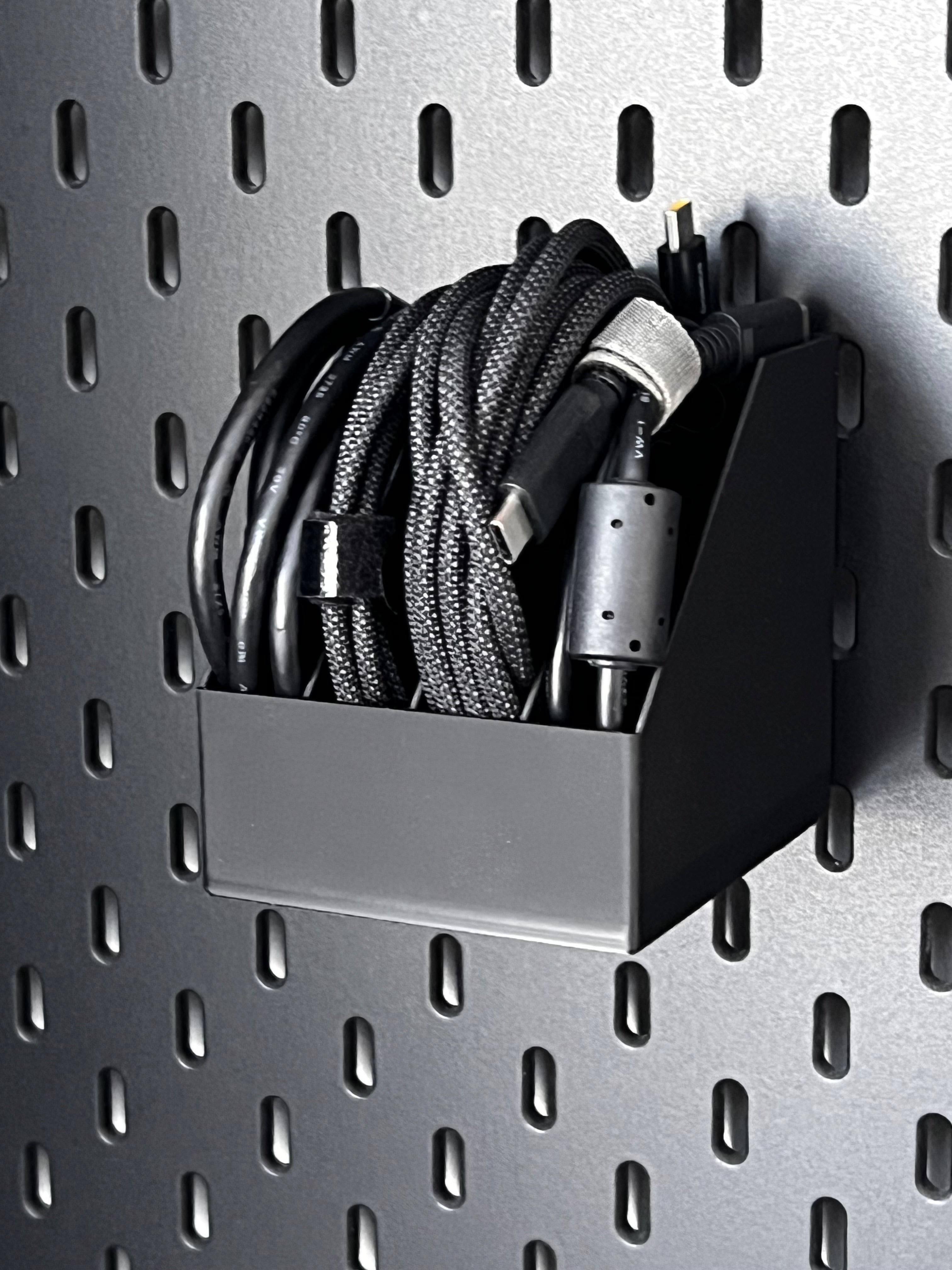

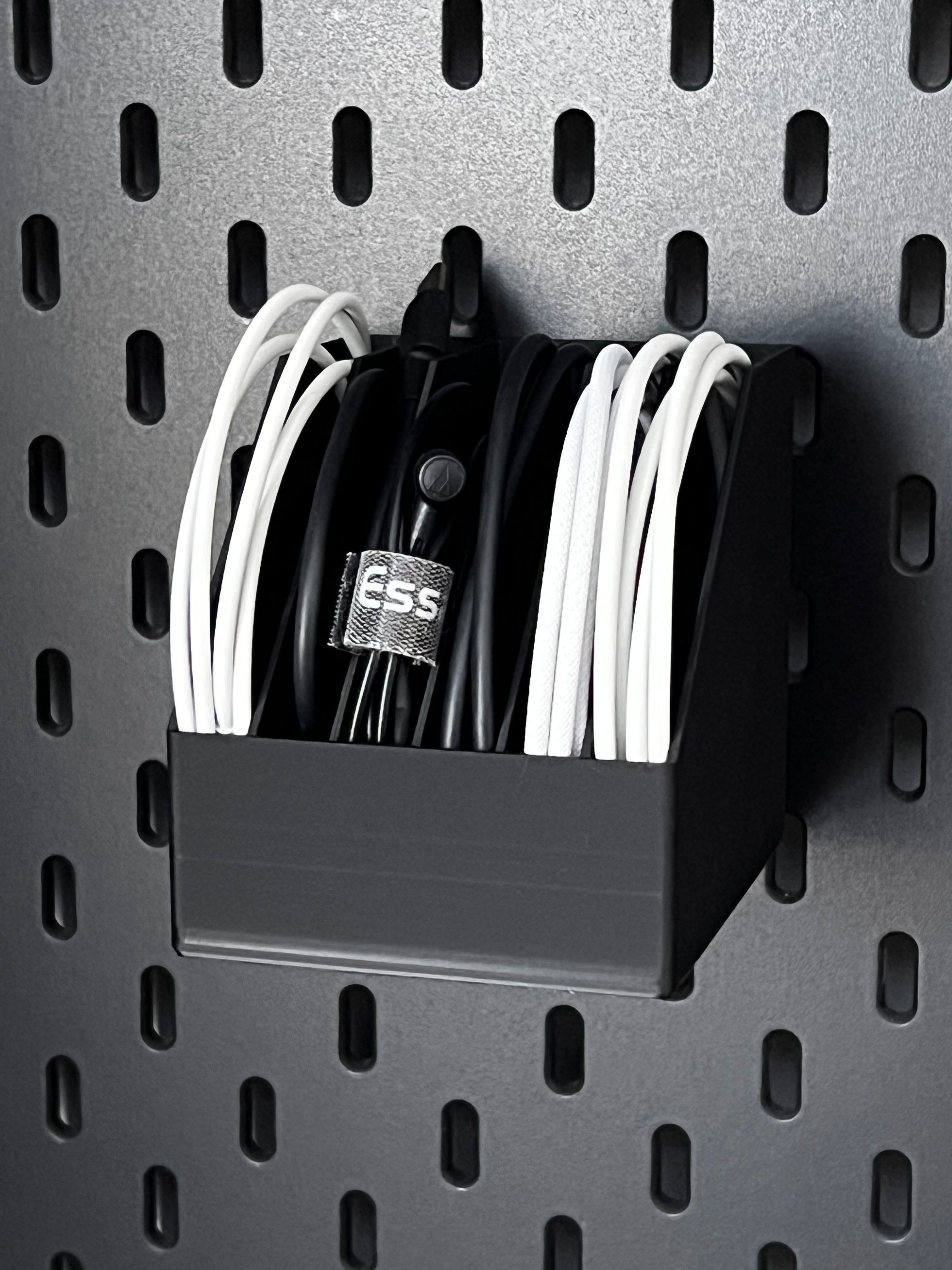

Rigid to store thick cables or use it to store other items, like SSDs. The model is parametric - feel free to adjust sizes as you need.
With default parameters slots are big enough to fit modern common cables like high speed USB-Cs and other moderate thickness cables.

Print profile includes 3 plates with 4, 5 and 6 slots options. 5mm brim is pre-setup to prevent corners lifting on some filaments

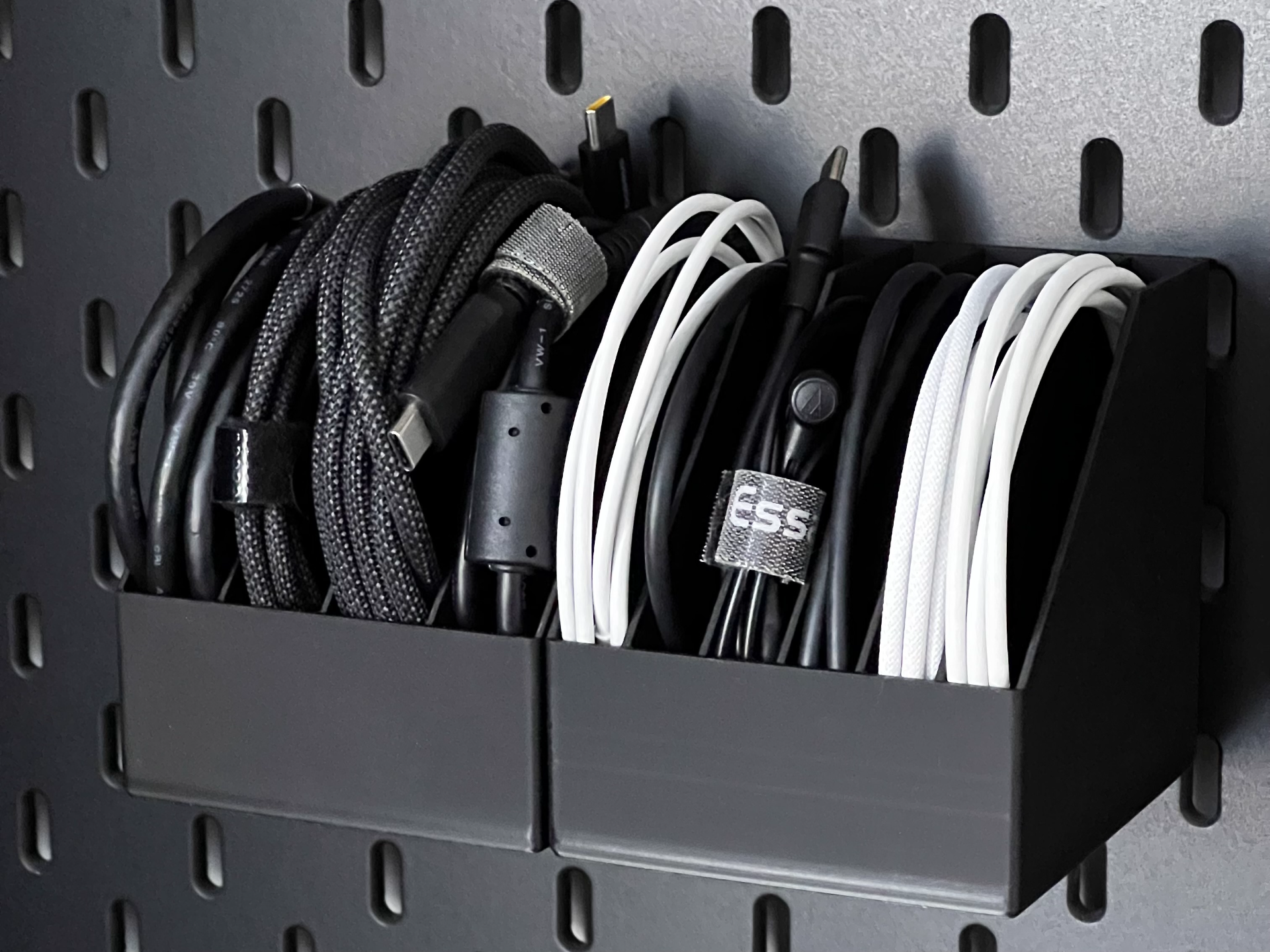

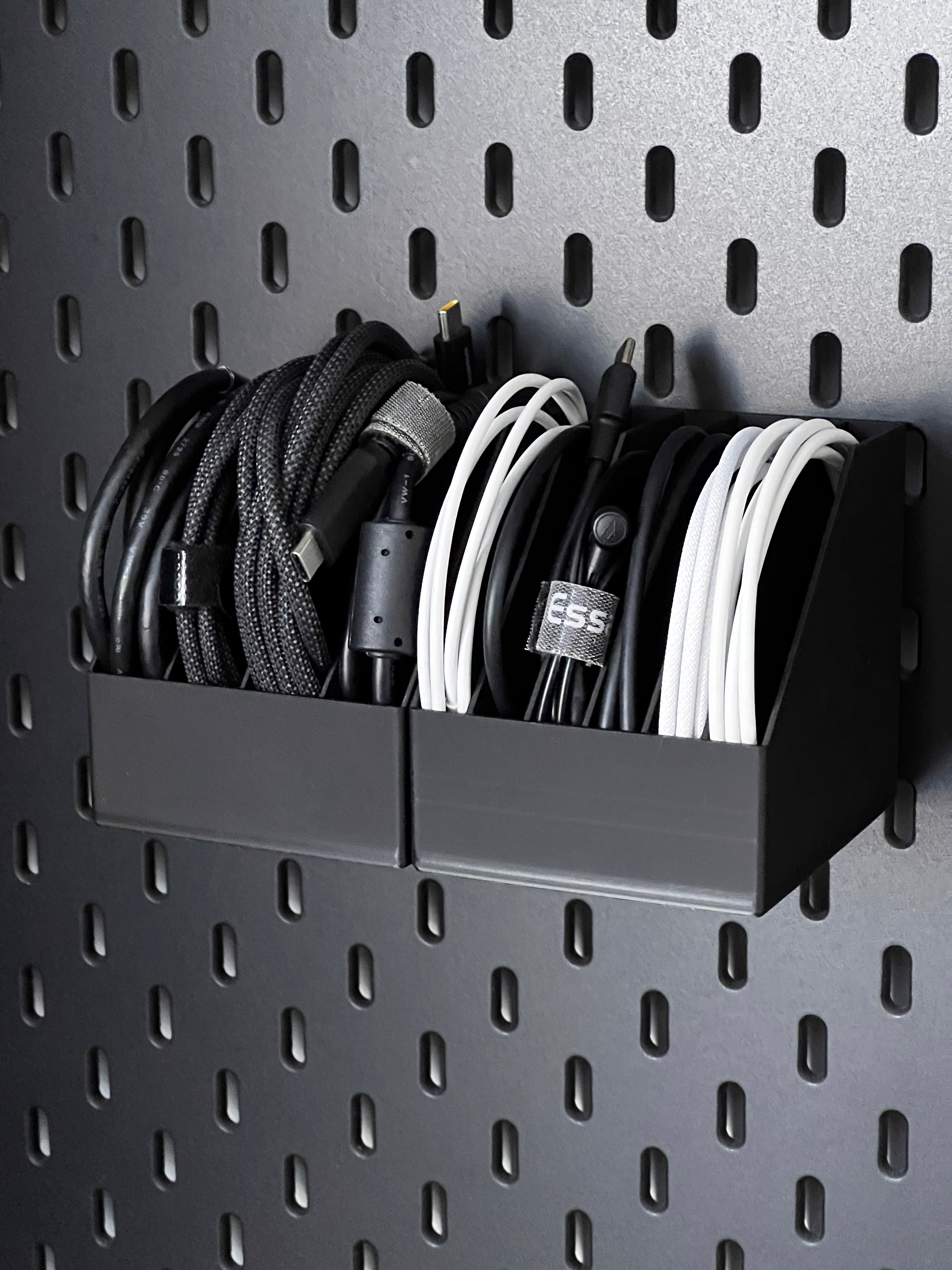

Boxes are stackable horizontally if you follow comments on parameters.

Raw files are attached.

Parameters:

• SlotsCount (5) - Amount of slots that will be fitted in total tray width
• SlotDepth (86mm) - Depth of the slot cut
• SlotHeigh (86 mm) - Height of the slot cut. Use values greater than 45mm to not mess the skadis hooks
• WallThickness (1.6mm) - 1.6 value is best to print with 2 walls and no gap - so all wall will be printed just with 4 loops,true
• TrayWidth (79.7 mm) - Total tray width. Skadis hole to hole distance is 40mm so it is recommended to repeat this value to fit trays horizontaly. Min recommended width is 80mm to include 3 required skadis hooks. So use values: 80mm, 120mm, 160mm, etc. And subtract ~0.3mm for best fit

Note: 45° cut from side is not actually 45° - it's depth is 3/5 of slot depth and it's height is 3/5 of sloth height so it will be adjusted automatically but no external parameters were created. If you want to modify this - leave me a comment or do it yourself as raw file is attached

Design by JinToliq on MakerWorld (license: BY-ND).
