Cargo Bike Riese & Müller Load 60 or 75 TPU Foot Stand

The original rubber foot of my cargo bike stand broke multiple times, so I decided to make a 3D model of a robust foot with a diameter of 25mm and print it in TPU. I also tested it in PETG, and it works, but it's slippery, so if possible, print it in TPU.

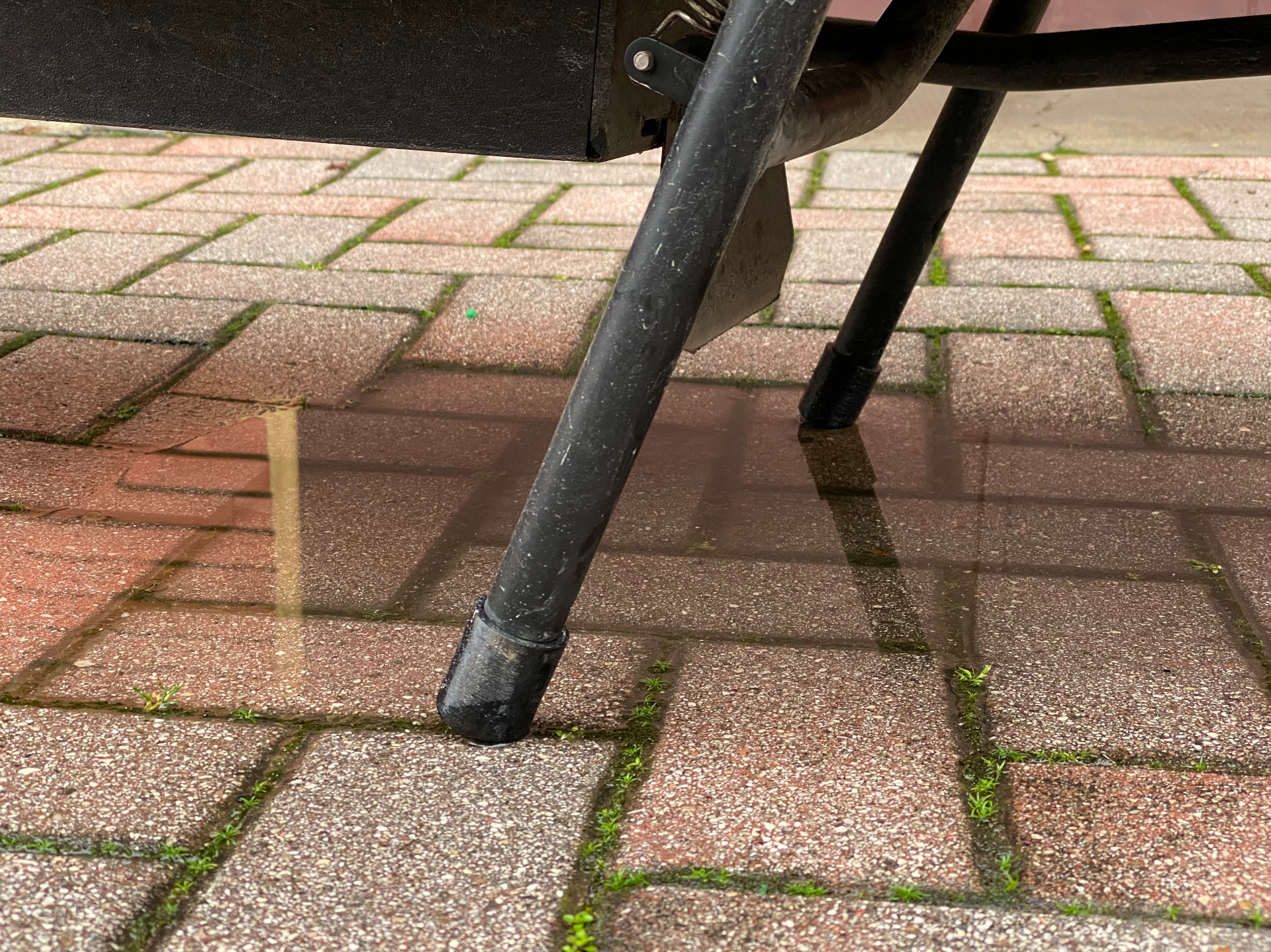

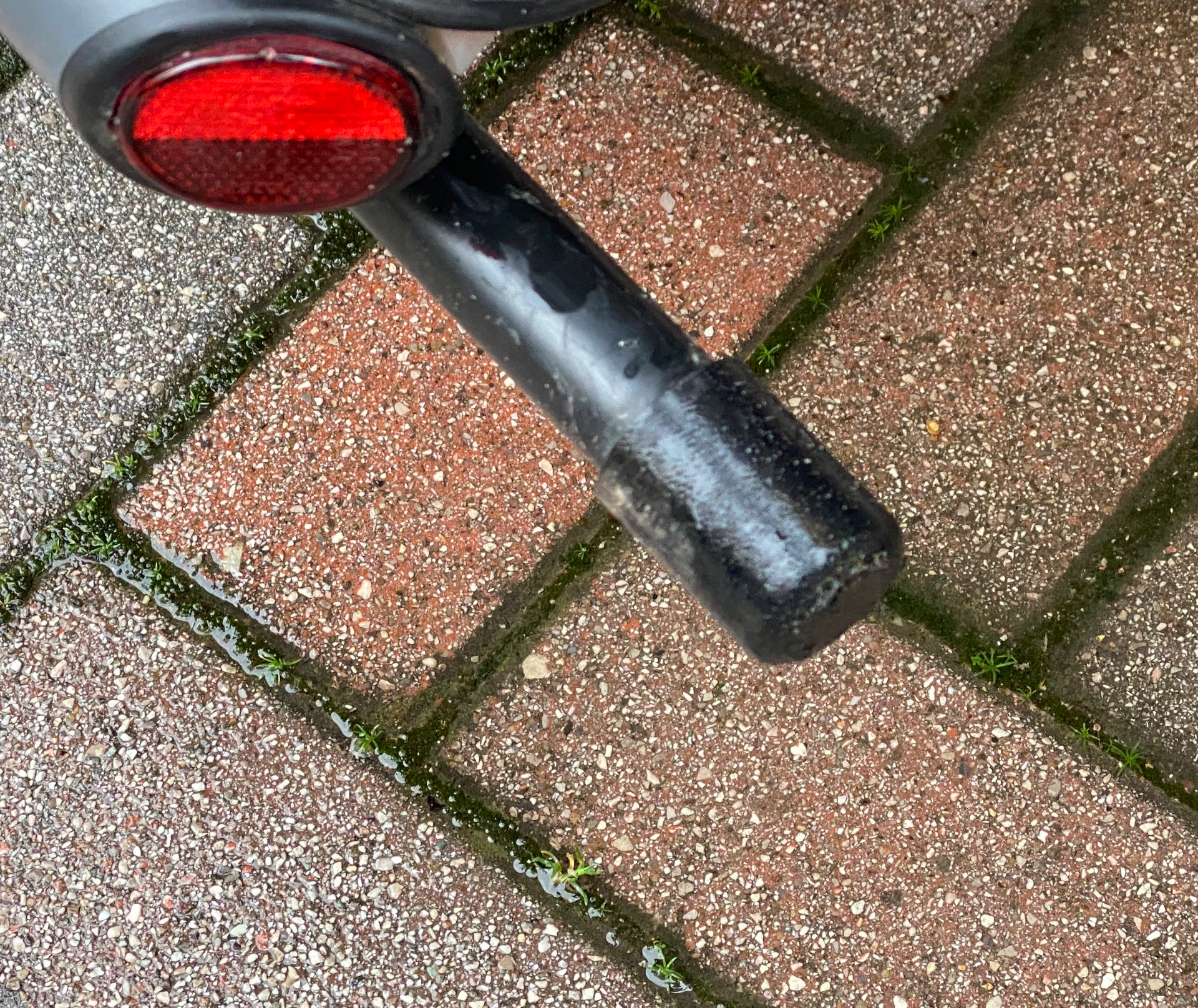

The photographs show how it looks after a month of usage and abuse, so I feel it will survive long enough, and I will just print another one when the current one wears out.

It is made for Riese & Müller Load 60 or 75 cargo bikes, but it should be good for any foot stand with 25mm diameter.

Please let me know if this works well for you.

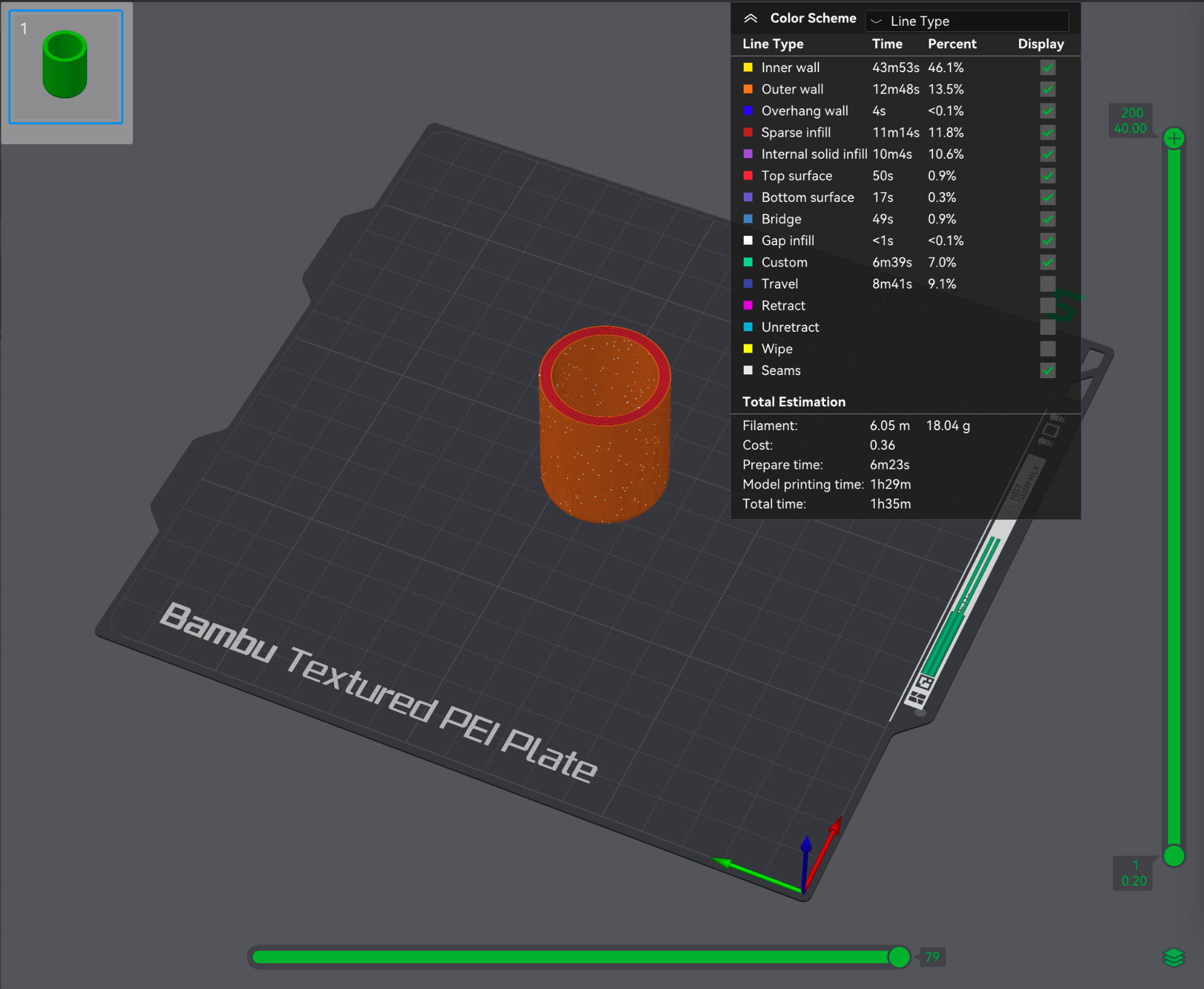

PRINT SETTINGS:

• material: TPU
• nozzle: you can print it with 0.4mm or even with 0.8mm (which I suggest)
• seam position: random
• wall loops: 6
• top/bottom surface pattern: concentric
• sparse infill: 50% 3D honeycomb

Design by Alex on MakerWorld (license: BY).
