You can find Cartographer V4 Shield here
Cartographer Shield

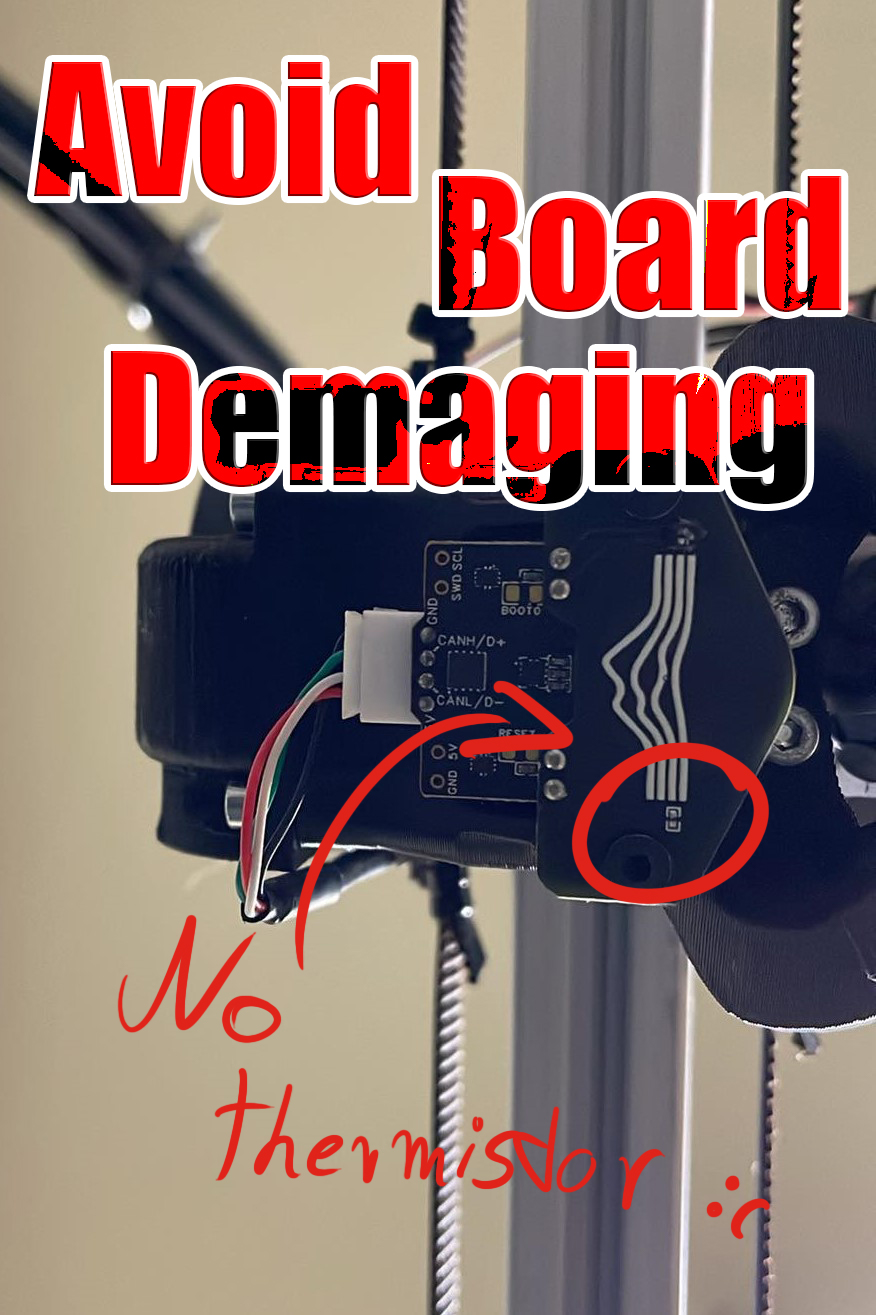

Cartographer has a capacitor and a thermistor on the bottom and because of that every little hit can make them fall out.
If the thermistor is gone its fine, the probe can work without the thermistor, but if resistor is gone, the probe just shuts down.
Dont ask me why I know that…

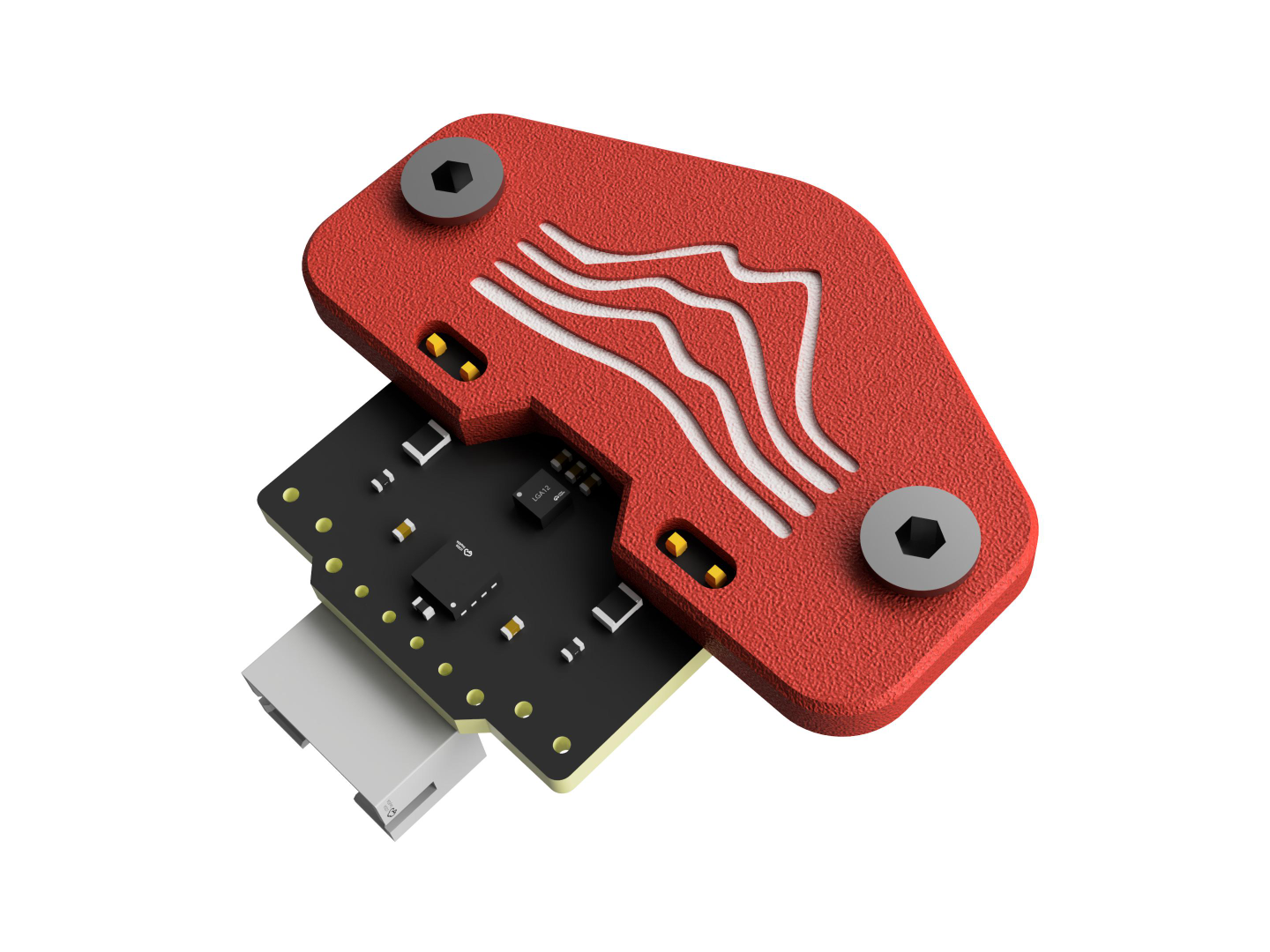

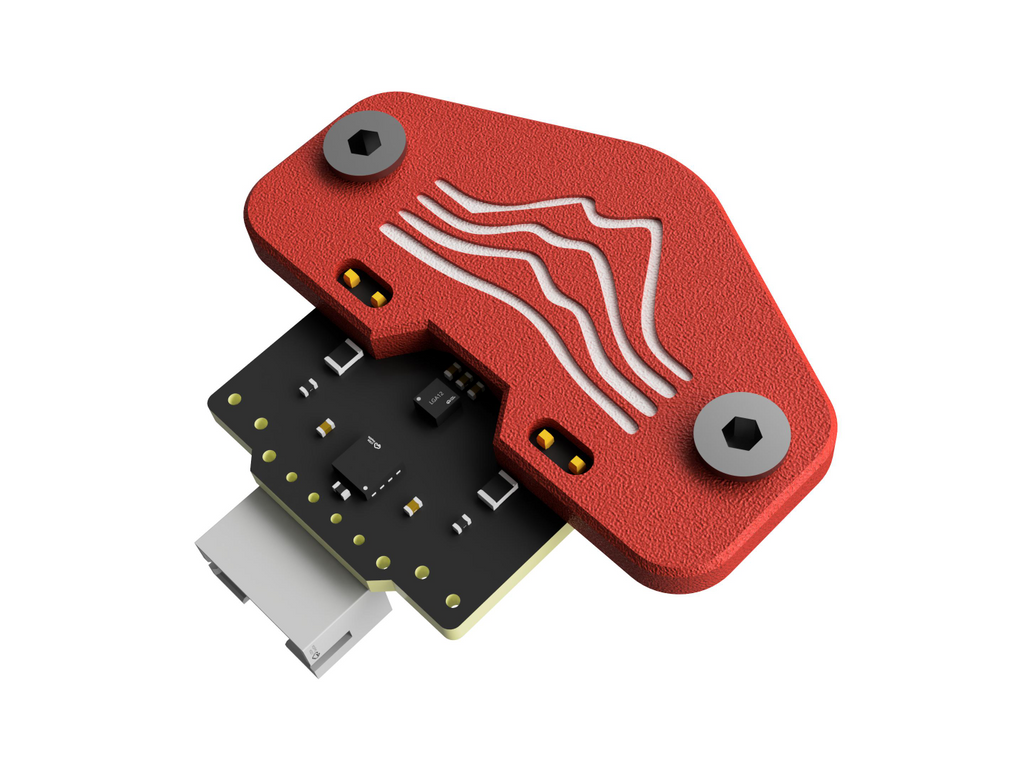

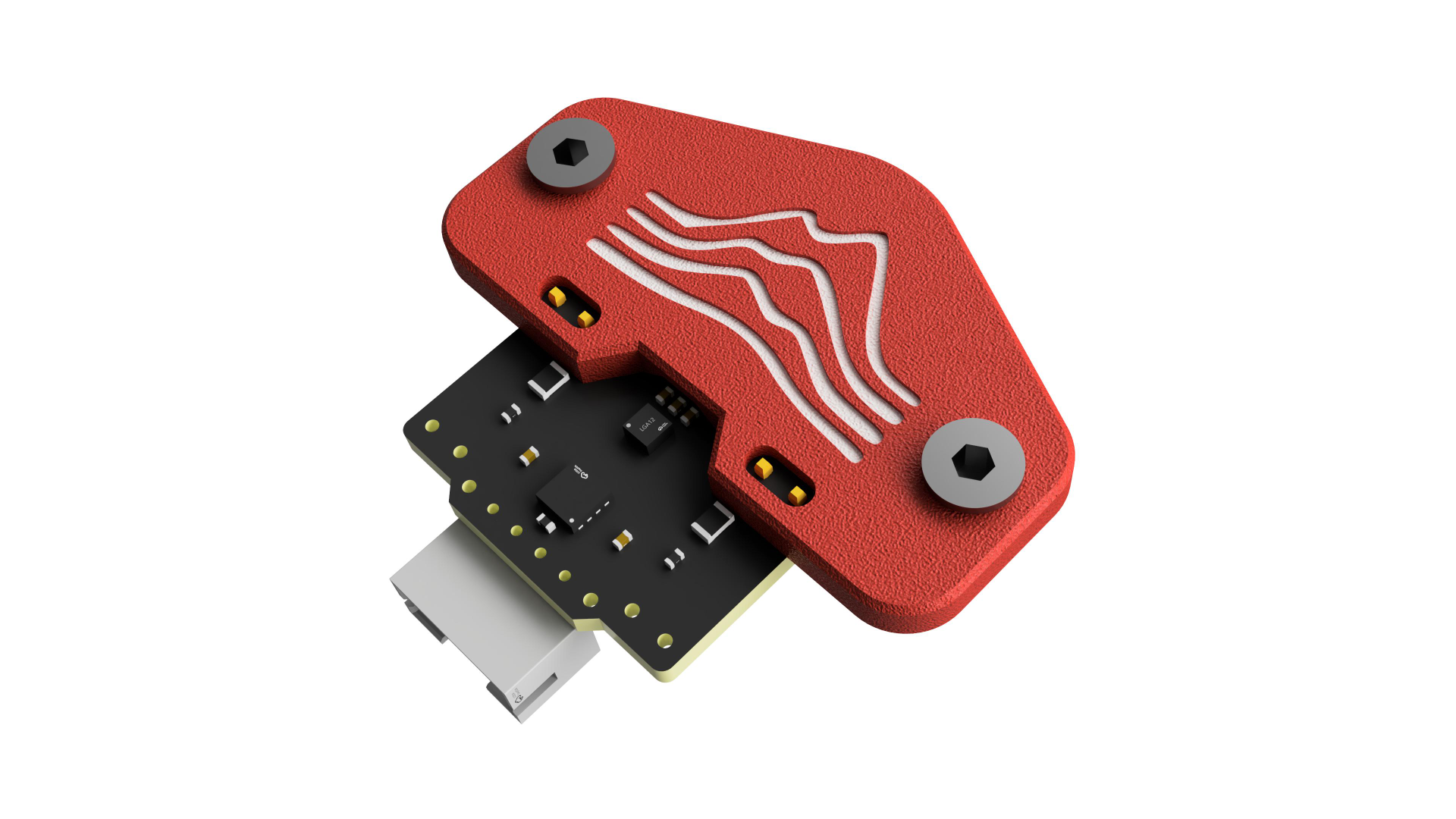

So I designed this super thin shield, to prevent this issue. It has to be thin, because Cartographer works only at little space bettwen bed and coil.
Cad and raw Stl files there: https://www.printables.com/model/1004269-cartographer-shield-protection
*Its capacitor, on the top is the thermistor heh…

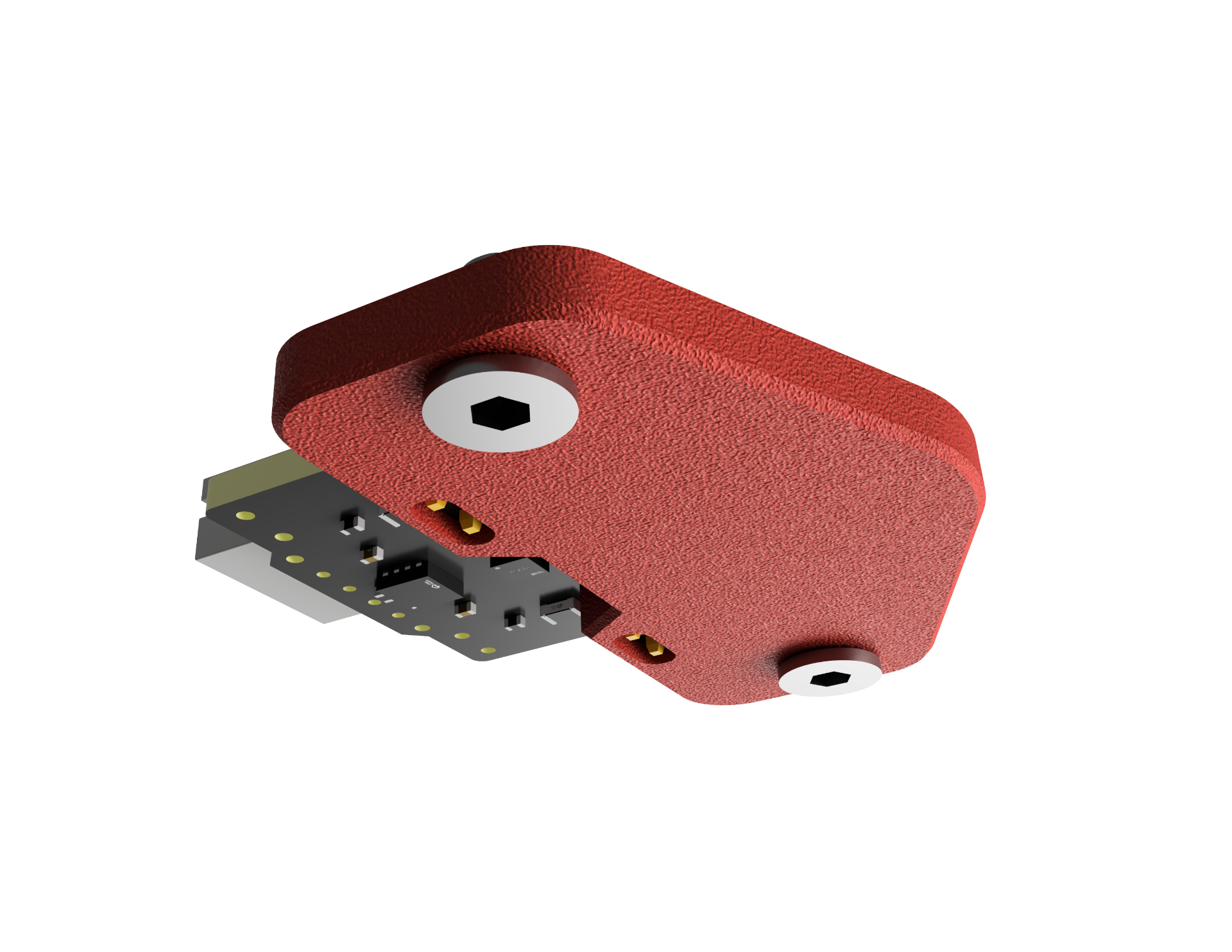

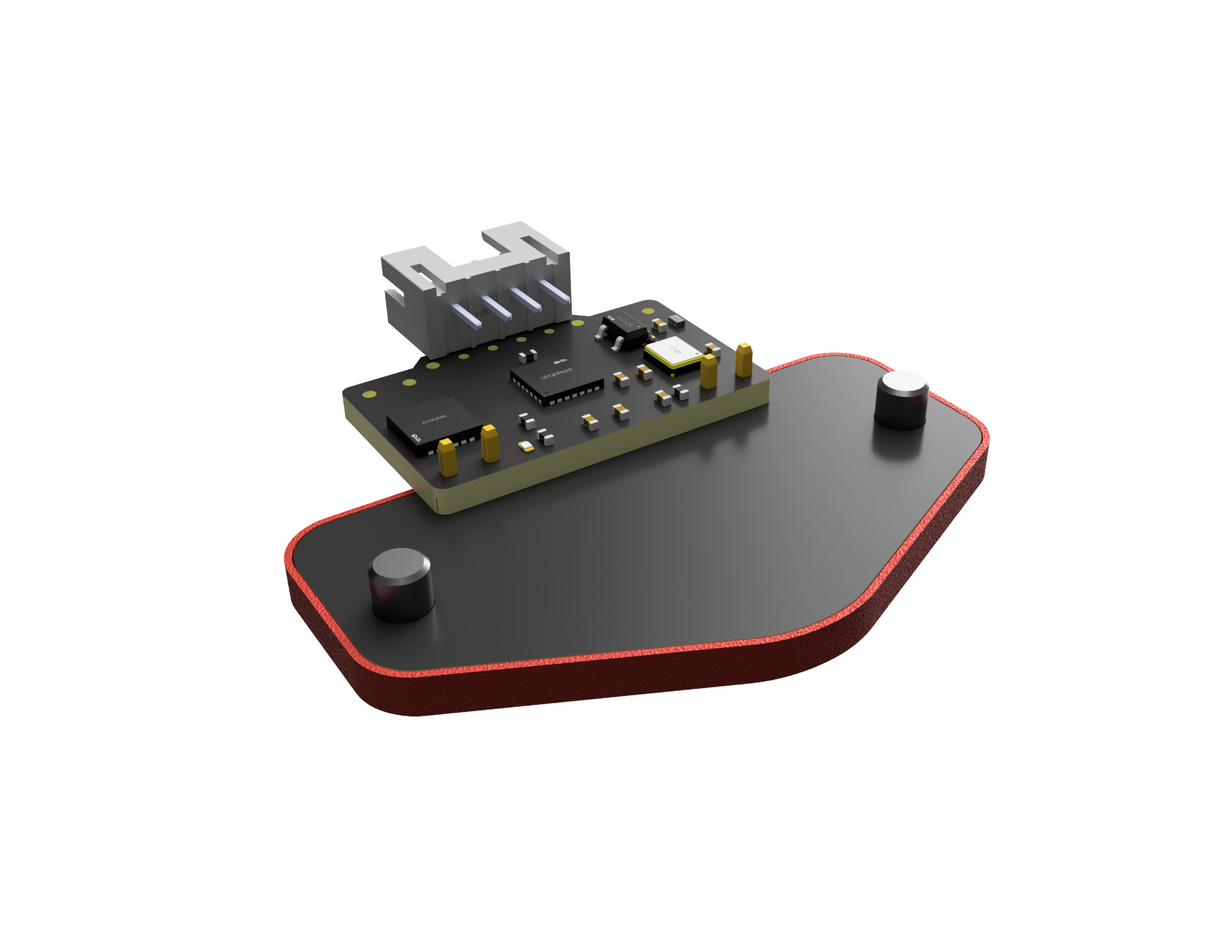

Shield installed
Fine bed mesh with assembled shield
Be sure your filament is dryed and the printer profiles and printer itself is good calibrated
The print have to be printed accurate
Design by Drak on MakerWorld (license: CC0).
