                                                                Cartographer V4 Shield

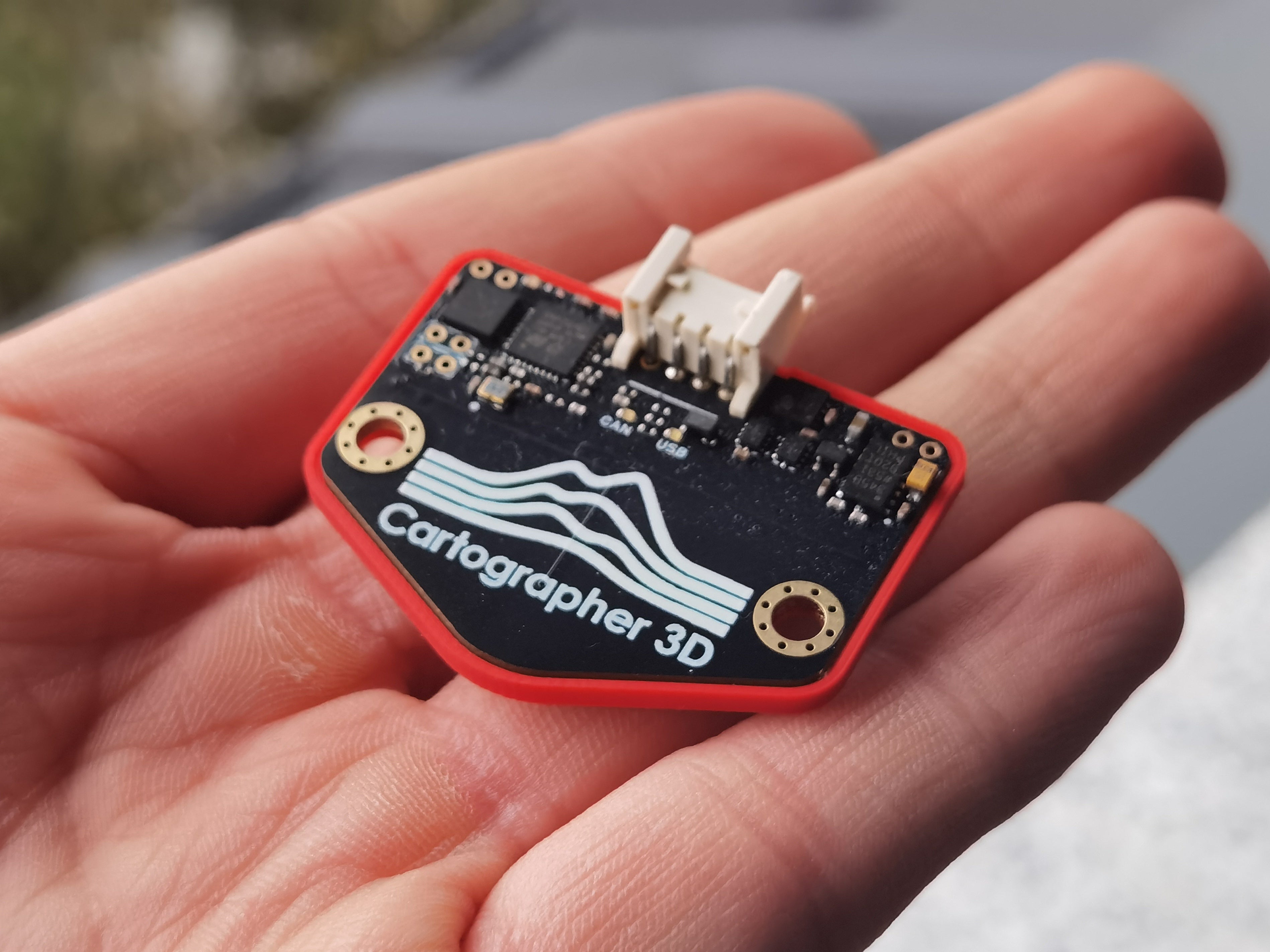

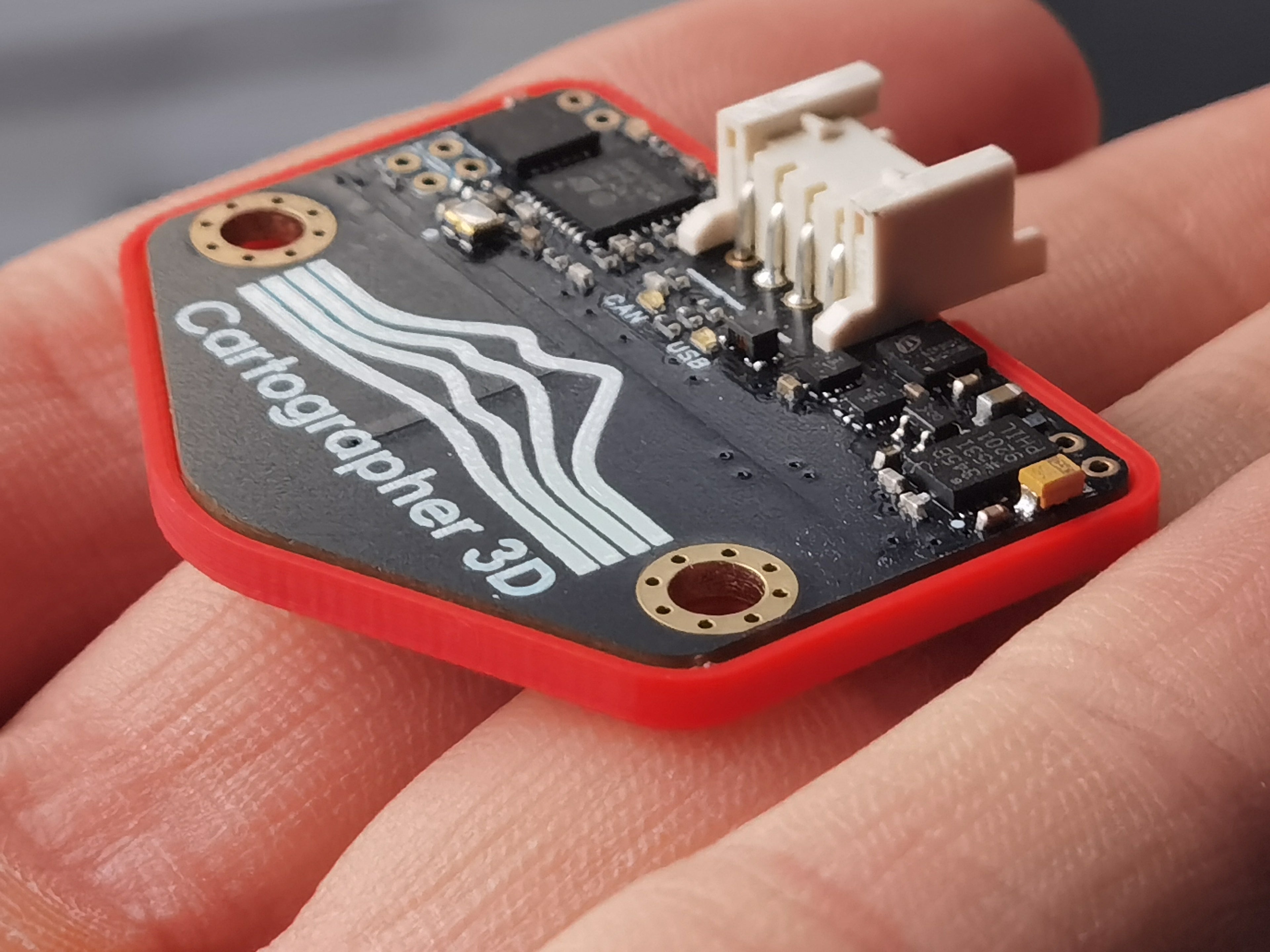

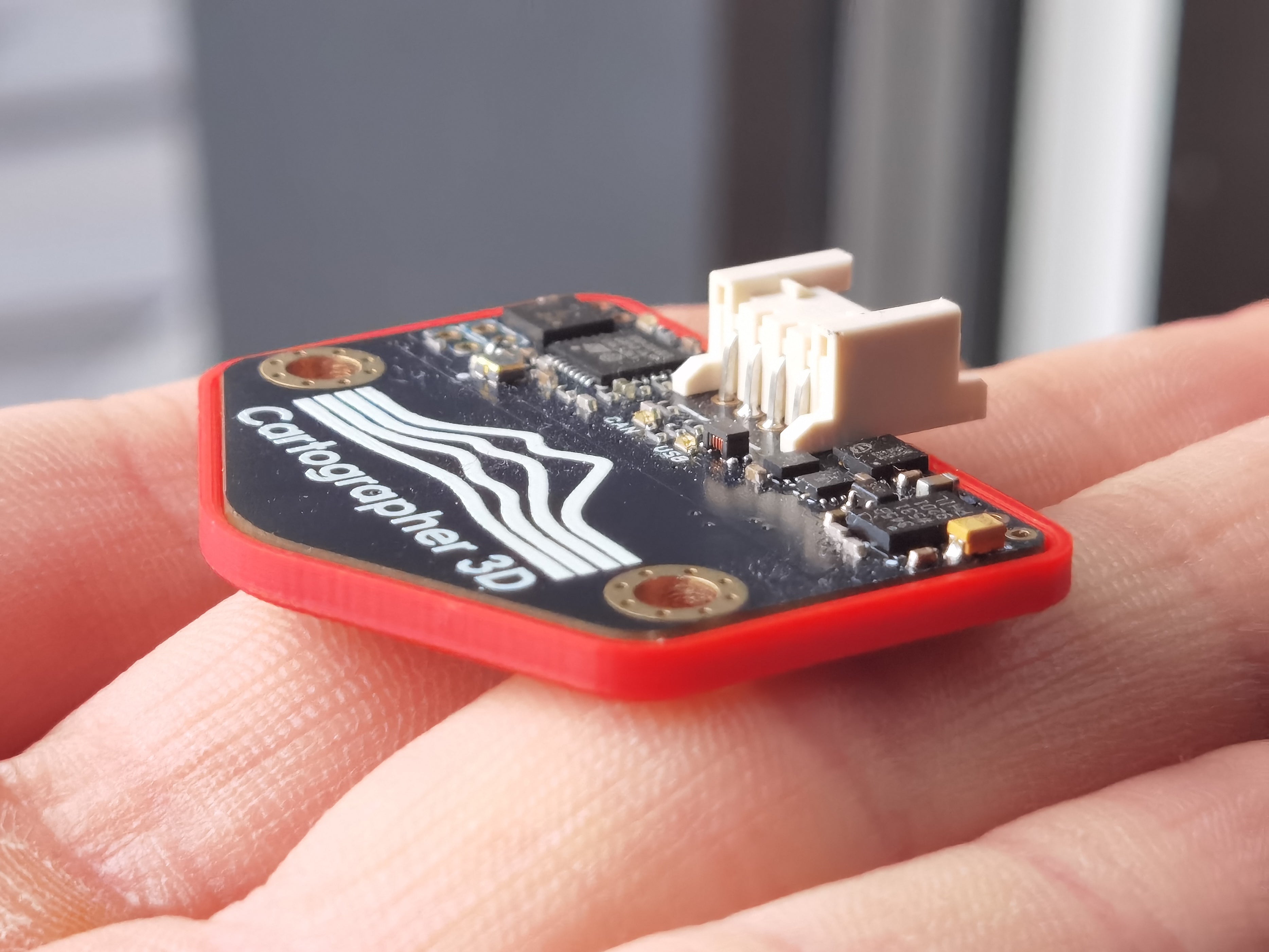

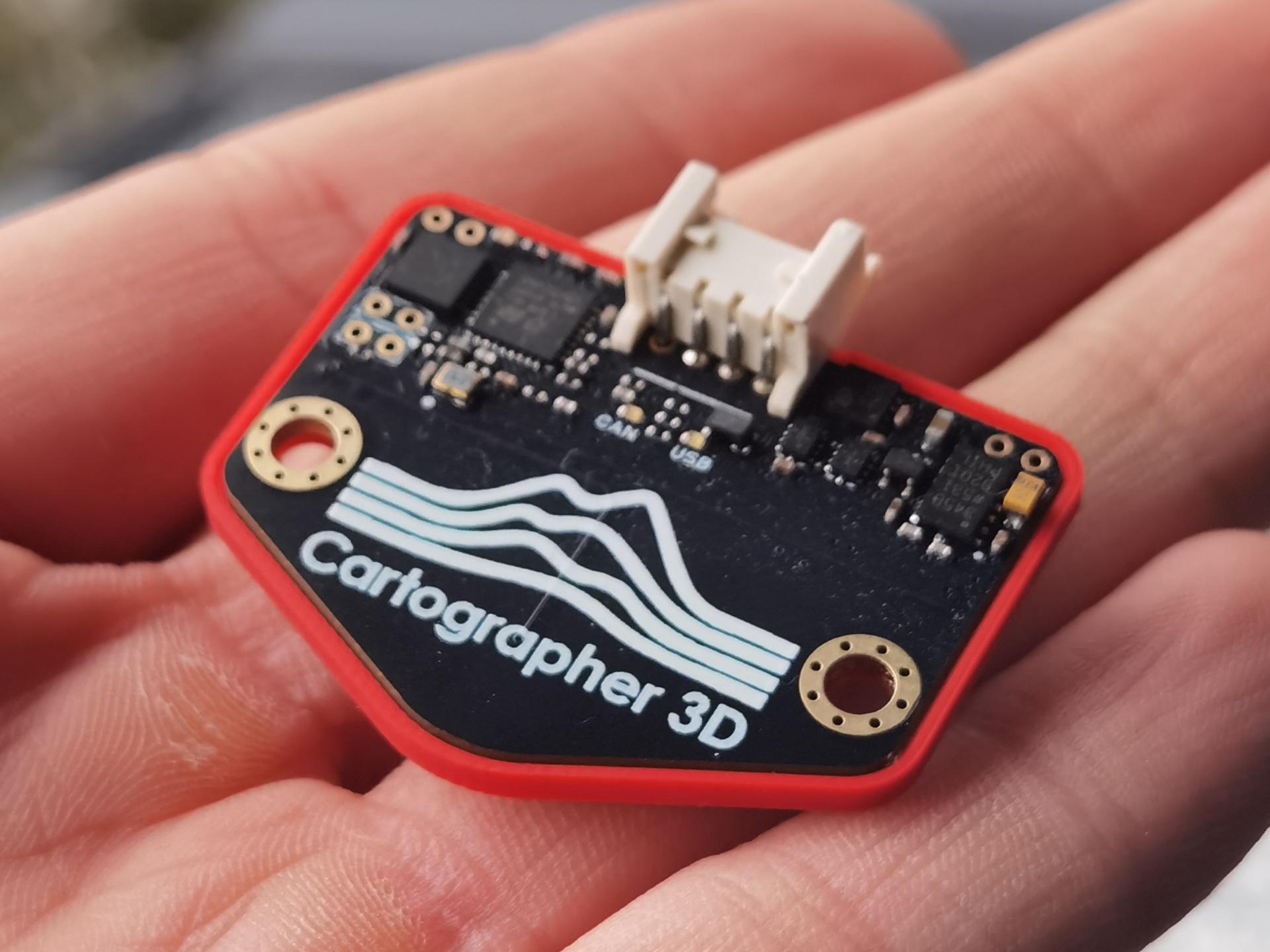

Cartographer has a capacitor and a thermistor on the bottom and because of that every little hit can make them fall out
If the thermistor is gone its fine, the probe can work without the thermistor, but if resistor is gone, the probe just shuts down

Dont ask me why I know that…

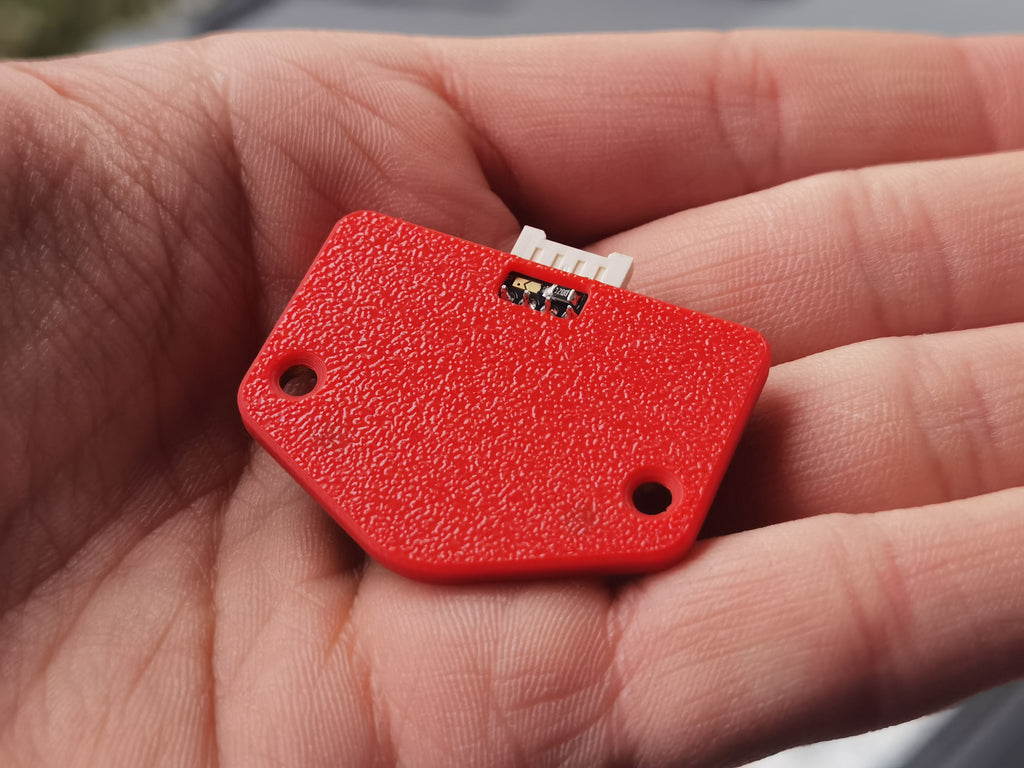

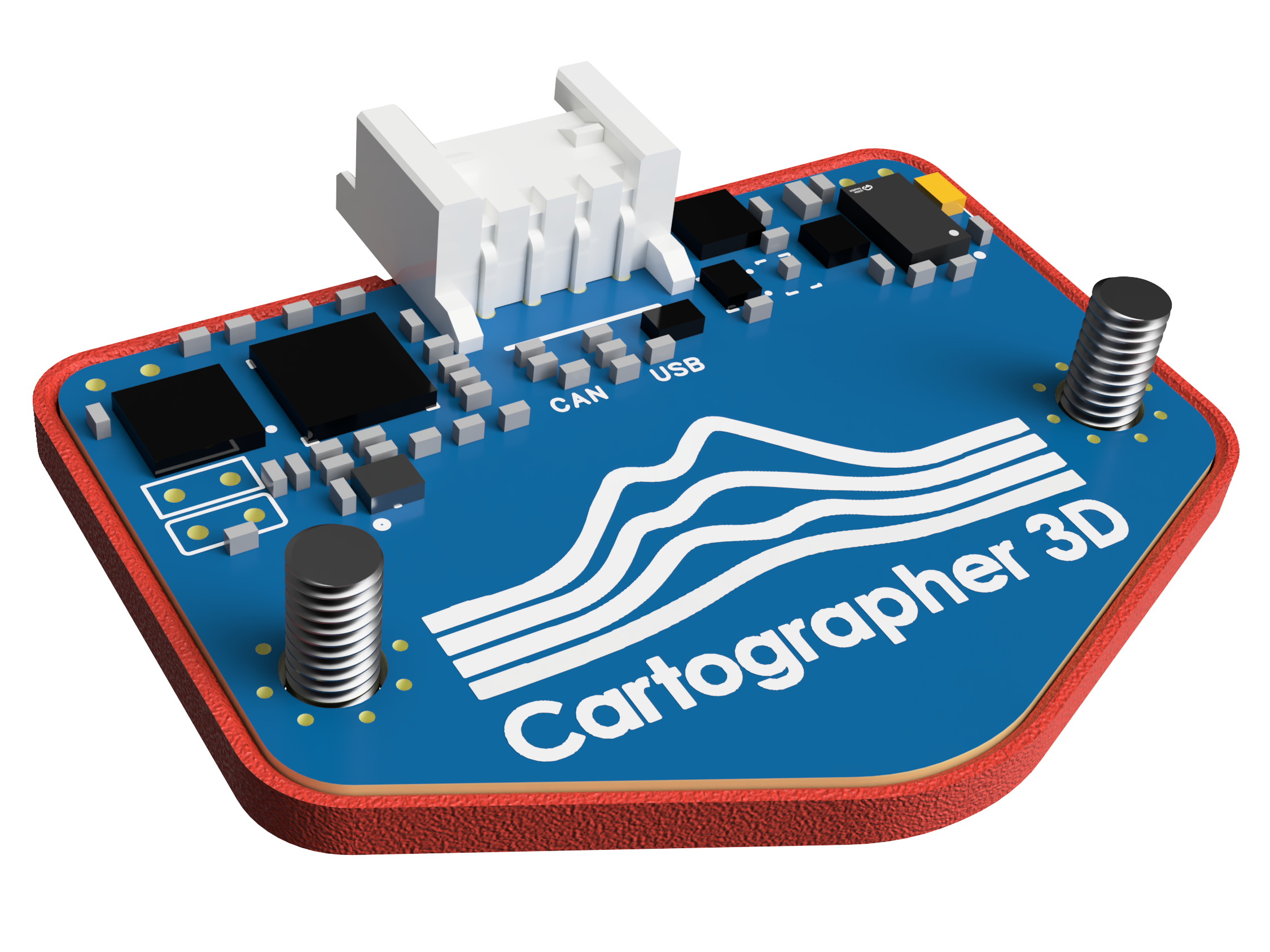

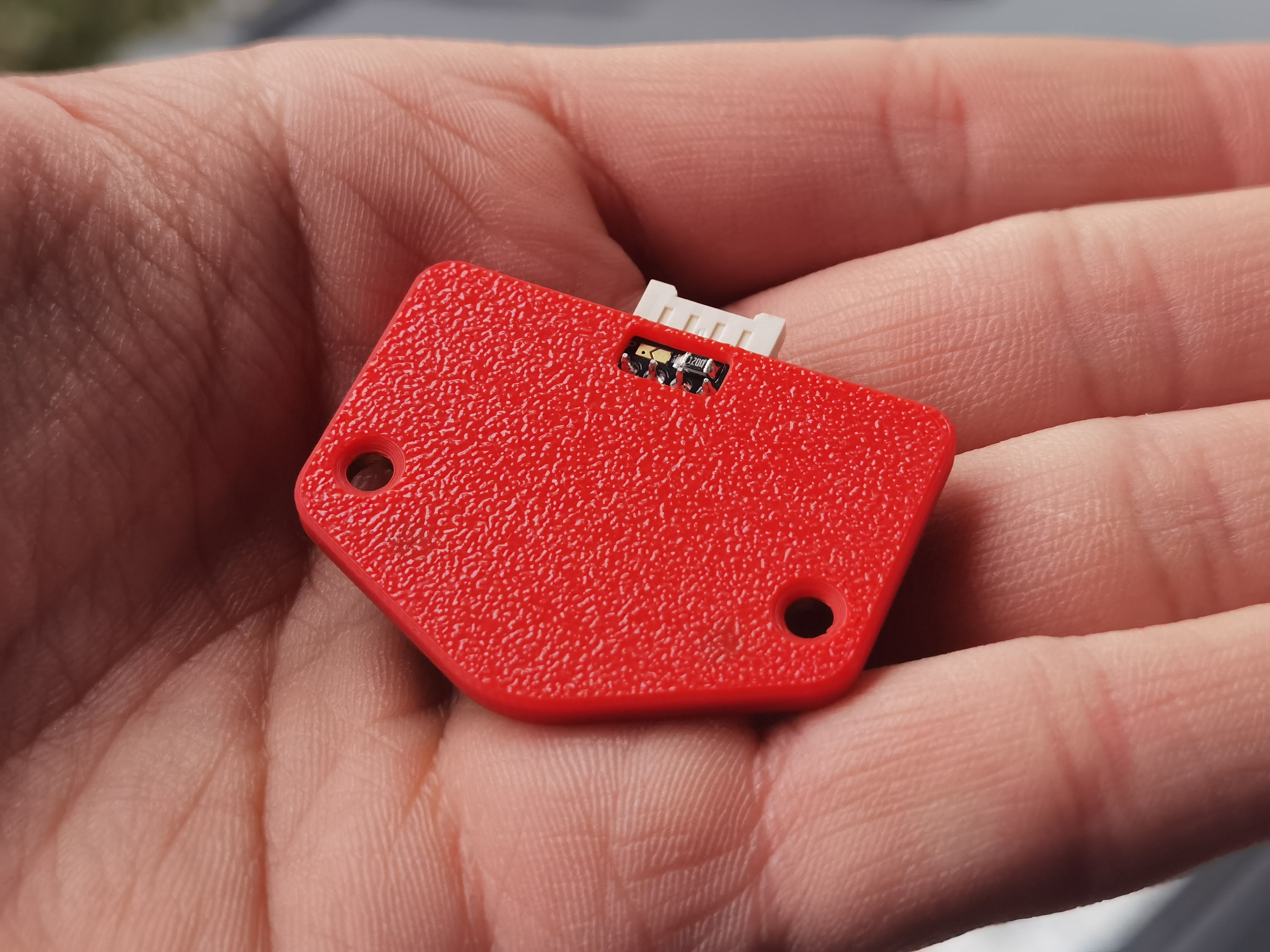

So I designed this super thin shield, to prevent this issue. It has to be thin, because Cartographer works only at little space bettwen bed and coil

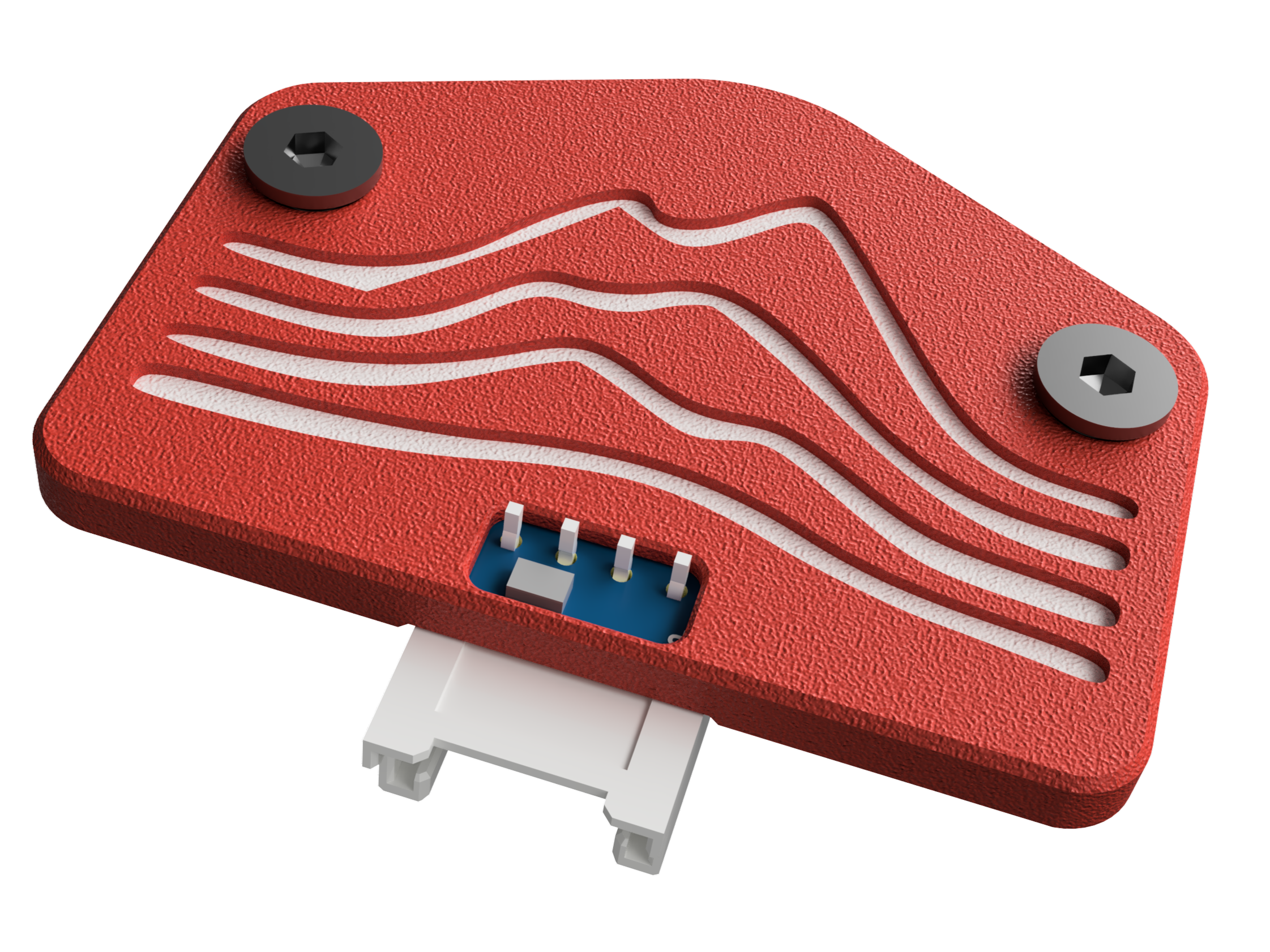

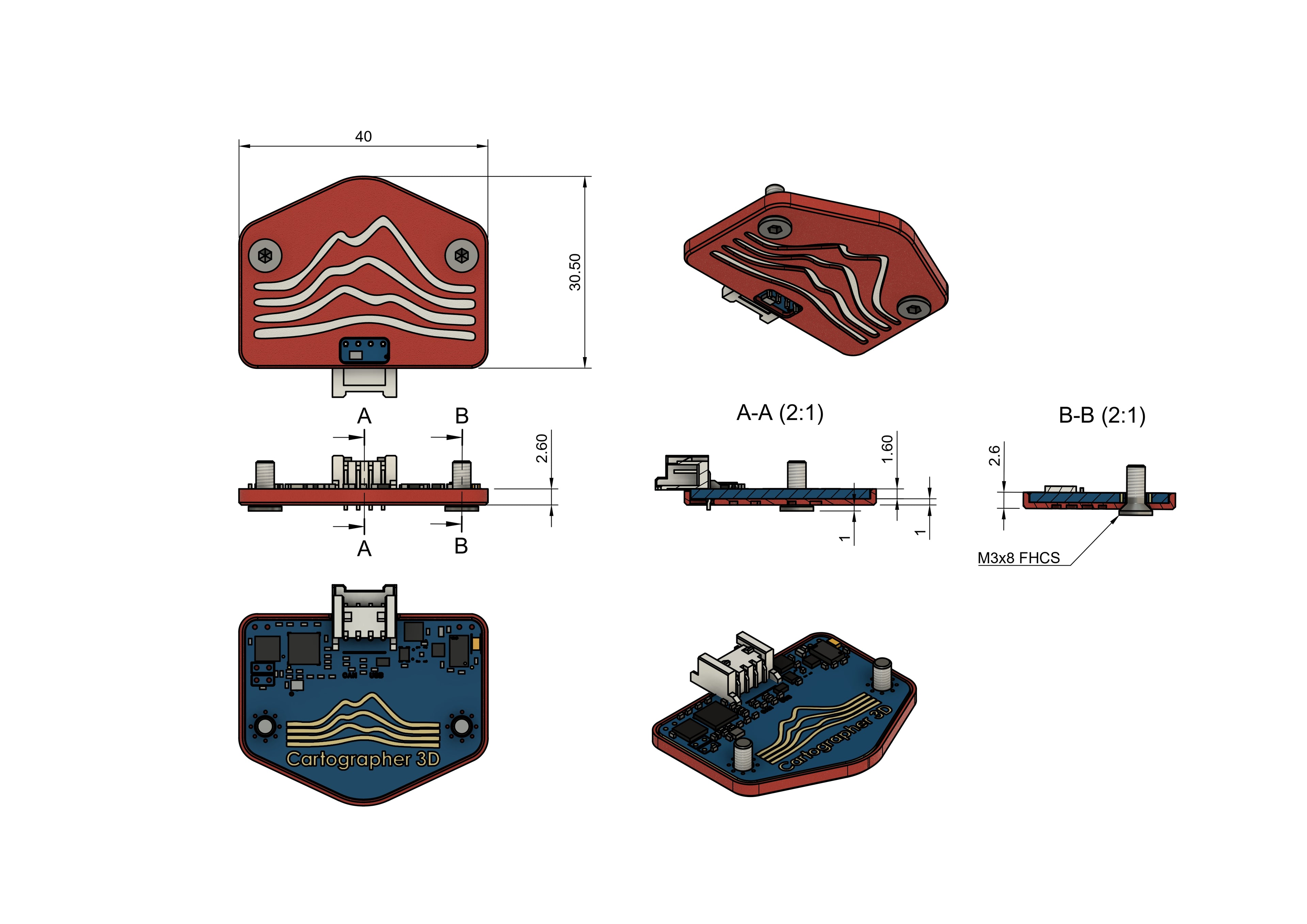

                                                    Cartographer V4 Shield Drawing

Be sure your filament is dryed and the printer profiles and printer itself is good calibrated
The print have to be printed accurate


Design by Drak on MakerWorld (license: CC0).
