Summary

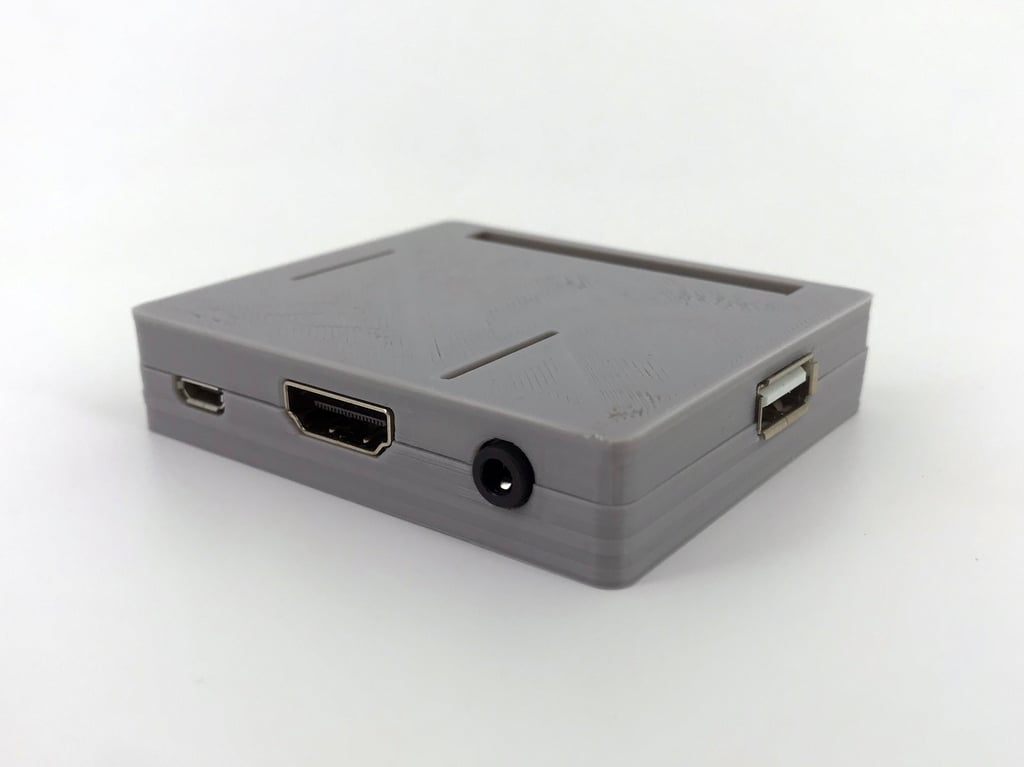

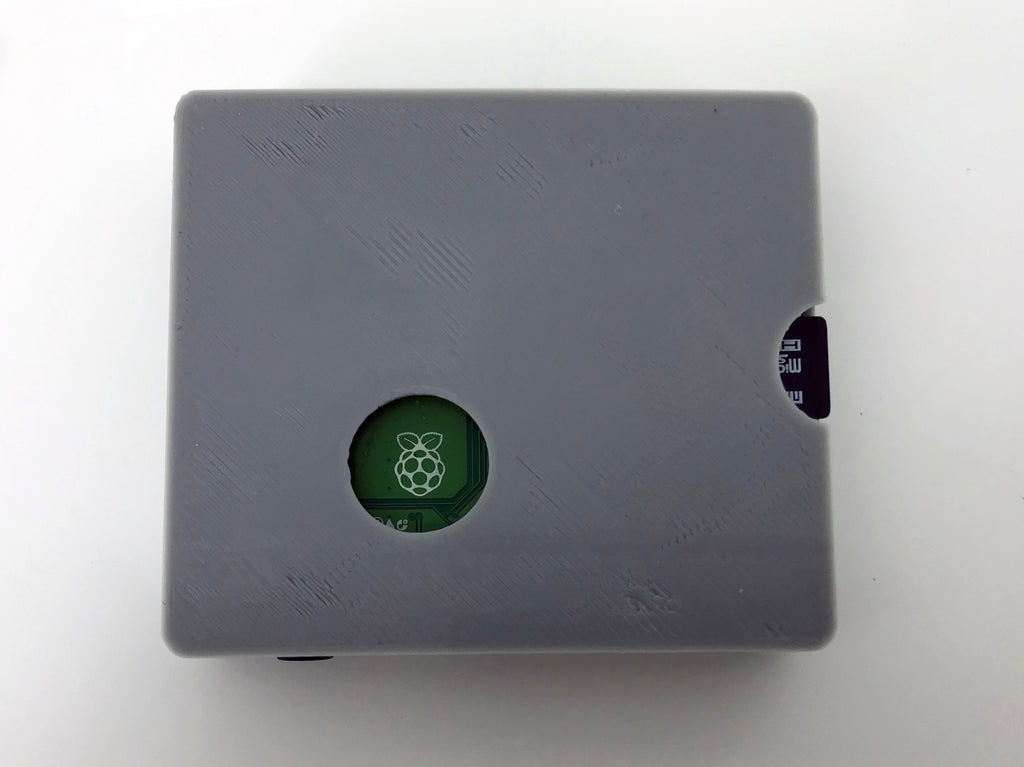

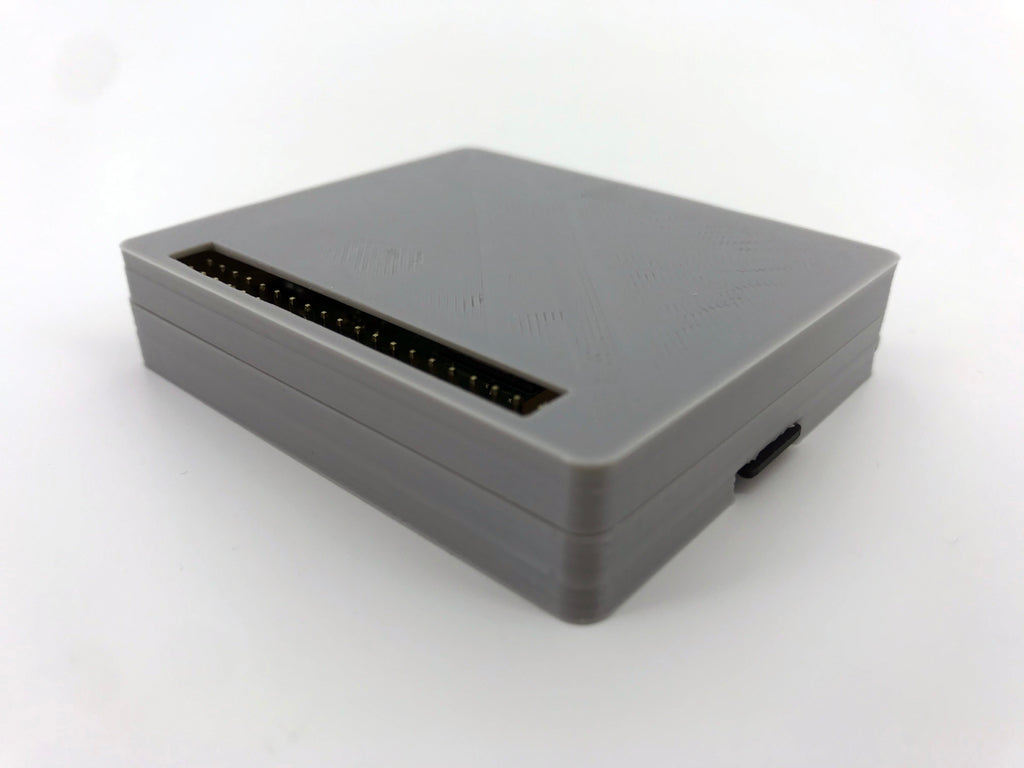

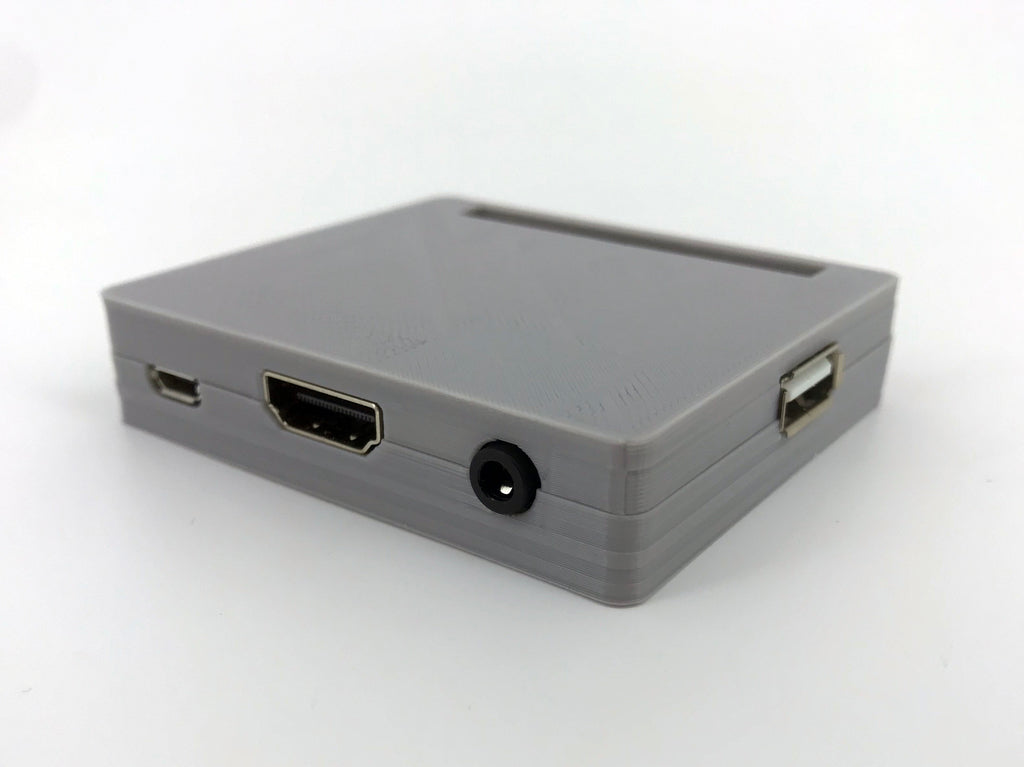

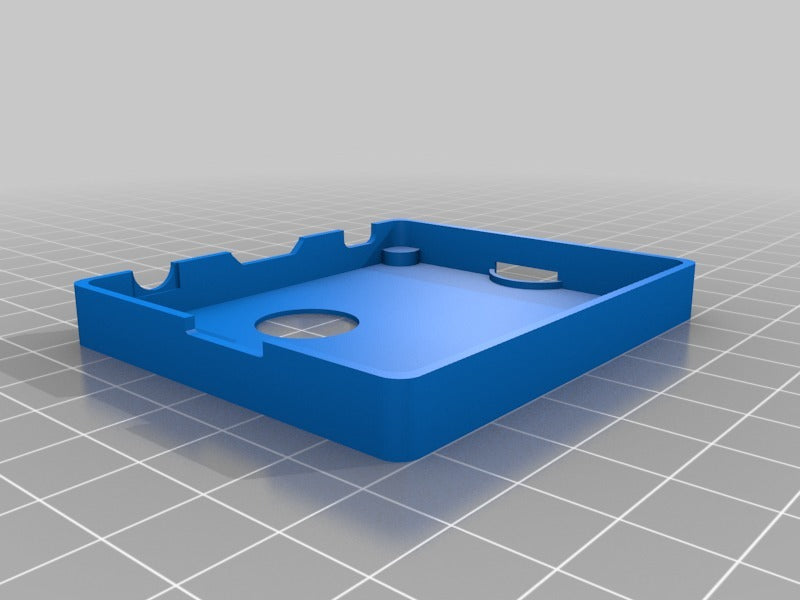

Designed a minimal case for the Raspberry Pi 3 A+ to match my Pi0W Case. It has openings for Power, HDMI, Audio, USB, microSD. I have a plain top as well as a top with an opening for the GPIO pins. I will add a top that has openings for the camera and display ports as well. The bottom has an opening to let you pop your Pi out using your finger.
The pins on the underside of the USB port may stick out a little more than my model. You may need to gently bend them inward if you have any issues getting it full seated in the bottom.

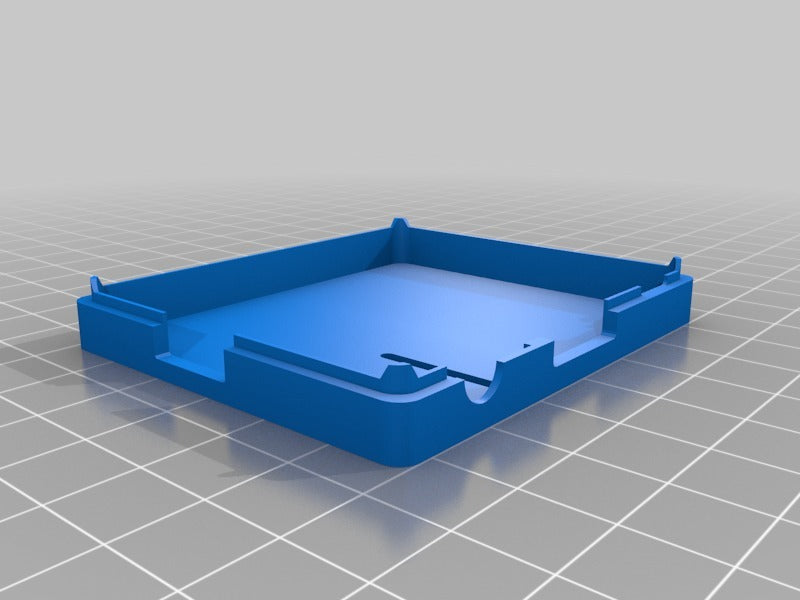

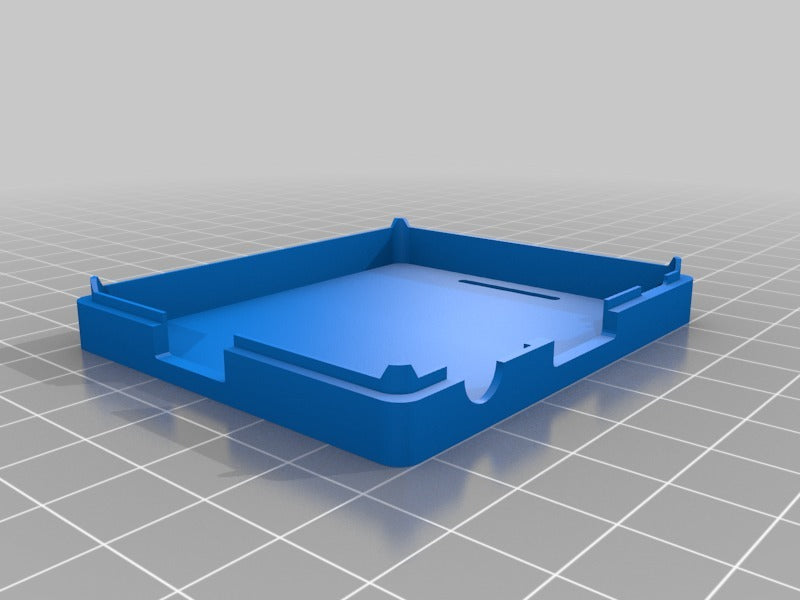

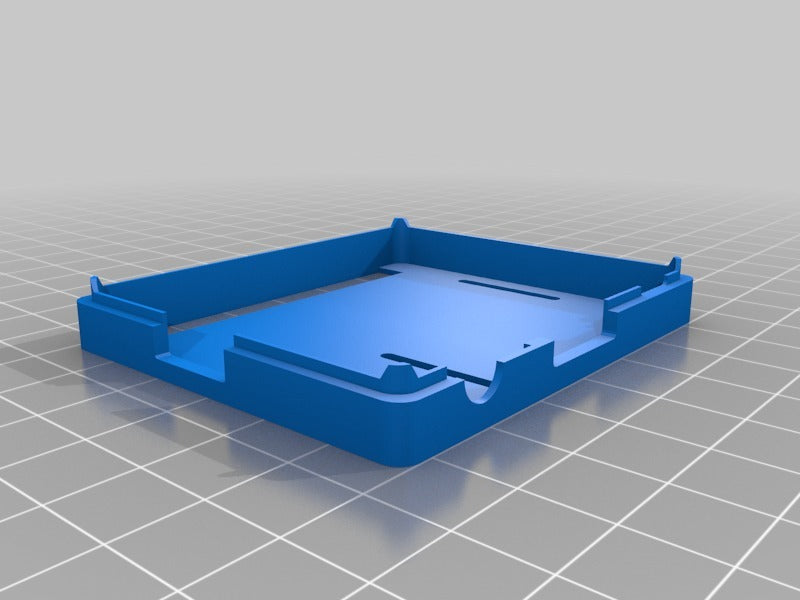

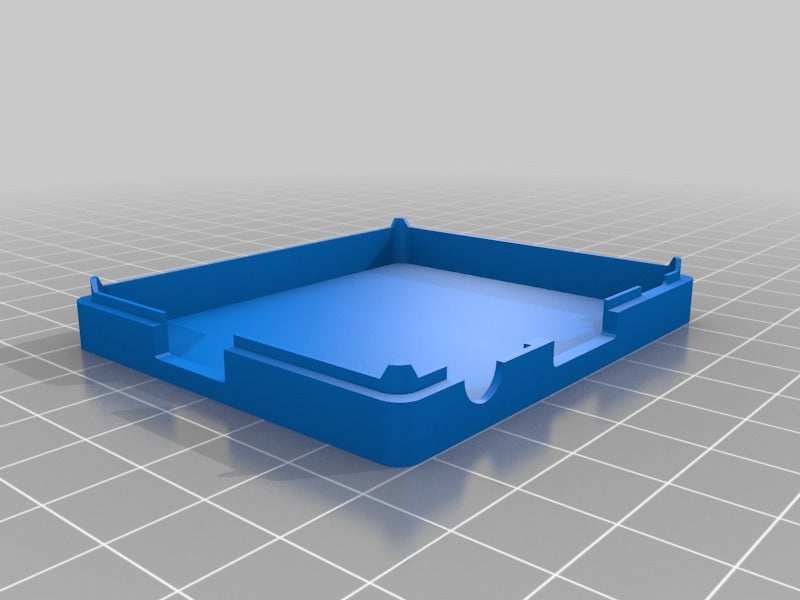

EDIT: Added new tops with holes. In addition to a plain top with no holes, the following options are now available:
- Camera opening
- Display opening
- GPIO opening
- Camera and Display openings
- Camera and GPIO openings
- Display and GPIO openings
- Camera, Display, and GPIO openings
Print Settings
Printer Brand:
PowerSpec
Printer:
PowerSpec 3D Pro
Rafts:
No
Supports:
Yes
Resolution:
.2mm
Infill:
10-15 should be plenty
Notes:
Depending on your bridinging you may need supports for the microSD slot on the bottom shell.
Design by dfoles on MakerWorld (license: BY).
