Crank-Drv Lamellae Resonator Vibromter Edu-Machine

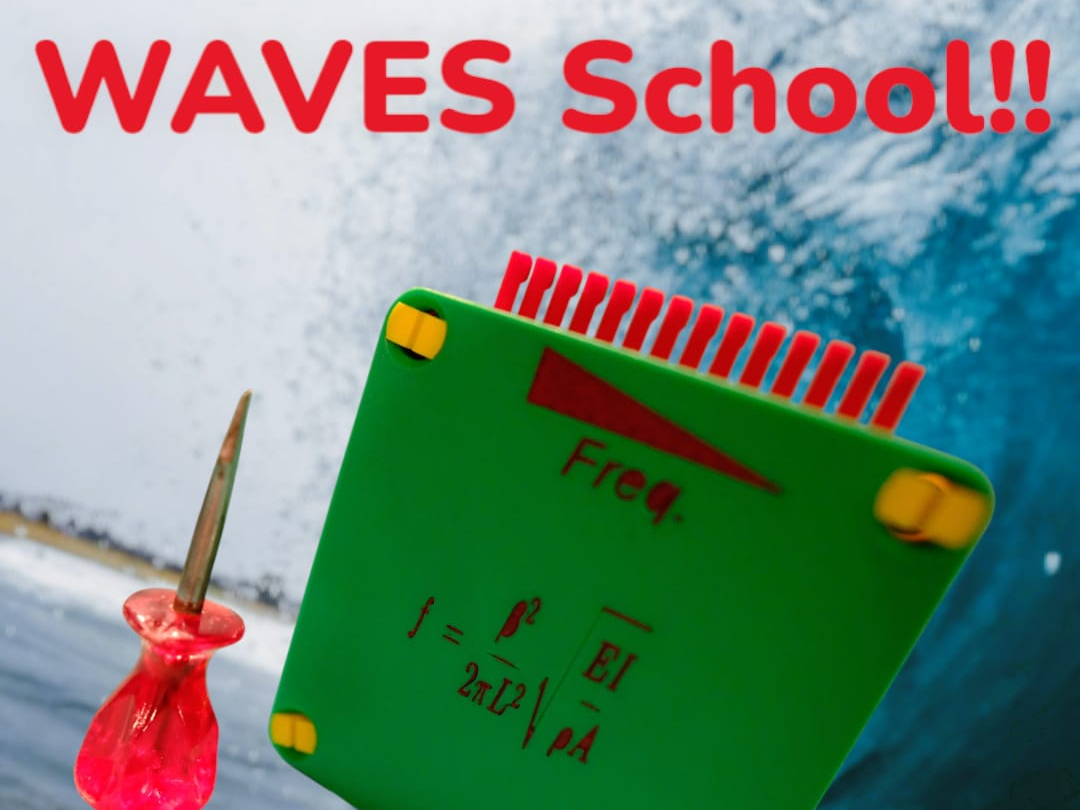

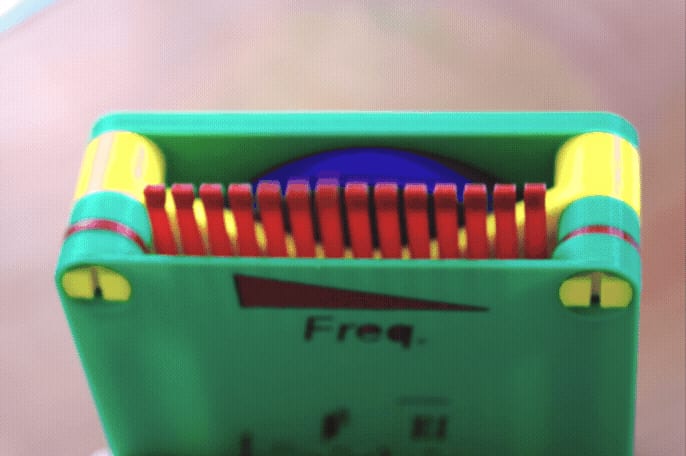

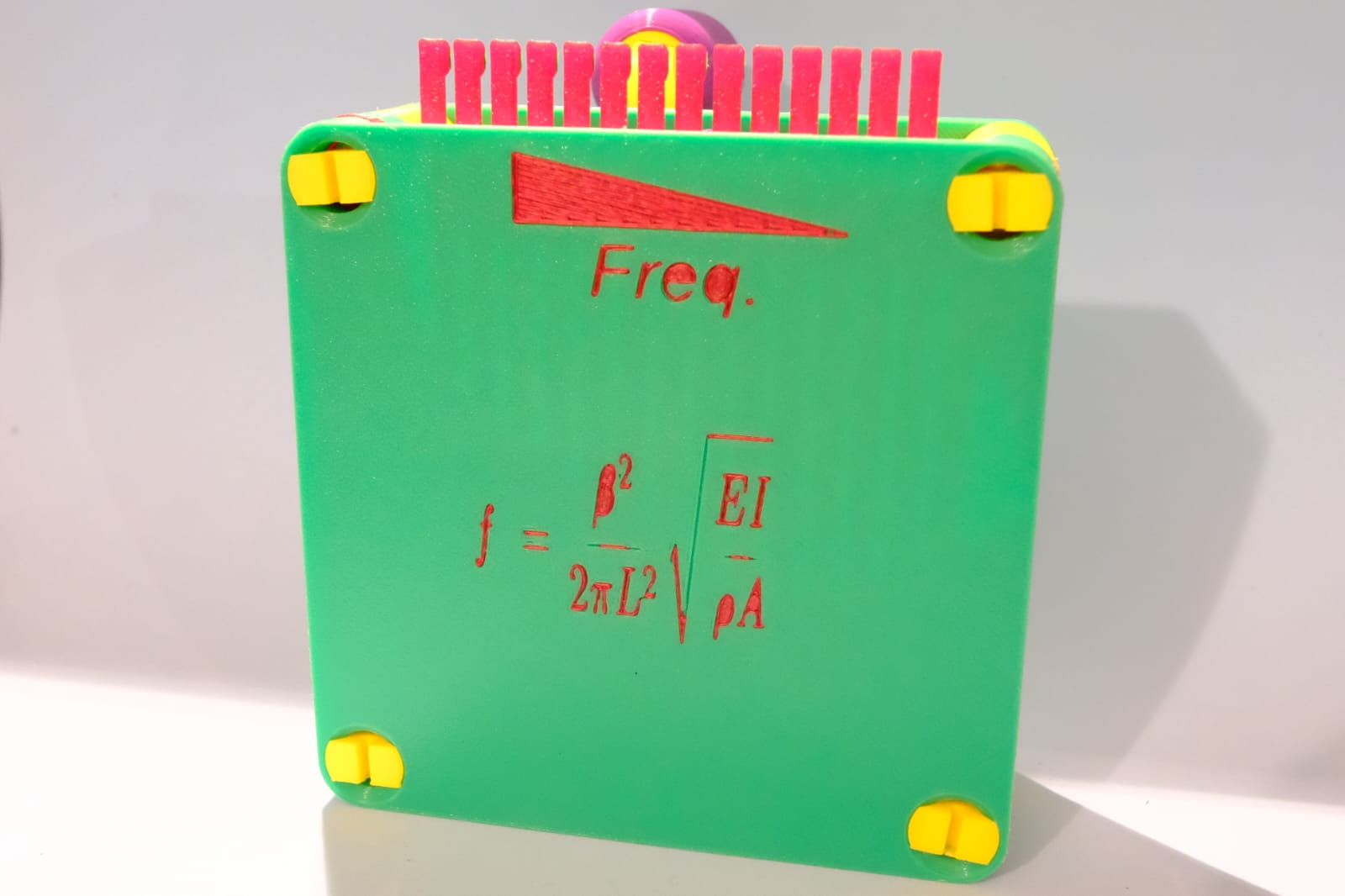

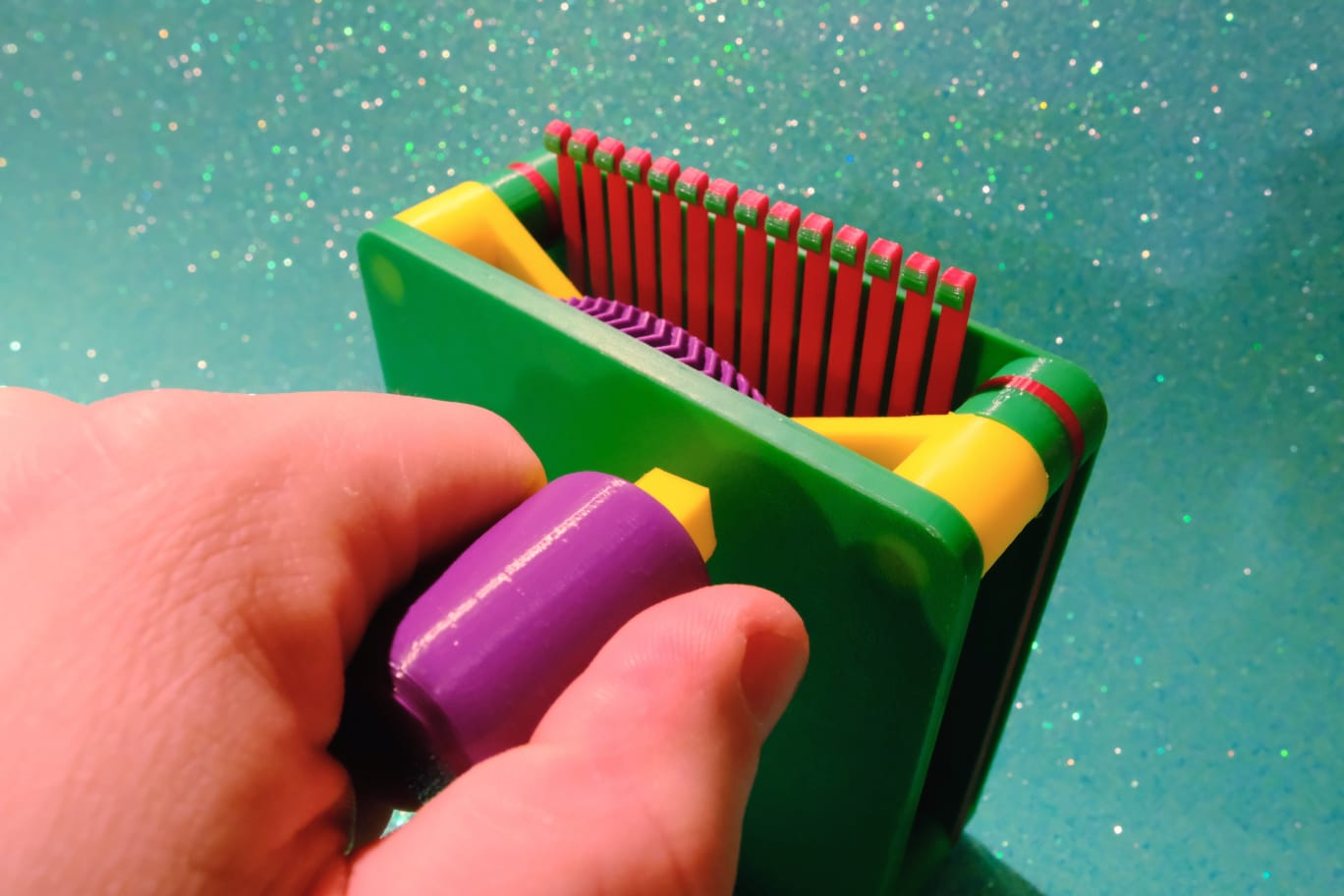

Dive into the fascinating world of mechanical vibrations with our smarty, easy-to-assemble educational machine, designed specifically for studying the natural frequencies of vibrating lamellae.

This innovative tool combines functionality and simplicity to deliver an engaging learning experience.

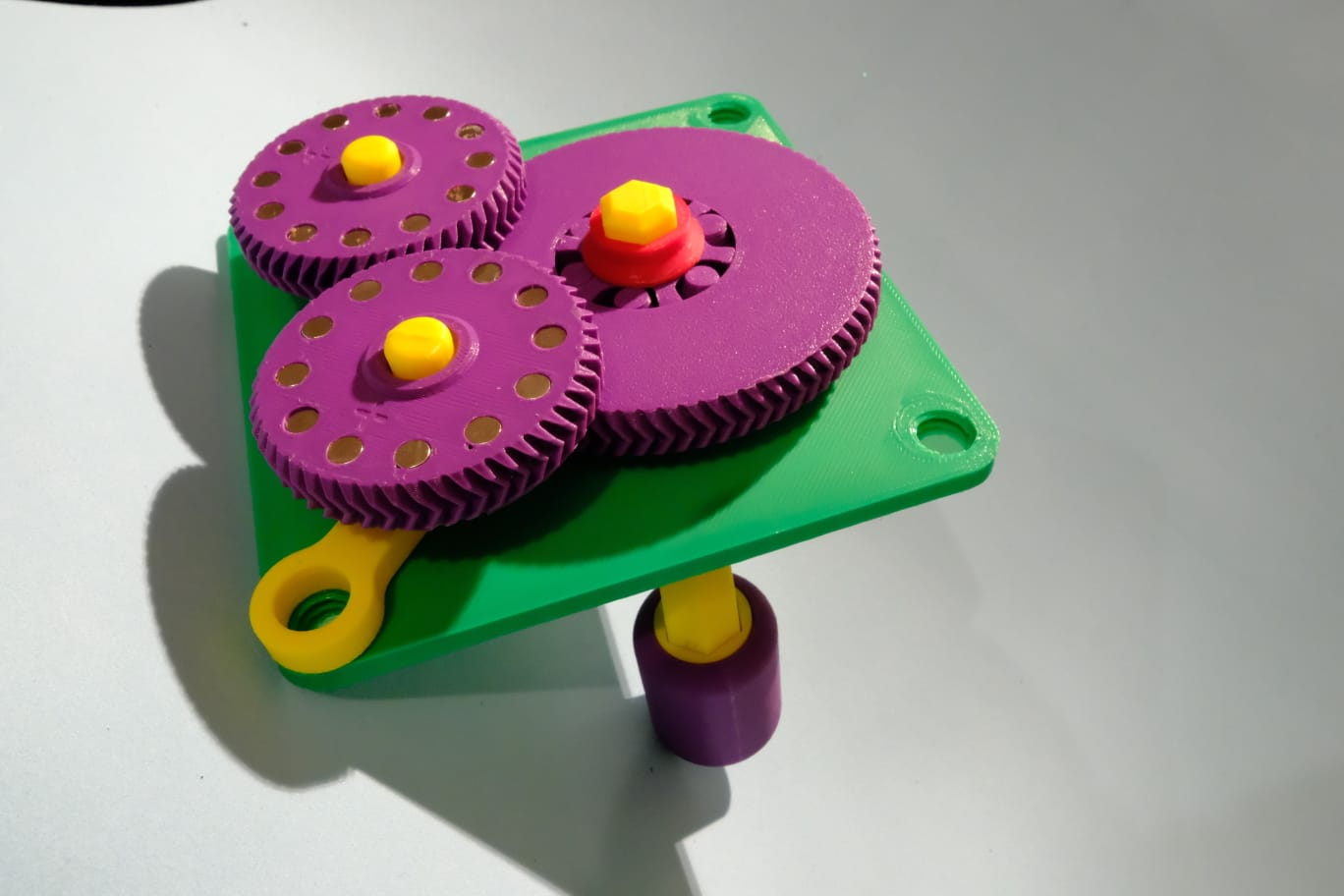

• Double-helical gears with one-way clutch: Enjoy my premium print in place design
• Magnetic Force Transmission: Eeliminating the need for direct mechanical connections.

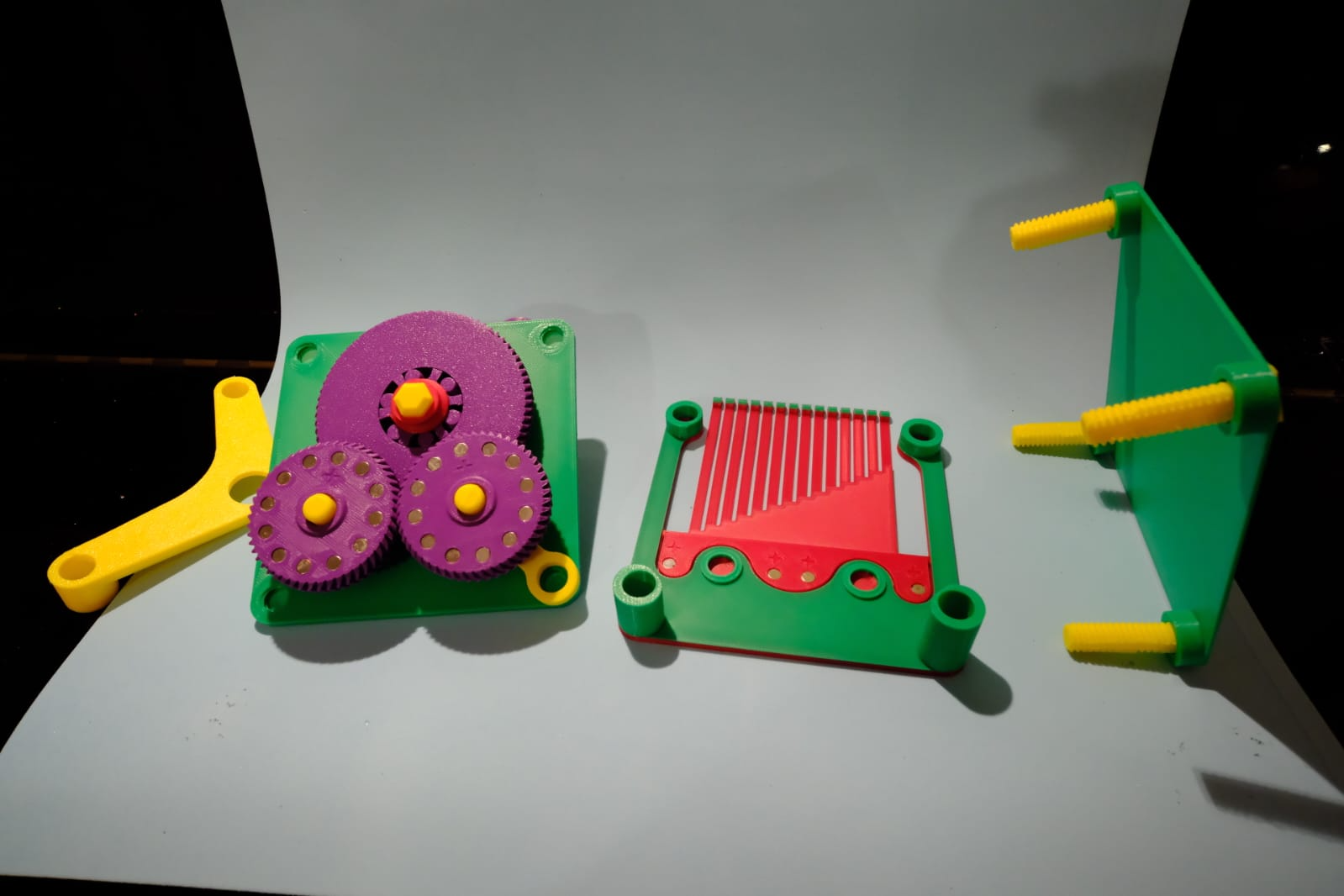

• User-Friendly Assembly: Designed with simplicity in mind, this machine is intuitive to assemble, making it perfect for students, educators, and enthusiasts alike.

Whether you're exploring mechanical engineering, physics, our machine brings theoretical concepts to life, making learning an exciting hands-on journey. Get ready to inspire curiosity and deepen understanding with this revolutionary teaching tool!

Assembling Tips:

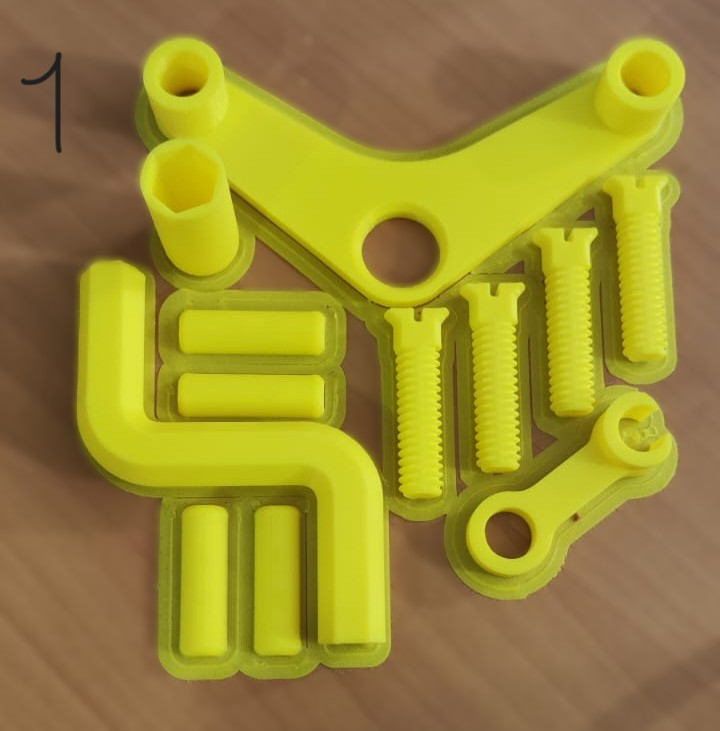

-The placement of 5 mm diameter magnets must follow the indications printed in the slots, with polarity indicated using the symbols + and -.

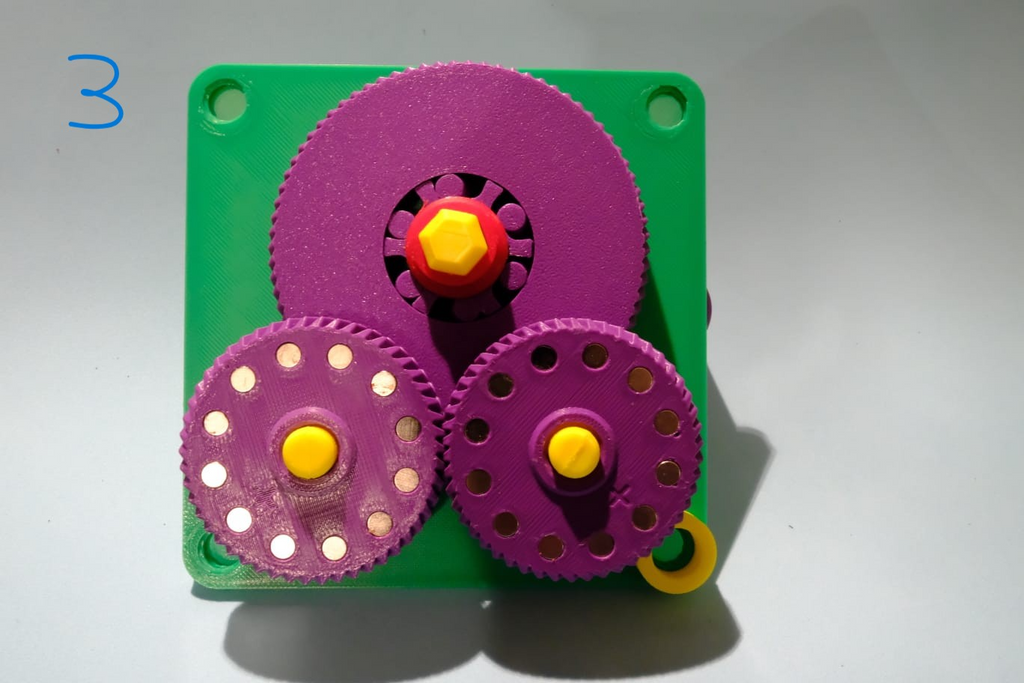

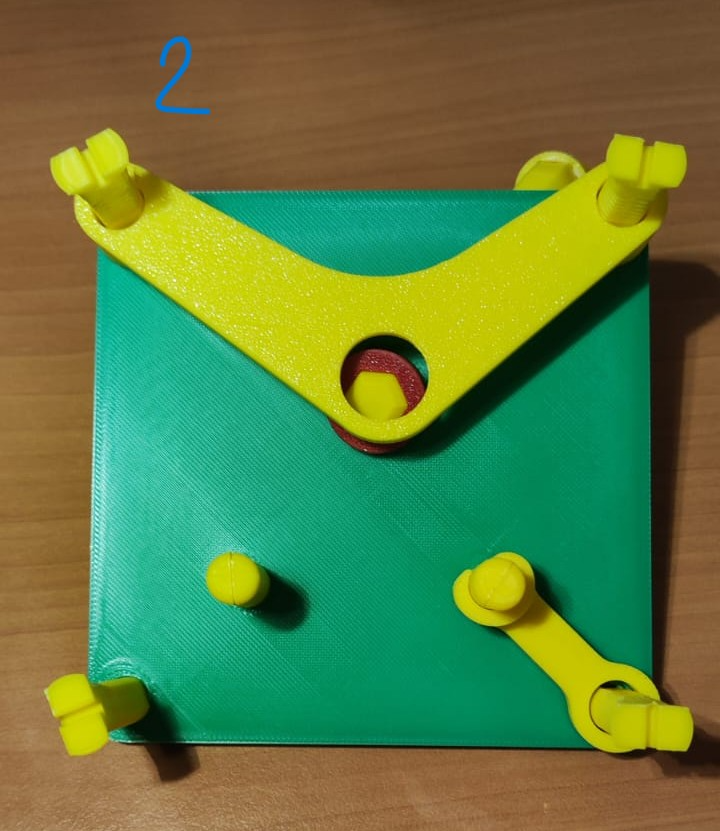

-The crank is coupled to the support structure using 2 friction bearings.

-The rotation axes of the magnetic wheels are printed in two halves to ensure strength and durability, as well as the M10 screws, which are printed flat for enhanced stability.

how it works:

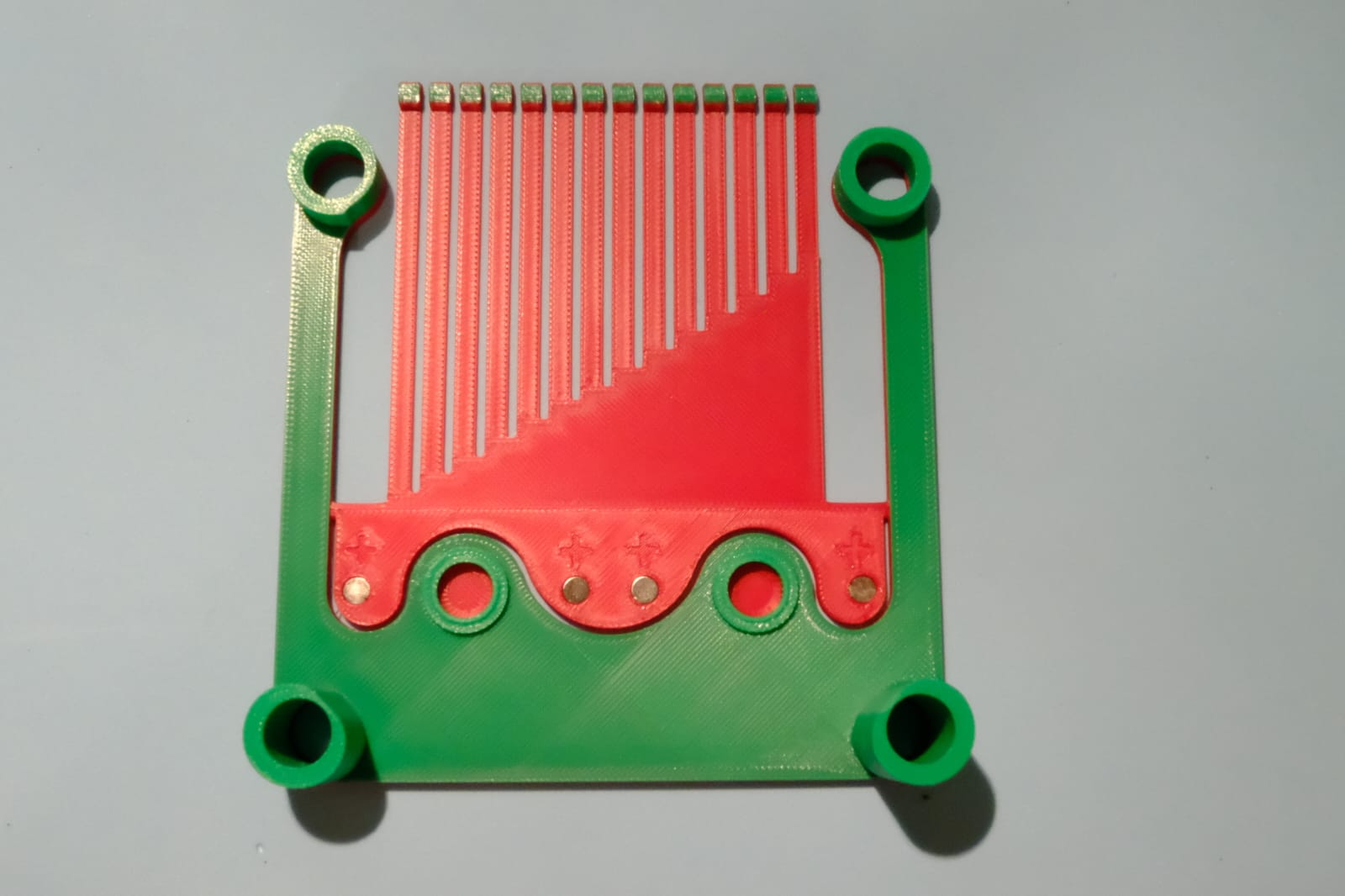

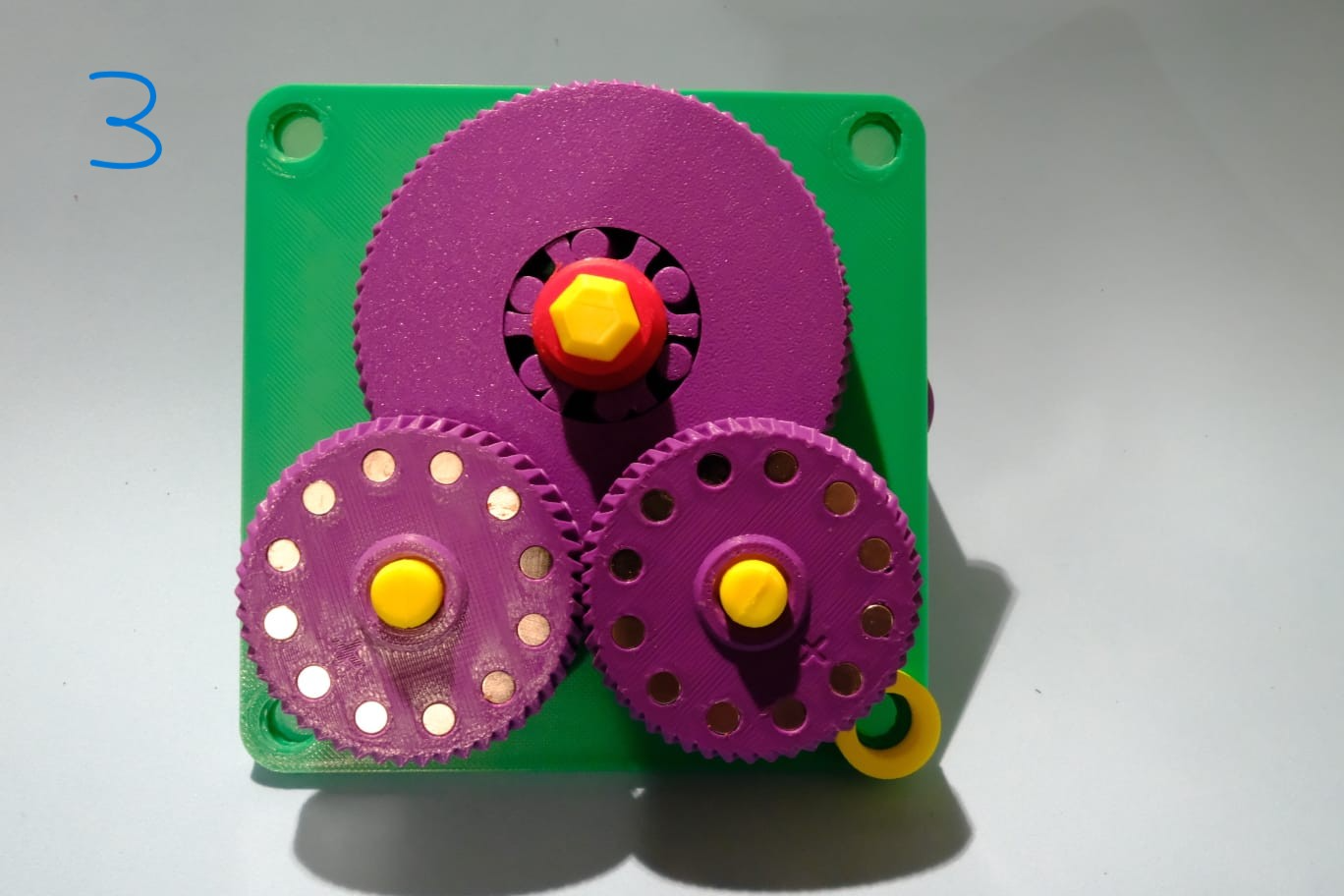

For each turn of the crank, the lamellae are pushed and pulled 23.4 times, on the two interface wheels with the lamellar plate, 12 alternating magnets are mounted on each wheel, forming 6 pairs of N-S magnets, Which push and pull the 4  magnets mounted on the lamellar module

Design by LayerPulse on MakerWorld (license: CC0).
