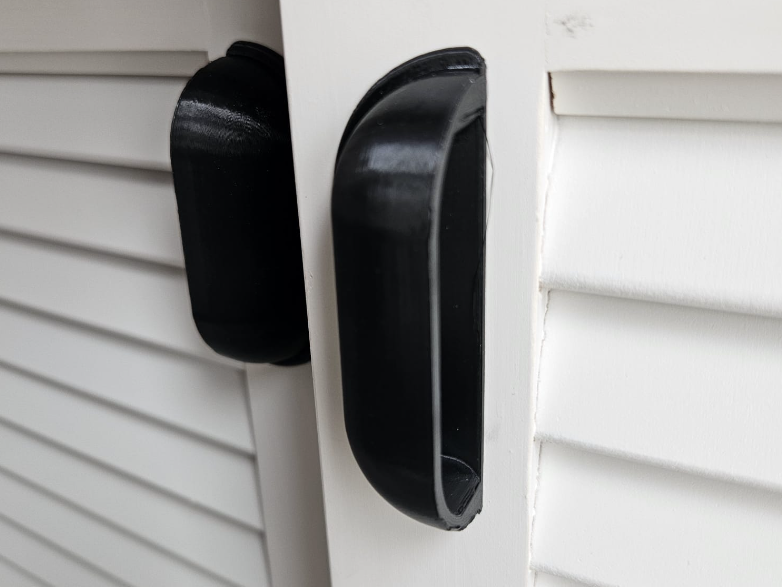

Simple but effective D Cup door handle for cabinets. It will print well without supports provided that the 'open' side of the handle is face down on the print plate - the design creates a constantly closing bridge gap as it prints which eliminates the need for support.

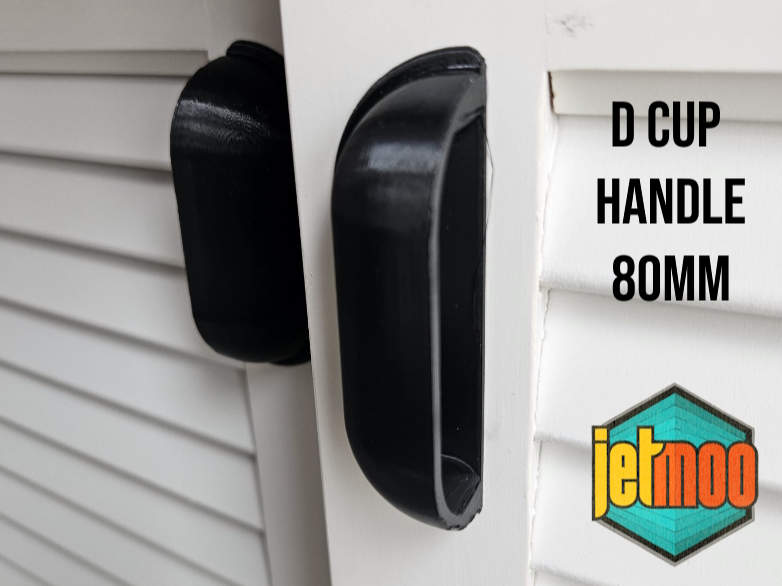

The handle is total size 80mm length by 26mm wide and sticks out from the door by 22mm.
Holes are for 3mm bolts and taper as they go into the model which allows bolts to effectively self tap into the plastic. They are spaced at a fairly standard 64mm (Standard in IKEA at any rate).
Included file is for PETG but it should happily print in PLA or whatever material you have.
Design by Jetmoo on MakerWorld (license: BY-SA).
