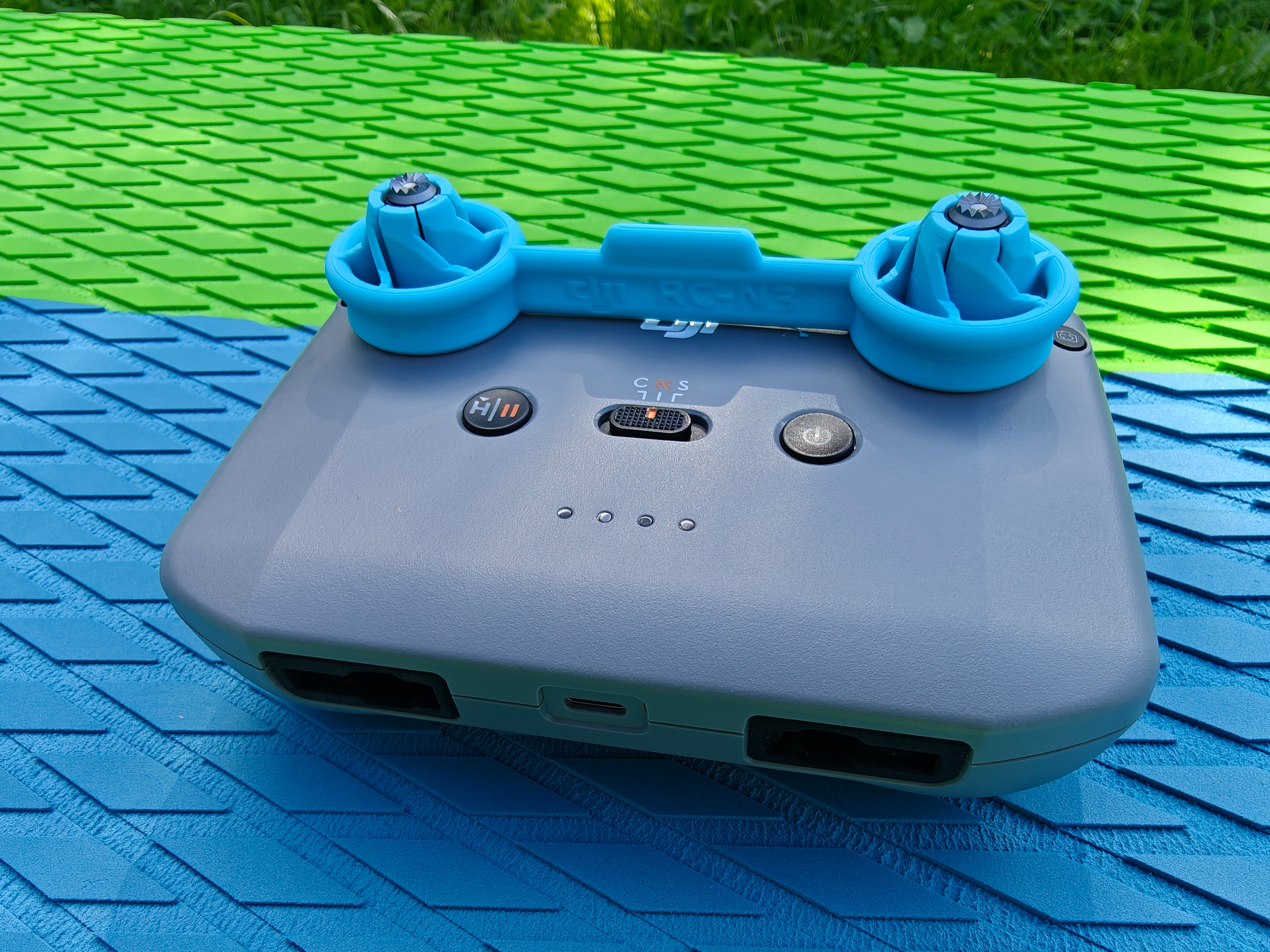

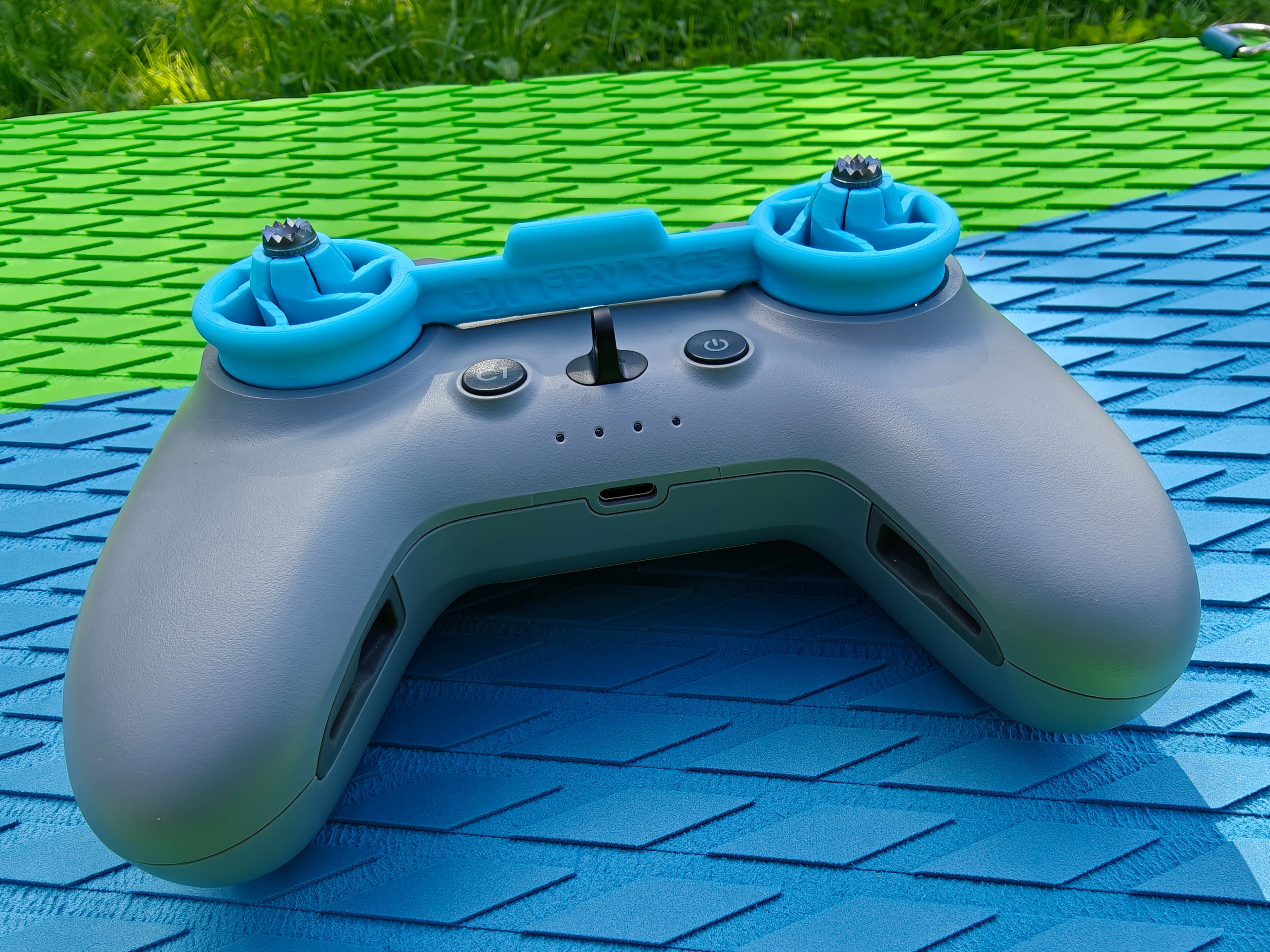

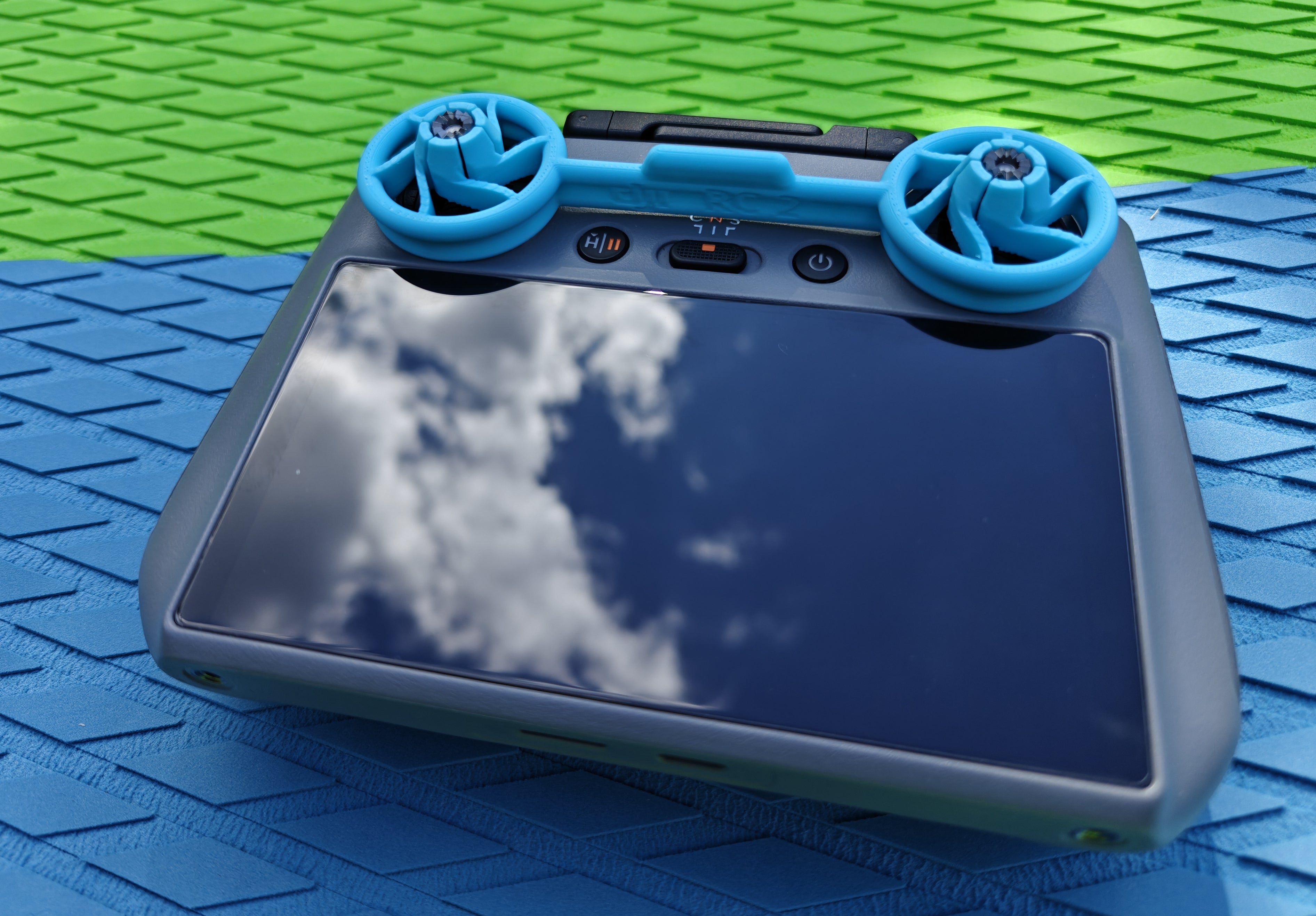

DJI Controller Stick Protectors - RC2, RC3, RC-N3

Protect your DJI controller’s sensitive gimbal sticks from damage during transport.

Note: Each remote controller model has its own dedicated geometric design. Make sure to download the specific file that matches your device!

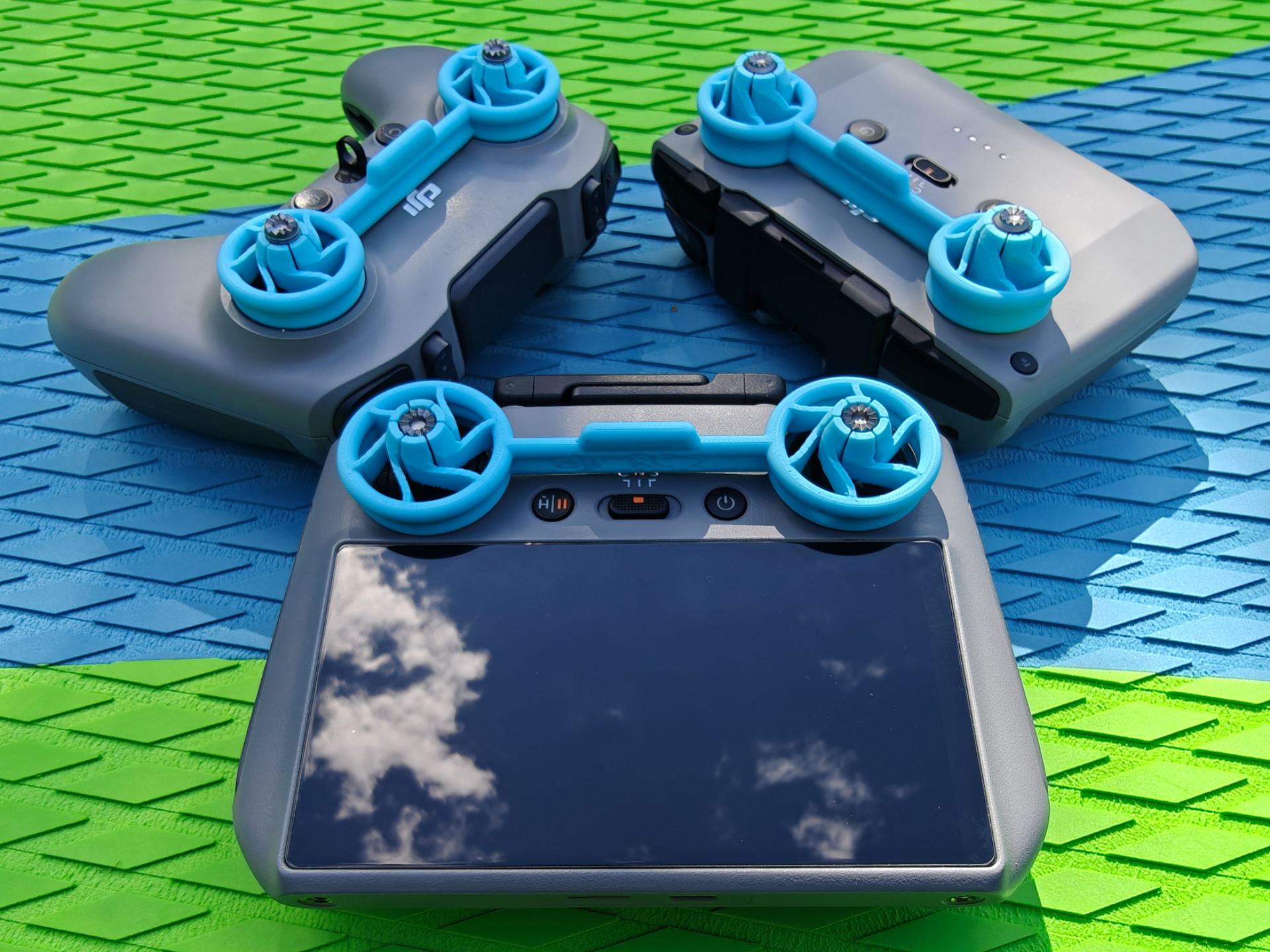

Compatible Remote Controllers:

• DJI RC 2
• DJI RC-N3
• DJI FPV Remote Controller 3

Available in Two Model Variations for Each Controller:

• Simple (One-piece): A basic, single-piece model printed entirely from one material.
• TPU Sleeve Edition: Features a soft, internal TPU sleeve for an optimal fit. The sleeve must be printed separately.

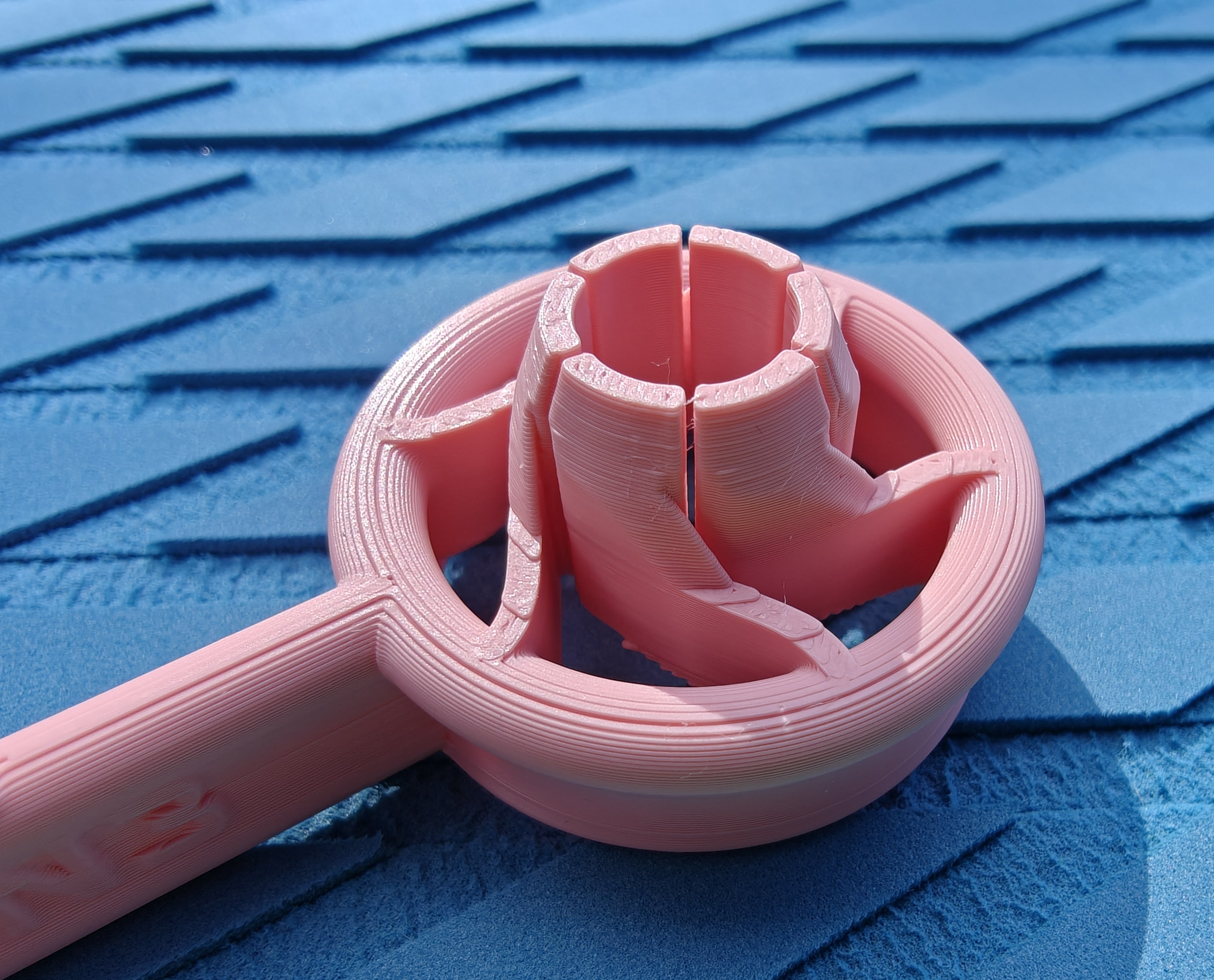

Simple Model (One-piece)

This standard model is designed to fit the factory configuration. However, depending on your printer calibration and filament shrinkage, the fit might turn out a bit too tight or too loose.

Over time, the grip strength may degrade due to plastic fatigue—this is especially true for PLA. If possible, I recommend using more resilient materials like PETG, ABS, or ASA.

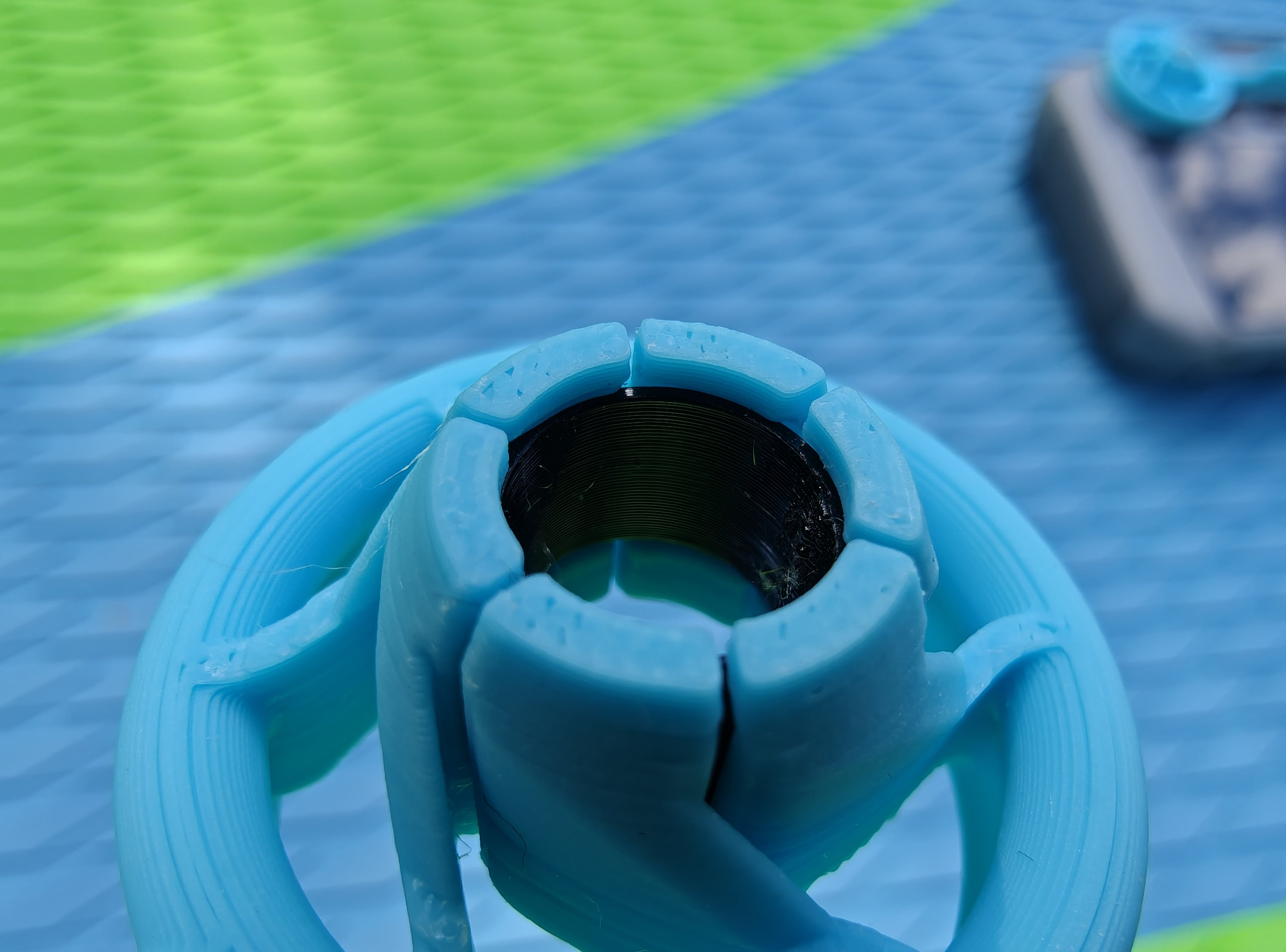

TPU Sleeve Model (Recommended)

This upgraded version offers a much better fit, and the retention strength won't degrade over time.

The print file includes several TPU sleeves in slightly varying tolerances. I suggest printing them out to test which one achieves the perfect friction fit on your specific controller.

Assembly tip: Push the TPU sleeve into the stick opening from the bottom. It might take a few attempts and a bit of force to snap it perfectly into place.

Design by user_45664173 on MakerWorld (license: BY).
