DJI O4 Pro mount for RC Aiplanes

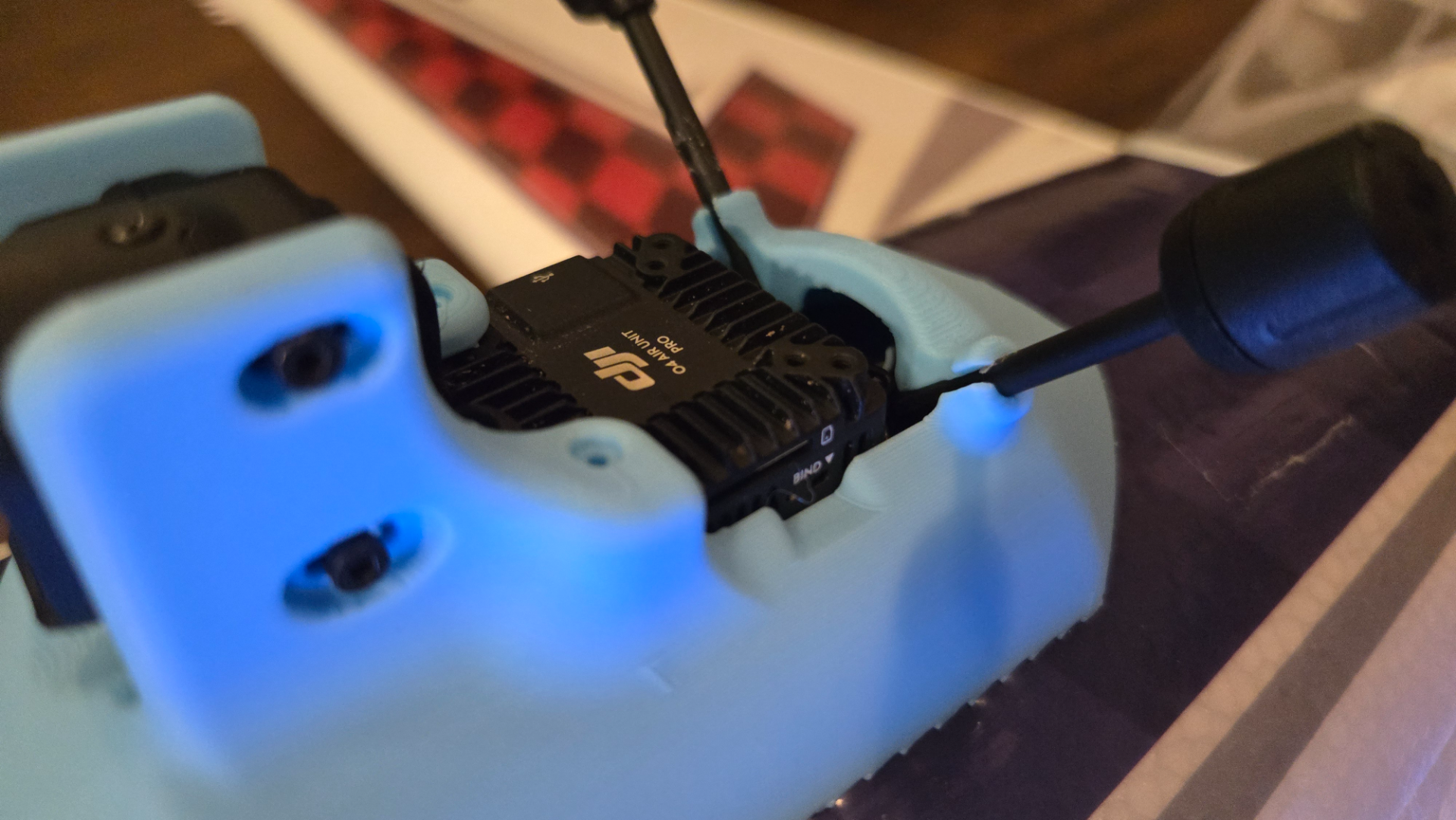

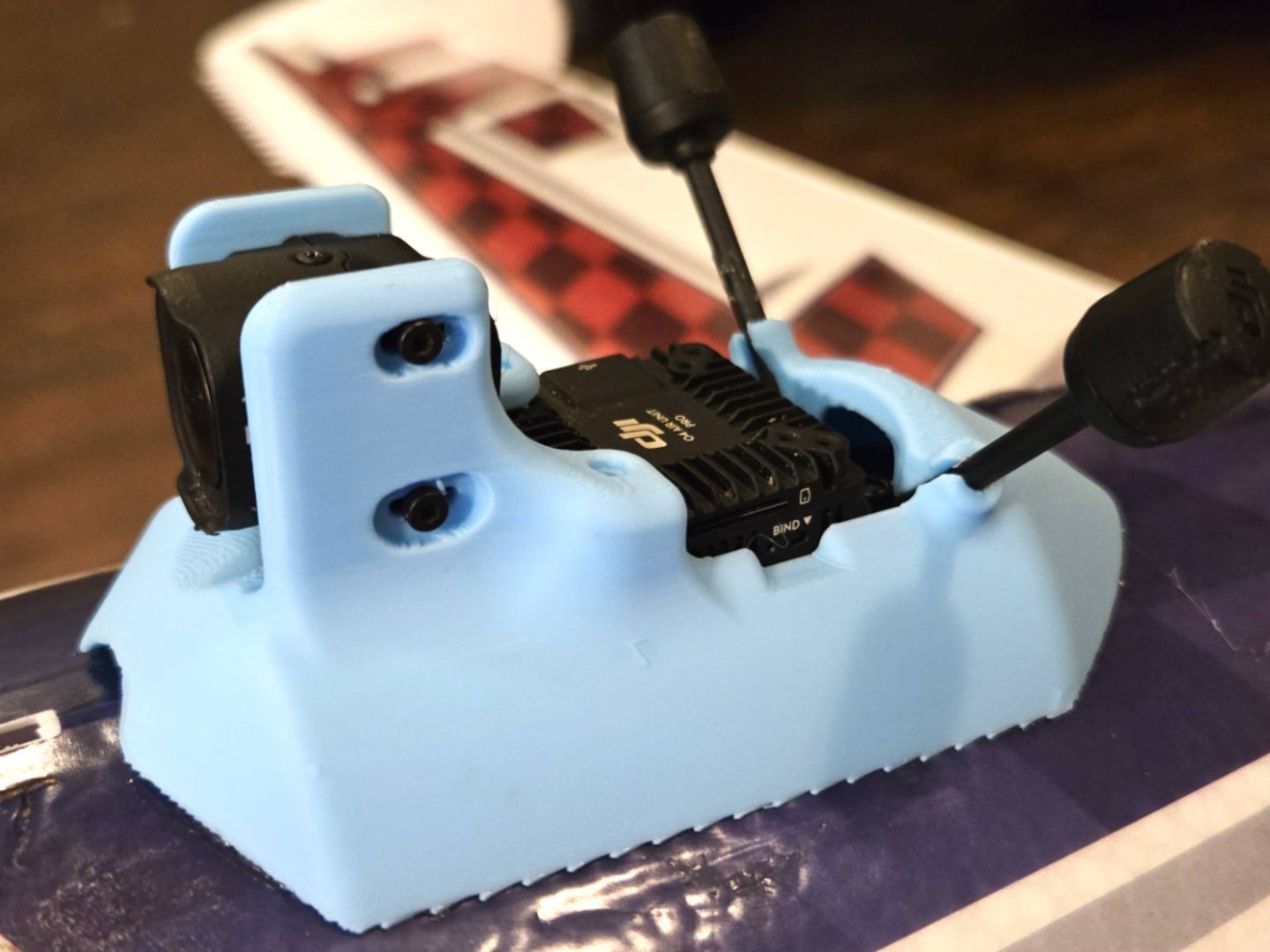

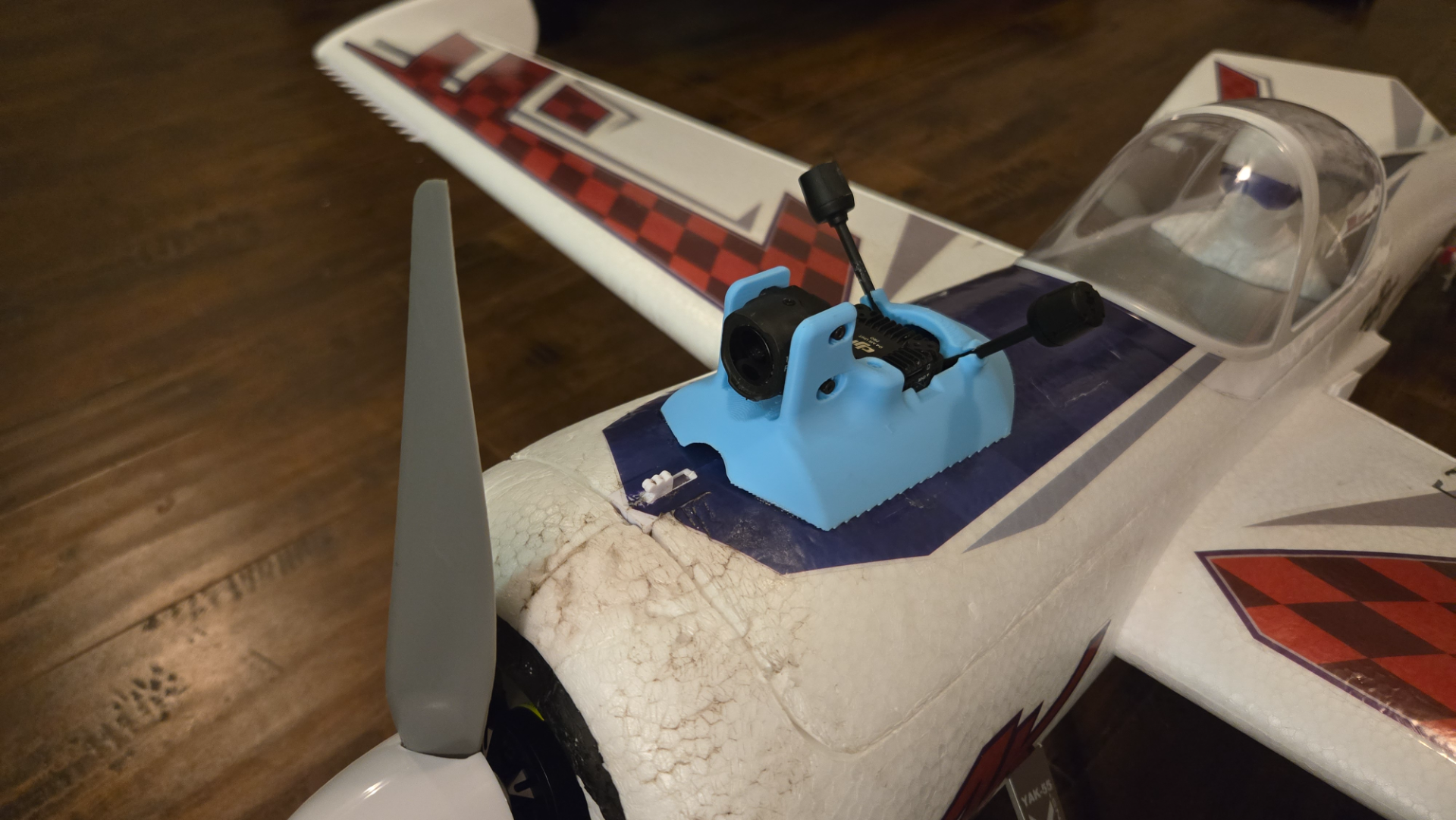

DJI O4 Pro mount for for Rc Airplane. Designed for Yak55 (flex innovations) but should work for any other plane of the similar size. Use B7000 or E6000 or similar glue to attach it to the plane. O4 Unit mounting has optional holes for the screws, but I fly without them, holds good for me.

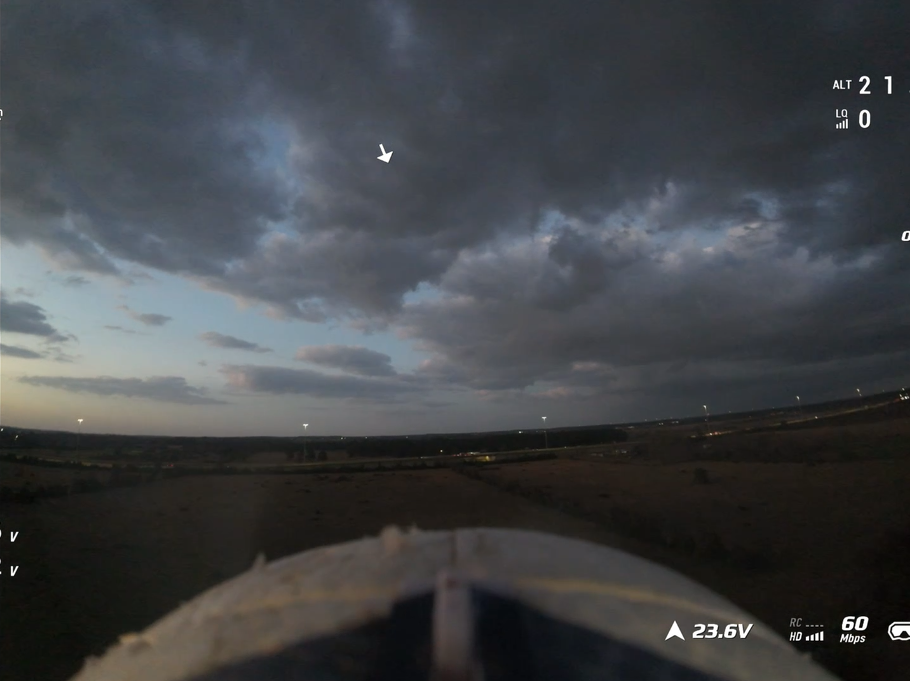

Camera can be tilted up/down +/- 15 degrees depending on your plane or preferences.

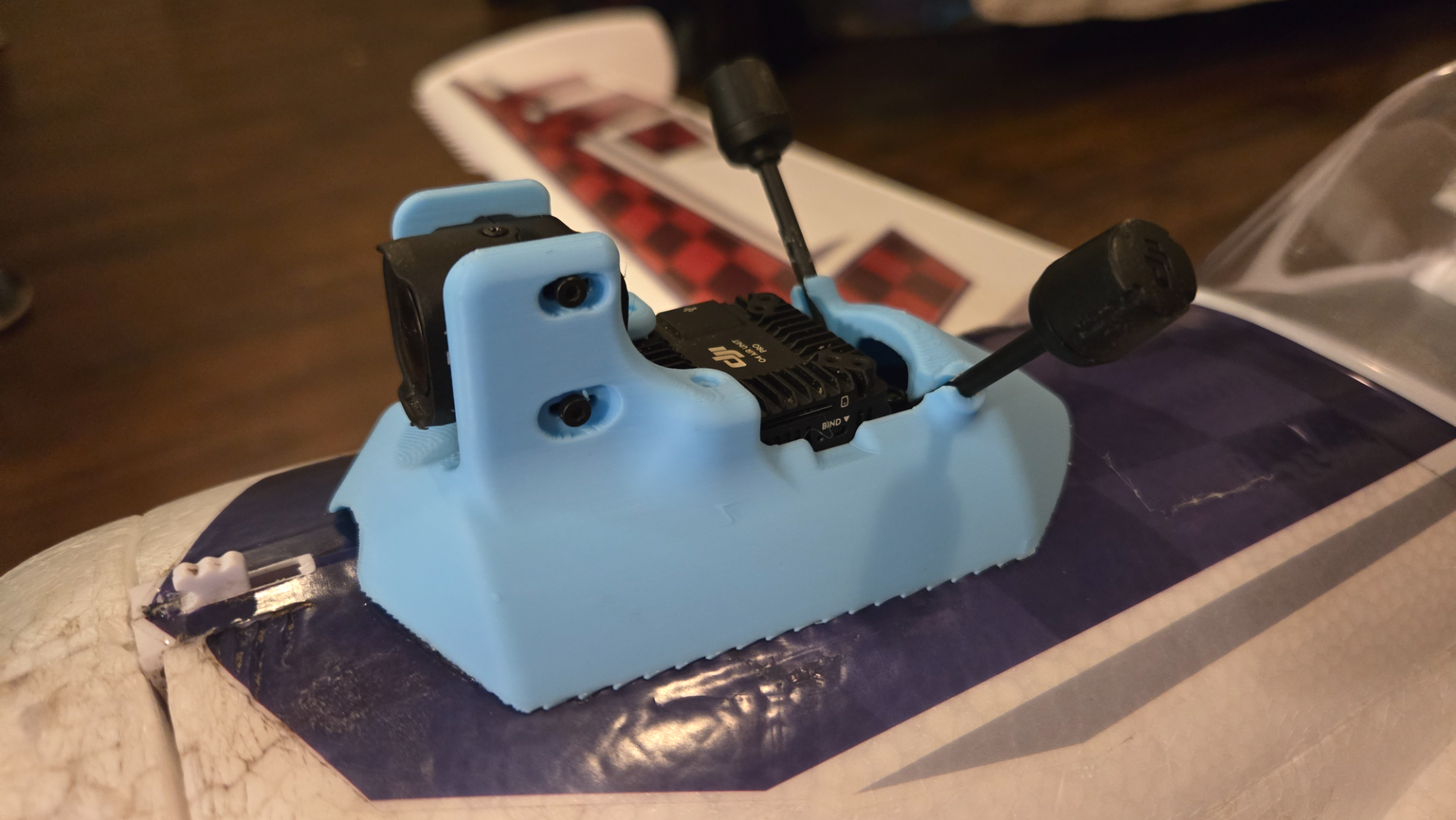

If printed well the antennas will hold in the slots pretty tight.

Printed in PLA or Tough PLA. In addition i used USB-C boards for power and TX/RX. Allows to easily detach the plane canopy if needed, or unplug the Airunit. Used these: https://amzn.to/4hvJUts

Design by limon on MakerWorld (license: BY).
