Drehriegel-Twistelock for Camper storage

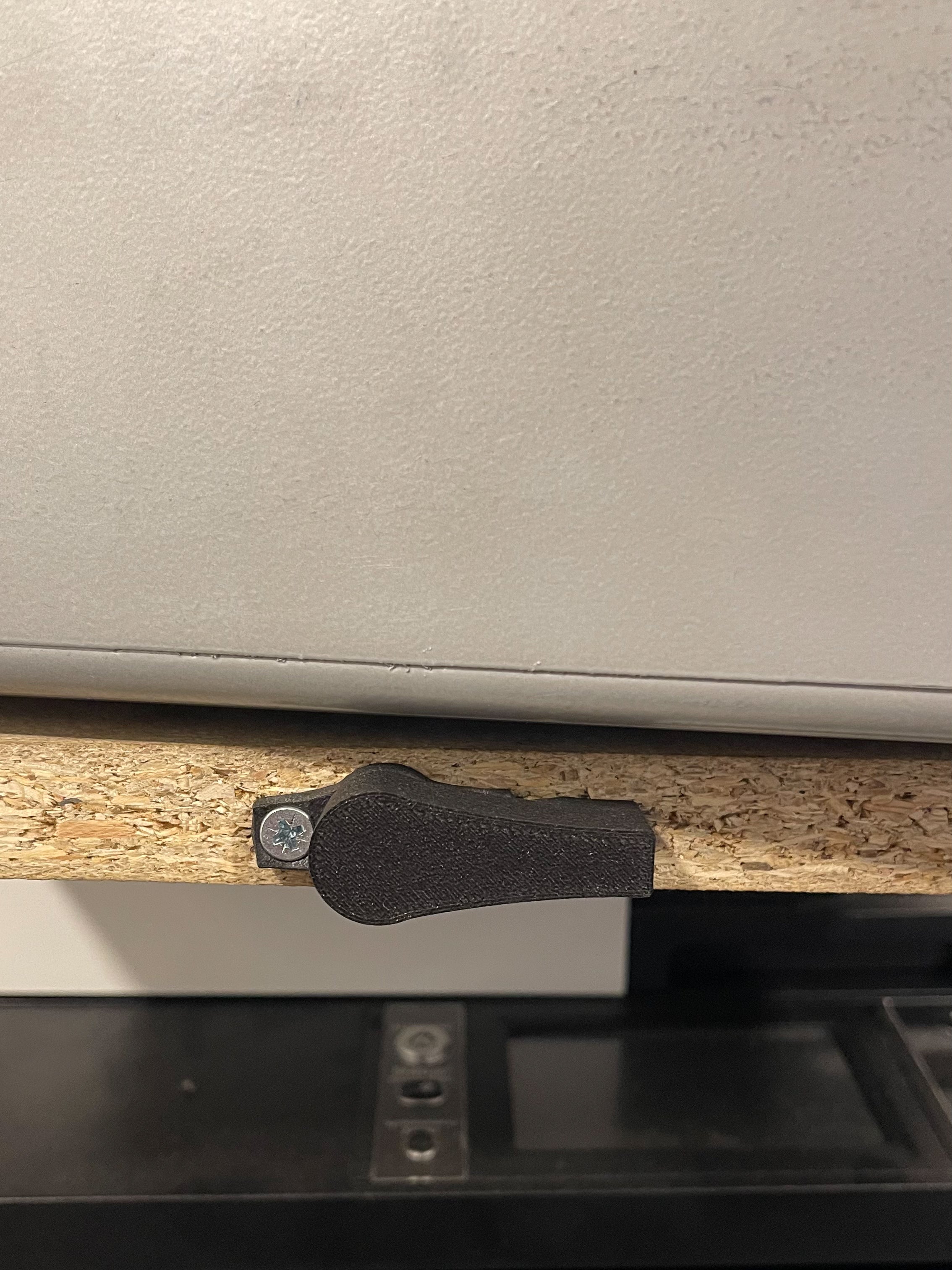

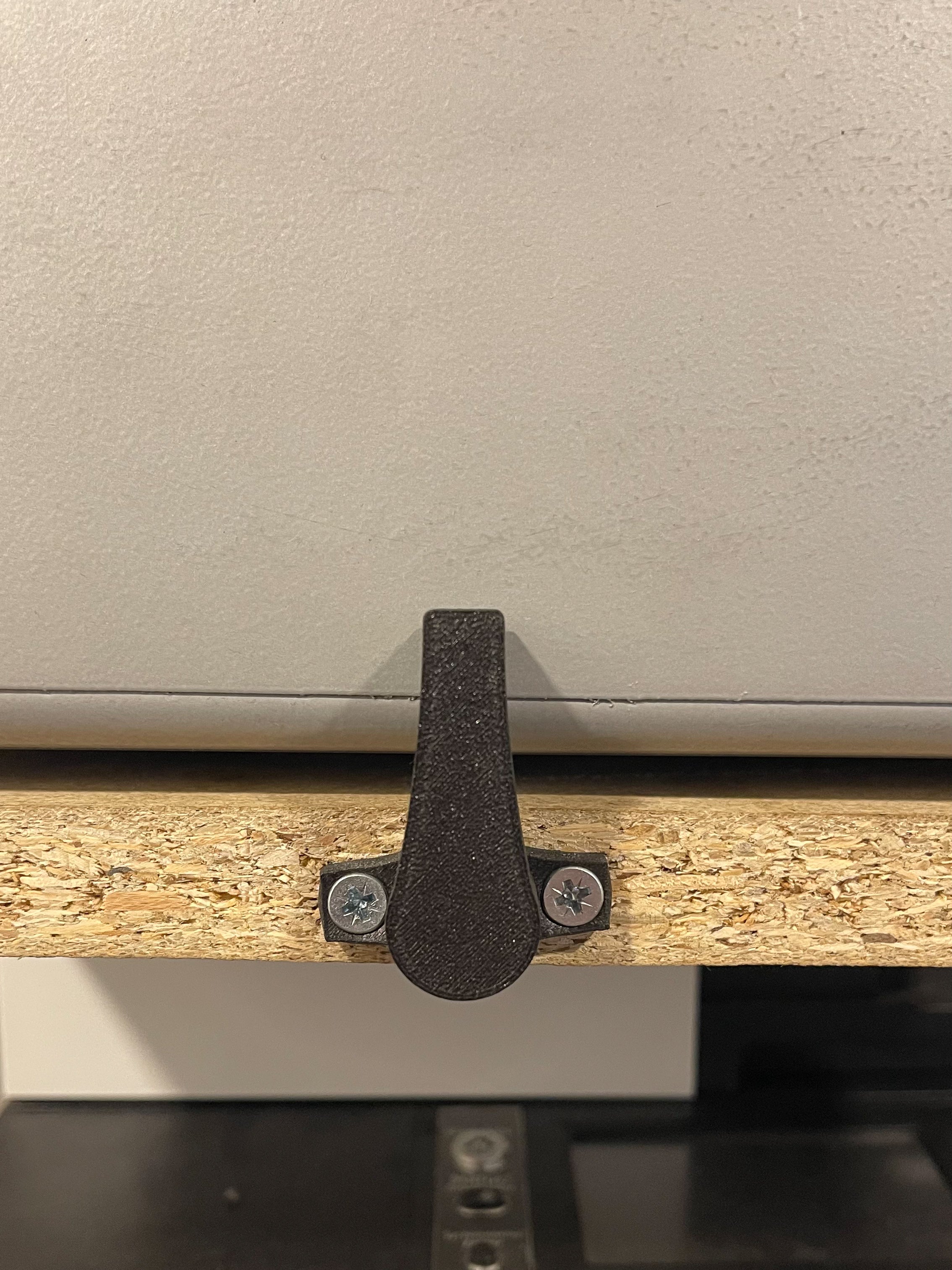

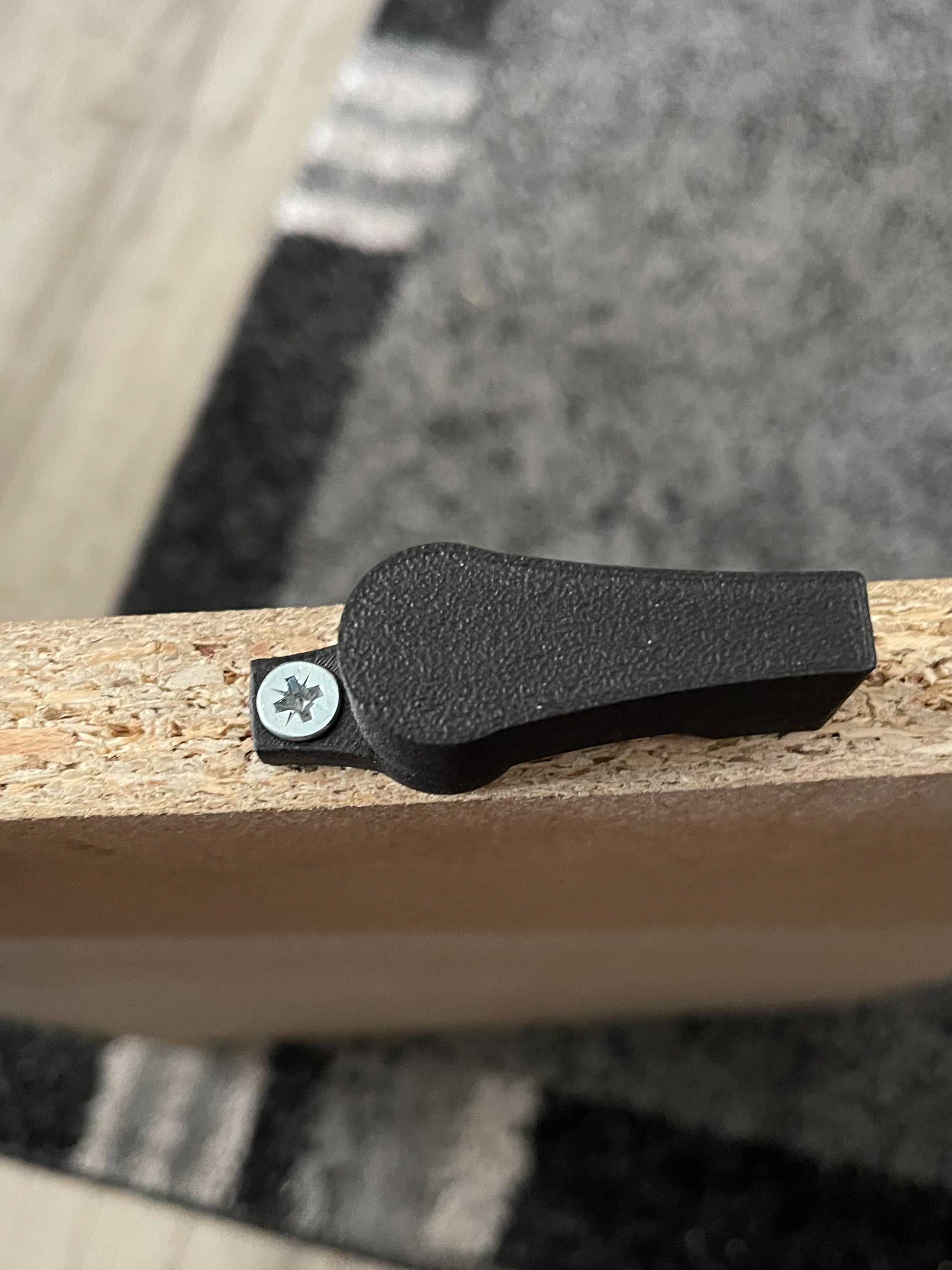

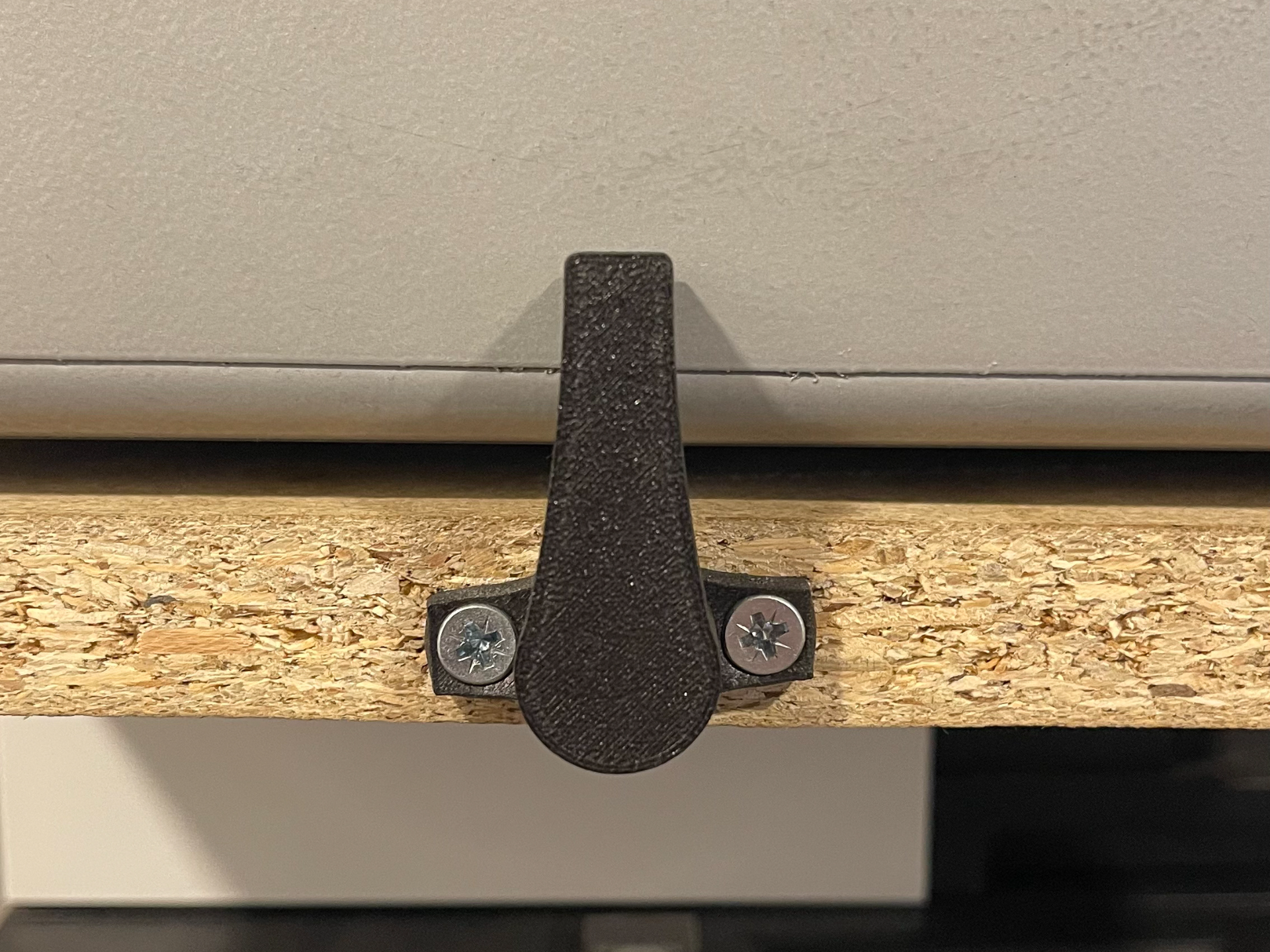

This is a twist lock for campers or home use that secures boxes or other items stored inside a shelf.

To build it, you will need:

• One M3 threaded insert (M3x5)
• Two washers (one of them bent in the middle to act as a spring)
• One M3x8 screw
• Threadlocker (e.g., Loctite) or another type of screw glue

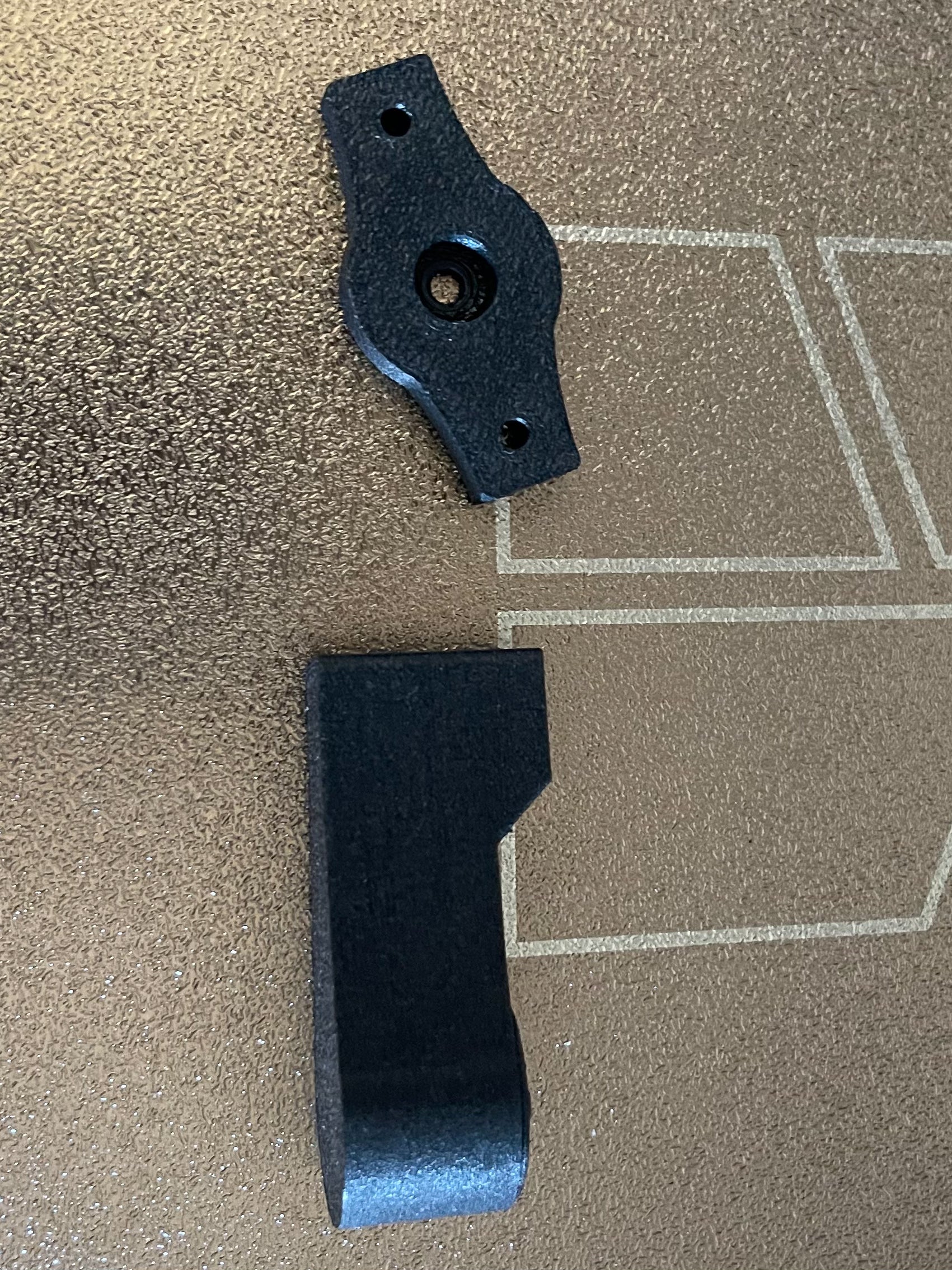

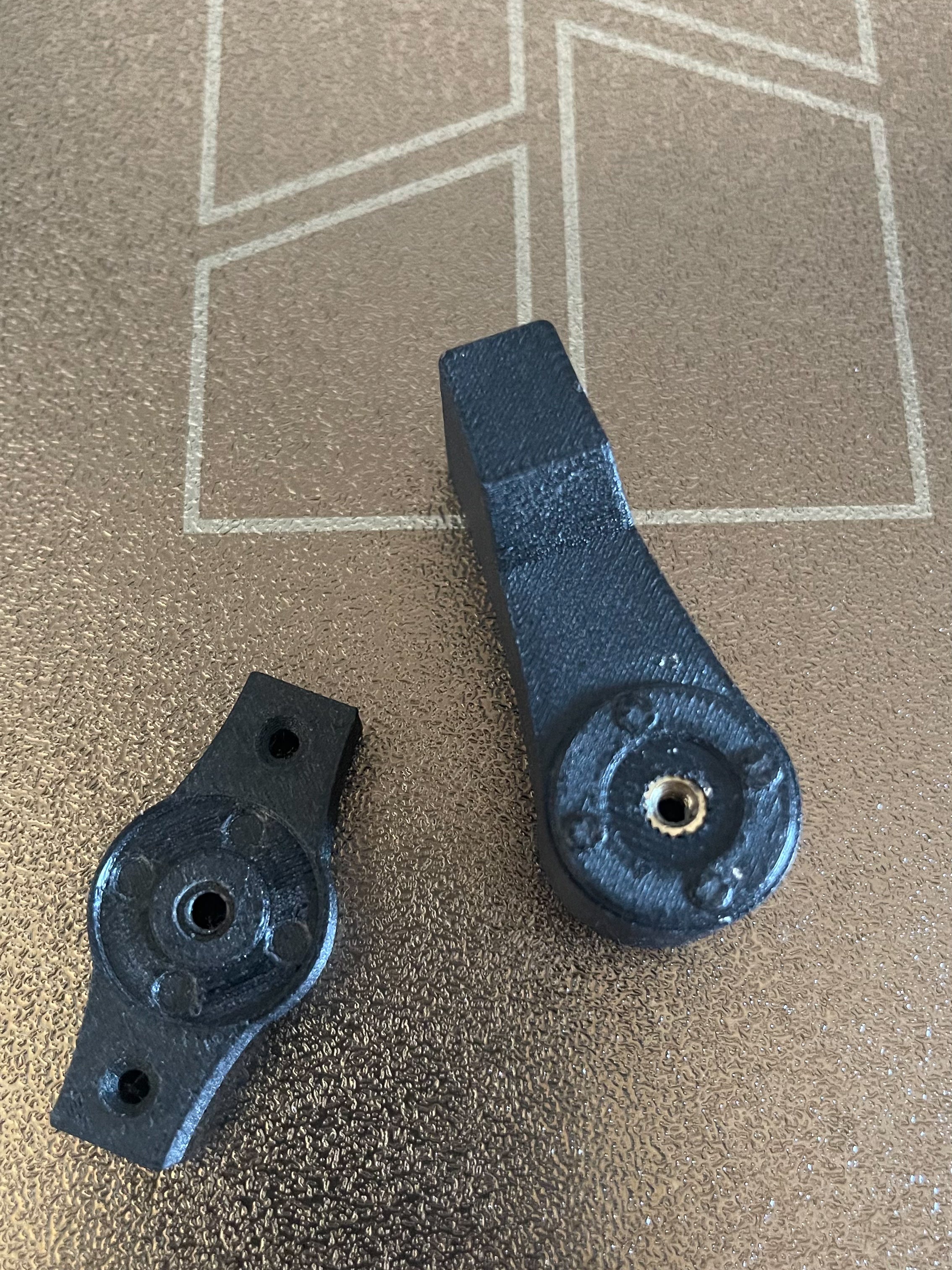

Press the M3 threaded insert (M3×5) into the hole in the lever.
Next, place the two washers onto the screw, positioning them directly under the screw head. Ensure that the bent washer is oriented correctly against the screw head.
Insert the screw into the base of the lock and apply threadlocker to prevent the screw from loosening due to lever movement.
Do not overtighten the screw, as excessive torque may prevent the lever from rotating freely.

Have fun with the Model hopefully I see some projects of you :D

Design by Ti_m_G on MakerWorld (license: BY-SA).
