Summary

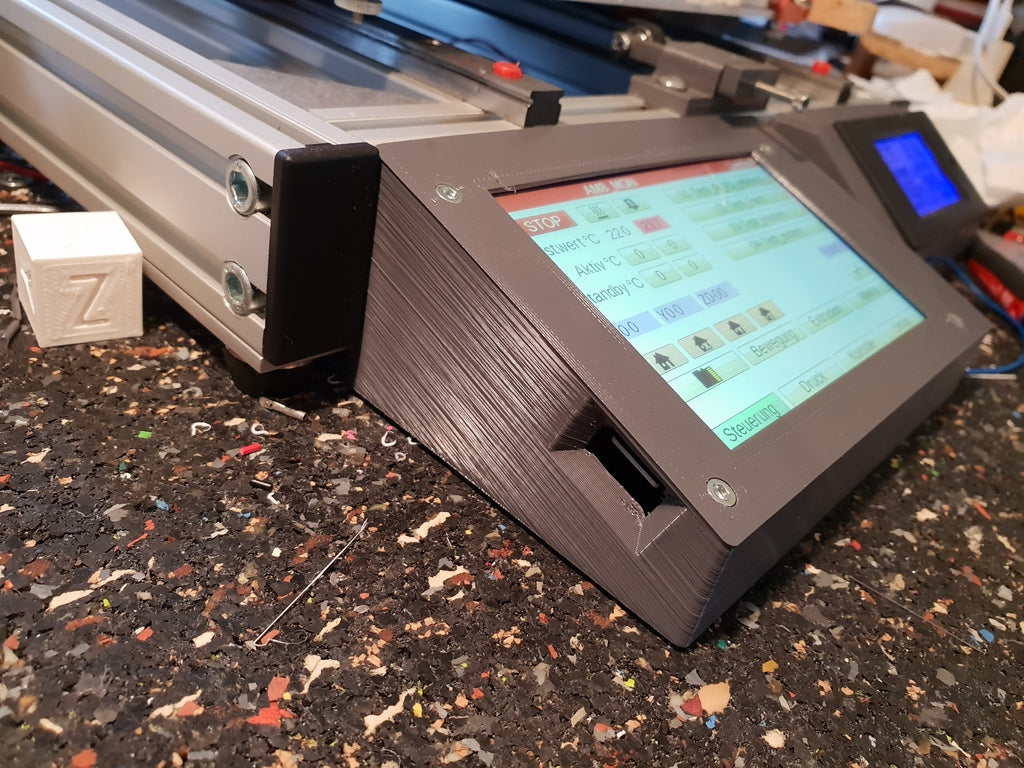

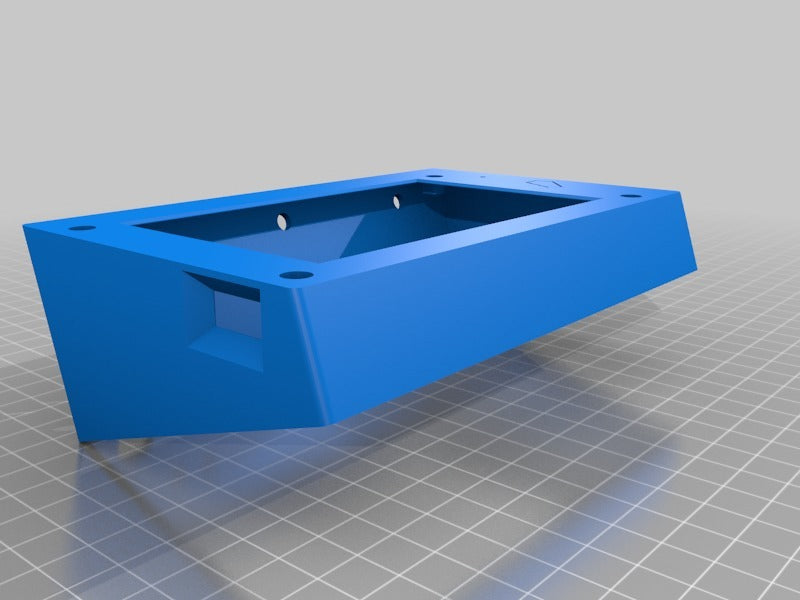

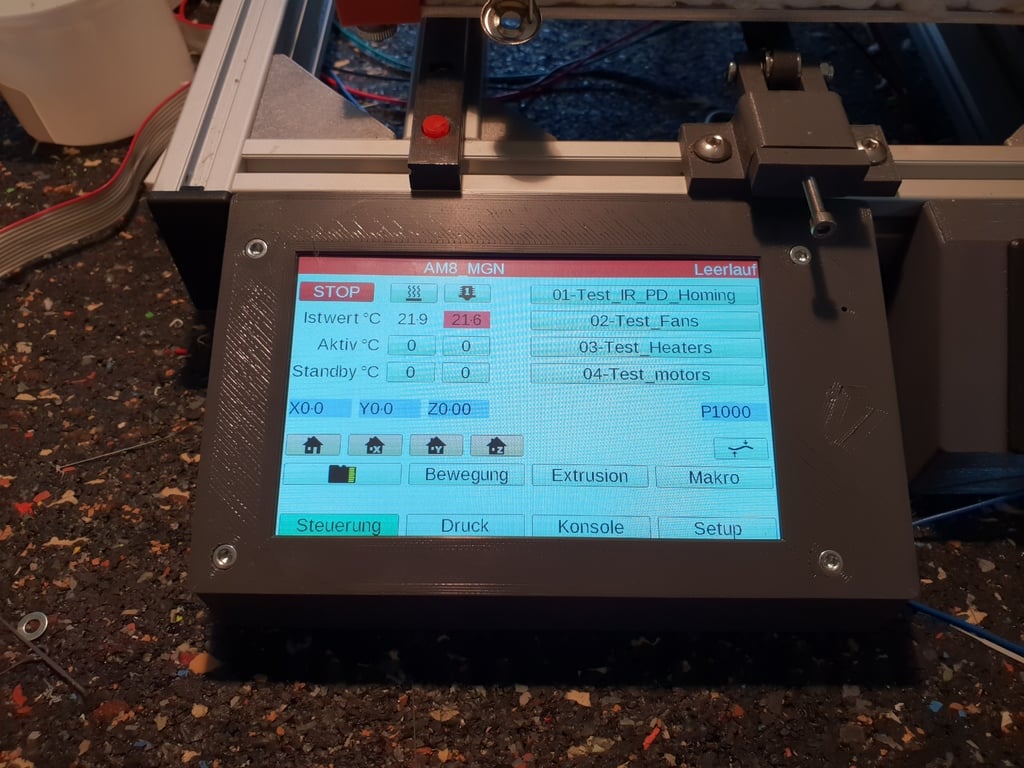

This is a Case to mount the PanelDue 5i by Duet3D on a 2040 Extrusion. It is angled to give the best view when mounted. All buttons are accesible (reset; erase). The reset-button is easy to press and for the erase button, you will need a pen. I also integrated a hole to access the SD-Slot. (as the Panel is mounted with a little offset to compensate possible manufacturing tolerances it had to be designed a little wider than needed.) There are some extra holes at the back so you can secure the cable using zip-ties.
Print Settings
Printer:
Hypercube Evolution
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
30 %
Notes:
Support is only needed on the SD-Slot. Print it aligned with the front on the heatbed.
Design by kuhnikuehnast on MakerWorld (license: BY).
