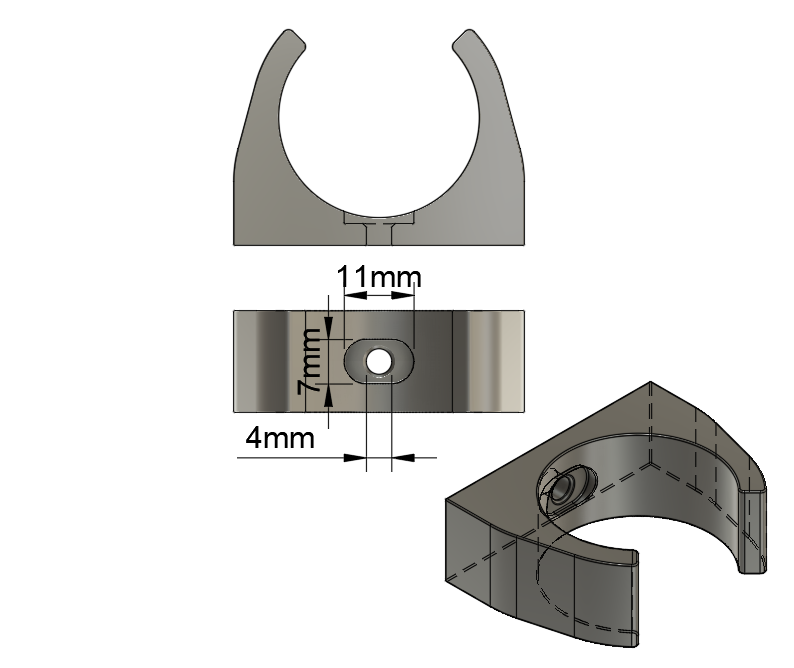

Electrical installation pipe clamp - Sizes M16-M63

If you want to download the actual files, select “download STL”.

All clips are in the main printing file though.

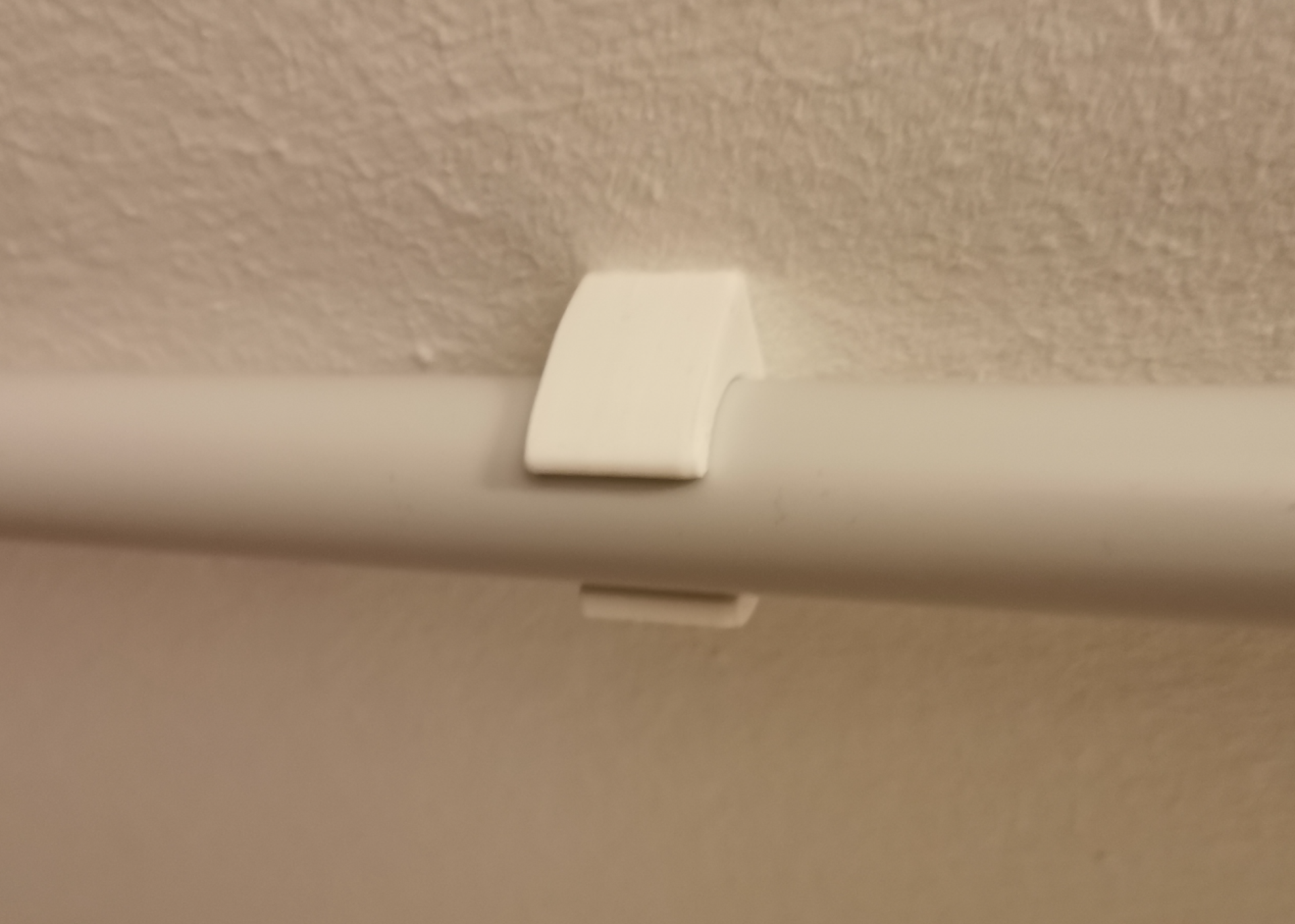

This clip can be used to mount electrical installation pipes to walls and ceilings.

The model is simmilar to commercially available clips.

Printing is very easy, you can basically use any profile/speed.

You should print sideways, even though BambuStudio suggests printing upwards.

Printing upwards means the layers are parallel to the mechanical stress on the part, so they break much easier.

You can use basically any stiff filament type, but I recommend PLA or PETG.

PETG is softer, so the clamp will be weaker, but still strong enough.

Model names correspondent to the used pipe's diameter.

E.g.: M20 is a clip for pipes with a diameter of 20 millimeters.

Available sizes are: M…16, 20, 25, 32, 40, 50 and 63.

These sizes match common diameters for electrical installation pipes.

If you require a different diameter, please leave a comment, I'll happily add it.

Please leave suggestions and critique in the comments.

Design by CheesecakeTV on MakerWorld (license: BY).
