ESP32 CAM Rover with robotic arm

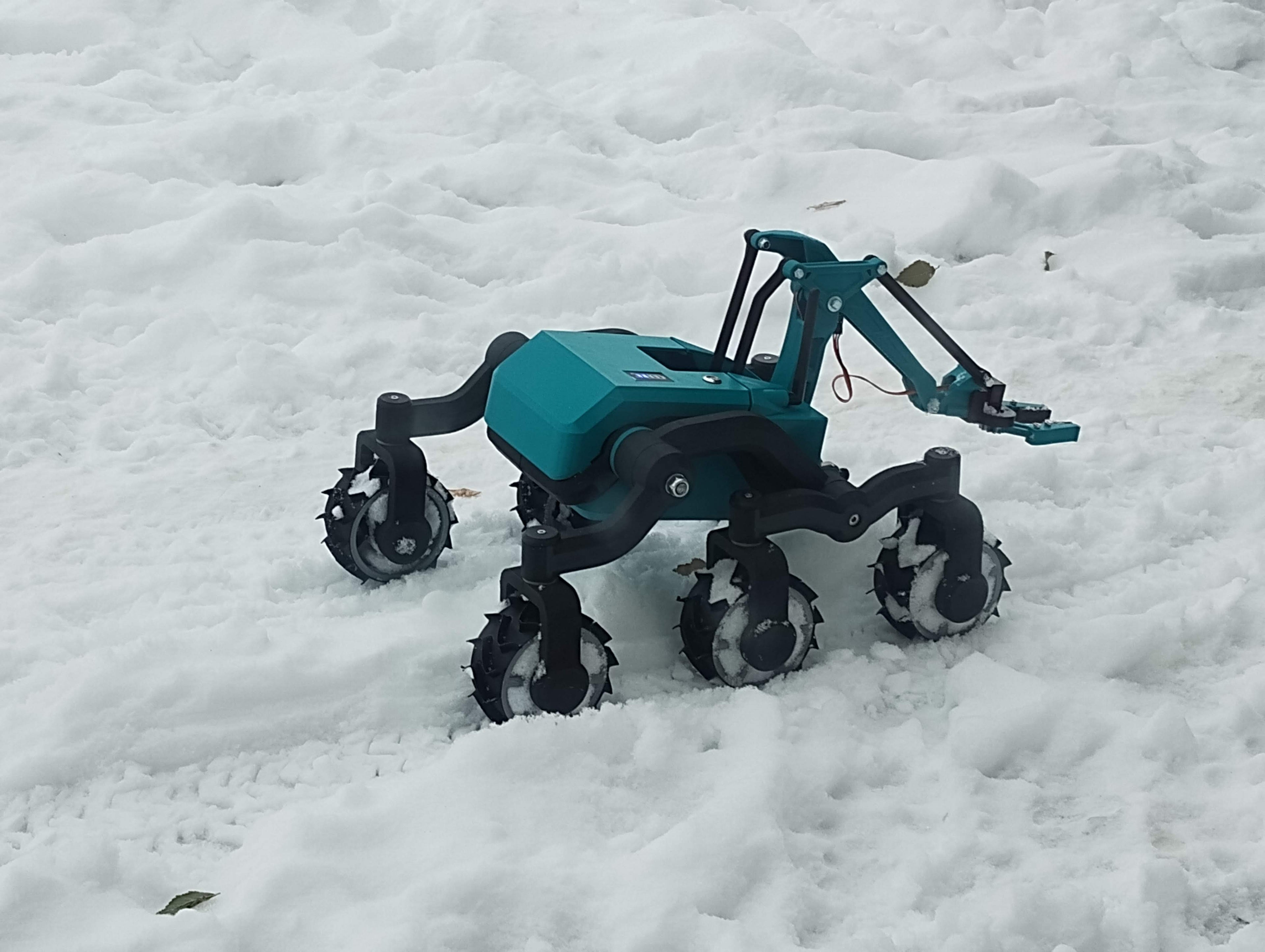

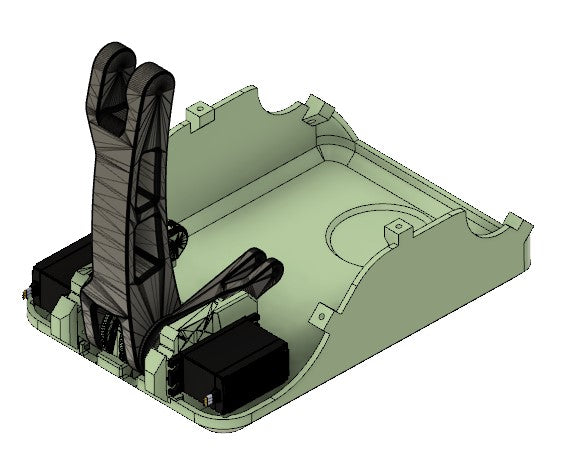

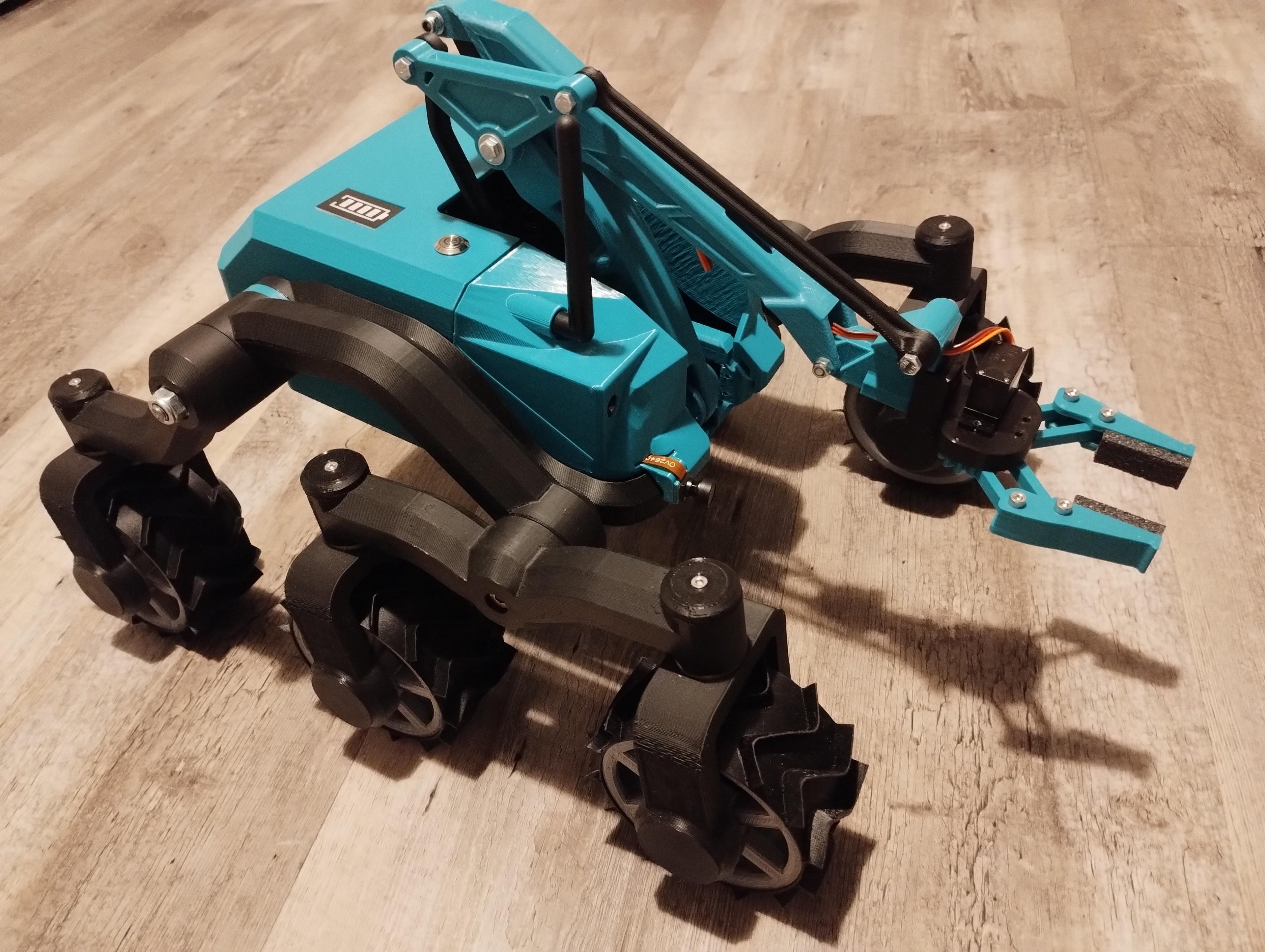

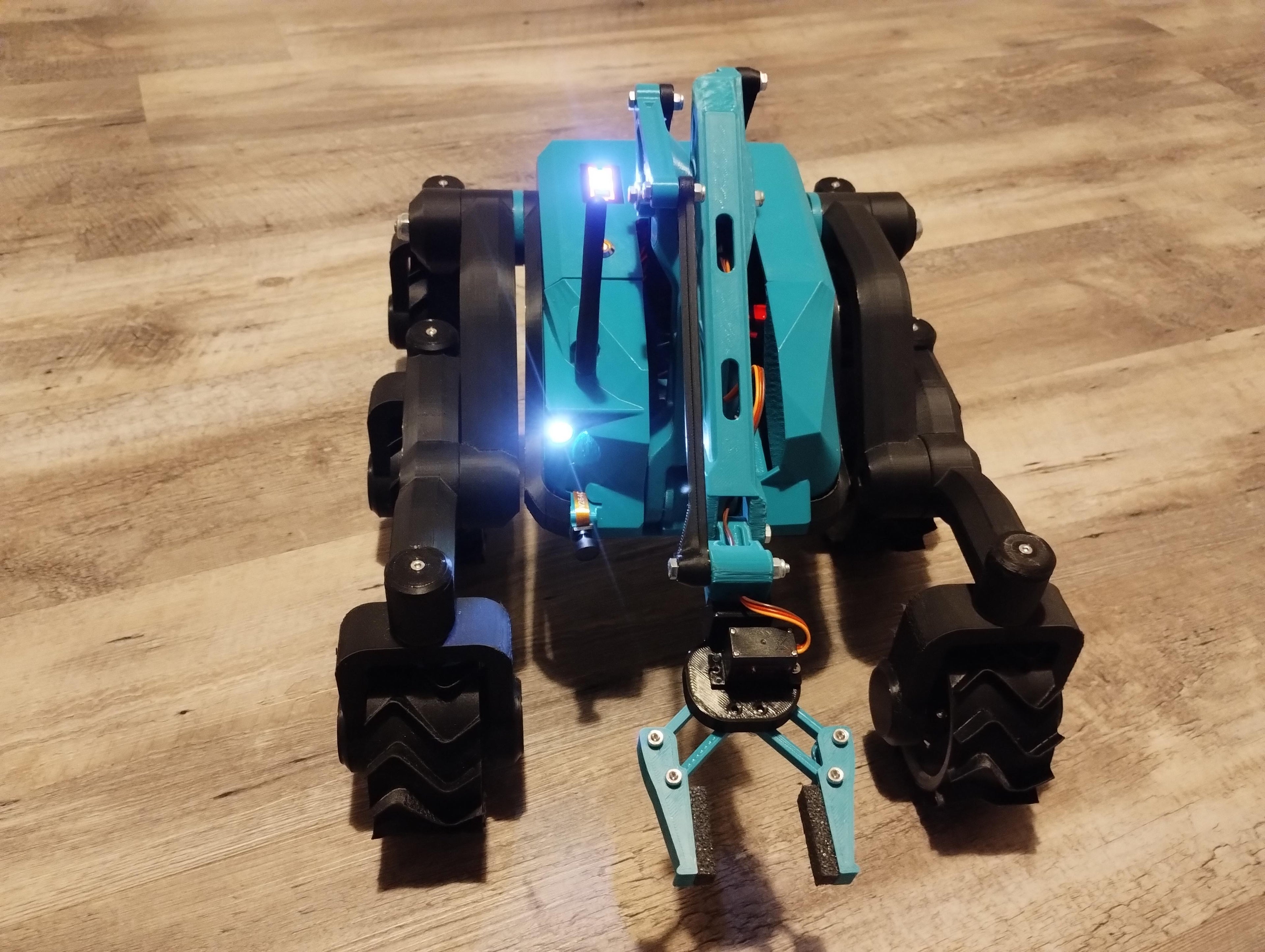

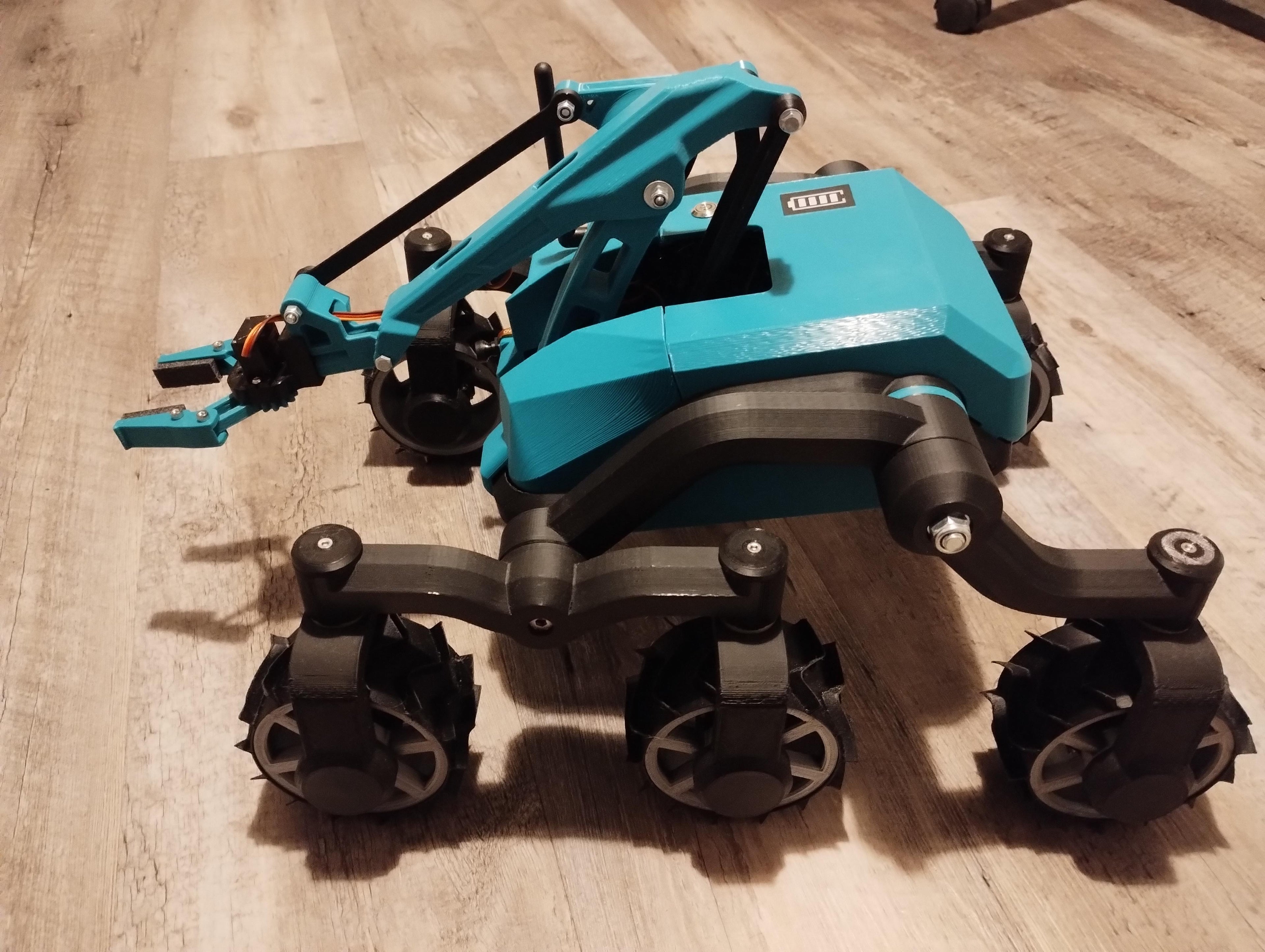

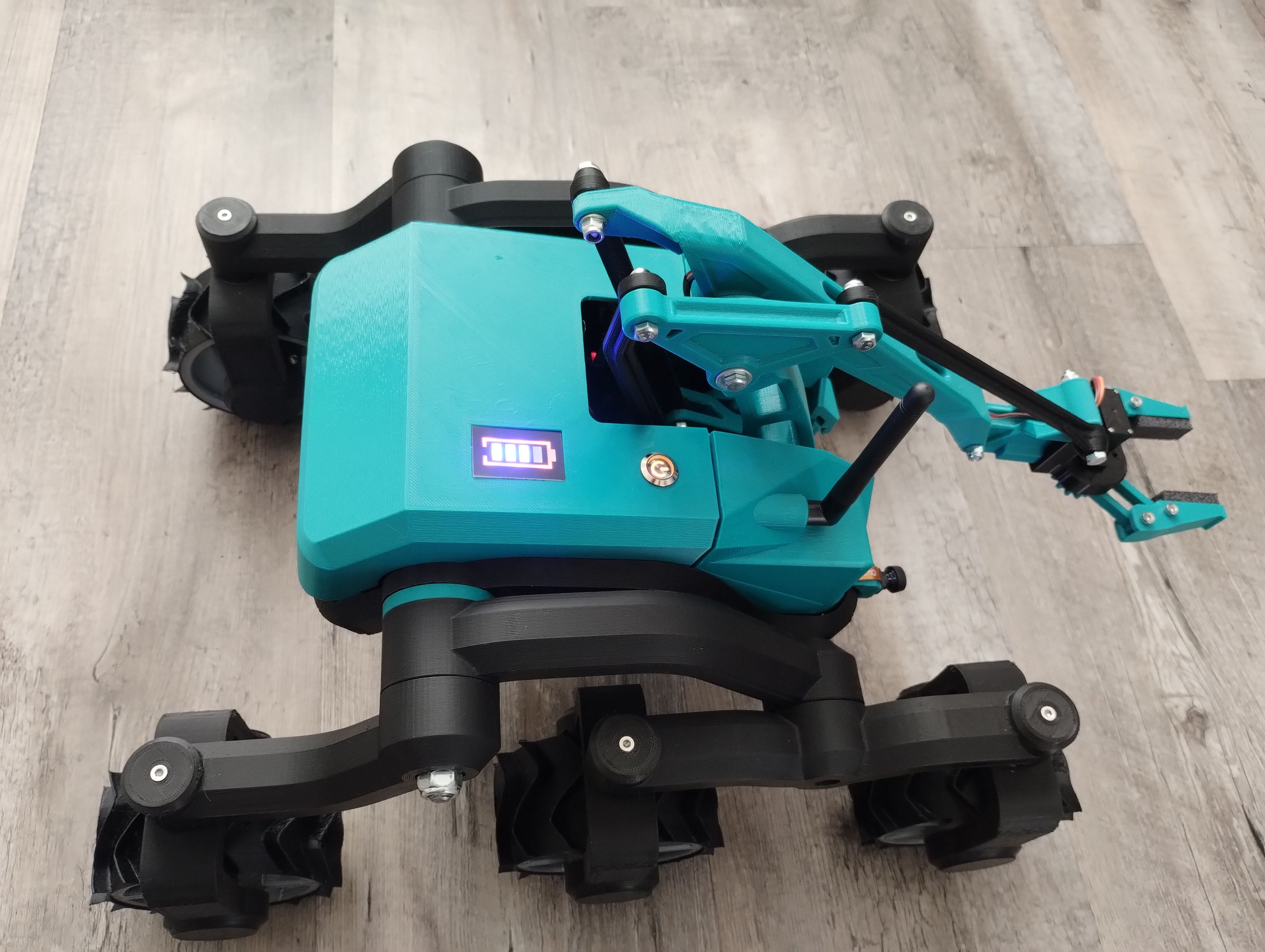

Modified stair climbing rover to carry a robotic arm. Mounting is in the lower frame, servos are rotated 90°, covers and frame have cutouts for the robotic arm. The ESP32 CAM with external antenna is mounted in the top cover, through which everything is controlled and the camera FPV. Arms are modified for versions without servos. The wheels are so fixed and turning is by skid. The discs are modified to avoid the need for motor mounts. Custom printed TPE tires for maximum grip, low material consumption and no supports.

All missing stl files are unchanged in the original models.

Custom design for gripper claws with SG90 servo

STL parts for the robotic arm can be found here: https://www.thingiverse.com/thing:4632254

Electrical parts I used:

1x claws: https://dratek.cz/arduino/122952-servo-mg90s-180-s-kovovymi-prevody.html

2x arm: https://dratek.cz/arduino/1694-servo-motor-s-kovovymi-prevody-mg996r-pro-rc-modely.html

LED: https://dratek.cz/arduino/121799-led-graficky-indikator-kapacity-lithiove-baterie-18650-2s.html

Power: https://dratek.cz/arduino/121707-led-vodotesny-prepinac-12-mm-zlute-podsviceni.html

Antenna: https://pajenicko.cz/index.php?route=product/product&product_id=848
