Fiber Laser Fume Extractor Vent

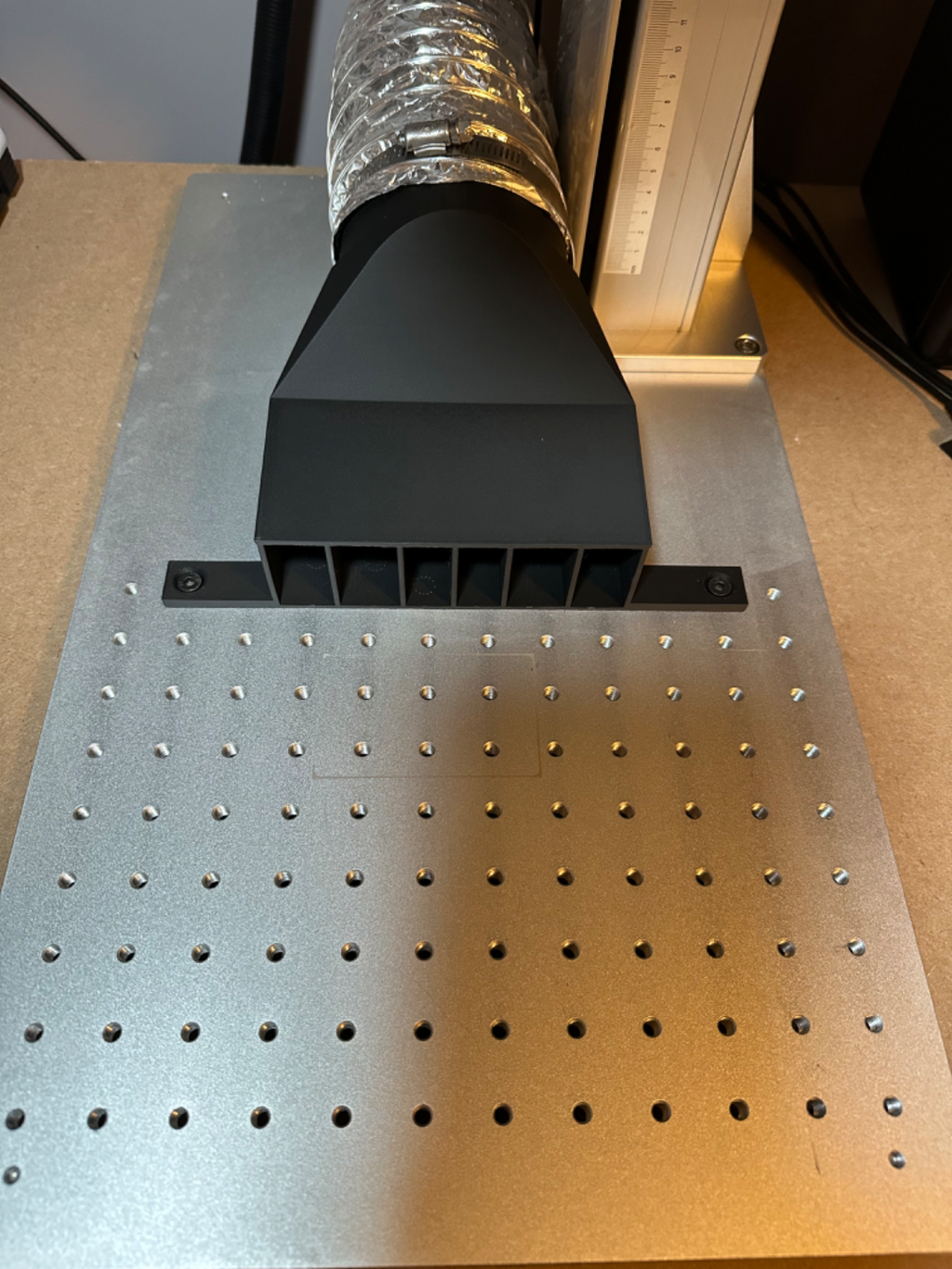

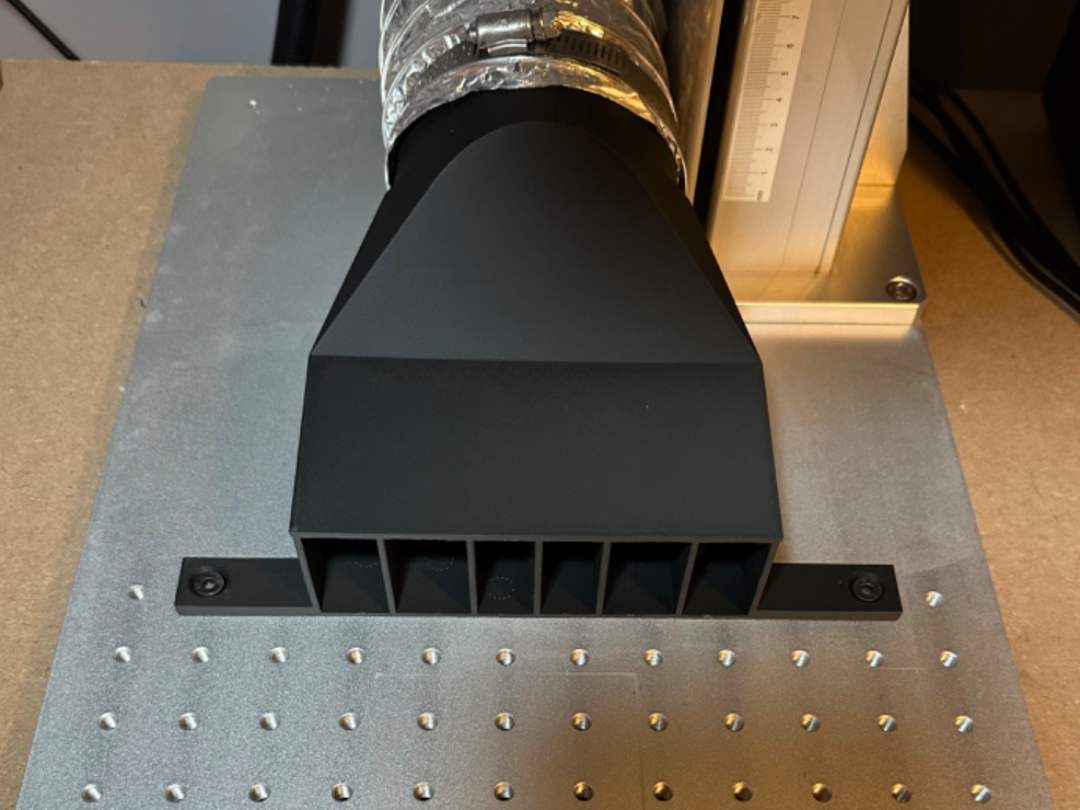

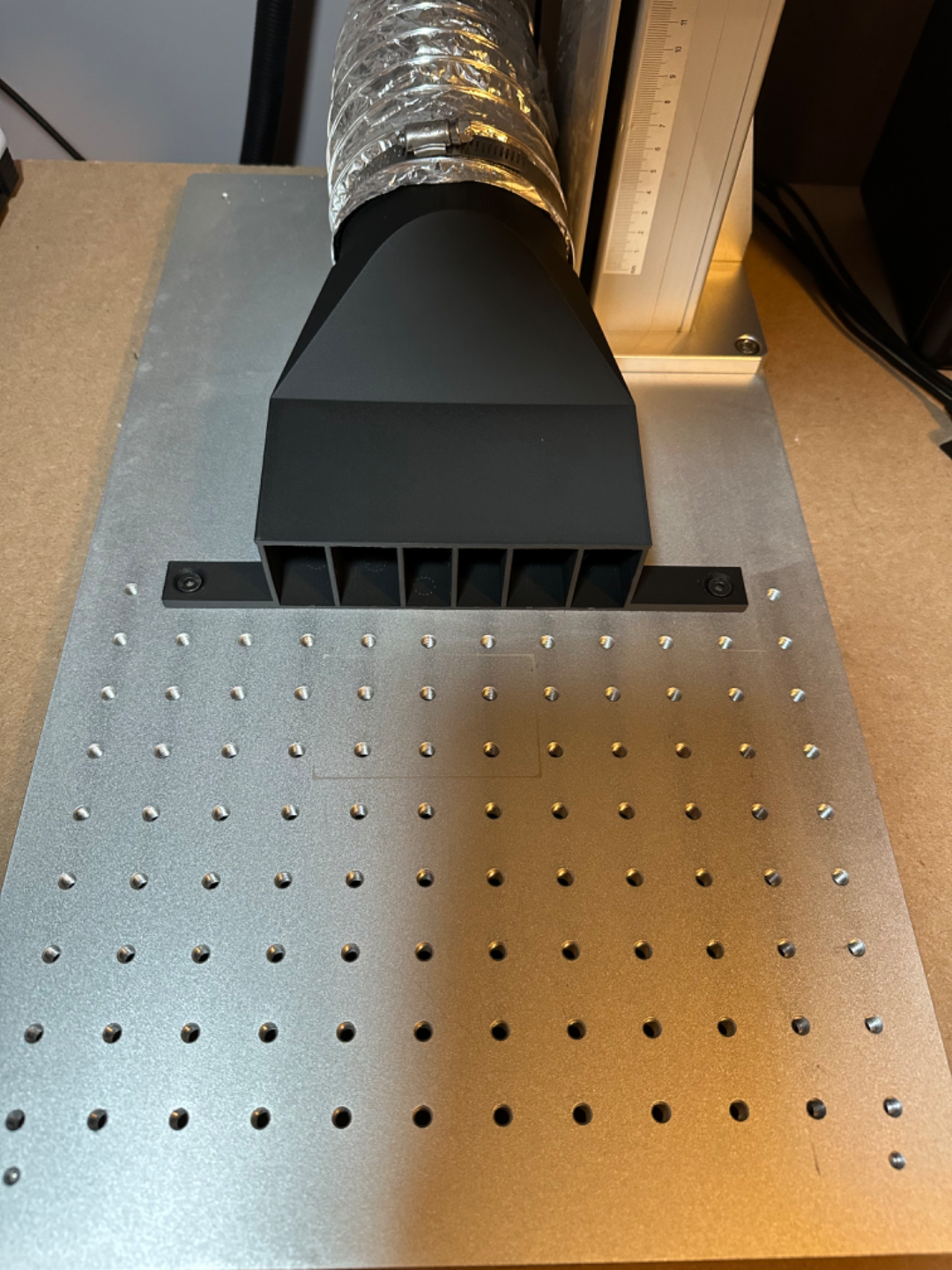

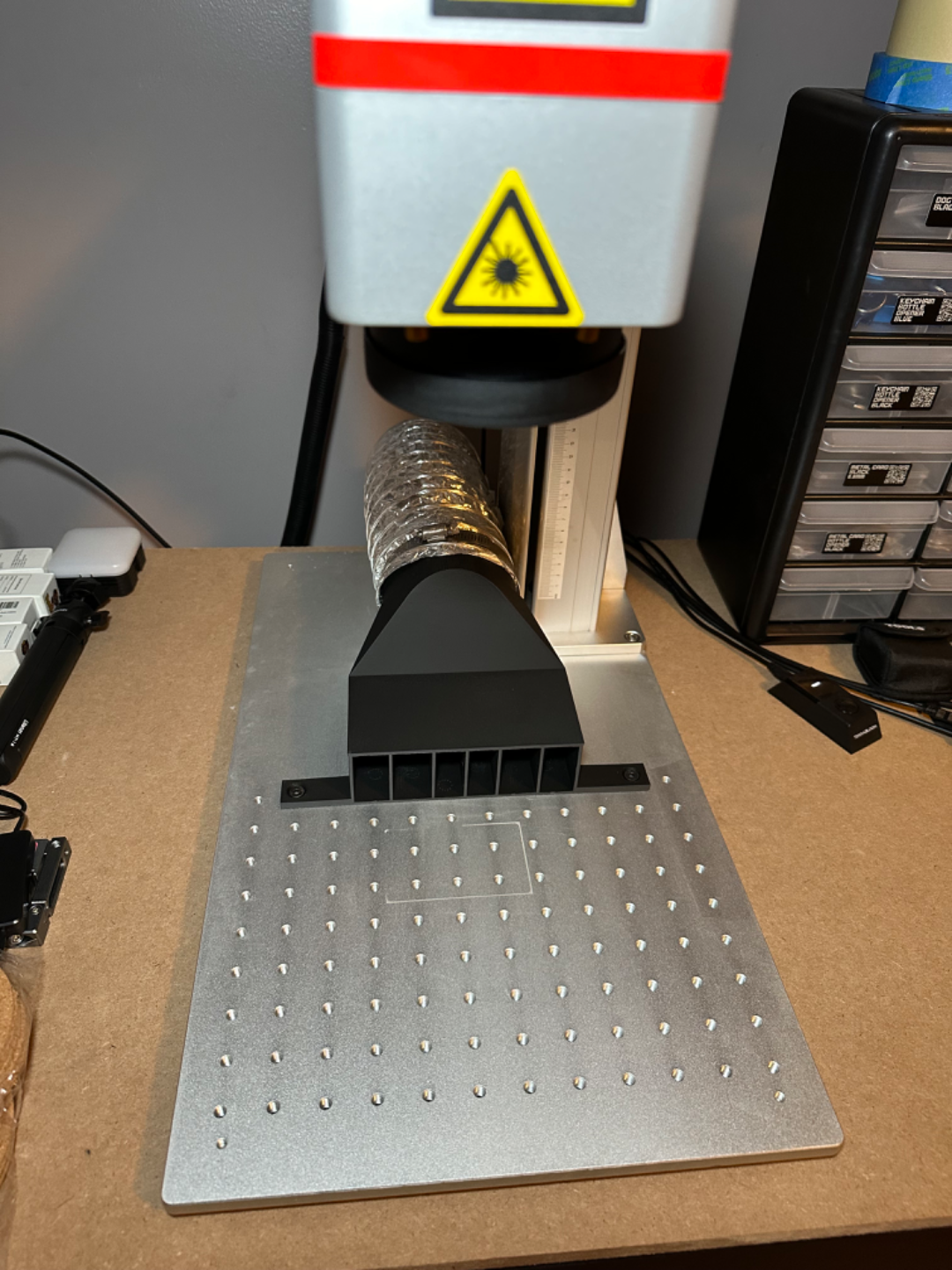

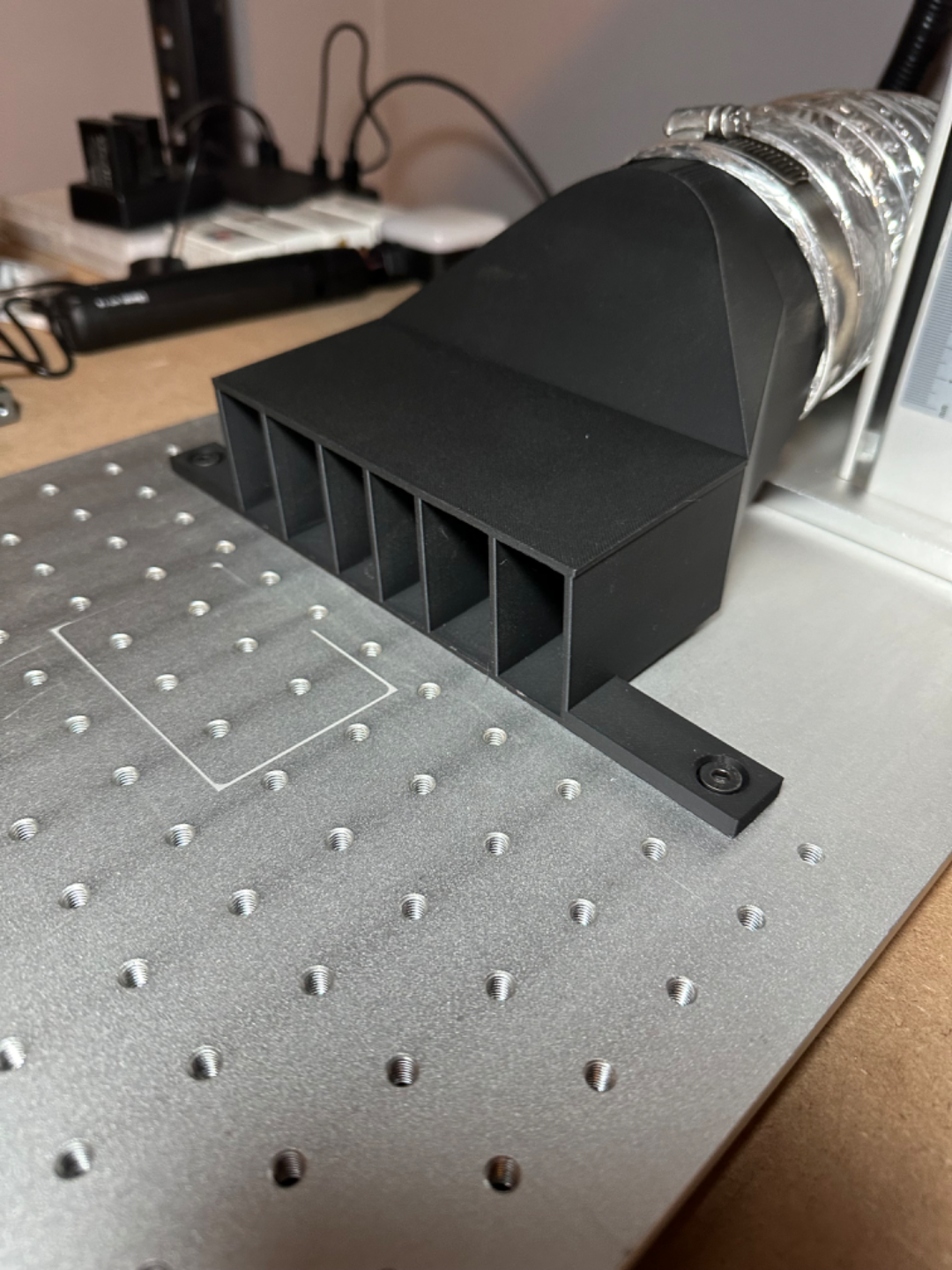

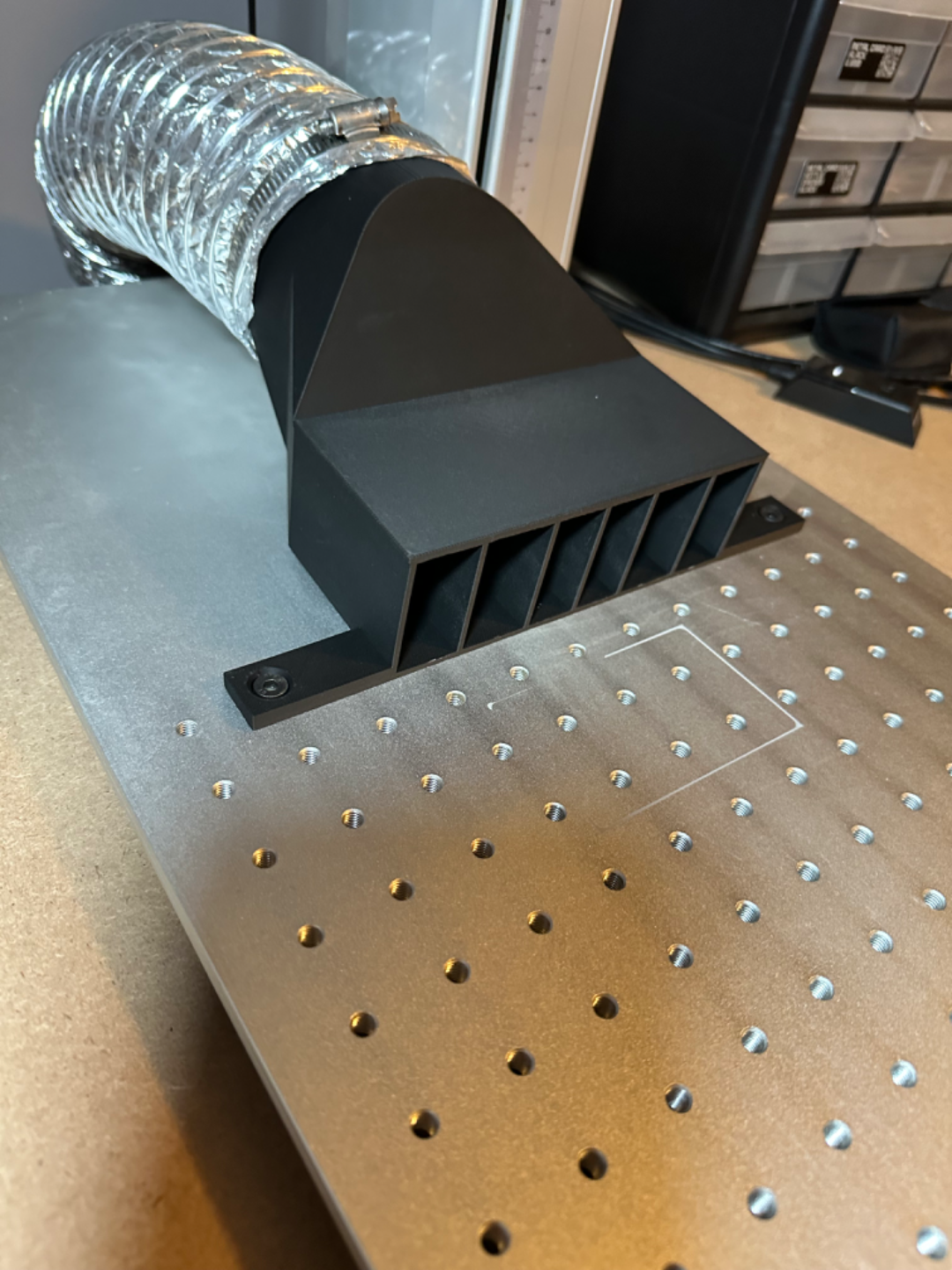

This is a fume extraction vent with a 4" clamp hose compatible back to exhaust fumes from your project. I designed this file for my laser bed that accepts M5 bolts. Feel free to make any changes! Hope this is helpful for the fiber laser crowd!

I used PLA to print this model, and due to the fact PLA has shrinkage you'll notice the file has this model scaled uniform at 100.5% which worked perfectly for my use. Your filament / printer setting may vary.

Design by Justin on MakerWorld (license: CC0).
