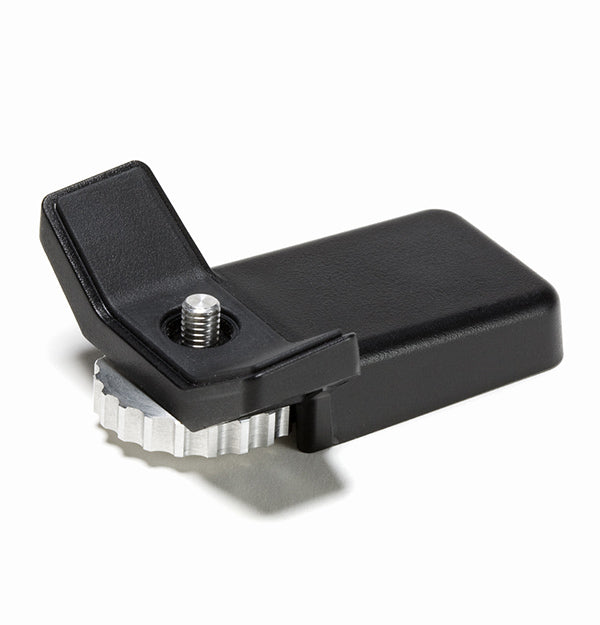

FLIR EXX Tripod Mount

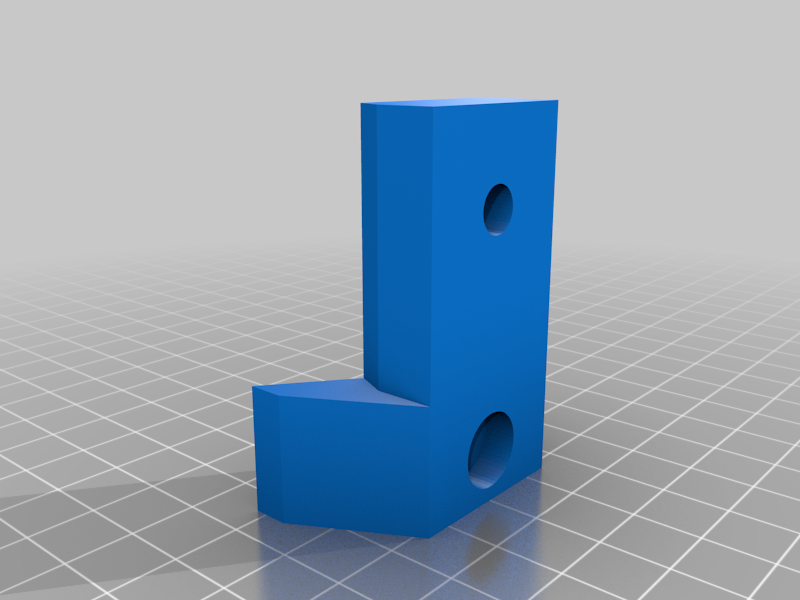

I was lent a FLIR E50 for some video shots but it didn't include a Tripod mount and the E50 has a 5mm thread. So I took the Mechanical drawings and made a rough drawing in Fusion 360, I added some hardware and it worked with some foam cushion as the dimensions aren't quite as the precise as they should.

In any case, it's good enough for me, but requires some remixing for perfect fit.

Print Settings

Printer Brand:

Monoprice

Printer:

Rafts:

Doesn't Matter

Supports:

Resolution:

.306

Infill:

Filament:Generic ABS Red

Design by royeiror on MakerWorld (license: BY).
