Floral Compartment Box

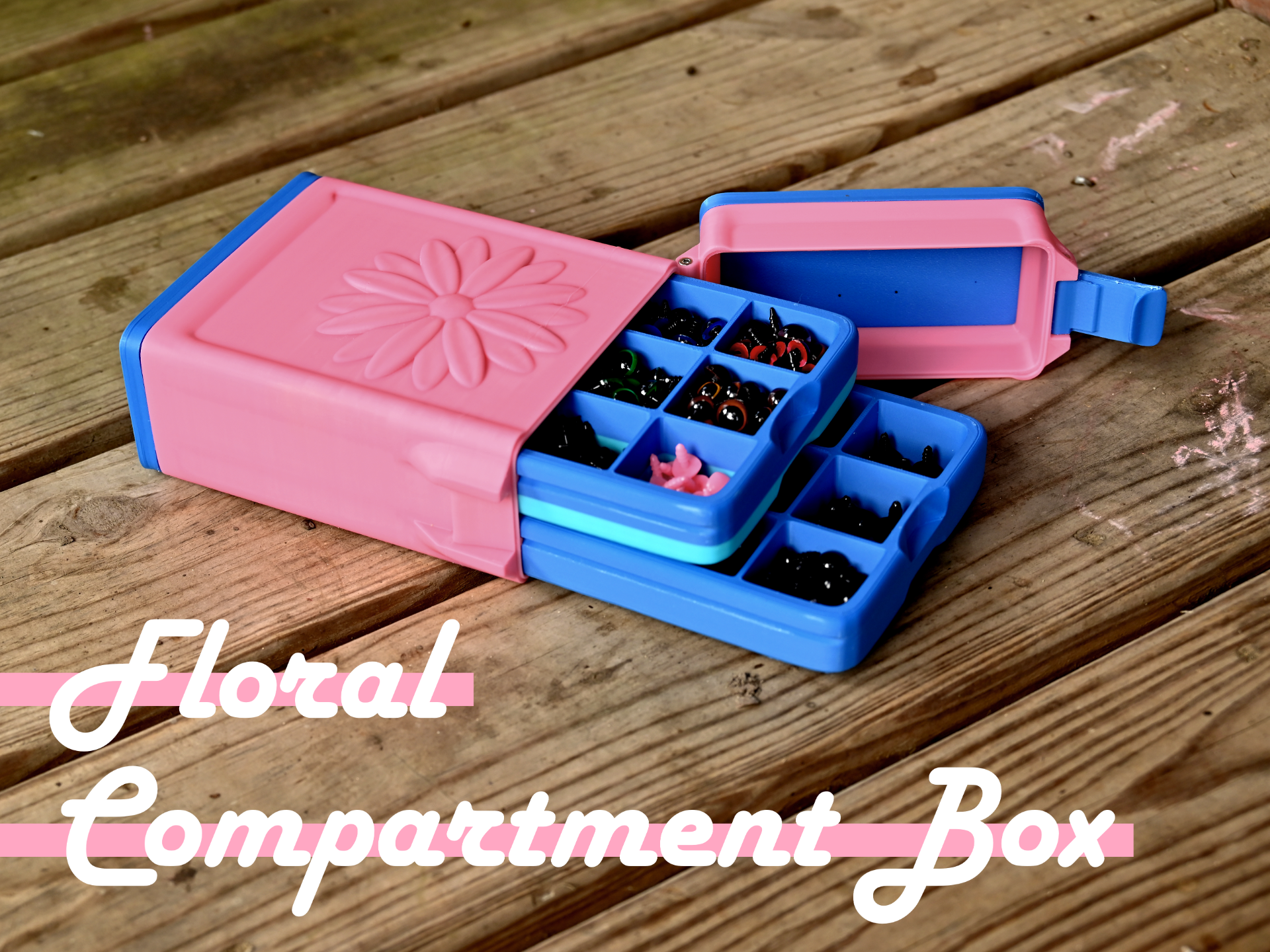

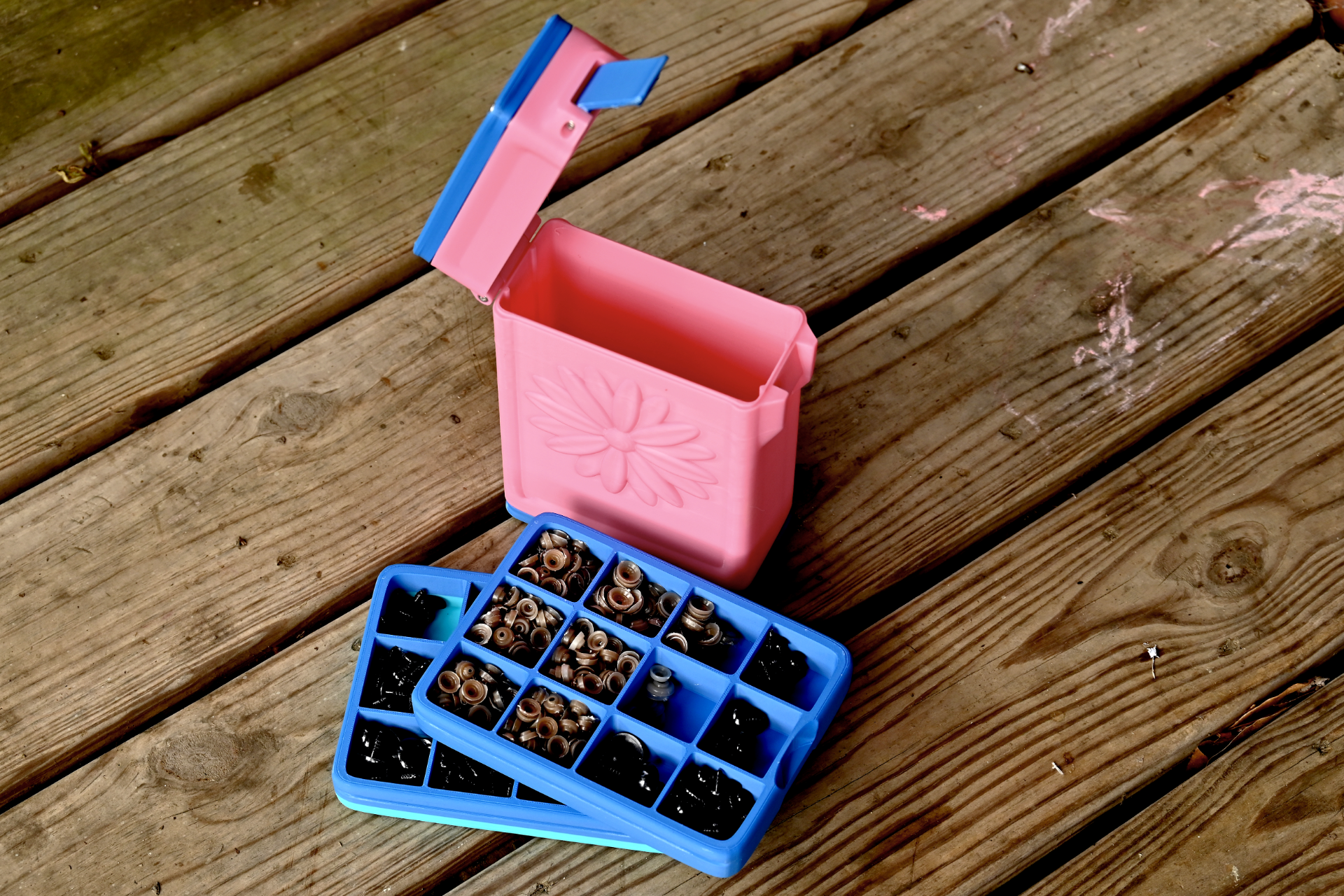

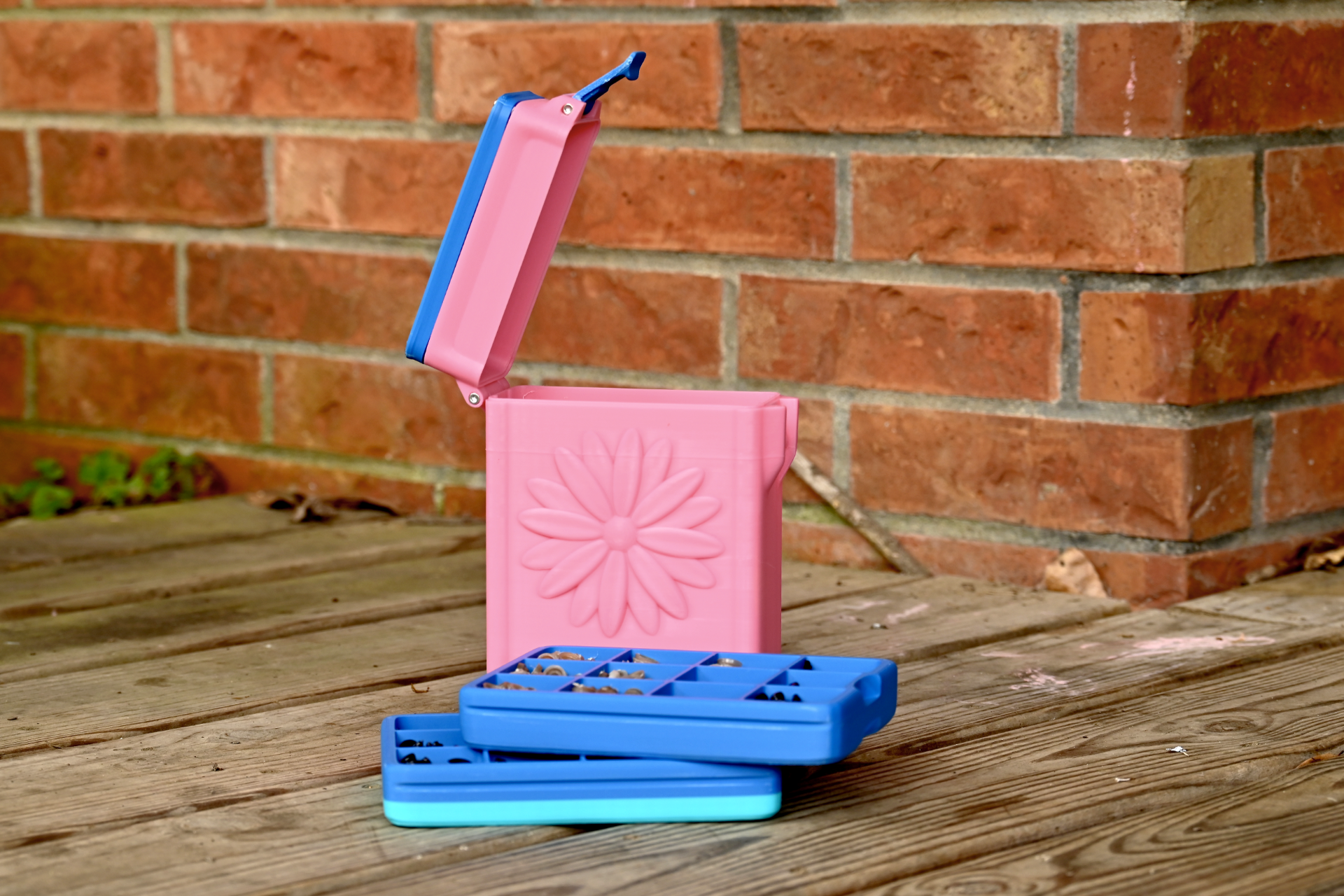

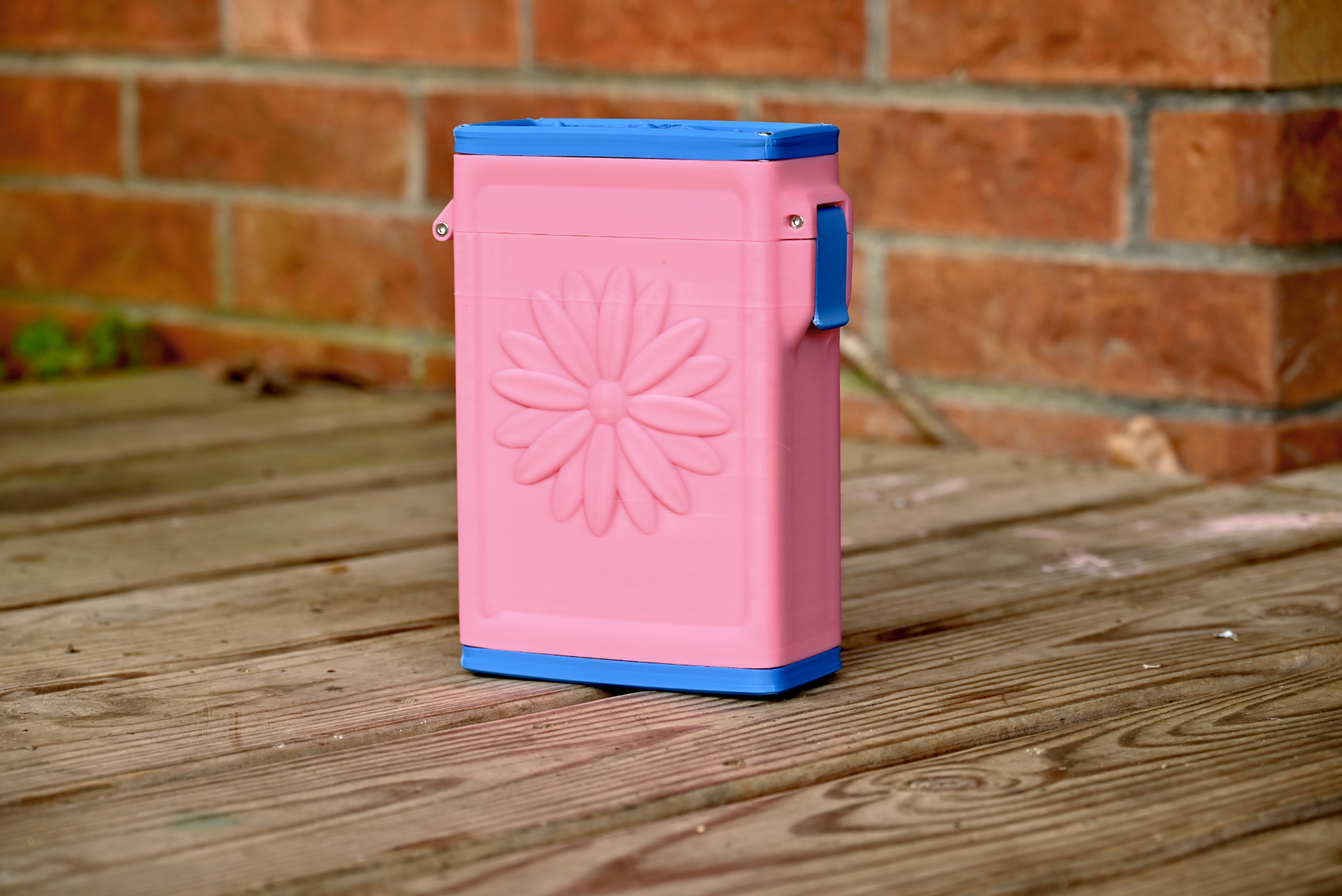

Politely requested by my wife, this is a latching storage box including two trays (For now). It measures roughly 7 - 7/8" long, 5" wide and 2 ½" deep on the outside. There are two trays inside that slide out and have twelve compartments each about 1 3/8" square, 7/8" deep. The flower on the front, while useful for decor, indicates the front of the box, and what should be upwards when the box is opened so as not to spill parts out.

I've attached the Insert Tray as a blend file so you can edit and change it if you have the savvy to do it in Blender. My wife will more than likely have many uses for this file so I'll end up creating more trays in the future, but it's here if you want it.

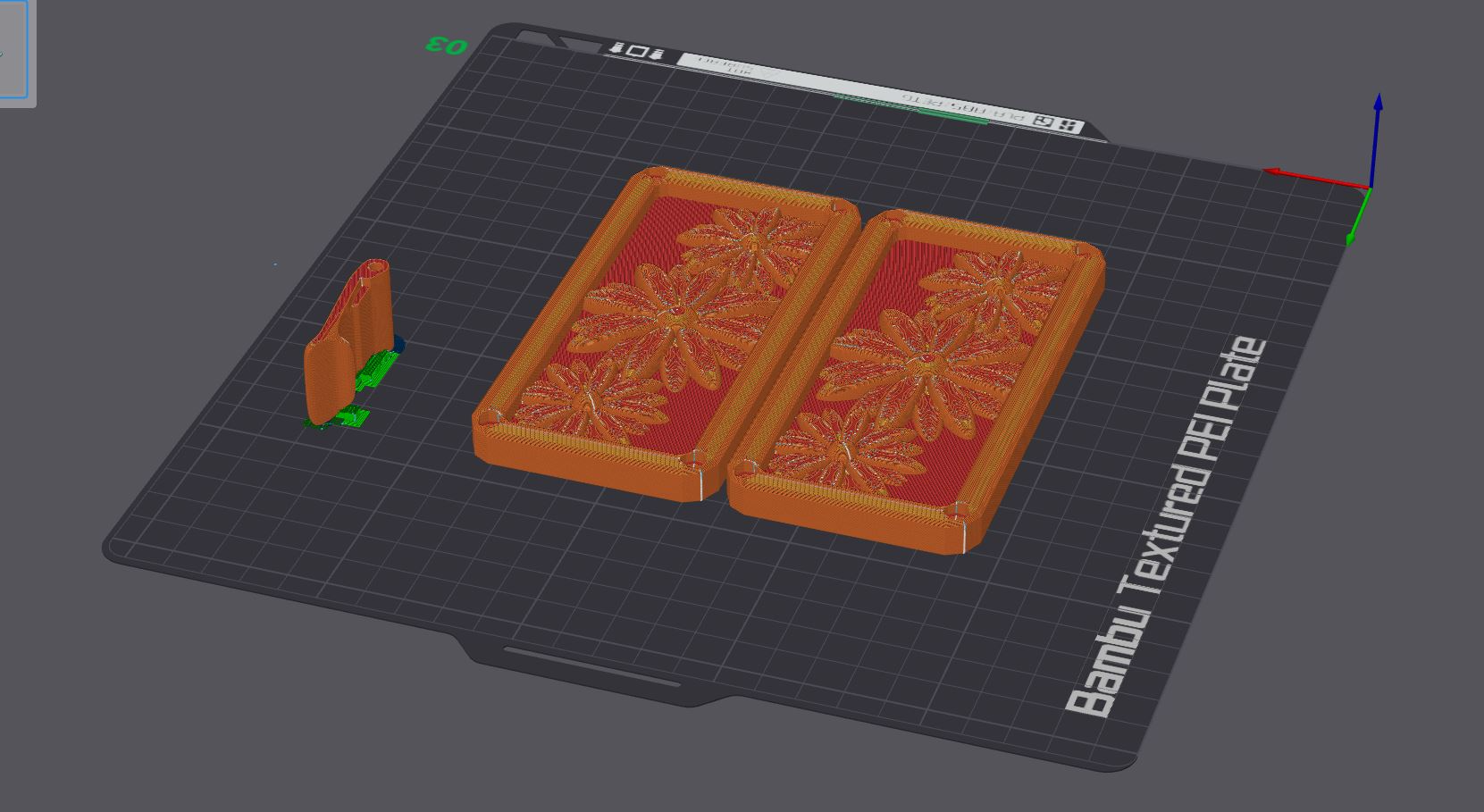

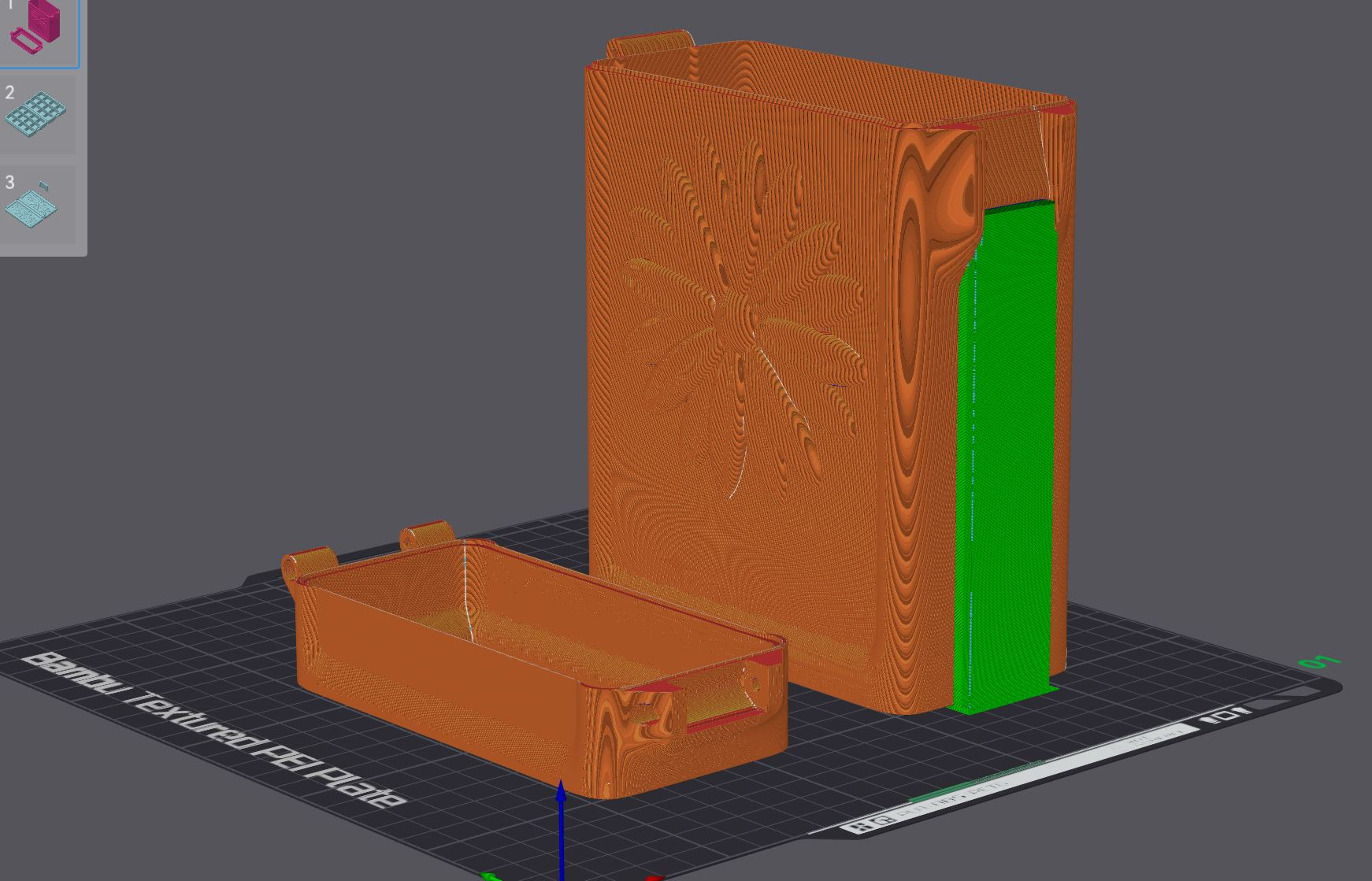

The latch and the main box will need supports. I don't support any of the screw holes or the flower petals, just the latch catch on the main box, and then the latch itself, which I also give about 3mm of brim support to as well. Keep your print bed hot for this one, 70-75c so as to keep the lower sections warm and adhered to the bed or you'll have corner lift. Potentially leave the fan off longer than just the first few layers.

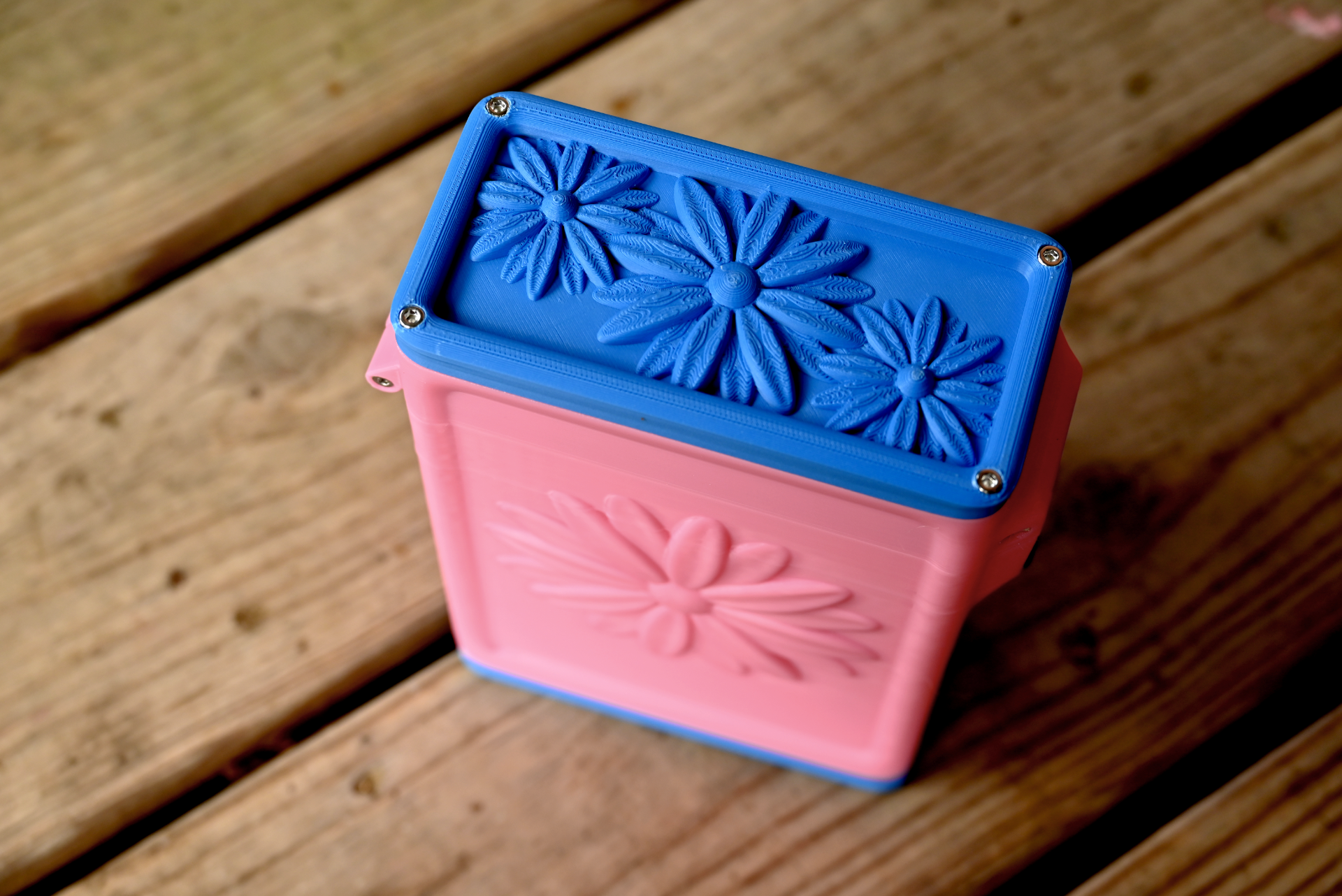

The box will need 10 M3 Socket Head Cap Screws. You'll need 8 M3 x 10 to secure the caps, and the remaining 2 M3 x 16 secure the latch to the front.

Design by AuxArc on MakerWorld (license: BY).
