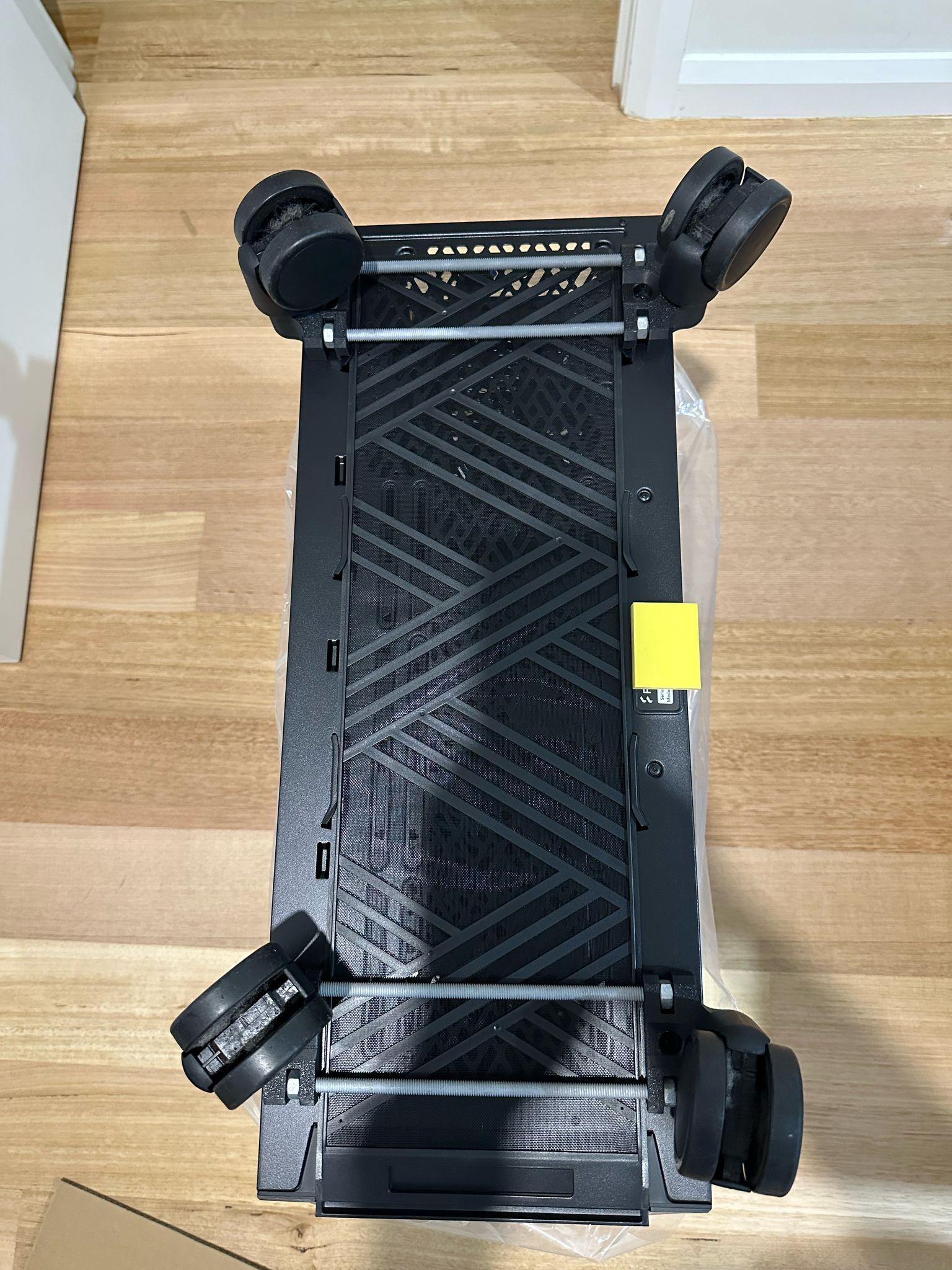

Fractal Design 7 XL Wheels – Reinforced All-in-One

Fractal Design 7 XL Wheels – Reinforced (All-in-One Plate)
🔗 Original design by @WolfgangWeber_52385 on Printables

This is a repost of Wolfgang Weber’s excellent reinforced wheel mod for the Fractal Design 7 XL case. All credit for the original design and concept goes to him.

I've consolidated the individual parts into a single build plate layout to make it easier for others to print in one go—perfect for printers with a large enough bed like the Bambu Lab X1C. No design changes were made to the model itself; this is simply a convenience remix for easier printing and part organization.

This is the alternative version of the model, which includes:

• Rod holes sized at 8.15mm (instead of 8.10mm)

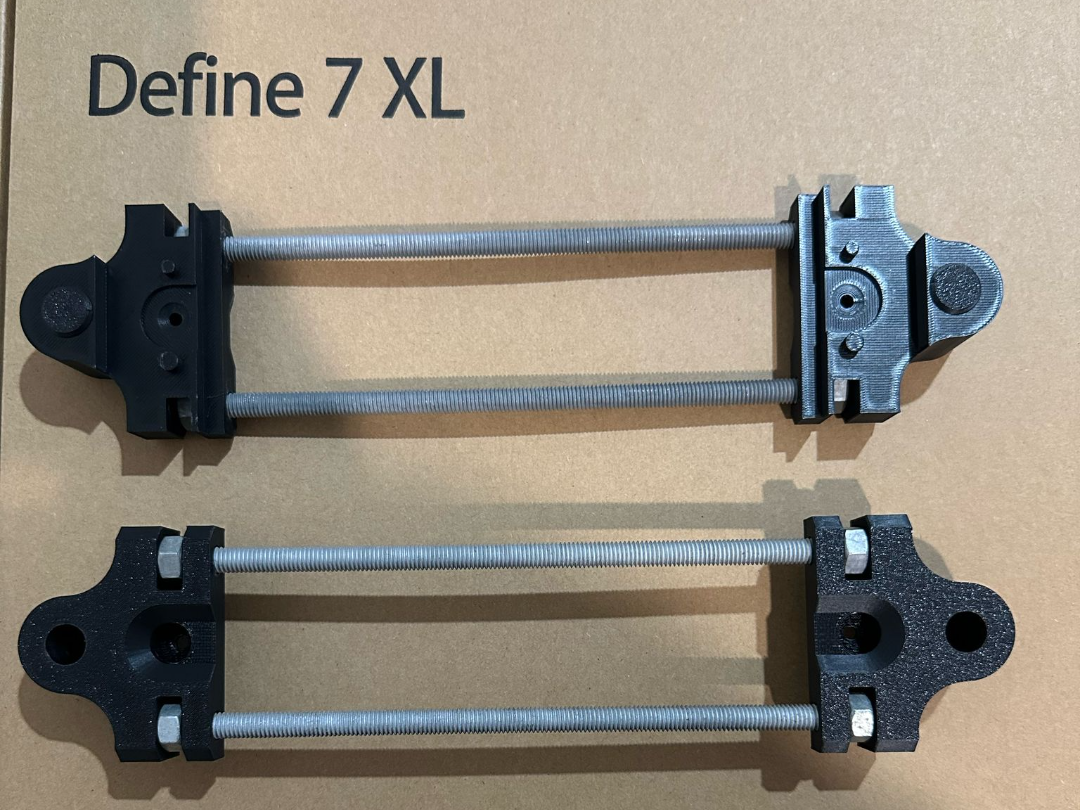

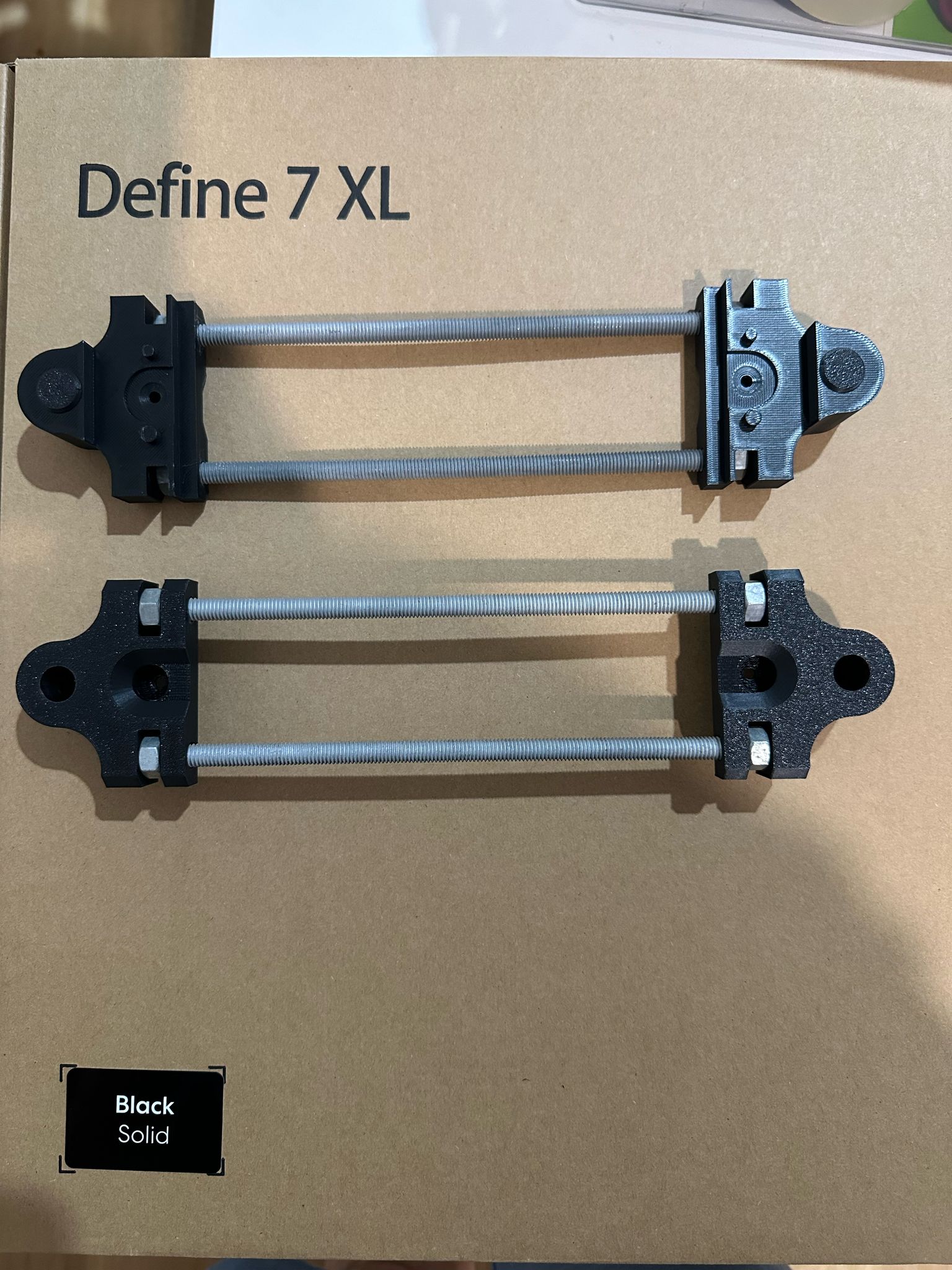

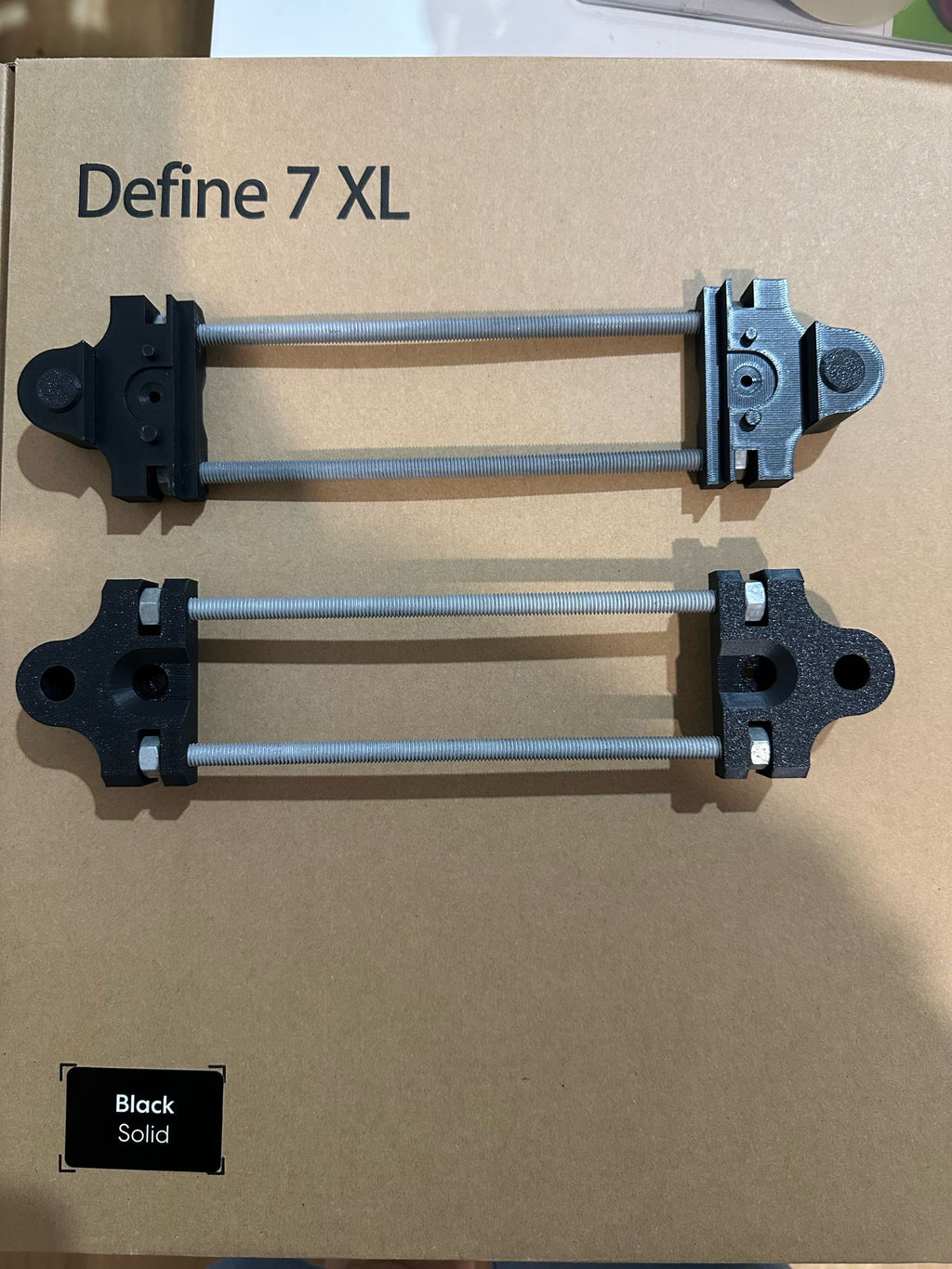

• Closed-end rod channels designed for exactly 22cm 8mm threaded rods

• Solid top pins (no zip-tie support, but more durable)



✅ Printed successfully using PETG on my Bambu Lab X1C

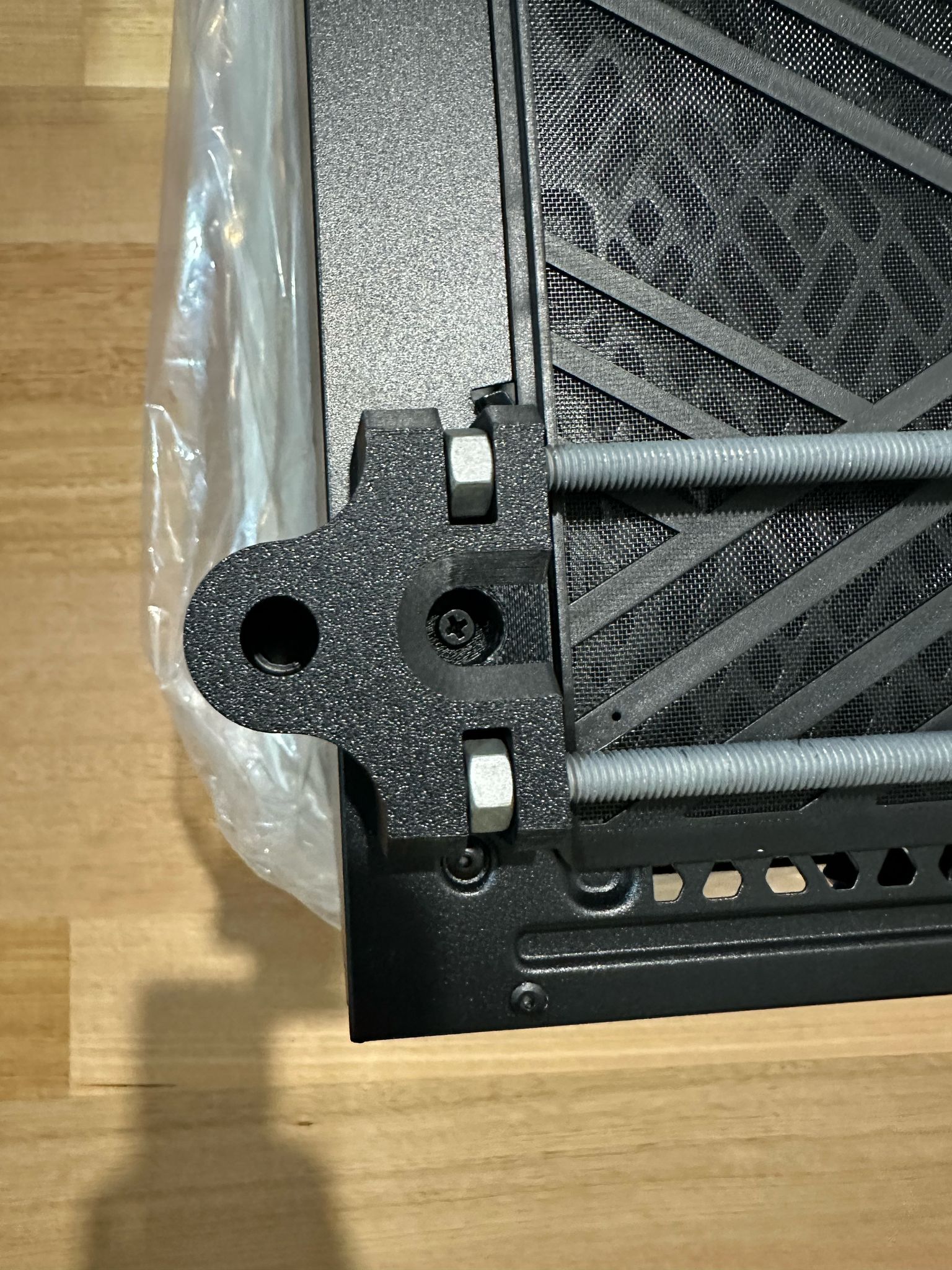

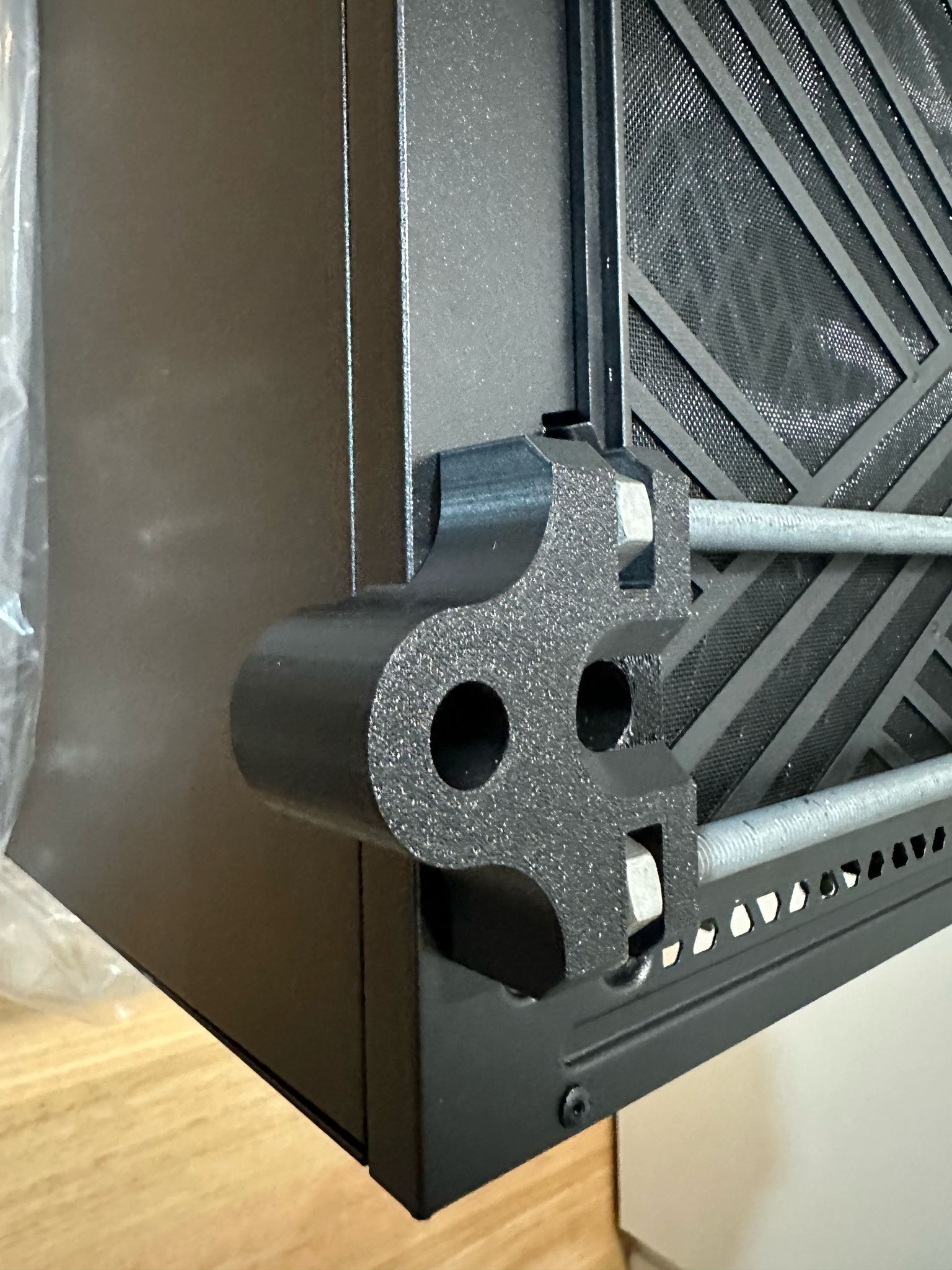

✅ Fits 22cm long 8mm threaded steel rods perfectly (as per the alt. version)
✅ Great rigidity and stability – zero wiggle

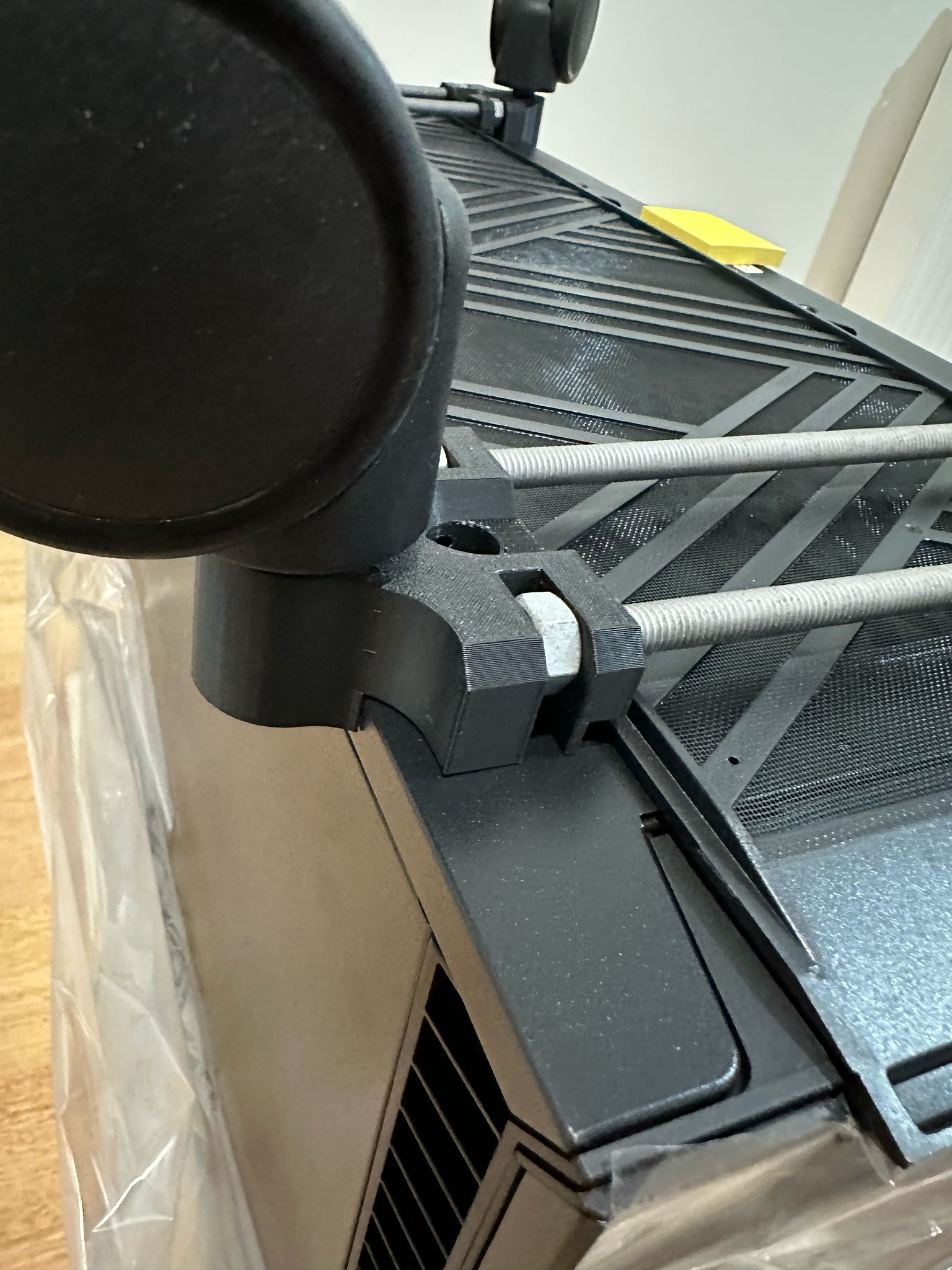

✅ Uses standard 11mm caster wheels

Please visit the original model on Printables to support the creator, and check out his detailed notes and update log.

Design by Aneldur on MakerWorld (license: BY).
