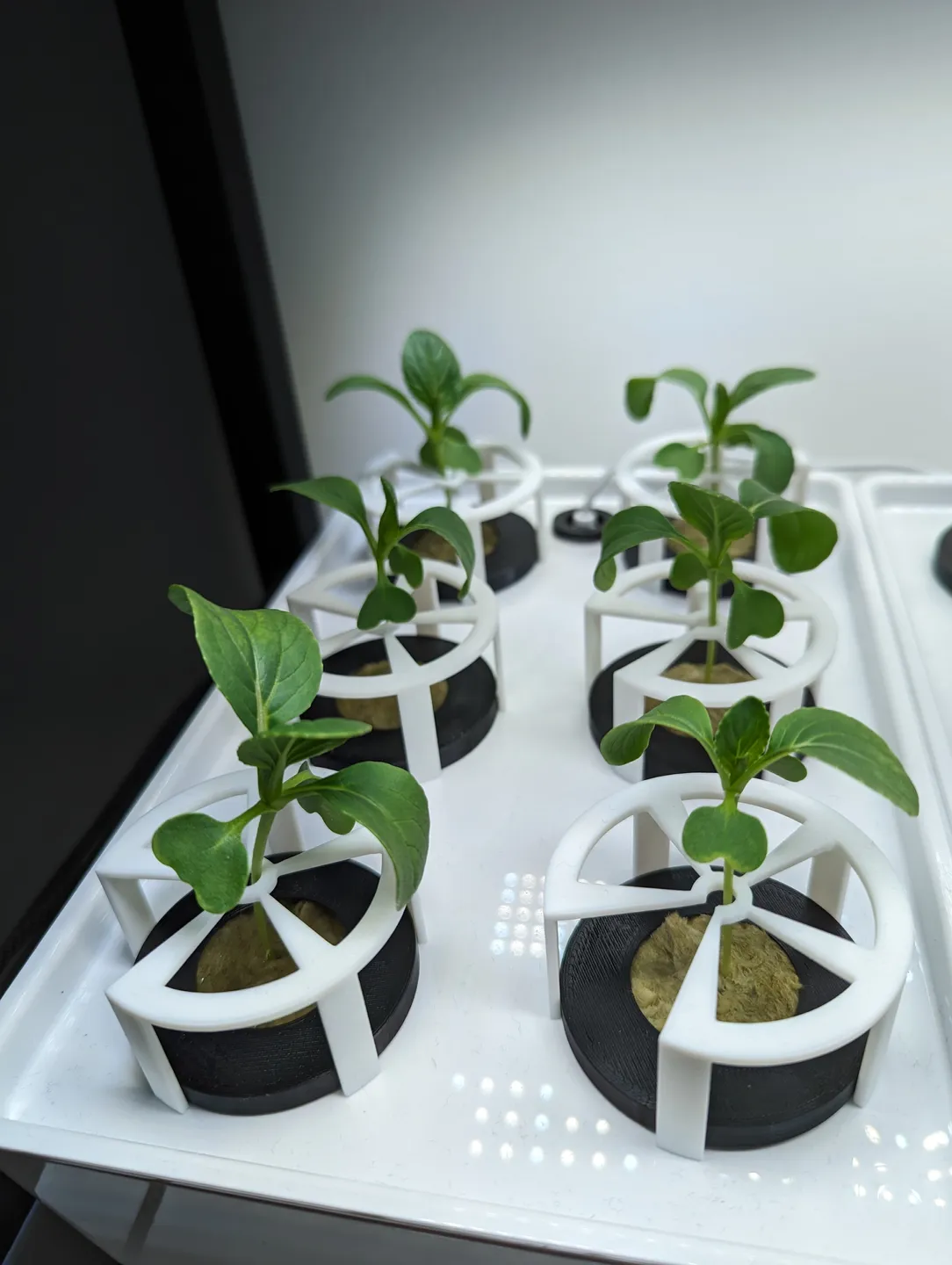

Support for plants around a circular base. Fully parametric (see the attached scad file), to print any size. Print upside down, no support needed whatsoever.
Scad file parameters:
| Parameter | Description | Default value | Unit |
|---|---|---|---|
| inner_diameter | Diameter between the feet - if your plant has some sort of circular base you want to put this support around of, this is the value you're after. This is also what defines the main diameter. | 56 | mm |
| hole_diameter | Diameter of the hole for the plant. Be mindful that depending on the angles below, the opening will most likely be smaller than that. | 5 | mm |
| ring_width | Width of the outer ring. | 11 | mm |
| supports | Number of supports. Less supports will mean a larger opening to the centre hole, as the angle of the opening is the angle between two supports. | 5 | n/a |
| support_angle | Angle each support occupies. Larger angle means larger supports. | 15 | Degrees |
| support_height | Height of the supports | 30 | mm |
Design by kernald on MakerWorld (license: BY-SA).
