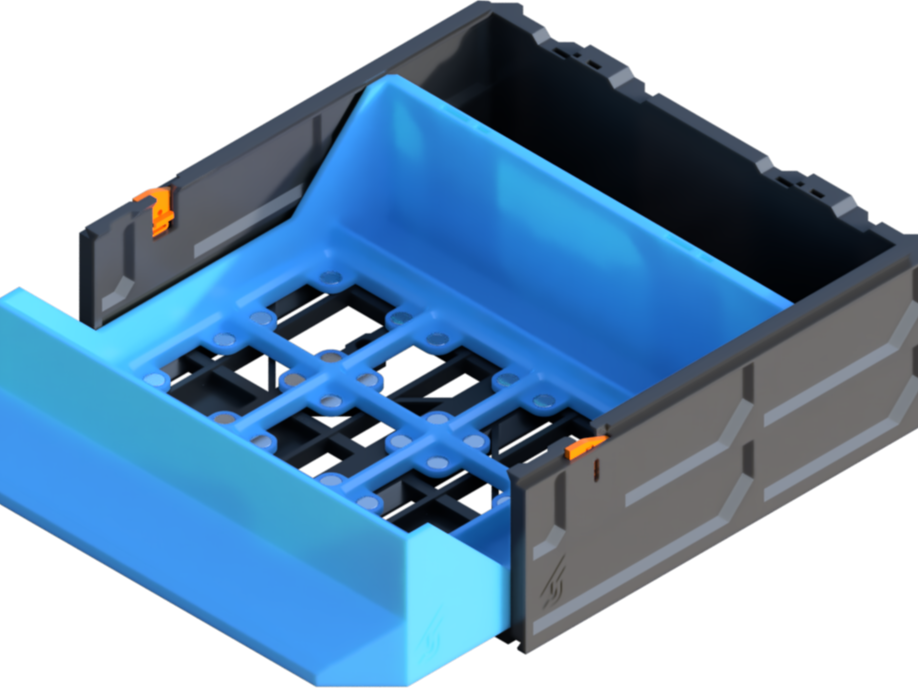

GEN2 2x1 Gridfinity Magnet Double Drawer - MINI
GEN2 2x1 Gridfinity Magnet Double Drawer - MINI
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns
The GEN2 Series is the next evolution in the most versatile 3D printed drawer system, the GEN2 Modular Storage System. You can now easily swap drawers around thangs to the fully 3d printable QuickLock mechanism design
MINI length drawers are sized to get the most out printers with a 180mm print bed such as the Prusa Mini and Bambu Lab A1 Mini.
STEP 1: Location
Decide how you would like to use your GEN2 storage. Keep in mind that the drawers are modular and can be easily swapped between under table and table top locations. All drawers are available for mounting under the table using rails, but you can also place them on top of any surface with table top kits.
Find these kits at JERRARI3D/gen2-modular-system
|
UNDER TABLE (GEN2 RAILS) Attach GEN2 drawers under any surface by installing the GEN2 RAILS. Once installed drawers can slide and lock into place, they can then be swapped out and rearrange in seconds. |
TABLE TOP KITS Table Top Kits include covers and foot rails that when combined with drawer cases create a rigid structure that can be placed anywhere |
These drawers are completely compatible and interchangeable with any GEN2 drawer systems in MINI length.
HARDWARE
Includes affiliated links to help support my projects
• Filament - Black PETG (My go to for the drawer bodies)
• Screwdriver
• Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #6 or #8 up to 1" long)
• Drill bit that is smaller diameter than the wood screws
• Pen, Marker, or Scratch Awl (for installing under tables)
• Magnets (Optional): 10x5x2mm or 10x2mm
• M3 nuts and screws: M3x6 - M3x10- I prefer this kit
• Magnets for Gridfinity (6x2mm) - I prefer these in 300 count
• Magnetic Insertion Tool V2 (Optional)
INSTRUCTIONS
See attached videos or visit JERRARI3D.com
___________________________
Gridfinity designed by Zack Freedman
Magnetic Gridfinity developed using Actually Parametric Gridfinity – Base Grid + Bins by pcnc
Design by Jerrari on MakerWorld (license: CC0).
