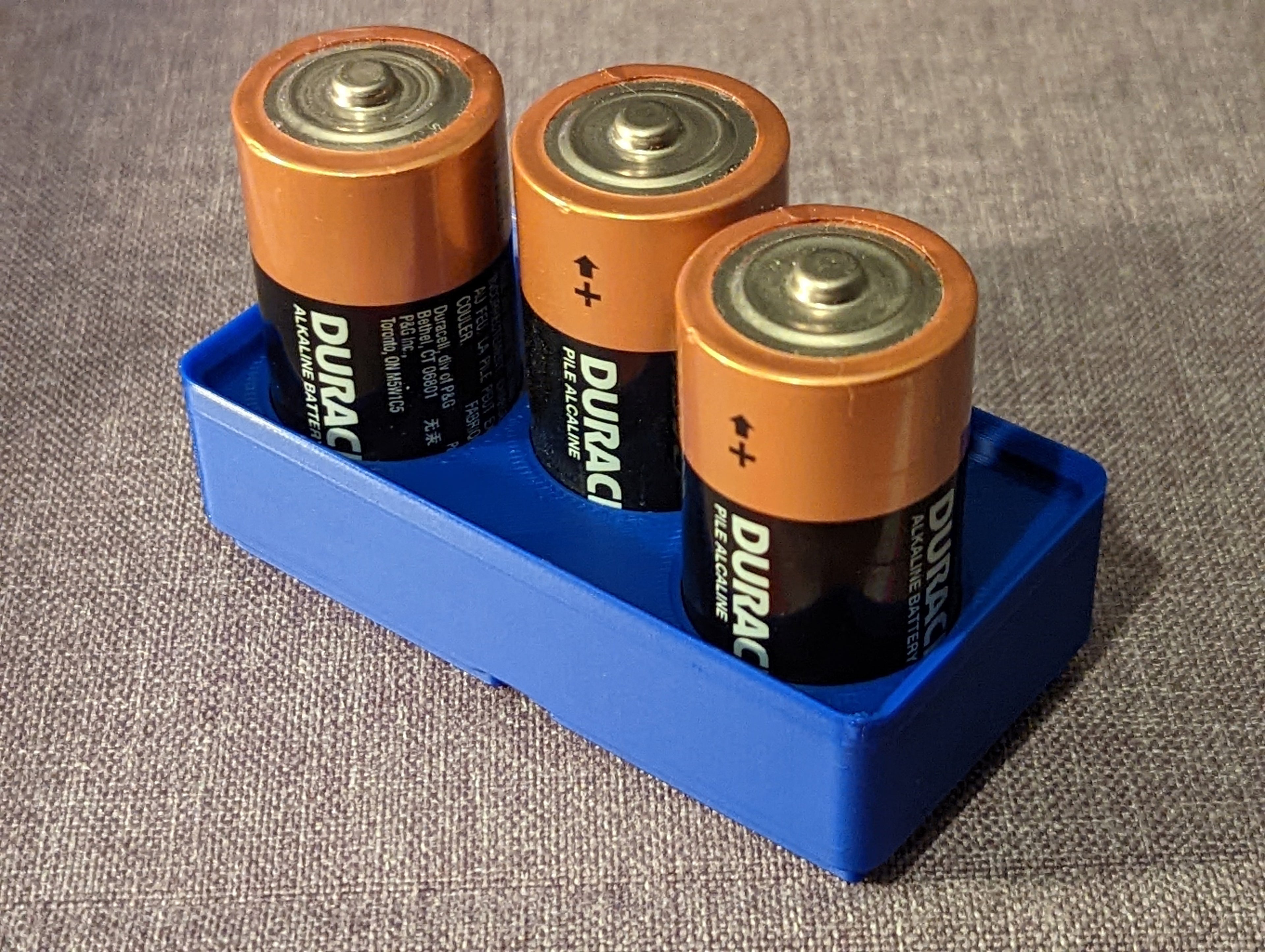

This is my first Gridfinity design. After printing the gridfinity 1x2 D battery block by BenBreaksThings I was looking for a similar holder for some C sized batteries.
Designed the model in Autodesk Fusion 360, following the sizing from https://gridfinity.xyz/specification/ and the original Divider Bins parametric source file from ZackFreedman https://a360.co/3vbu9B5

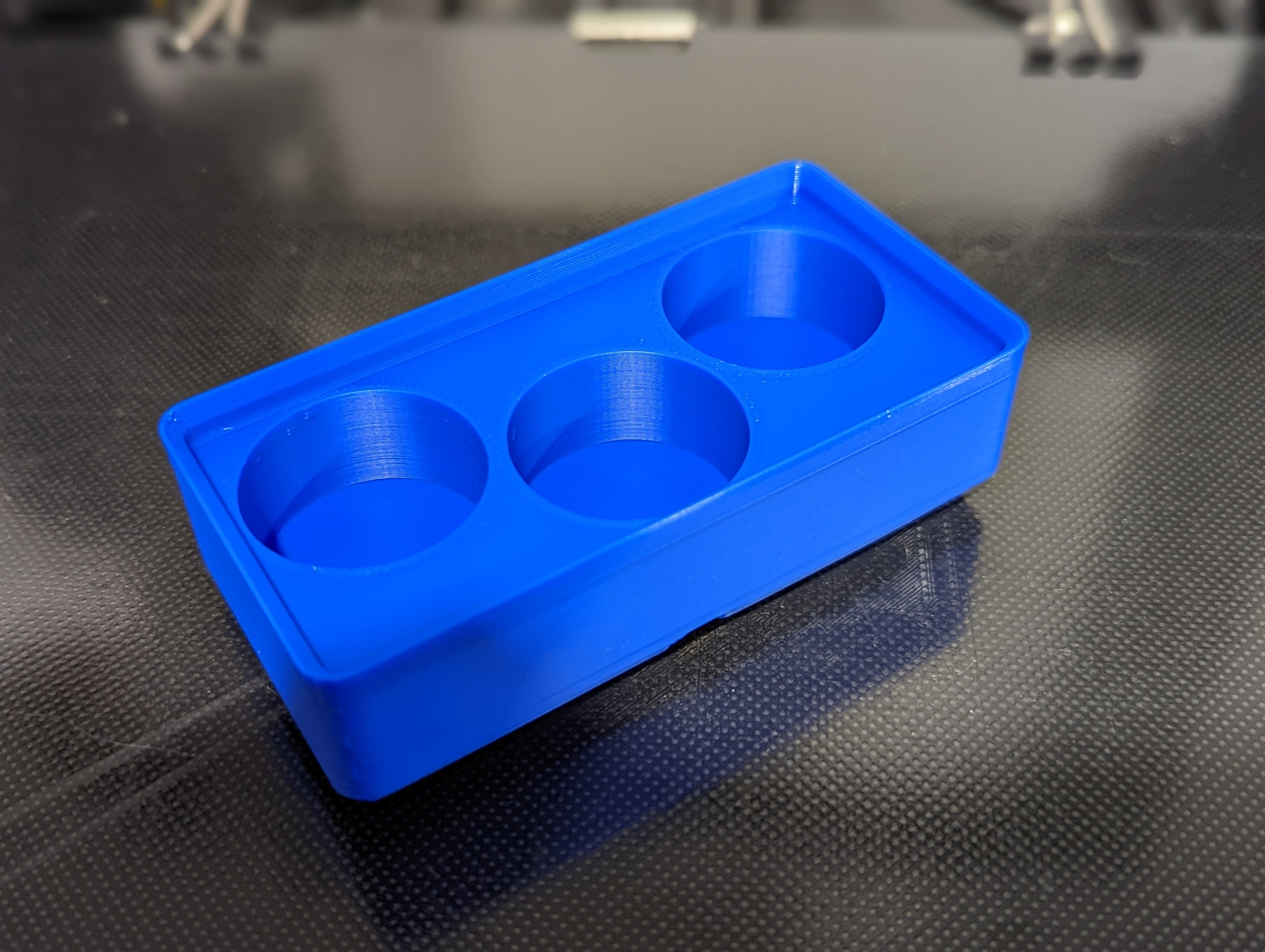

Printed in PLA. 0.2mm layer height. 15% infill.
----
16-Aug-2023 - Added v5 with increased hole size
Based on feedback I've uploaded a new version (v5) that increases the diameter of the holes to 26.2mm which is the standard for C batteries (according to Wikipedia).
The included Autodesk Fusion 360 model has been updated with parameters to set the diameter and an optional tolerance.
If you're concerned about fit, try a test print by dropping the model down into the bed of the slicer and slice/print a few layers of the middle of the model.
Design by scross01 on MakerWorld (license: BY).
