Gridfinity 2x2 Angled Pencil Holder

Summary

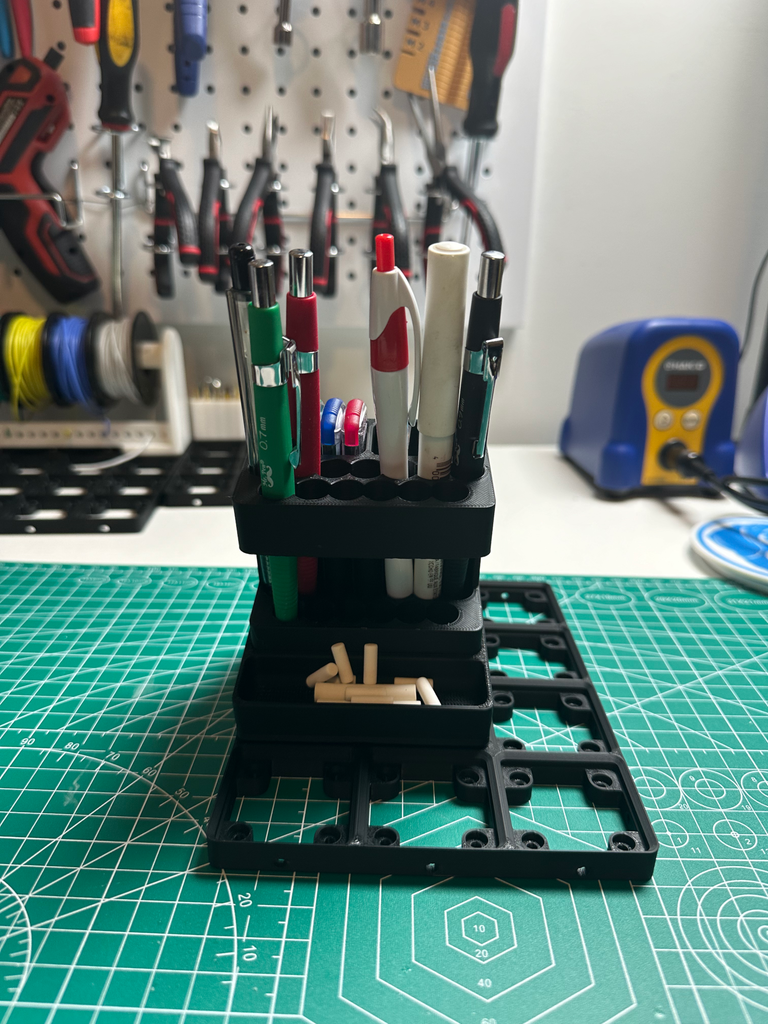

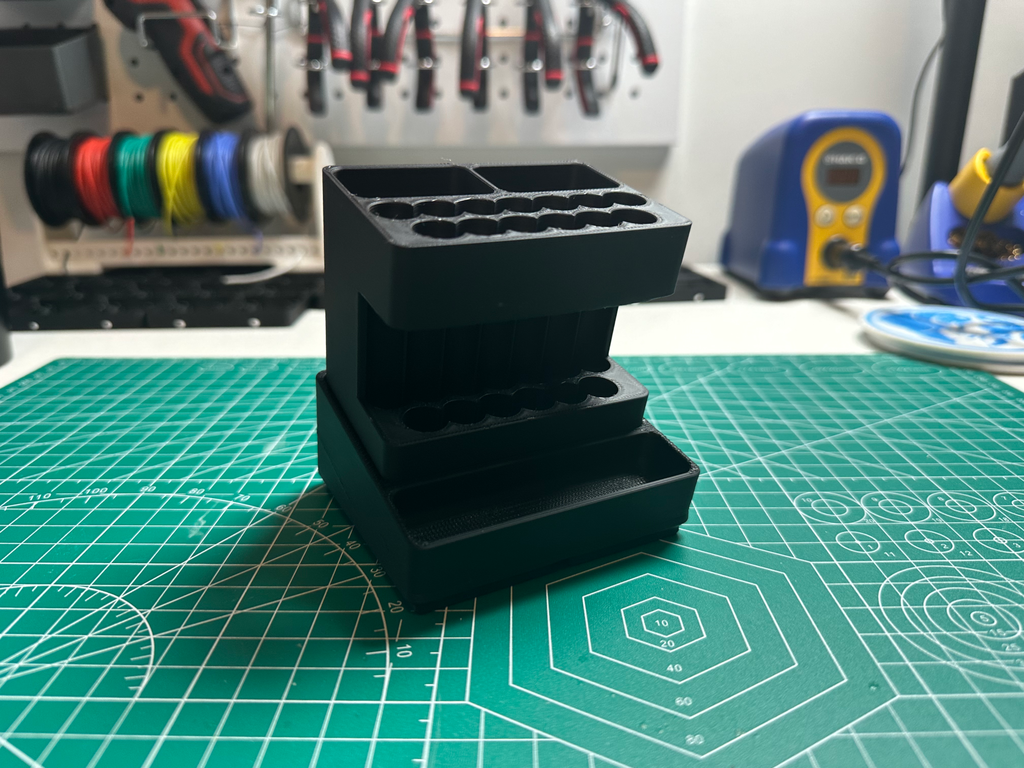

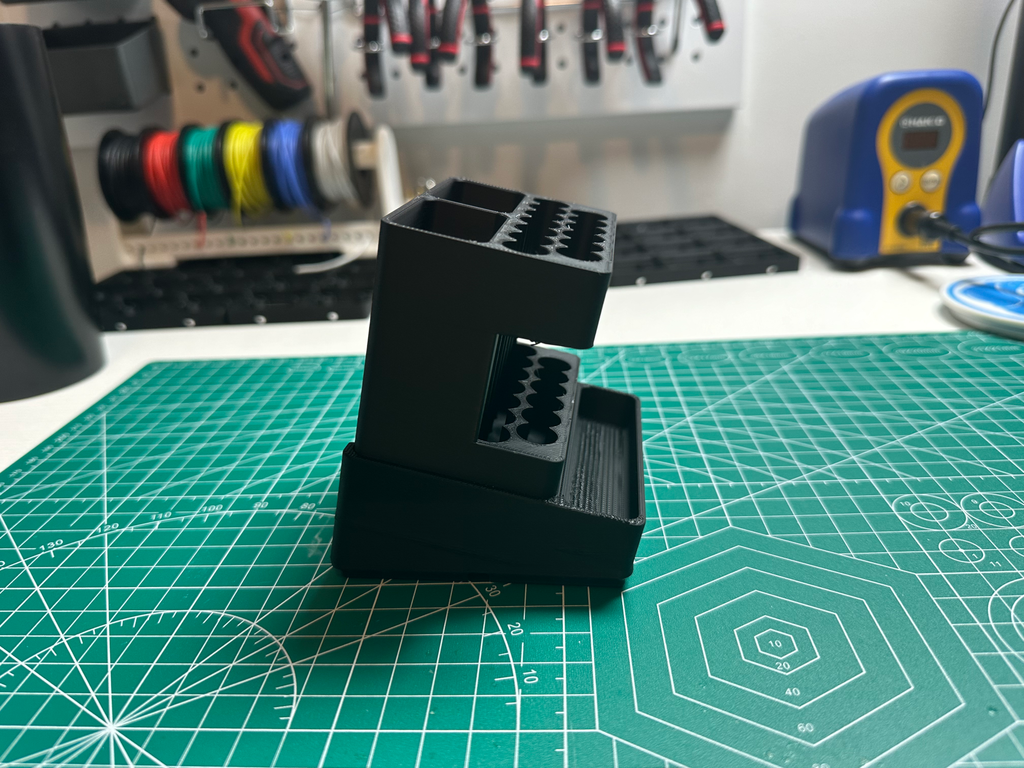

Fits a 2x2 gridfinity and holds 13 pencils. The rear bins are sized to hold the most common sizes of lead refill cartridges and erasers go up front.

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

No

Supports:

Yes

Infill:

10%

                Filament:                                     Generic PLA


Notes:

Support is needed for the overhanging ledge on the holder. The base prints without support.

How I Designed This

While I did design this "from scratch" it was so heavily inspired by the Angled Pencil Organizer that I consider it a remix.

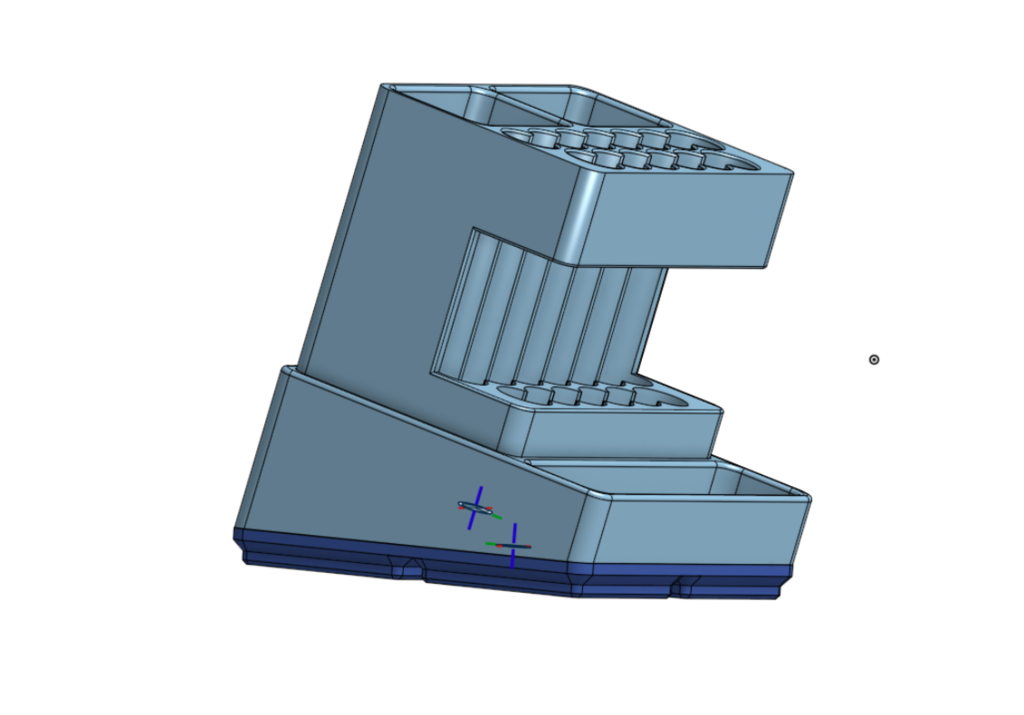

Designed in OnShape:

https://cad.onshape.com/documents/162b1640d6f29ea139ead8f9/w/93d50e318637ea21d6612841/e/95cf1efa7f62f20d0d53aa4a?renderMode=0&uiState=66167bd2c23c5e0e3f1a1ea9

Design by bubbafat on MakerWorld (license: BY-SA).
