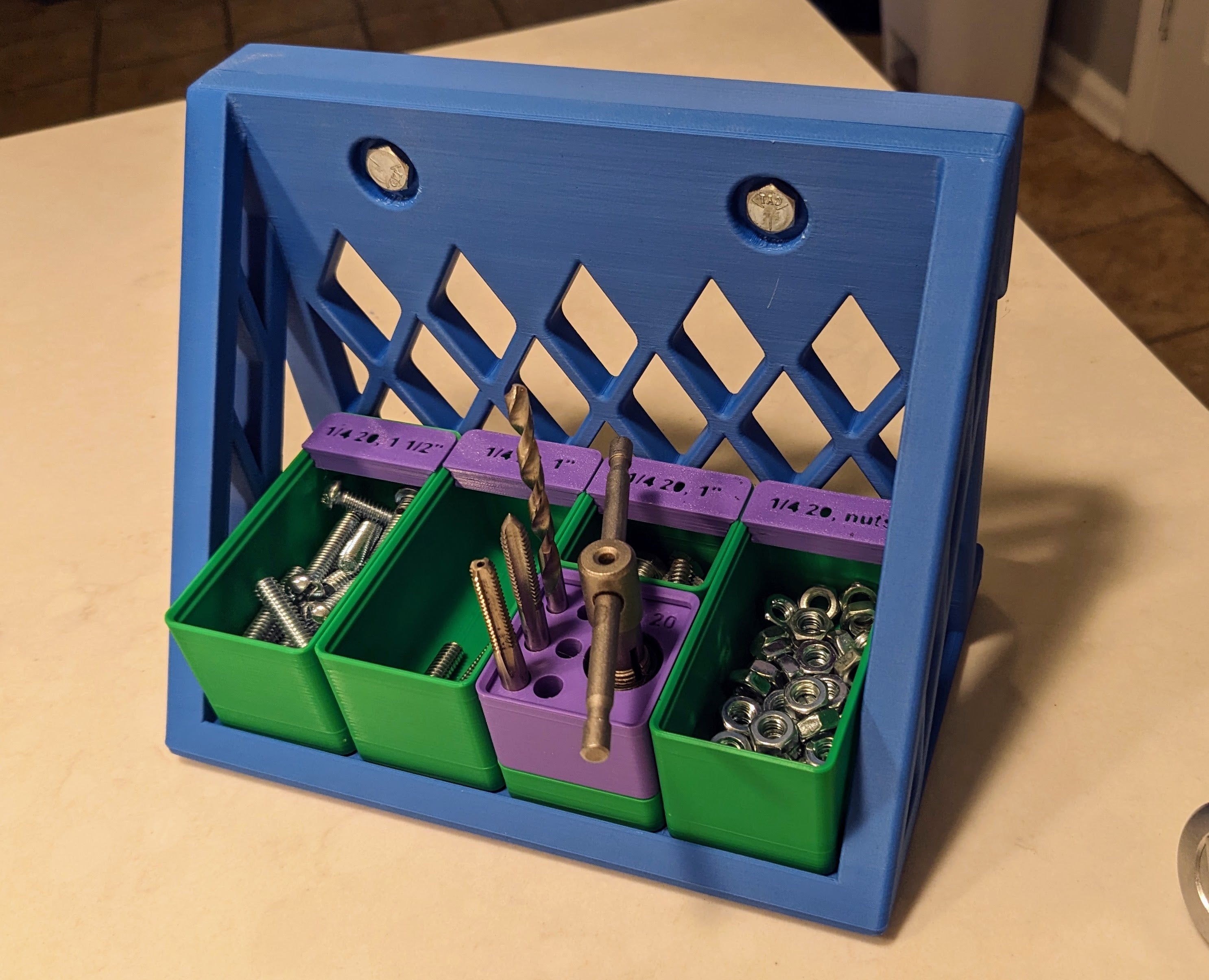

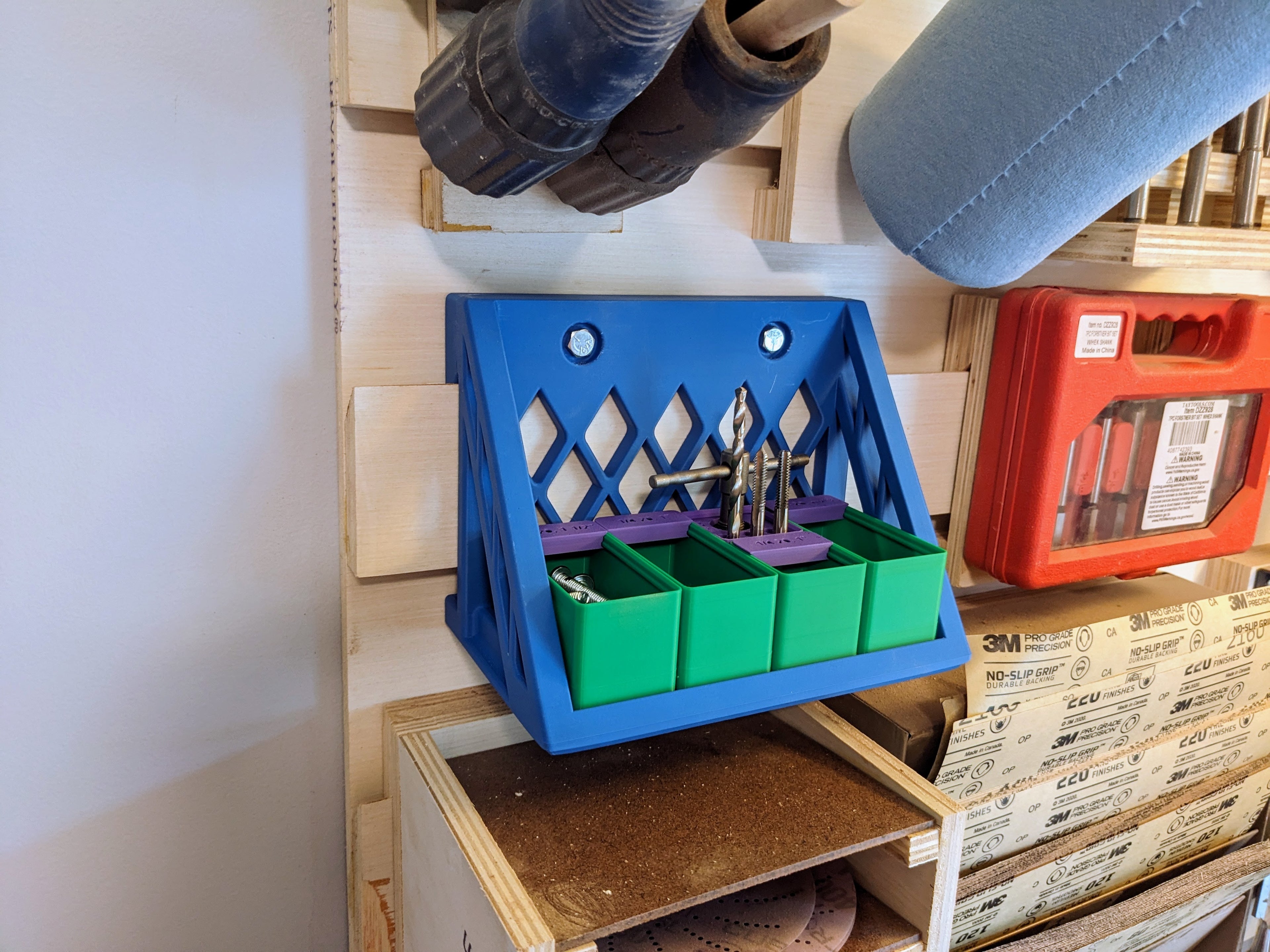

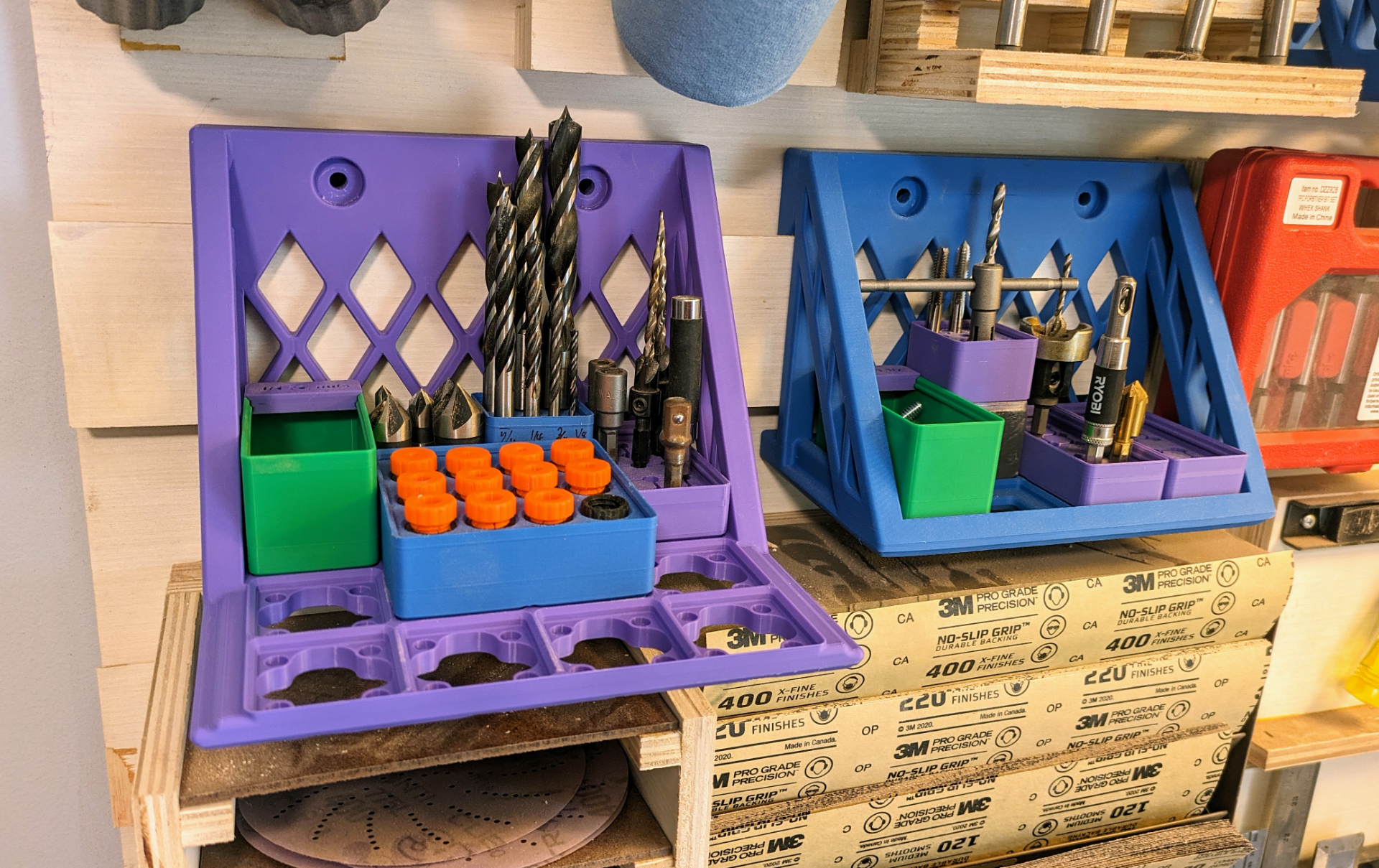

Gridfinity 4x4 and 4x2 base French cleat mount

Two options for attaching back (cleat) on the two piece version

1. CA glue. Designed with a mating registration surfaces to locate horizontally in the center and to give lots of strength for almost all purposes with just CA glue

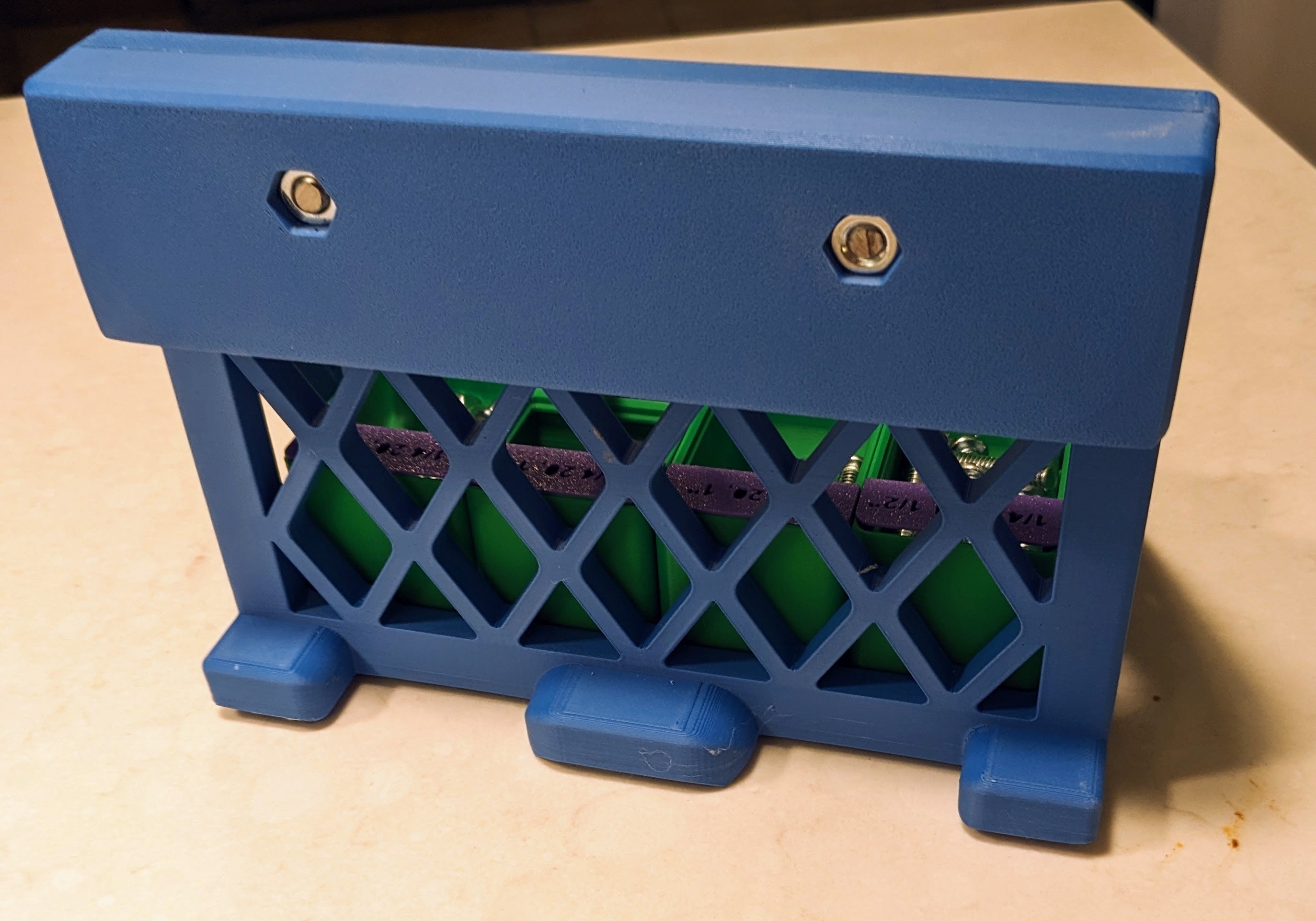

2. Hardware, made for ¼ bolts
   • 2 x ¾" long ¼ 20 bolt
   • 2 x ¼ 20 nuts

Design details:

• Holes on the bottom serve to prevent dust accumulation
• Made for 3/4" plywood (note: 3/4" plywood is usually closer to 0.7" thick, or around 18mm).
• Designed around standard imperial specs common in most US shops (sorry world)
• Could easily be remixed for just about any mounting system

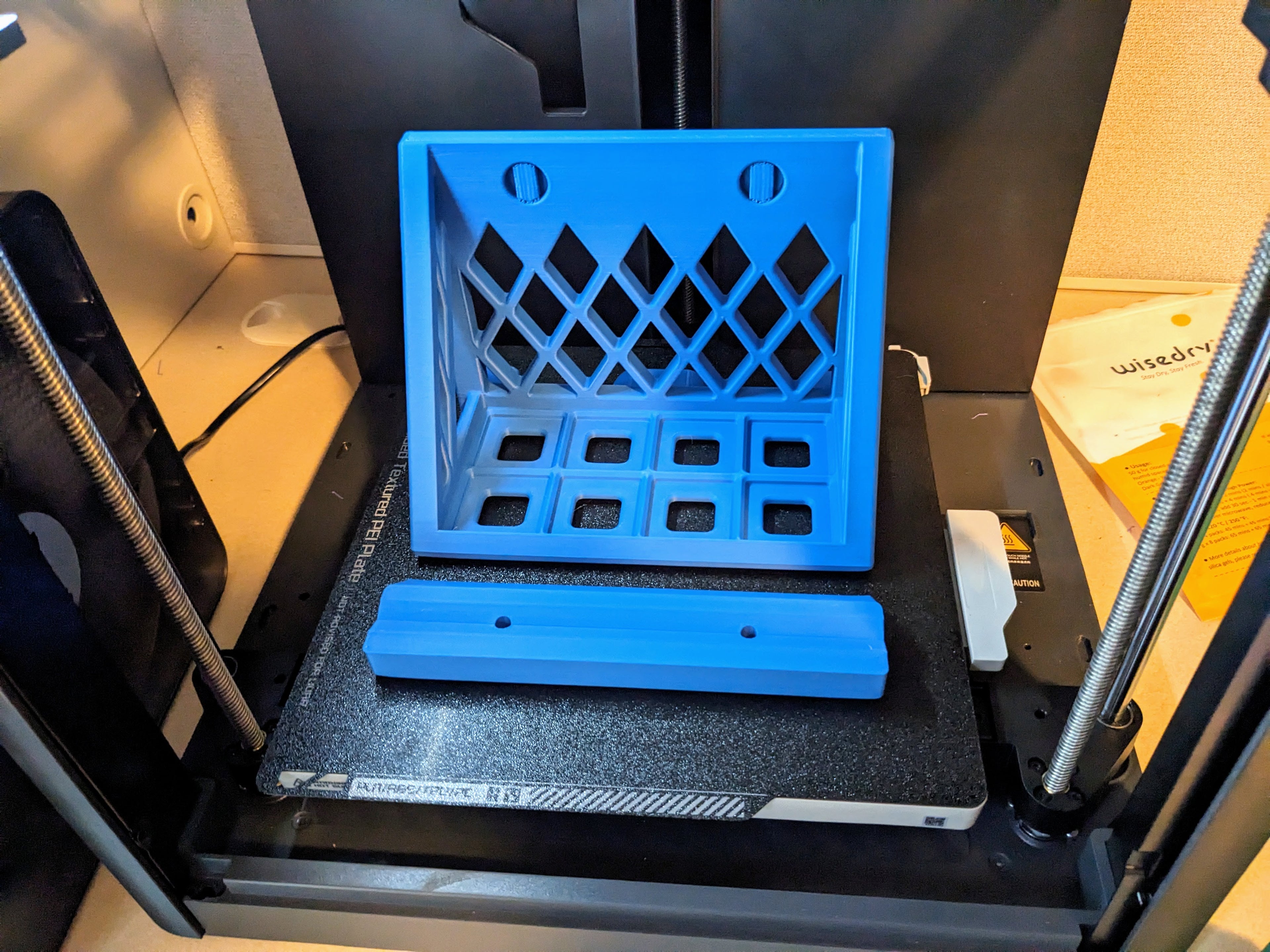

Print details

• Use snug supports just for the vertical holes, no other support needed (might even be able to get away with eliminating those)
• Adaptive layer height saves a bunch of time
• Printed great on a P1P, using Bambulabs Matte PLA

Design by shoooo on MakerWorld (license: BY).
