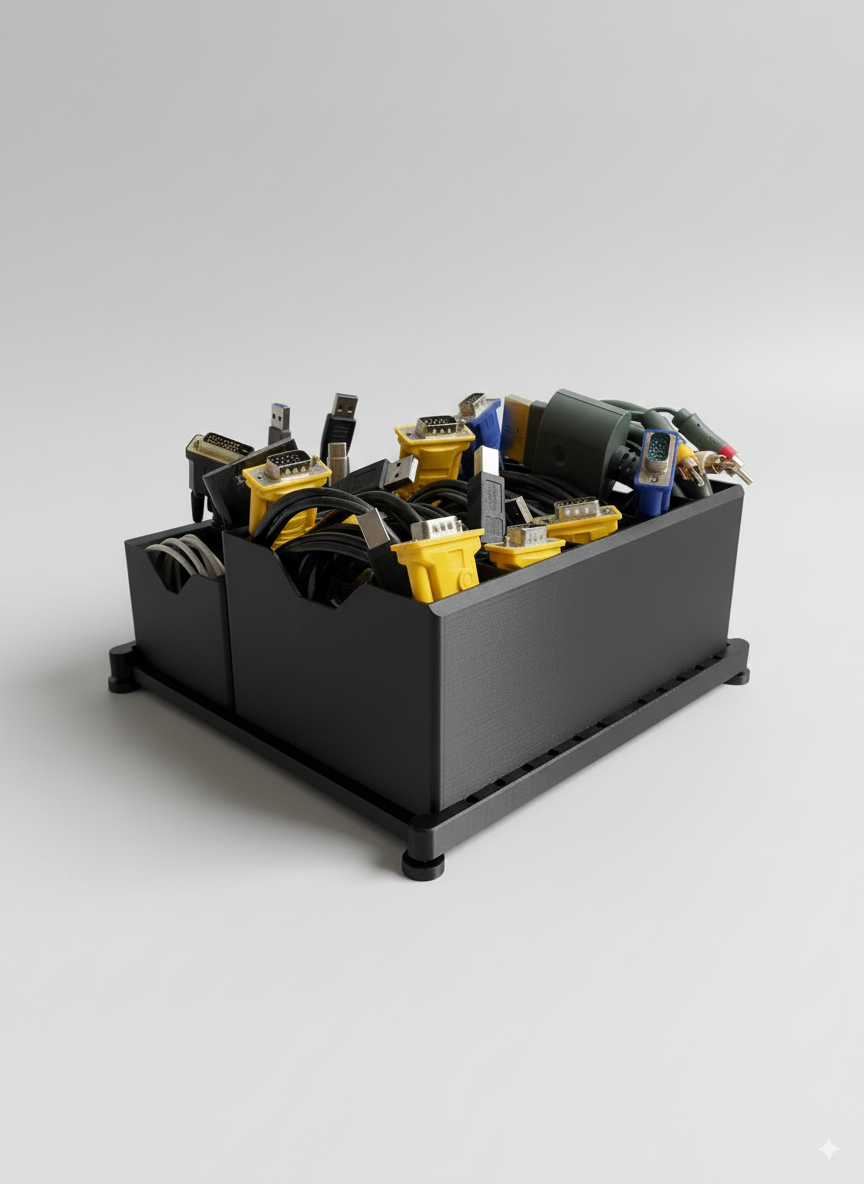

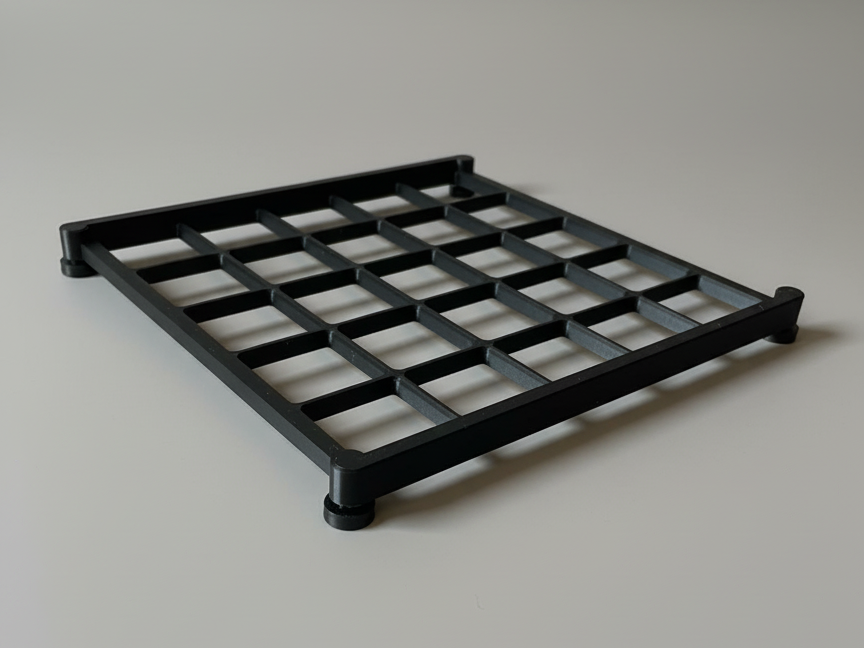

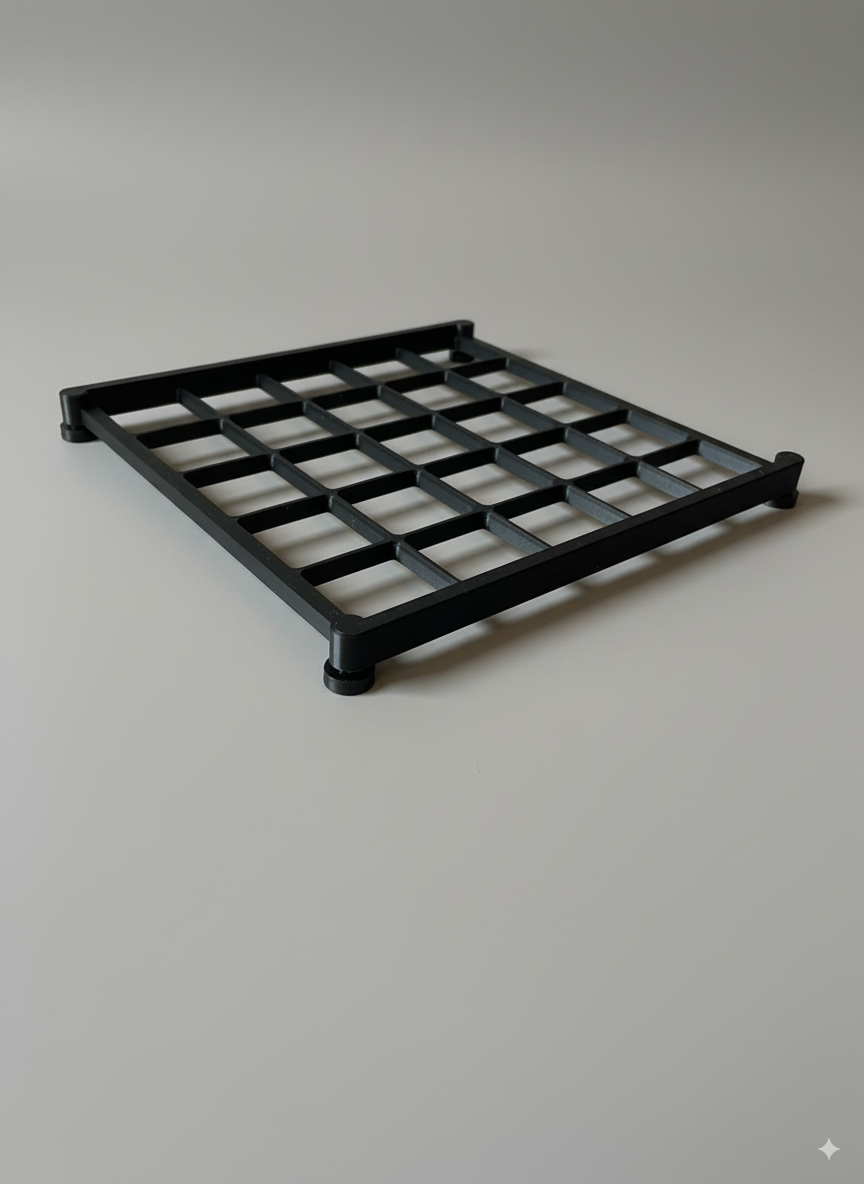

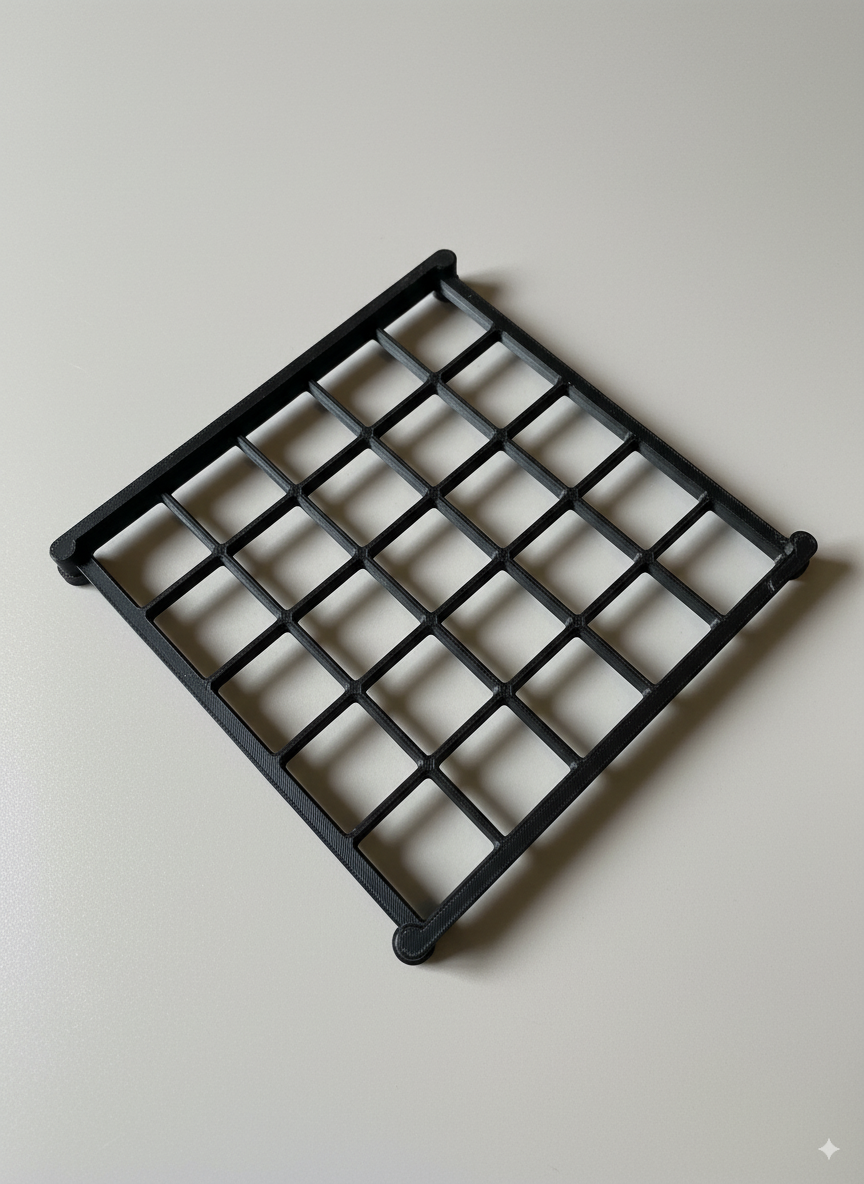

Parametric Gridfinity Desktop Baseplate with Optional Case & Mounting Holes
A fully customizable Gridfinity-compatible baseplate for your desktop organization setup. You can configure the grid size, thickness, case walls, and mounting holes directly on MakerWorld – no code editing required.
Features:
- 🧩 Gridfinity Standard – Works with all Gridfinity bins and accessories.
- ⚙️ Customizable Online – Set your grid size (X/Y units), plate thickness, and height on MakerWorld.
- 🛡️ Optional Case Walls – Add protective side walls with smooth rounded corners.
- 🔩 Mounting Options – Enable corner holes (partial or full depth) for easy desk or wall mounting.
- 🎛️ Advanced Controls – Fine-tune chamfers, margins, and radii for the perfect fit.
Default Setup:
- 4×4 grid (fits 16 Gridfinity units)
- 7.2 mm tall grid with 4.3 mm interface thickness
- Rounded case walls (6 mm radius, 6 mm tall)
- Corner holes (4 mm radius, partial depth)
Printing Guidelines:
- Material: PLA or PETG recommended for strength
- Layer Height: 0.2 mm or finer for smooth chamfers
- Infill: 15–30% is usually enough
- Supports: Not needed
Design by Intisy on MakerWorld (license: BY-SA).
