Gridfinity Drawer Organizer for IKEA Eket

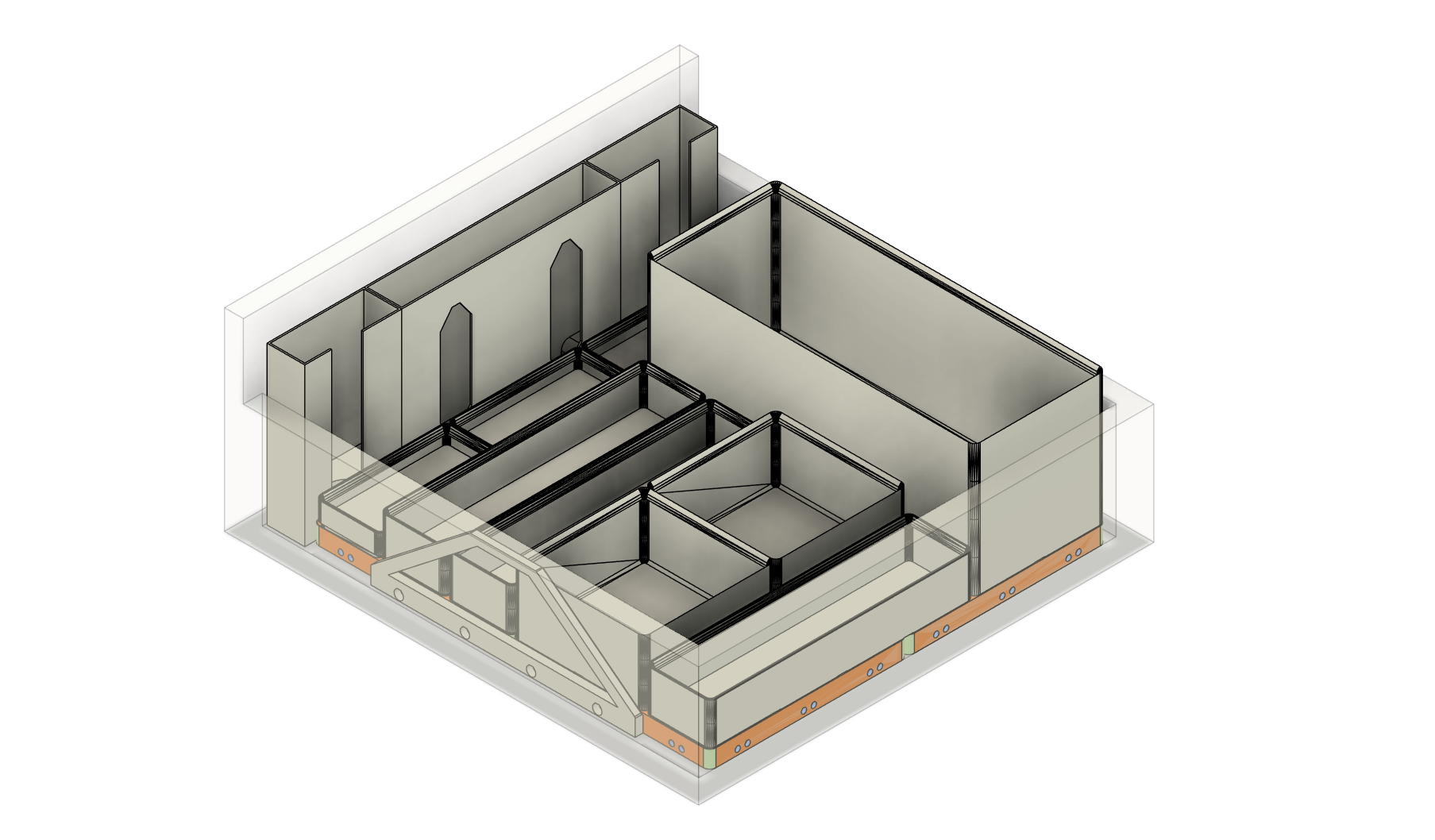

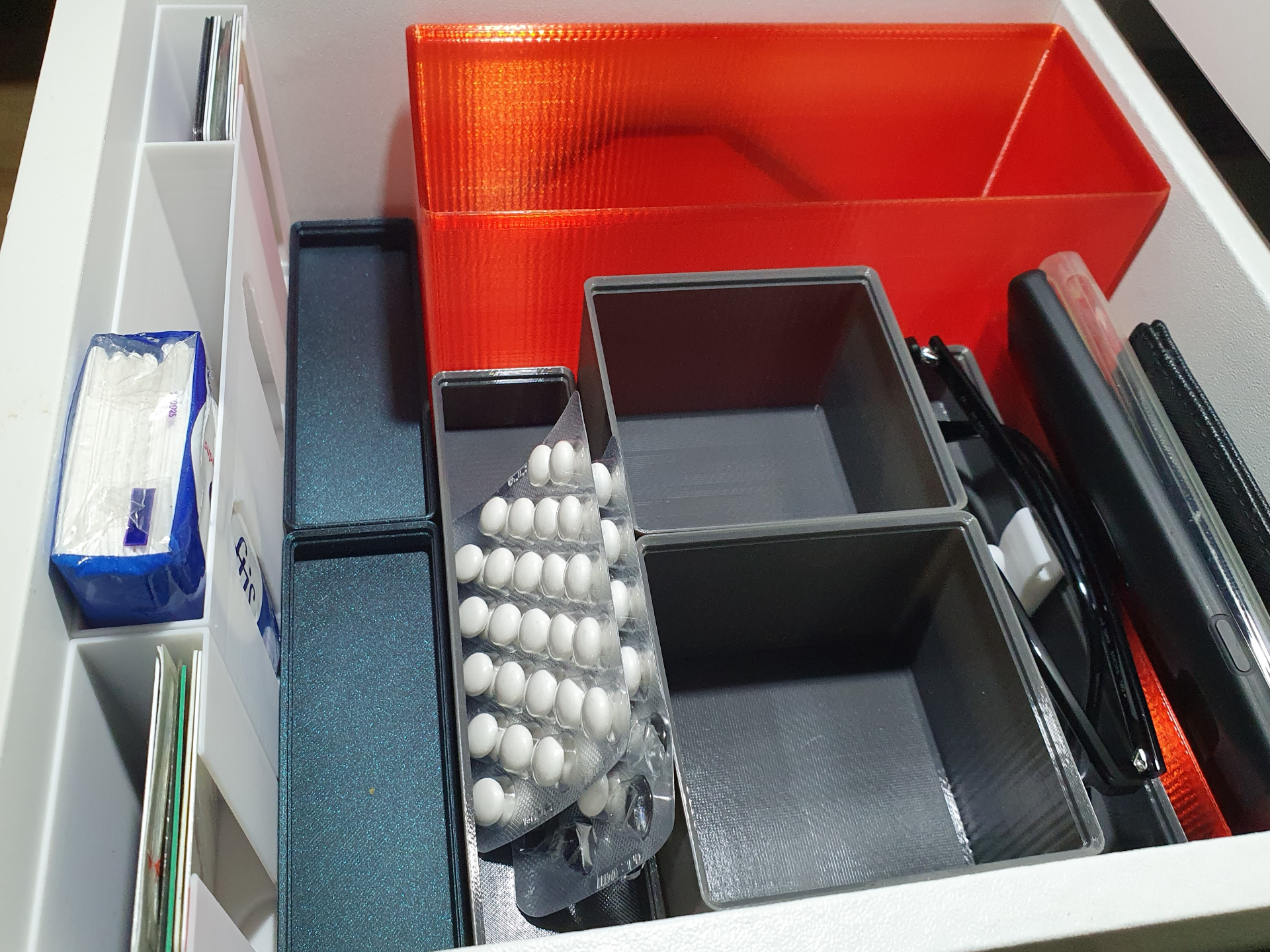

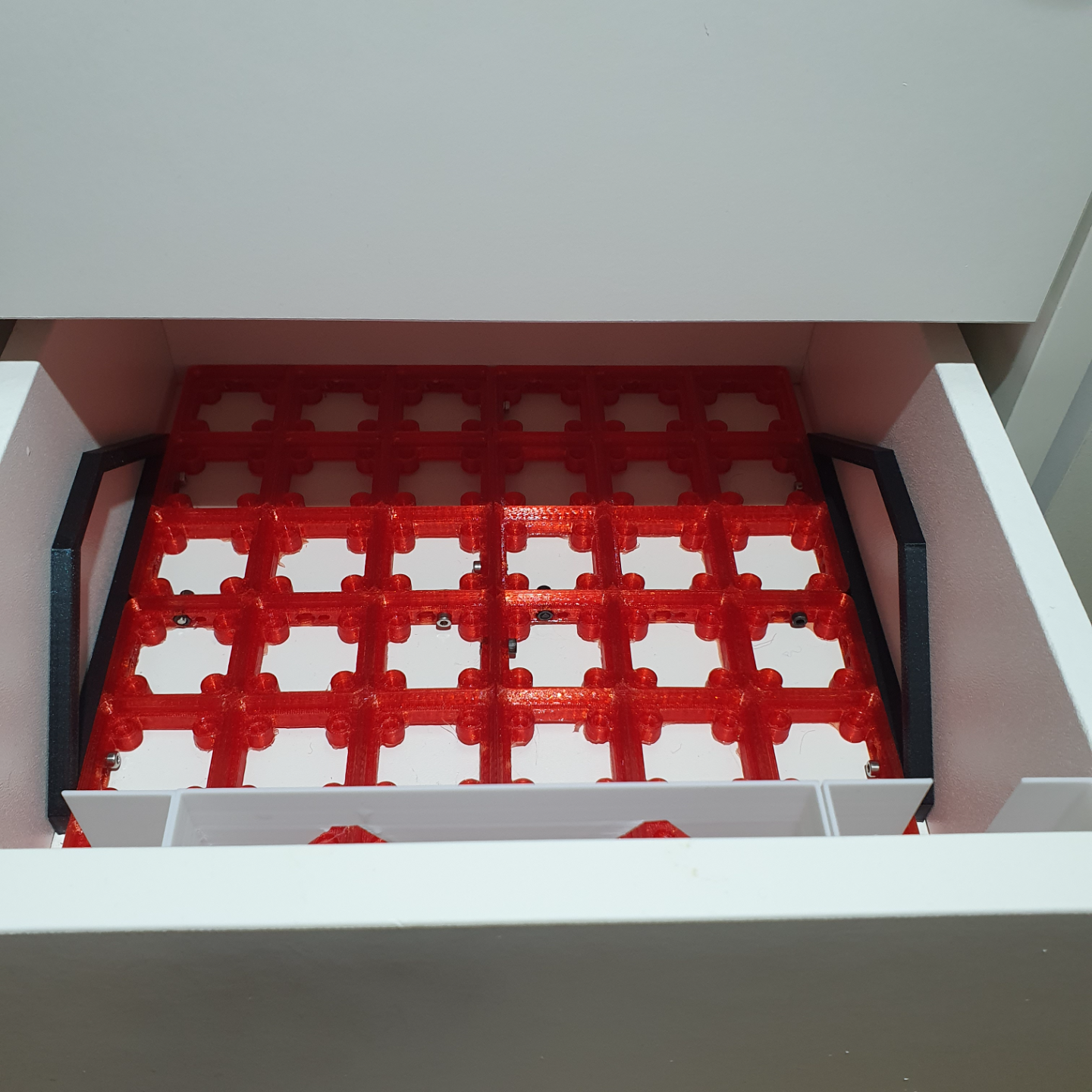

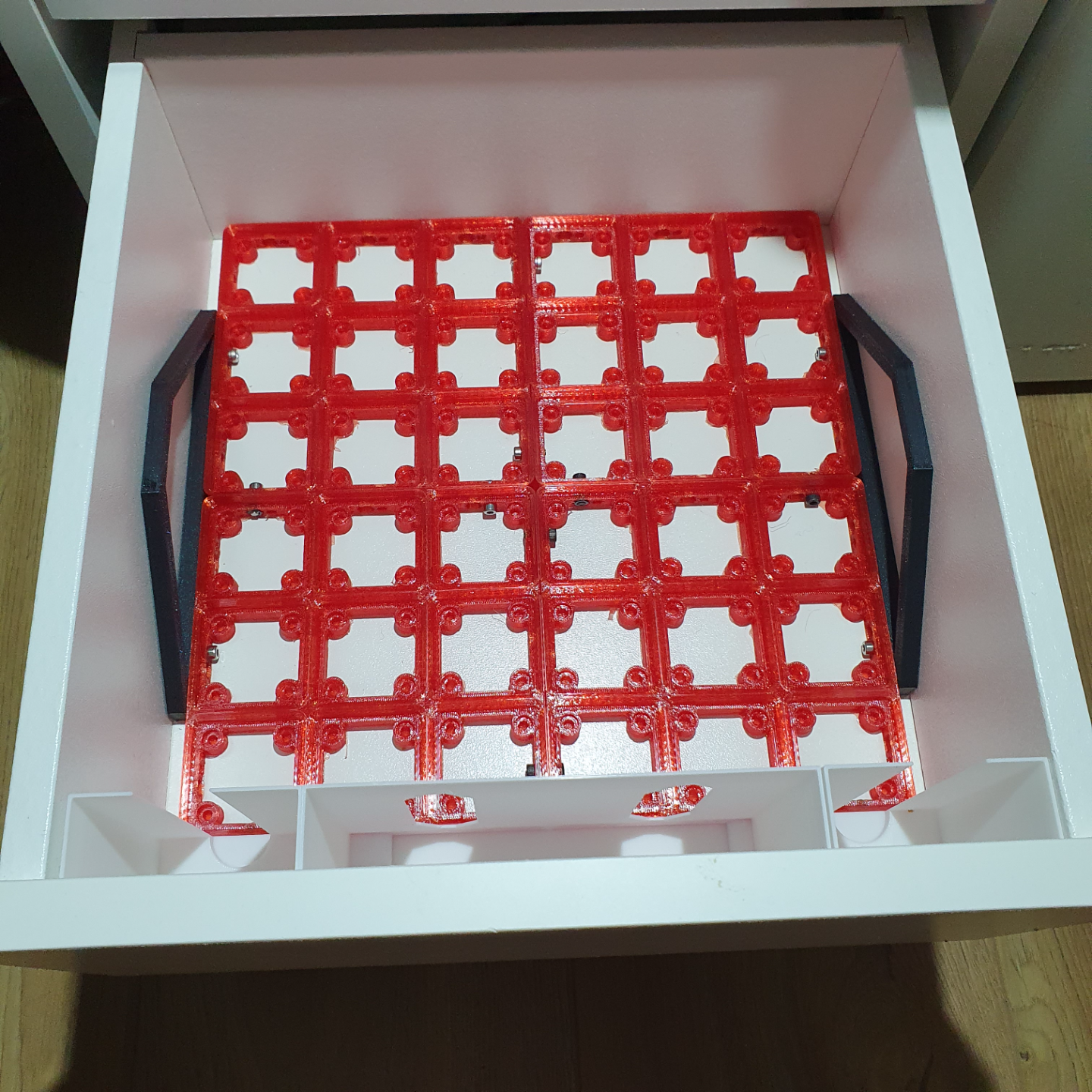

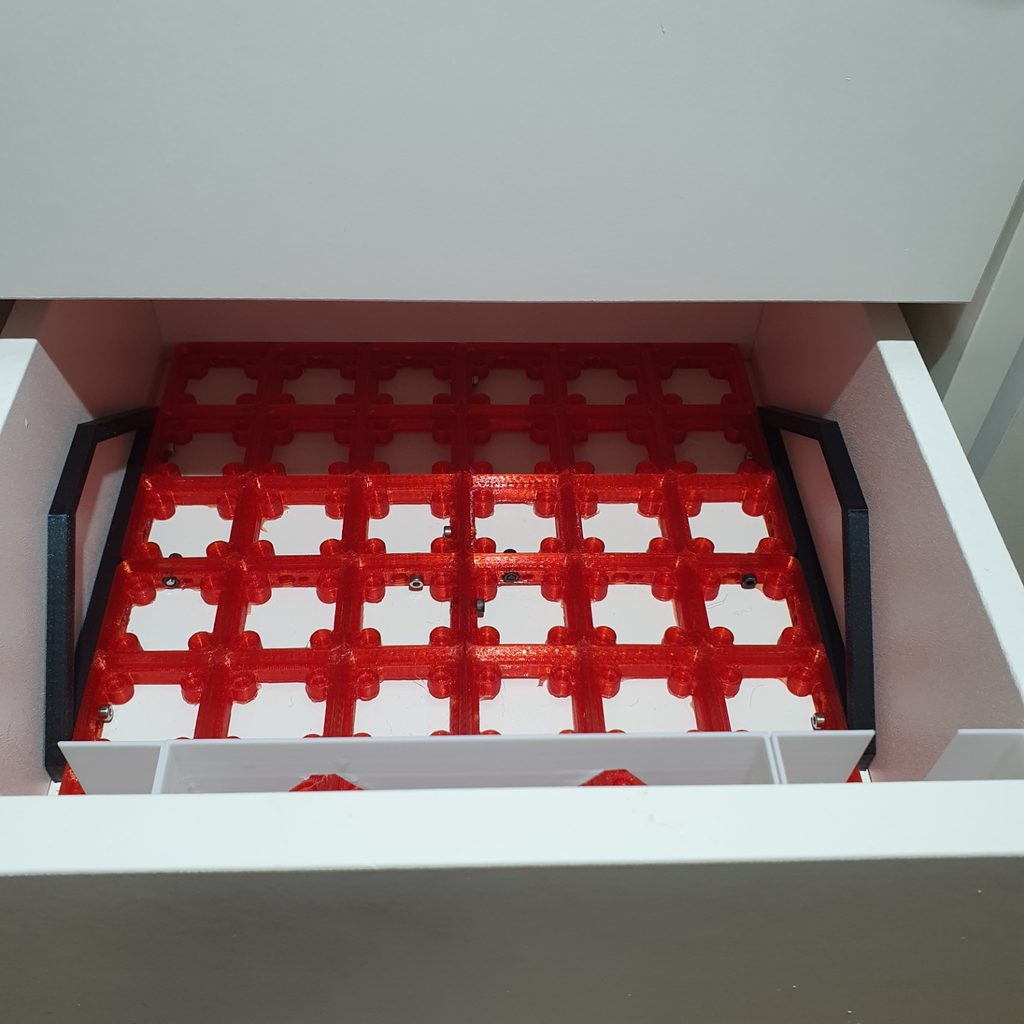

I use an Eket as a bedside table, and my drawer was a mess. I needed a way to organize things in that drawer. I have a 3D printer, so there shall be order! The partitioning can be freely set to your liking with Gridfinity-compatible boxes. It can be easily lifted out. I added two boxes at the end of the baseplate to make it possible to add credit cards, tissue packages, or pill blisters. The grip and the boxes are compatible with the baseplate by PlasticFlow.

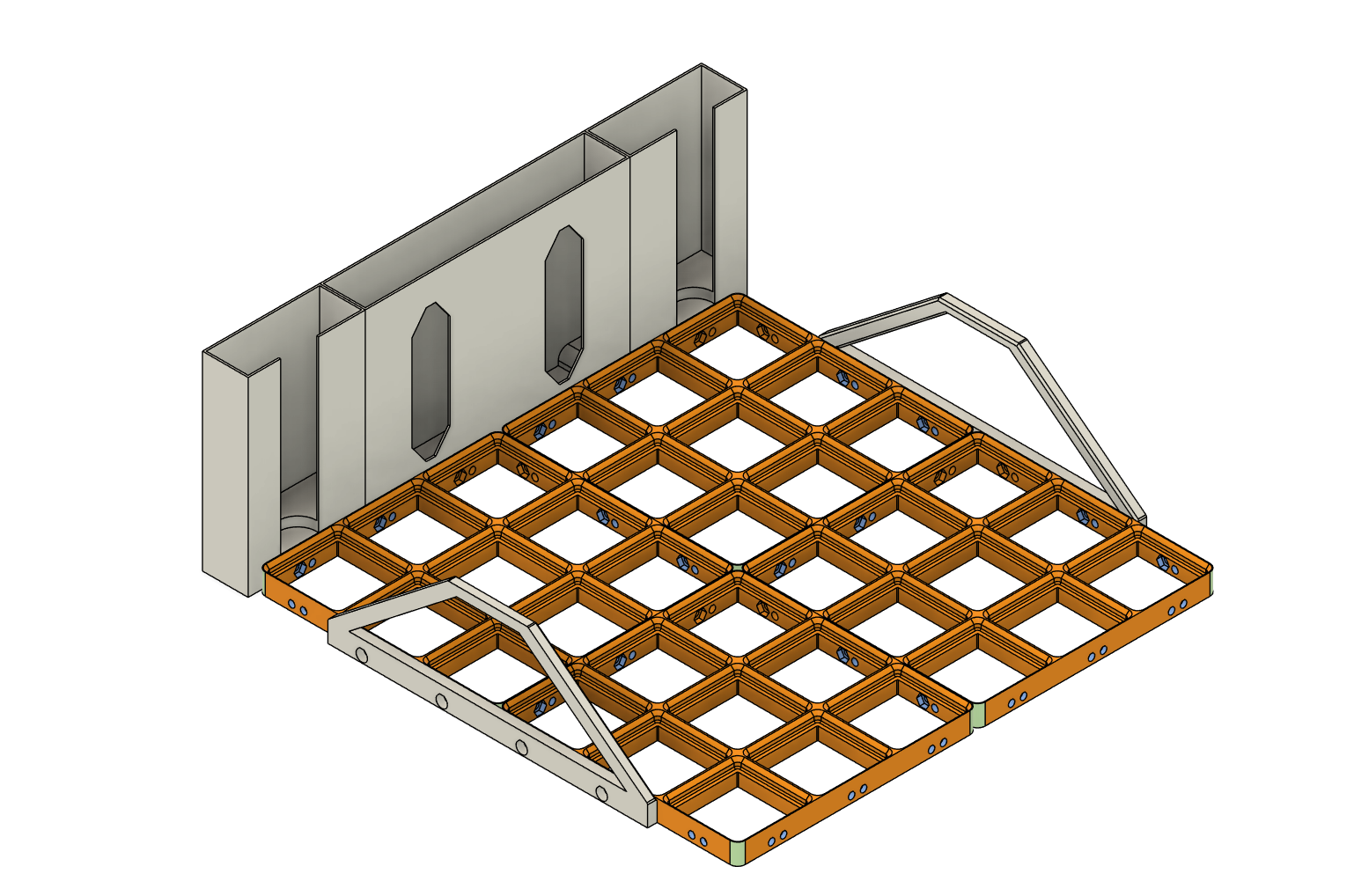

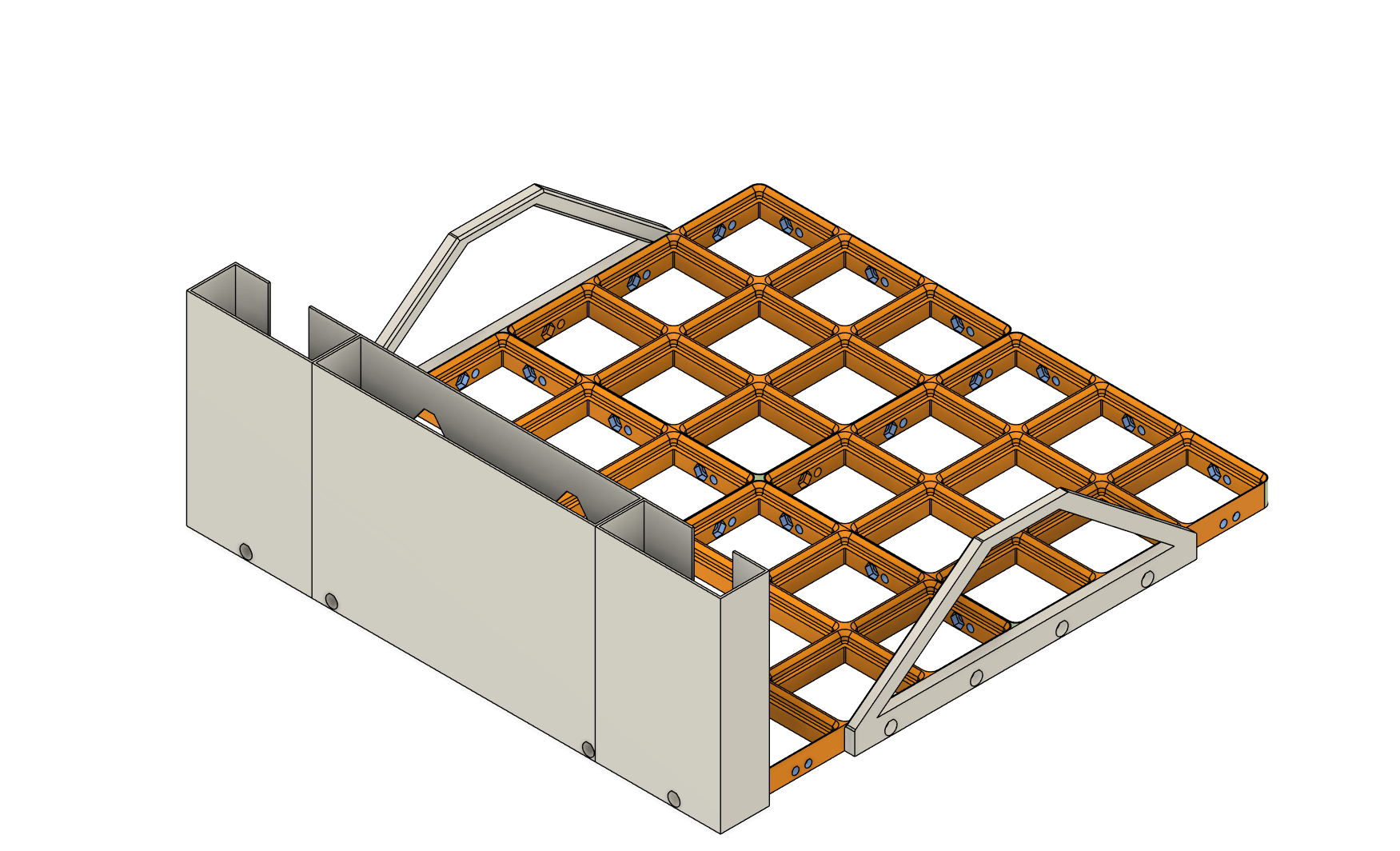

This model includes a 3x3 baseplate which is based on the "Gridfinity Baseplate - Screwable" by Printables user PlasticFlow, available at Printables. This work is licensed under the Creative Commons Attribution 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/.


Screws Needed:

• For the grips, I used M3x8 screws, 2 per grip. You can use up to 4 if needed.
• To connect the base plates, I used 2 screws per side, totaling 8 M3x10 screws.
• You can screw the boxes with 4 M3x8 screws. In my own build, I used 2 M3x8 screws and 2 M3x6 screws.
• 20 M3 nuts.

The Over-the-Top Alternative:

If you want to screw every possible connection, you would end up needing:

• 24 M3x10 screws
• 10 M3x8 screws
• 2 M3x6 screws
• 36 M3 nuts

The Bohemian Minimalist:

Here is the list of the minimum number of screws needed for each part:

• Baseplates:
  • 4 M3x10 screws
• Handles:
  • 3 M3x8 screws
• Boxes:
  • 2 M3x8 screws
  • 2 M3x6 screws
• 12 M3 nuts

Design by Chantekka on MakerWorld (license: BY).
