Description
Heat-Set Insert Tip case for 3DZWMAN (brand name) insert tips. Dual-color option to add labels changes colors just six times.

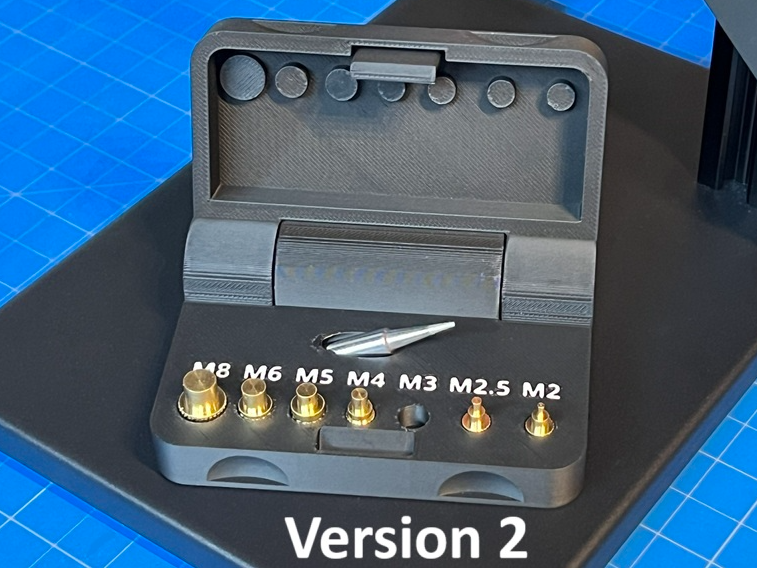

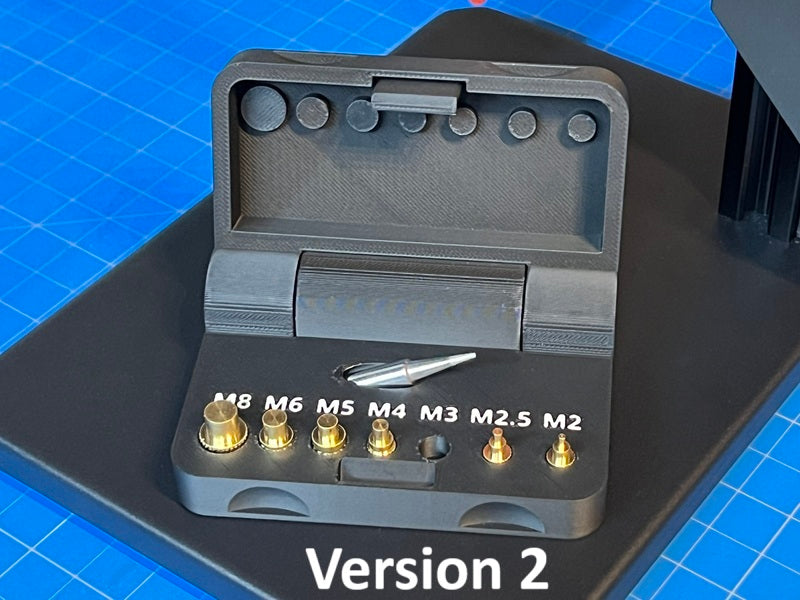

Version 2

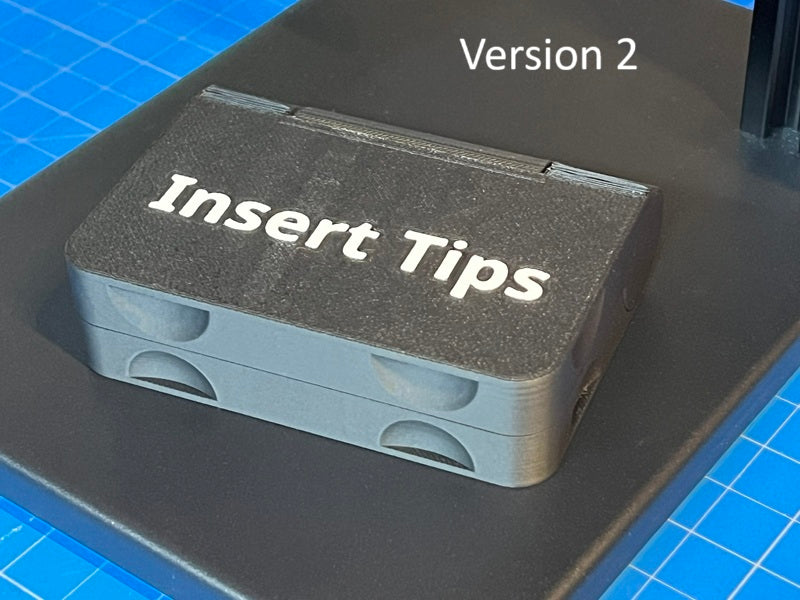

Relaxed hinge clearance for printers having issues with the tight clearance in version 1. Added a clasp to hold the lid shut when closed. Just pull to open. Also enlarged and added finger pull indentations.
This is still a tight print-in-place hinge. I can't guarantee your printer can successfully make this, but the relaxed tolerances in this model should work on more printers.
Personally, I prefer the tight hinge on version 1 to keep the lid closed. If you think your printer is up to the task, head over here.
The case was designed for a insert tip set sold by 3DZWMAN on Amazon.

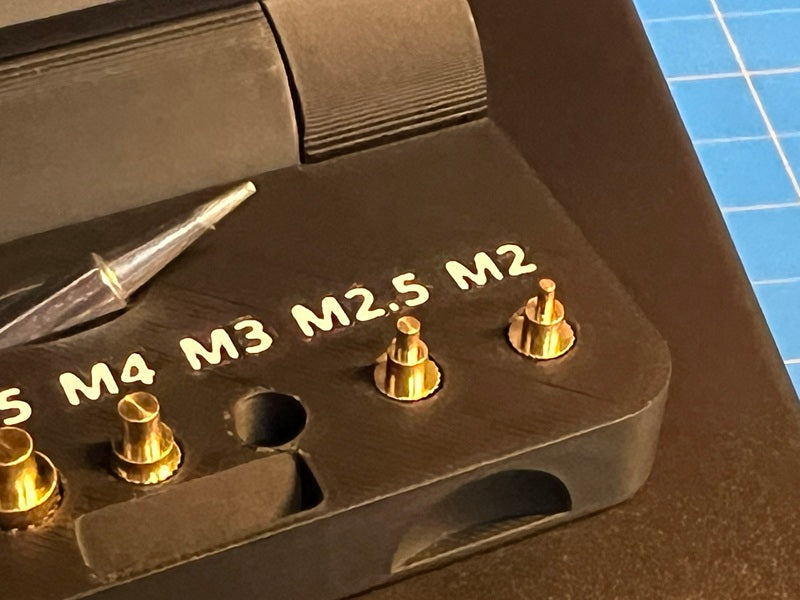

It includes tips for M8, M6, M5, M4, M3, M2.5, M2 and a soldering tip.
Other sets or brands may or may not fit into this case.
Revision History
Version 2 - 4/15/2025 Designed and sized for 3DZWMAN insert tips acquired from Amazon. Relaxed hinge tolerance, added clasp.
Version B1 - 3/15/25 Designed and sized for this AliExpress insert tip kit: Heat Set Insert Soldering Iron Tip M2 M3 M4 M5 M6 Brass Hot Melt Inset Nut Embedded Thread Insertion Kit For Plastic 3d Printing - AliExpress 13
Original Version 1 - 2/10/25 Designed and sized for 3DZWMAN insert tips acquired from Amazon.
Gridfinity Version Now Available here!
Design by PuzMaker2024 on MakerWorld (license: BY).
