Home Assistant Desk Mount – ESP32 + ILI9341

2.8" Touch Display Enclosure with Swivel Mount for ESP32 + ILI9341 – optimized for Home Assistant.

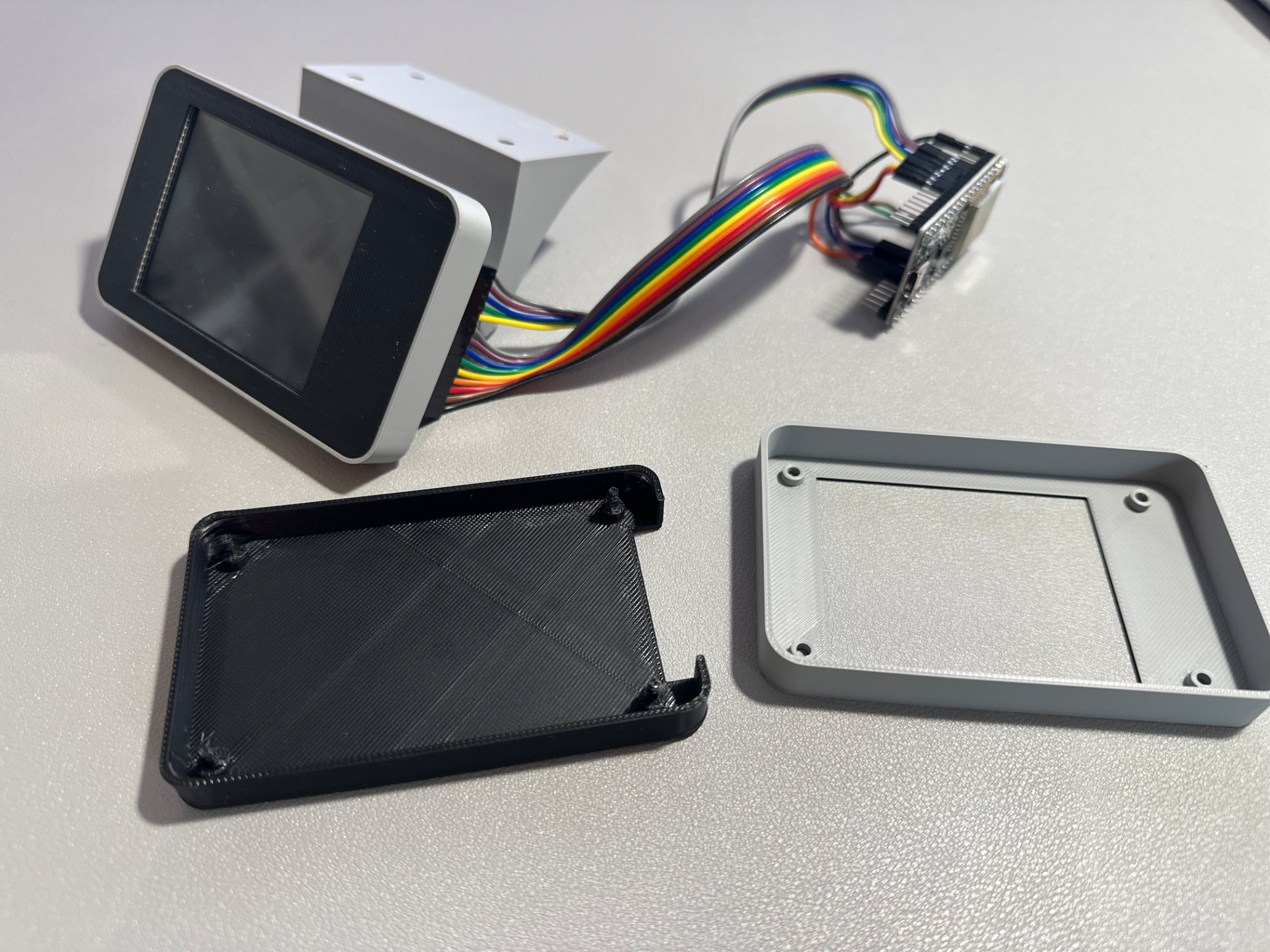

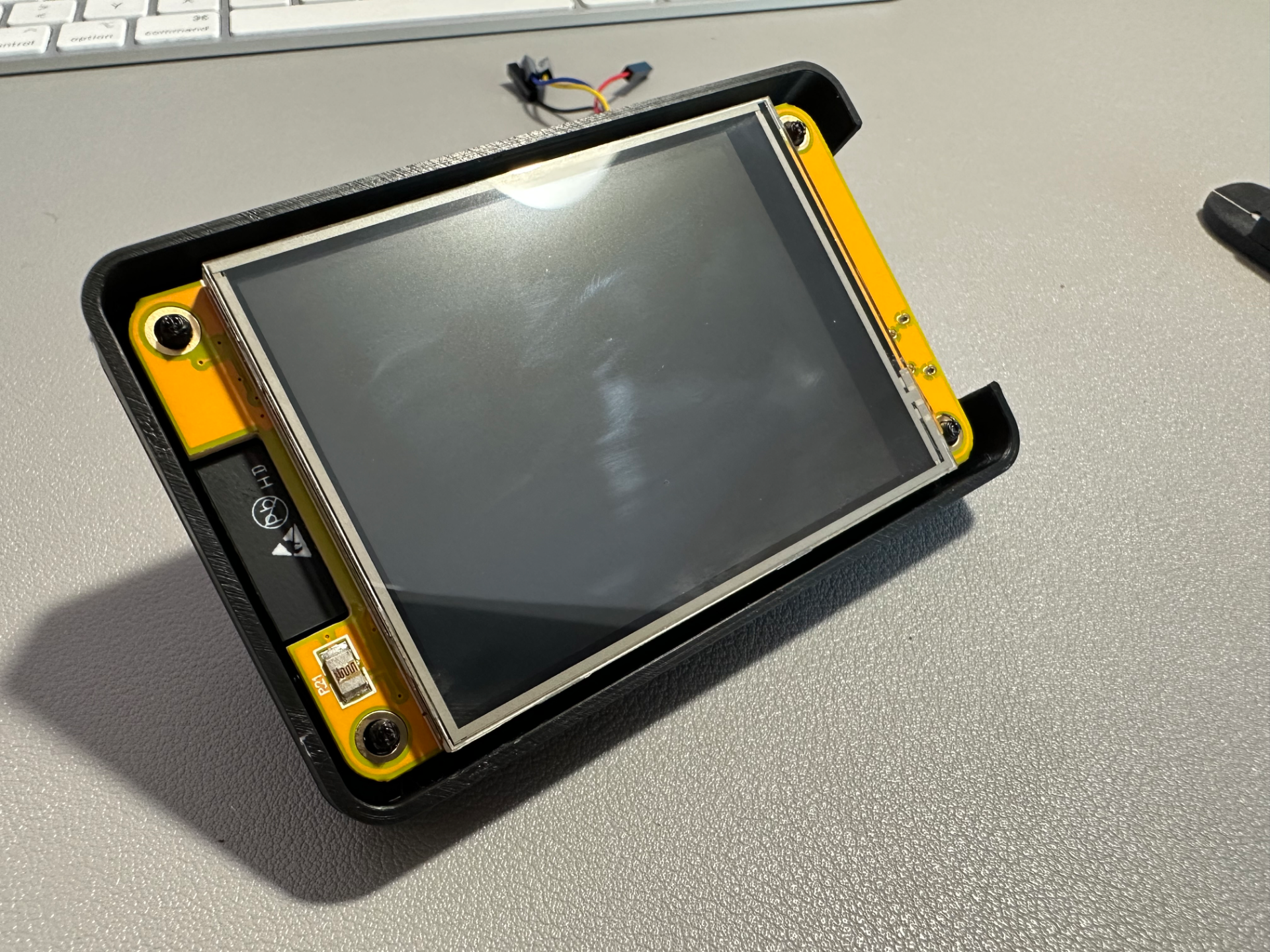

This 3D-printable enclosure is designed for a 2.8" ILI9341 touchscreen
with XPT2046 controller connected to a standard ESP32 development board
(e.g. ESP32-WROOM). It transforms your display into a compact Home Assistant
control panel powered by ESPHome and LVGL.

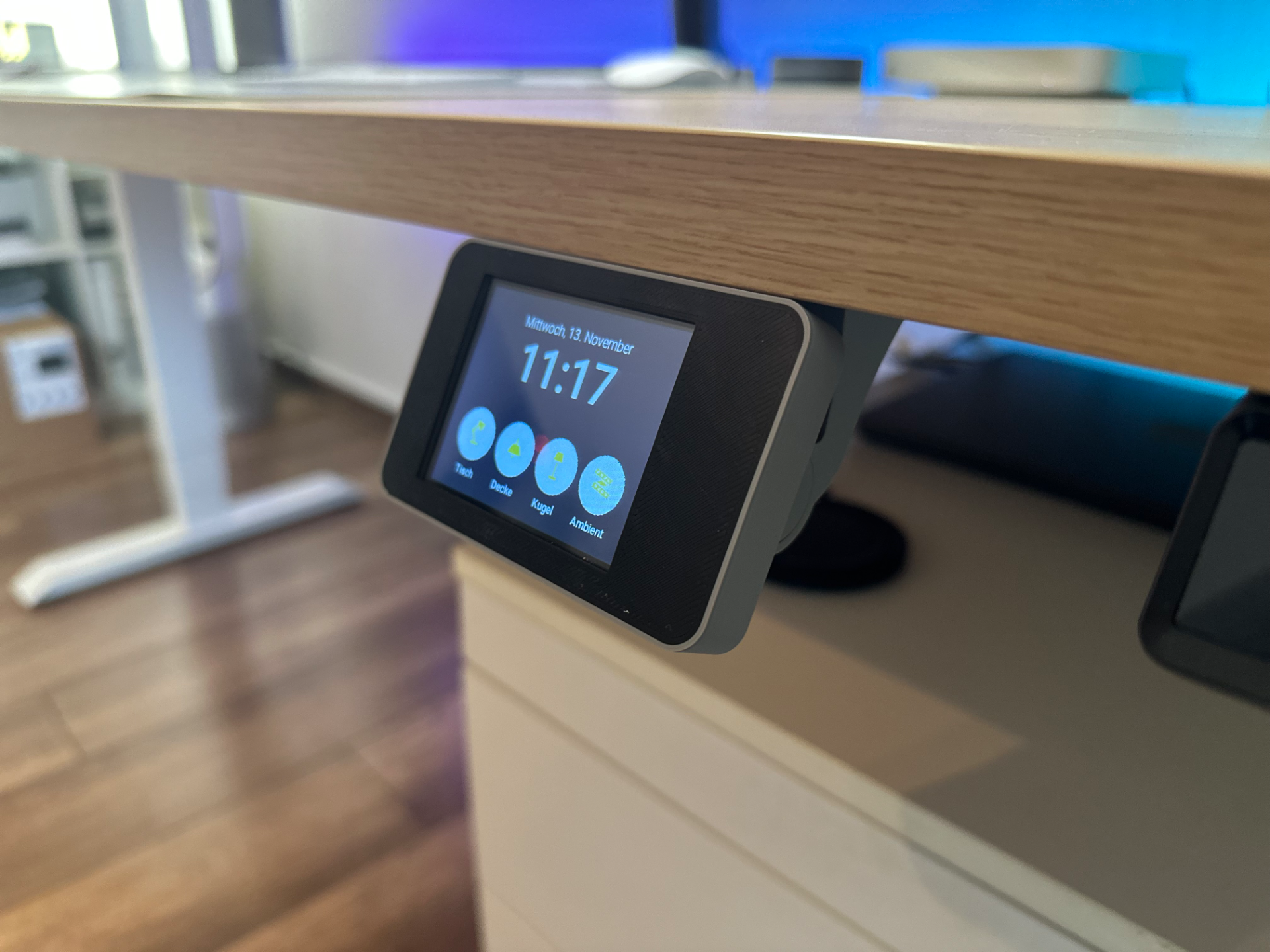

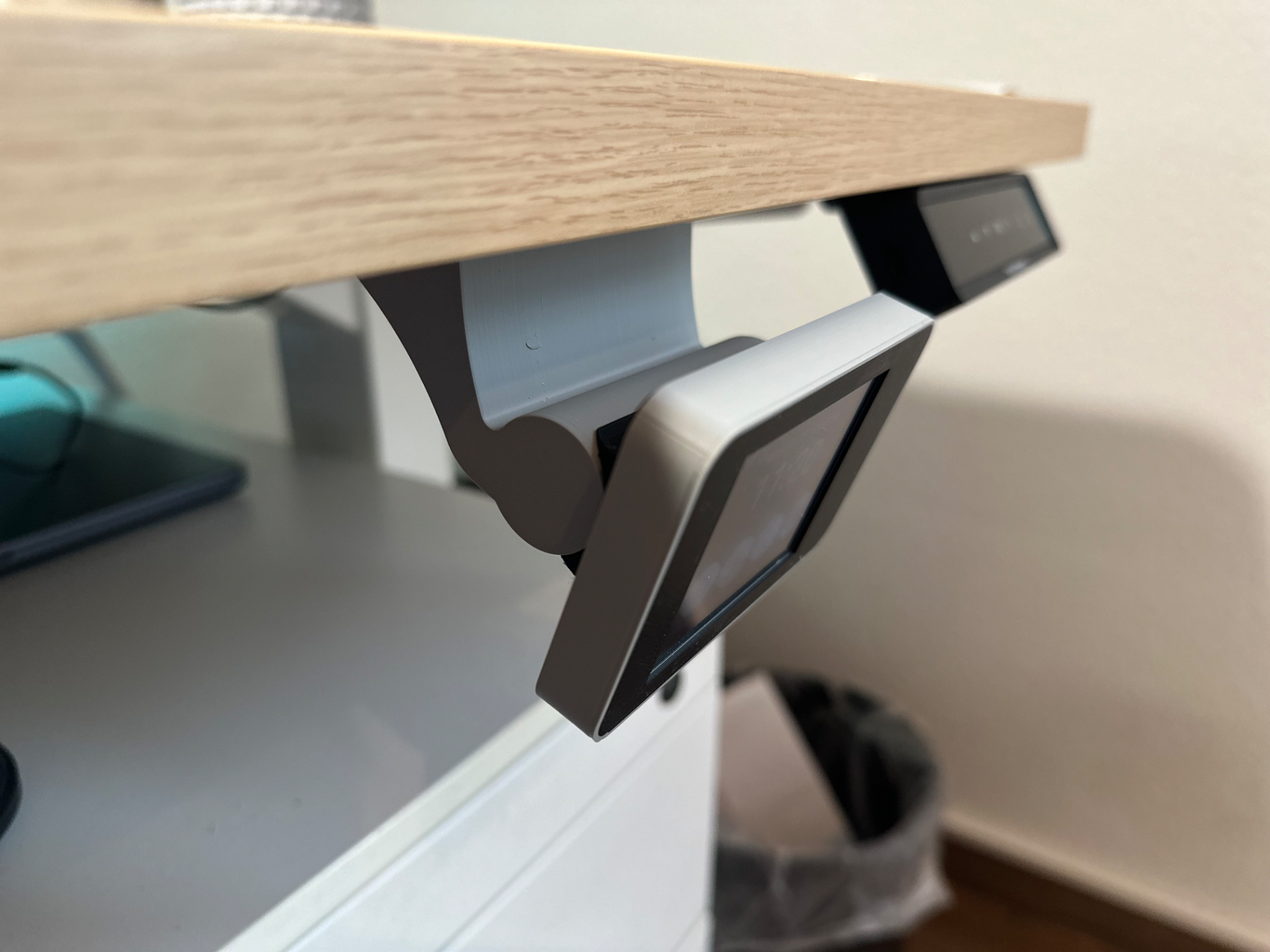

The mount is optimized for under-desk installation and features:

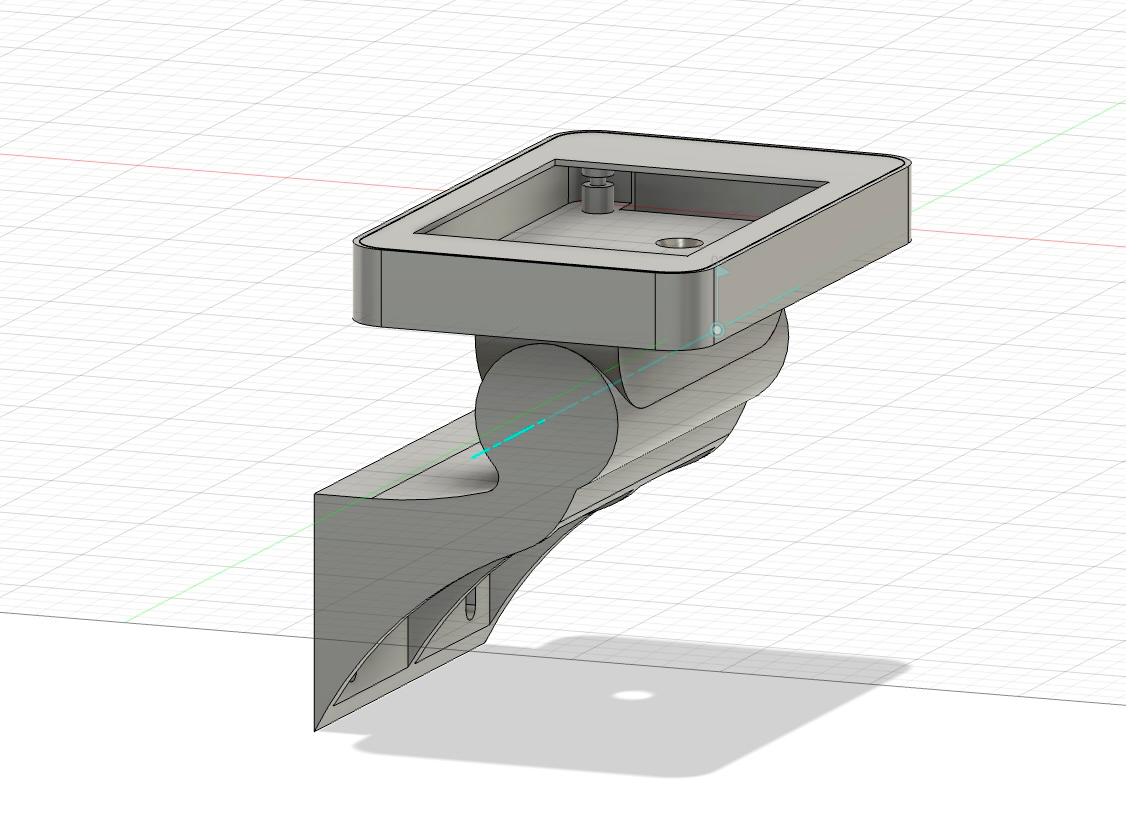

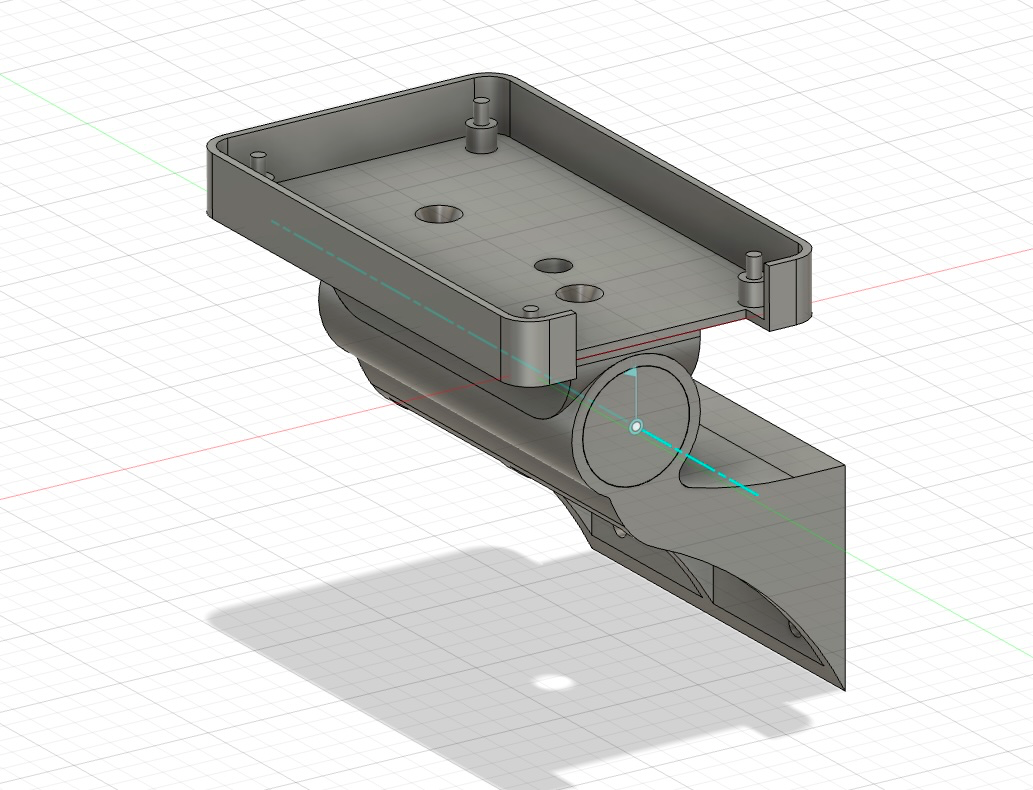

• Adjustable swivel mechanism (tilt support)

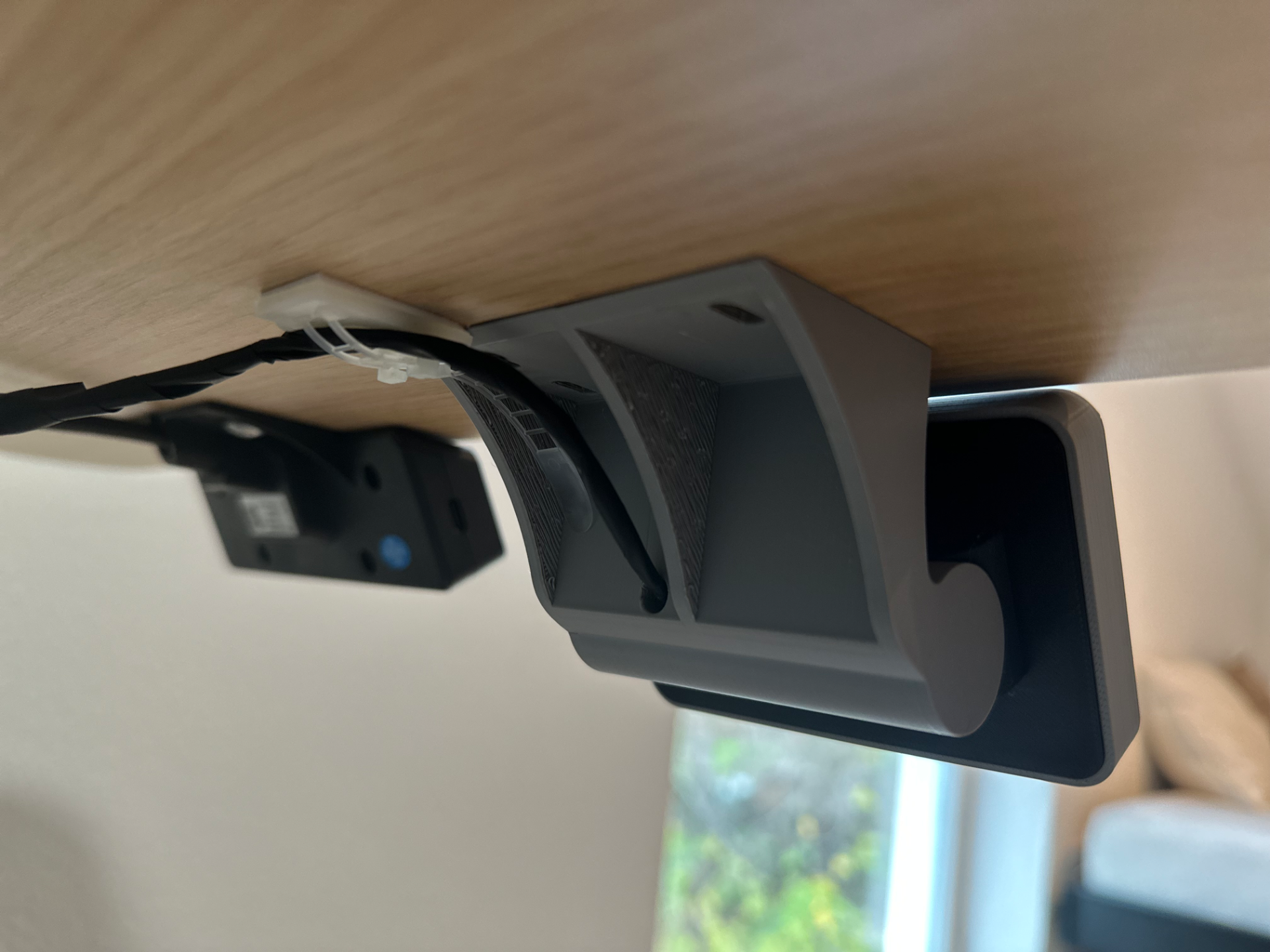

• Clean cable routing and concealed wiring
• Minimal footprint design
• Stable, integrated appearance

The included ESPHome configuration supports two UI styles:

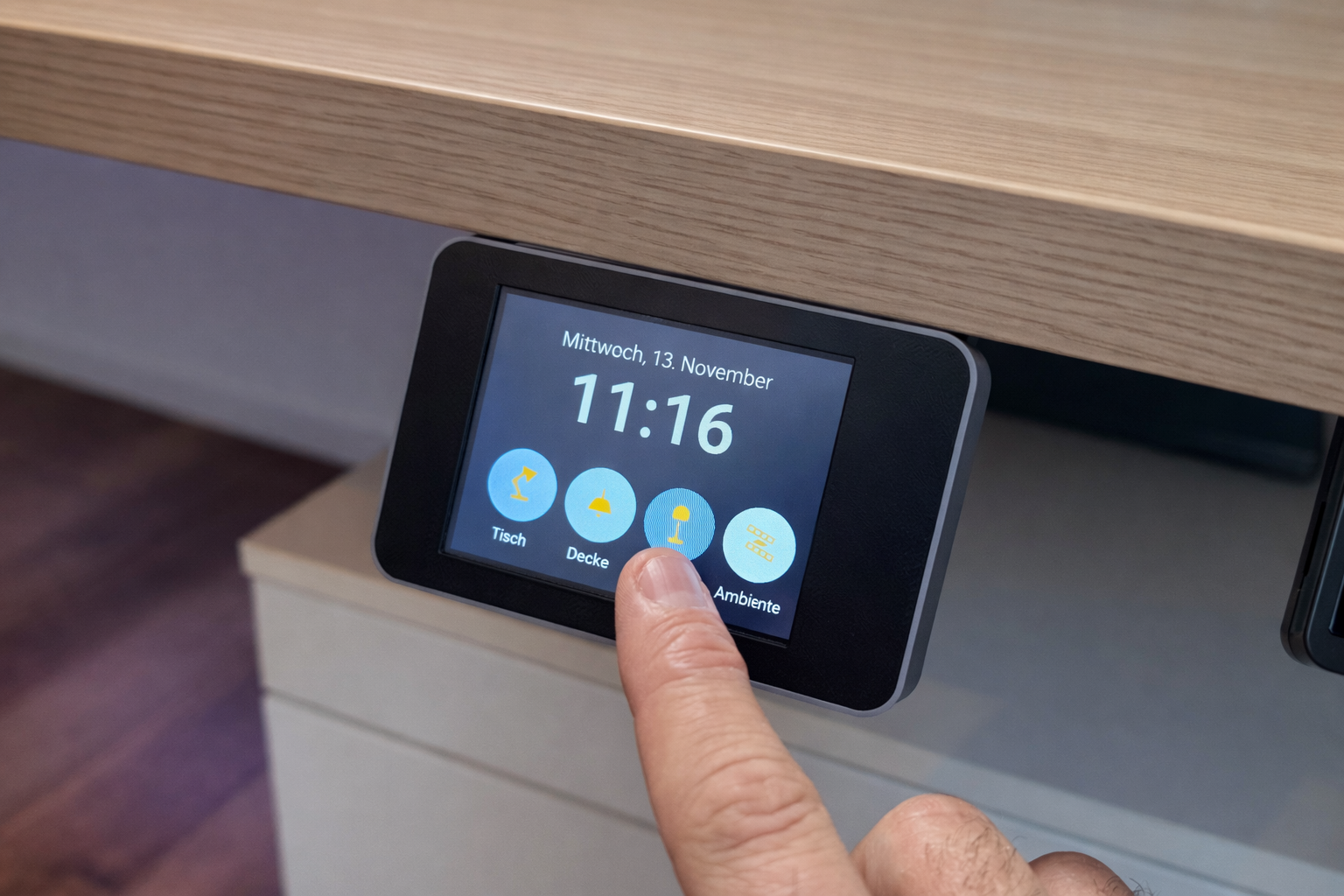

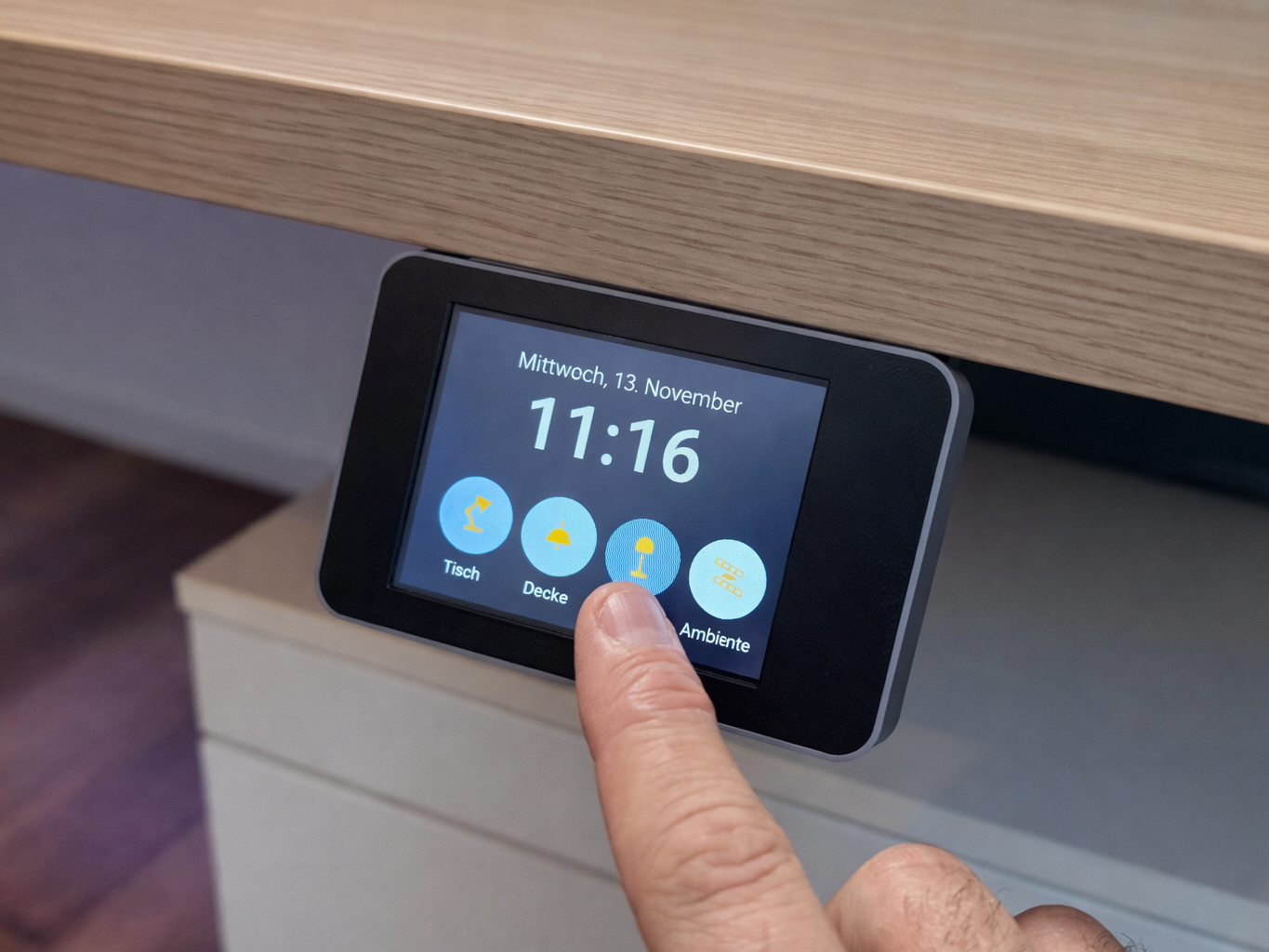

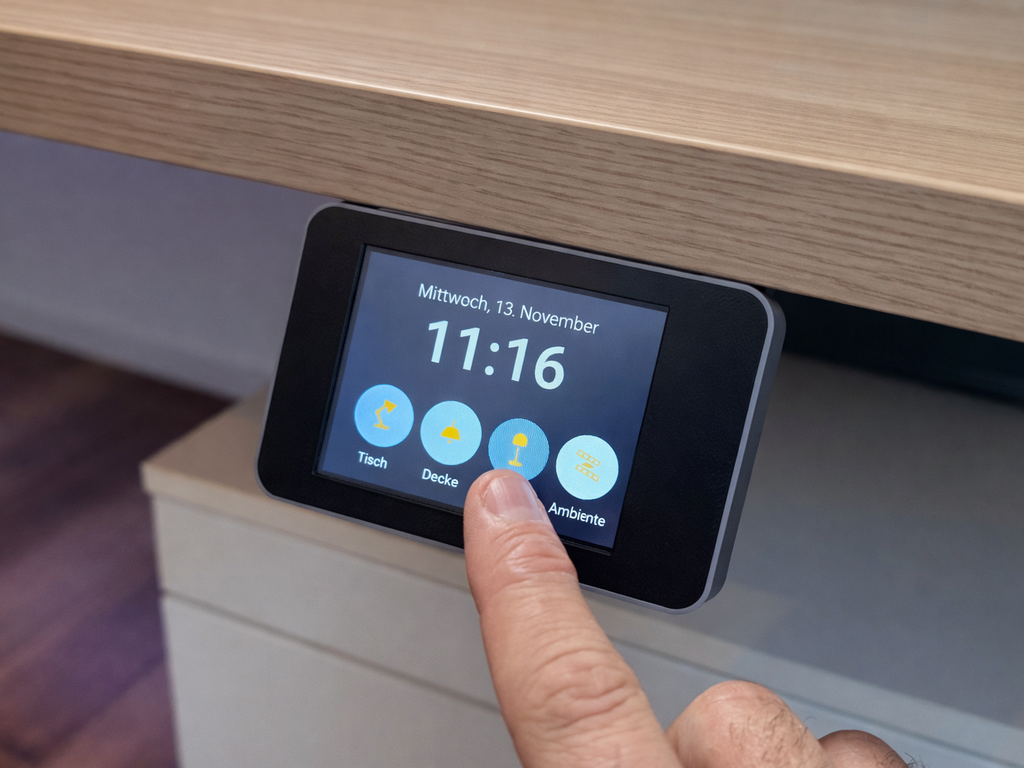

• Button layout – a clean lockscreen-style interface with large round control buttons

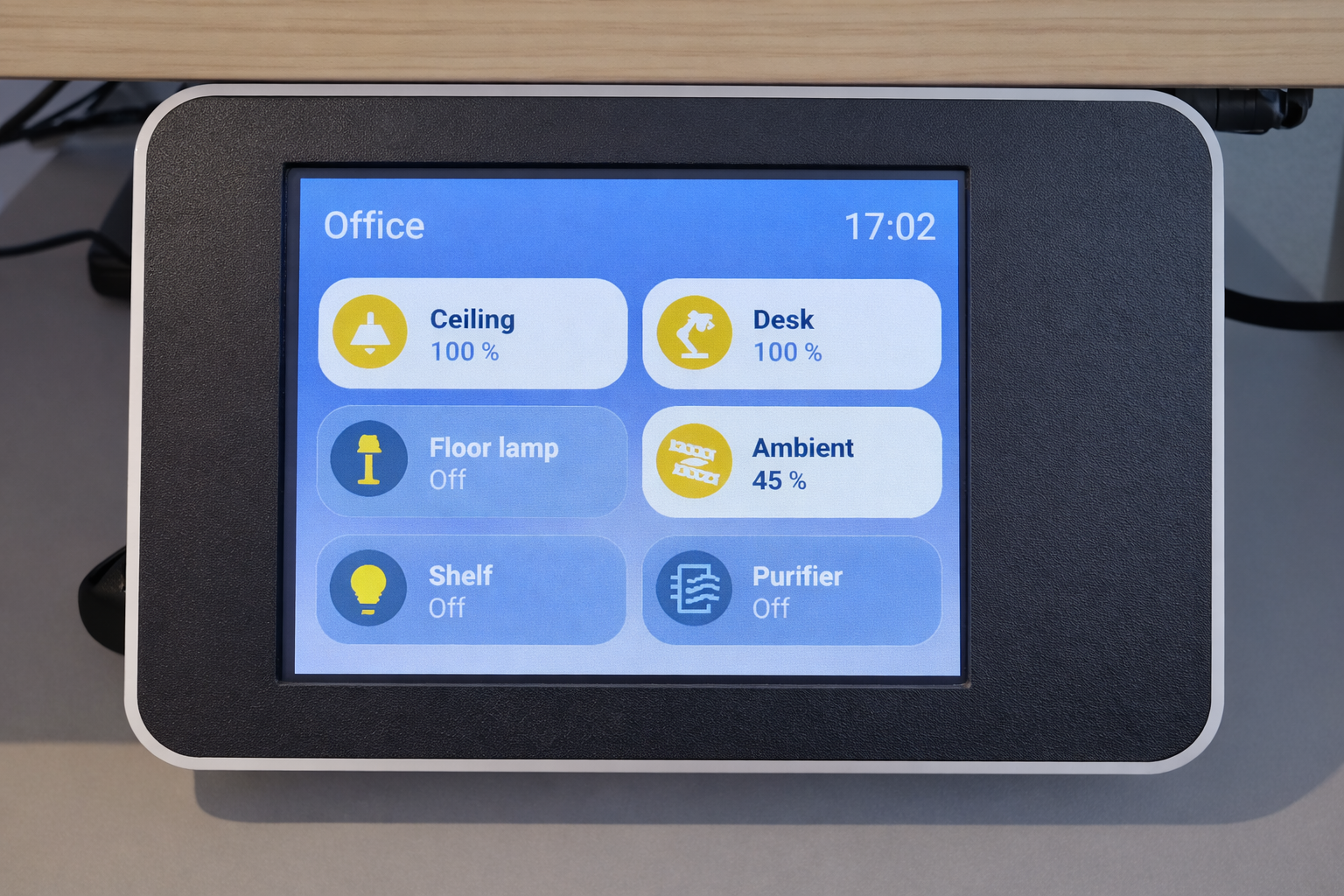

• Tile layout – a modern smart-home-style grid with icons, titles and live status values

The tile layout is visually inspired by contemporary smart home app design
(for example iOS-style layouts), while using fully open assets
(Roboto font + Material Design Icons).

Perfect for building a dedicated smart home control panel
to toggle lights, scenes, fans, and other Home Assistant automations
via a customizable touchscreen interface.

Compatible with:
• ESP32 development boards (e.g. ESP32-WROOM)
• 2.8" ILI9341 SPI displays
• XPT2046 touch controller
• ESPHome-based configurations

ESPHome YAML files and full setup instructions:
https://github.com/akuehlewind/ESPHome-touch-display-mount

Design by akuehlewind on MakerWorld (license: CC0).
