IBC Tank Adapter S100x8 to G1'' with TPU seal
IBC Tank Adapter S100x8 to G1'' with TPU seal
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns
If you like this model, a free boost helps a lot and keeps it free for everyone. Thank you!
IBC tank adapter S60x6 to G1'' here:https://makerworld.com/en/models/3057397-ibc-tank-adapter-s60x6-to-g1-with-tpu-seal#profileId-3440106

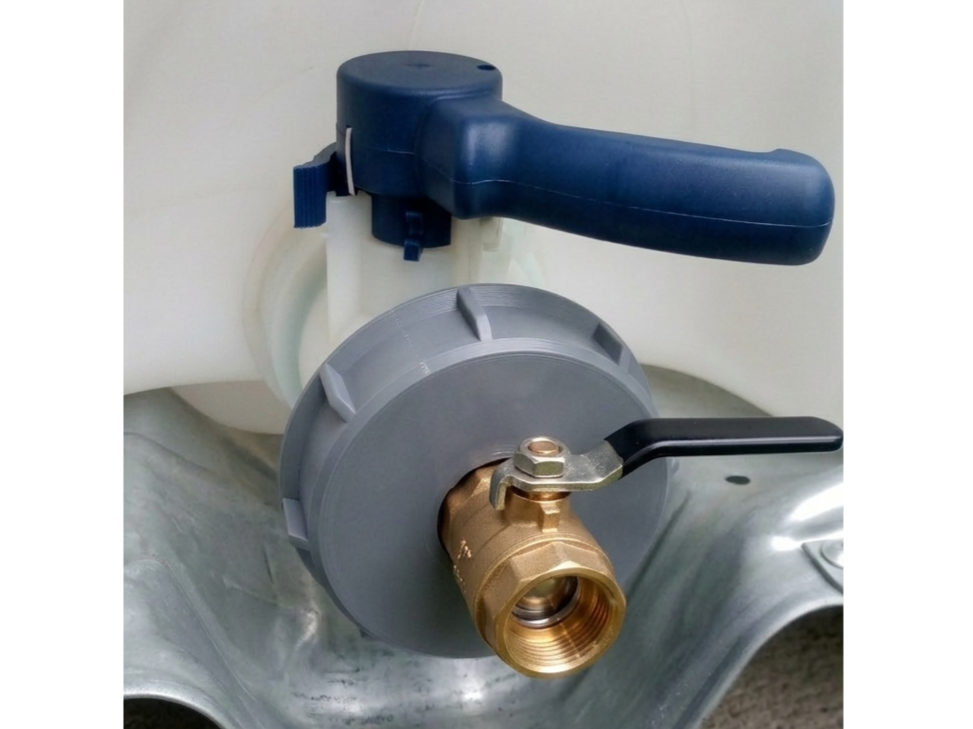

This adapter converts the IBC S100x8 thread to a standard G1" thread .
It is designed for IBC containers equipped with the larger S100x8 outlet and allows connection of standard 1" BSP fittings, valves, hose connectors, irrigation systems, or custom plumbing.
A TPU sealing ring is included as a separate part on the second build plate. Printing it from flexible TPU provides a reliable seal without the need for additional O-rings.
Features
- ✔ S100x8 thread
- ✔ G1" thread
- ✔ Easy to print
- ✔ Strong one-piece design
- ✔ Suitable for irrigation and water transfer systems
Print Settings
- Adapter: PETG recommended
- Seal: TPU (95A recommended)
- Layer height: 0.20 mm
- Walls: 4–5
- Top/Bottom: 5
- Infill: 20–40% Gyroid
-
Supports: No
PETG offers better impact resistance and outdoor durability than PLA. For long-term outdoor use, ASA is also a good choice. Water-tightness depends on printer calibration and proper installation of the TPU seal.
If this model was useful, please leave a ⭐ rating and share a photo of your print. Feedback is always appreciated!
Design by MTD 3D on MakerWorld (license: BY-ND).
