Ikea Kallax Filament Holder

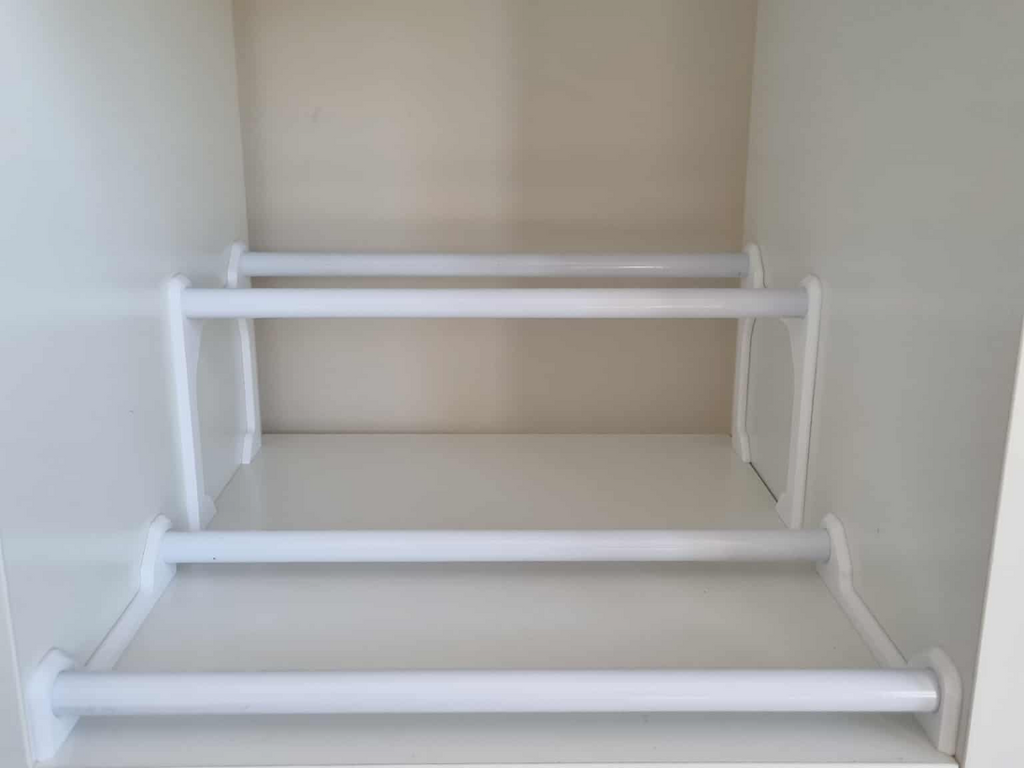

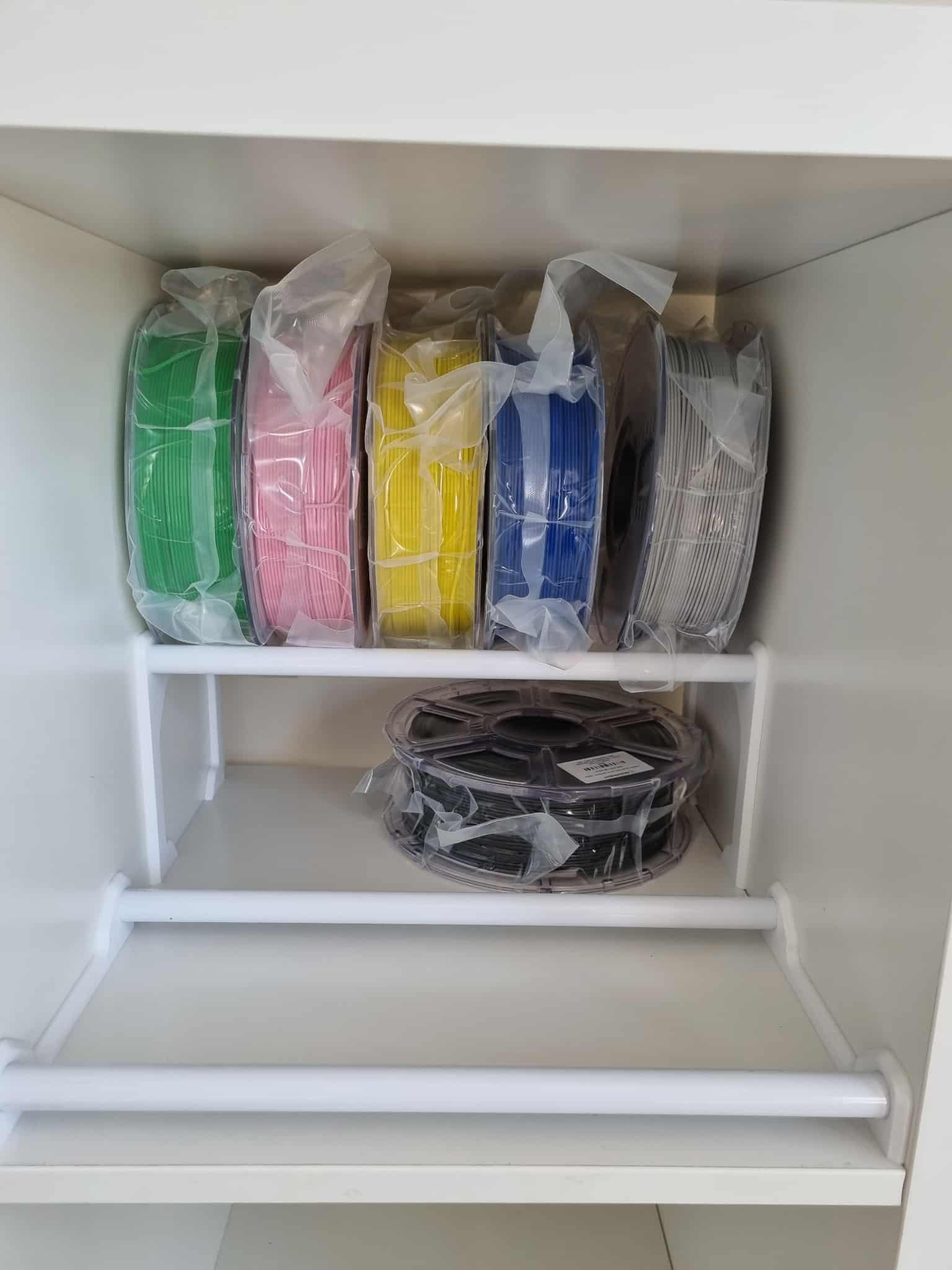

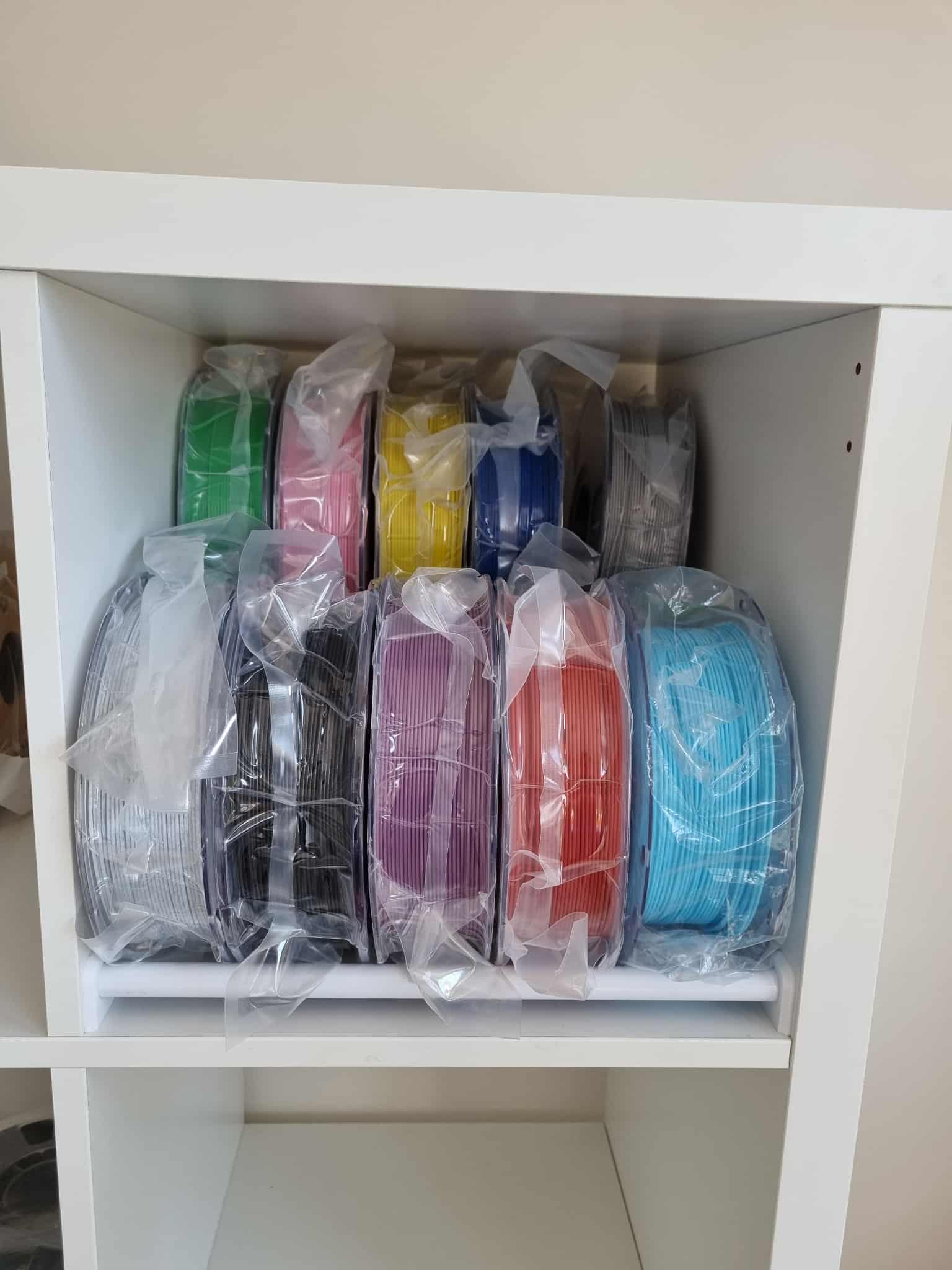

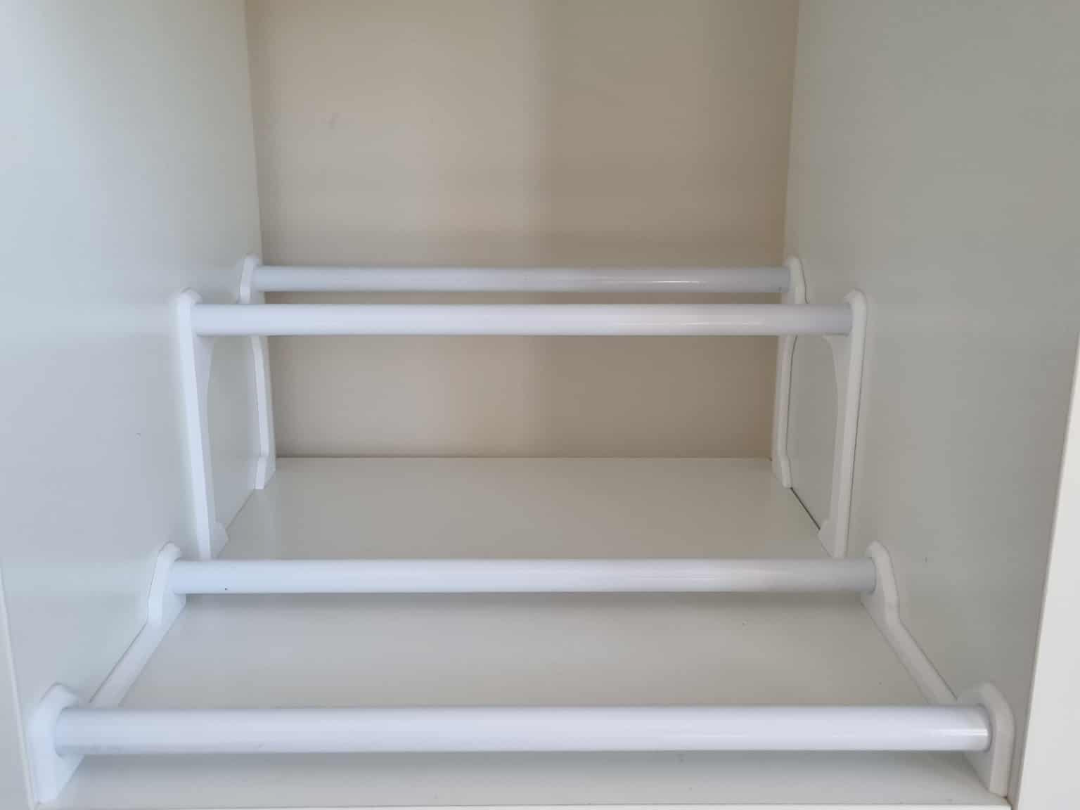

Made up a holder to store filament in the Ikea Kallax Cube shelving, the metal rods i used are 16mm diameter and are Curtain Rods from Bunnings here in Australia, they have been cut to roughly 333mm in length which mean they fit snugly and press against each side sothey don't move.

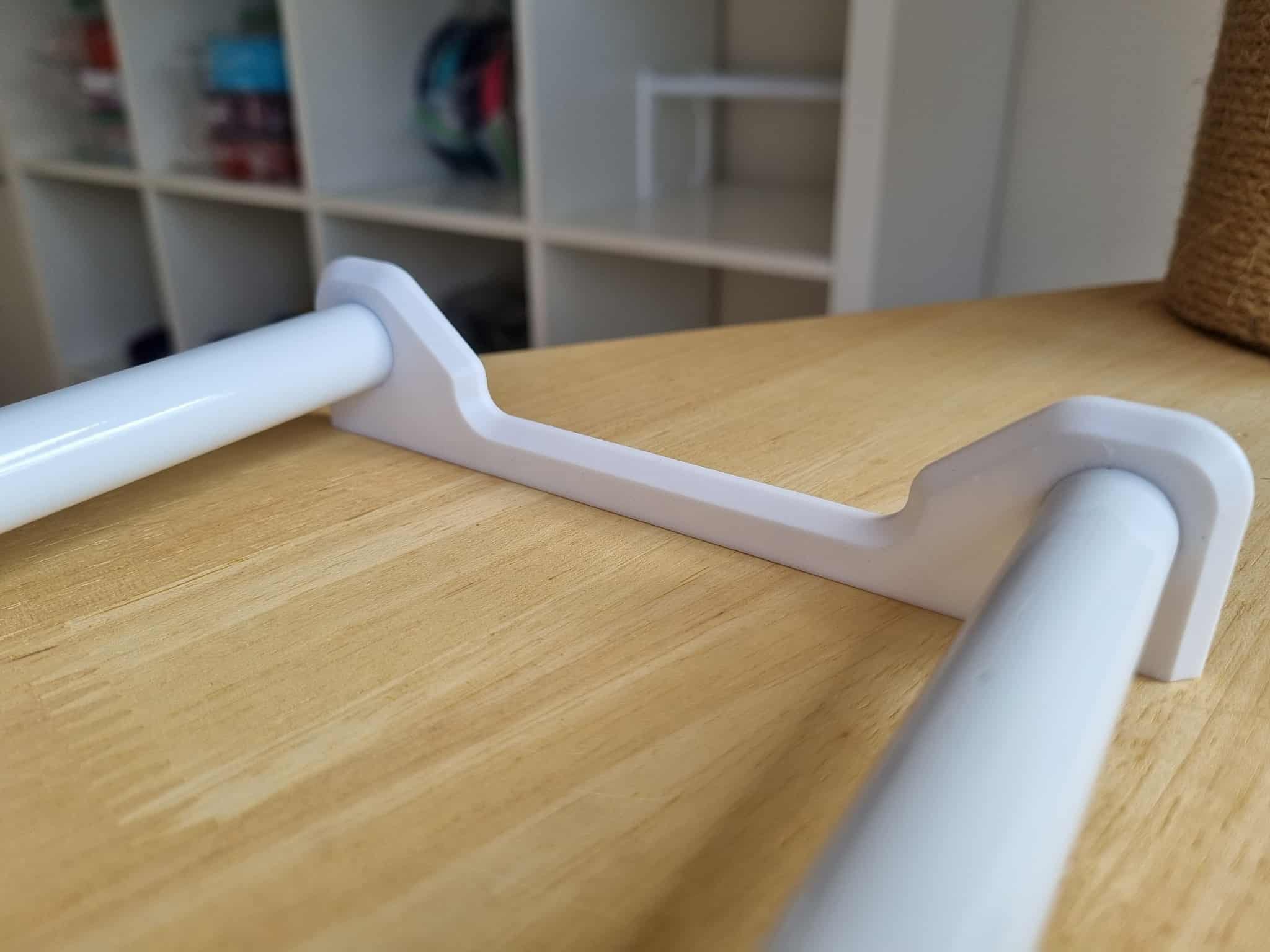

The extruded holes in the prints are exactly 16mm in diameter, so i included a small test piece to scale it to fit, i printed 4 test pieces ranging from 101% to 104% and found scaling them to 101% made the metal rods fit really nice, so then everything was printed at 101% scale.

Edit** Added more to fit a 25mm tube

Design by Evoke on MakerWorld (license: BY-SA).
