Hello Maker Community,

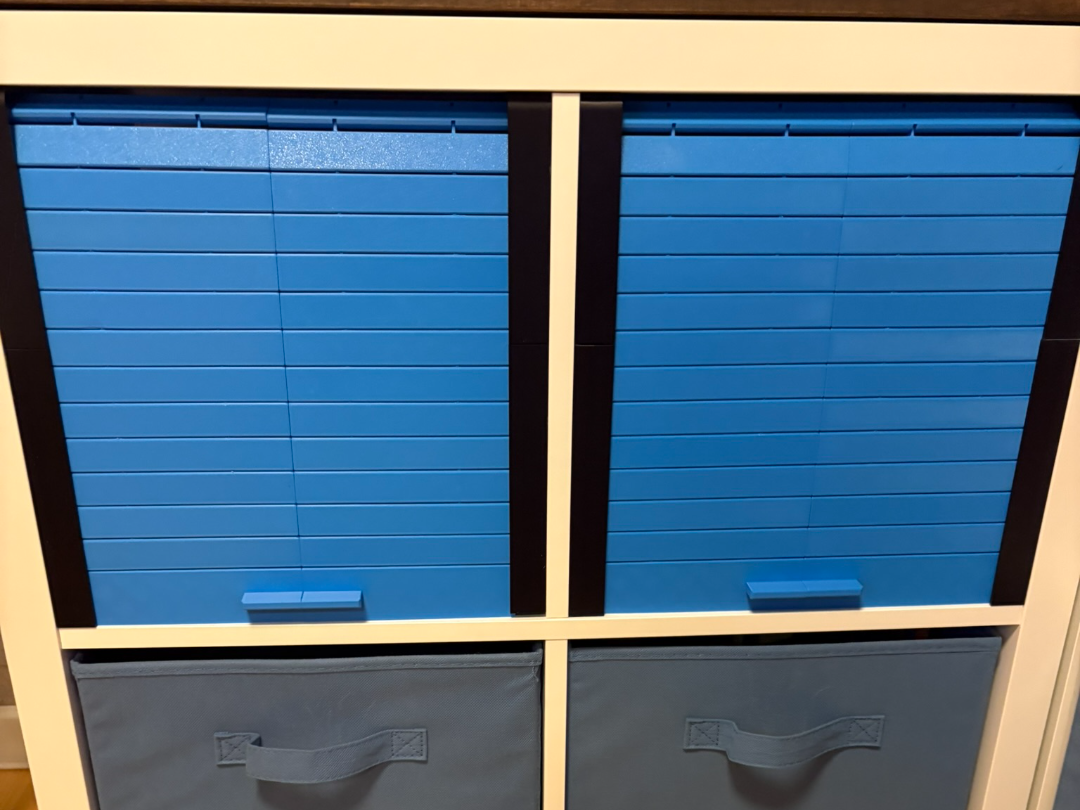

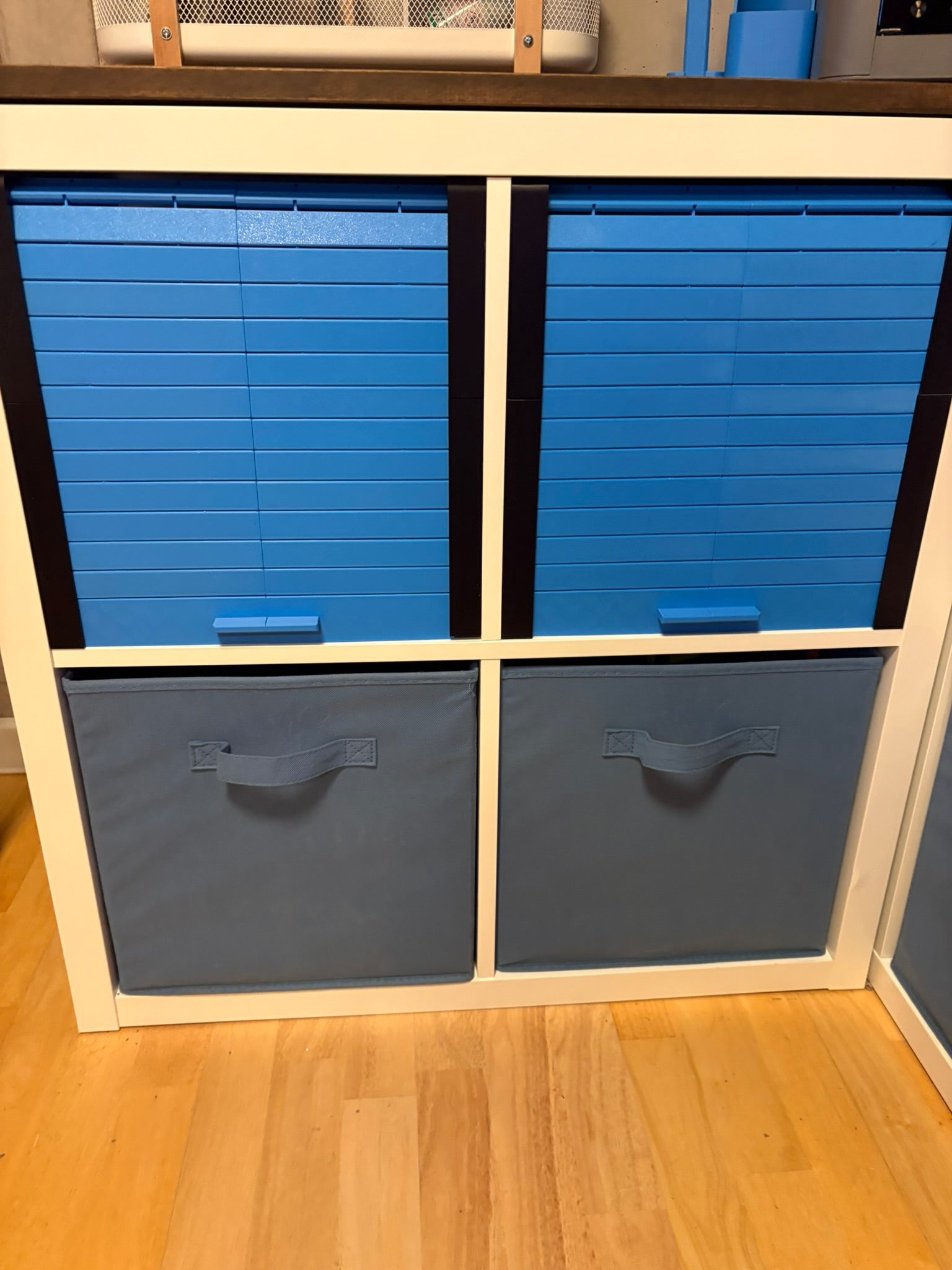

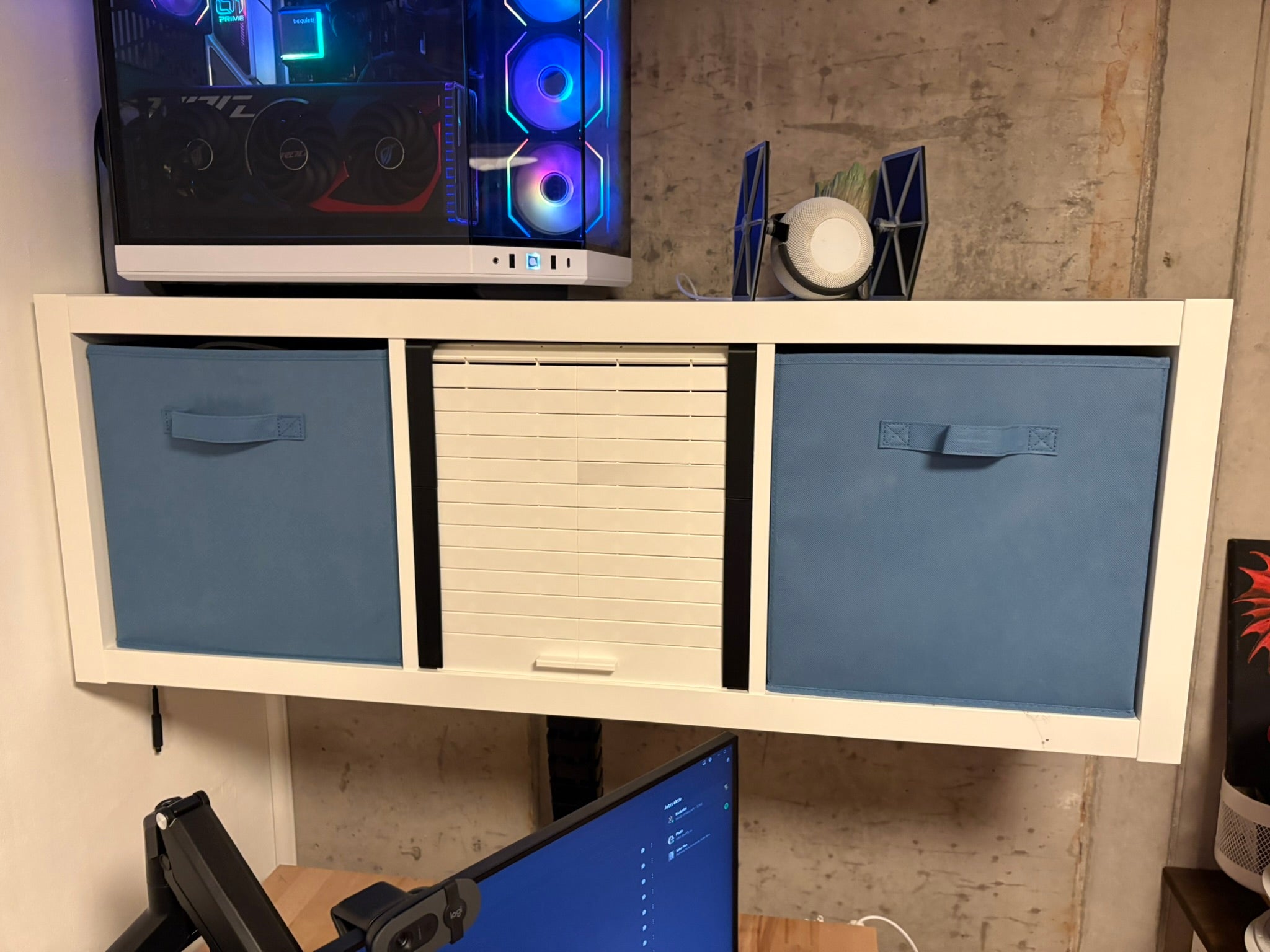

Today I would like to share one of my first projects with you. It is a roller shutter designed for an IKEA Kallax shelf.
The assembly is very simple and does not require any glue. Only a rubber mallet is needed, mainly to make assembly easier.
The system is mounted directly to the Kallax unit using 4 × 25 mm Spax screws.
The components include sufficient mounting holes to install multiple roller shutters side by side. I recommend using two screws per mounted component.

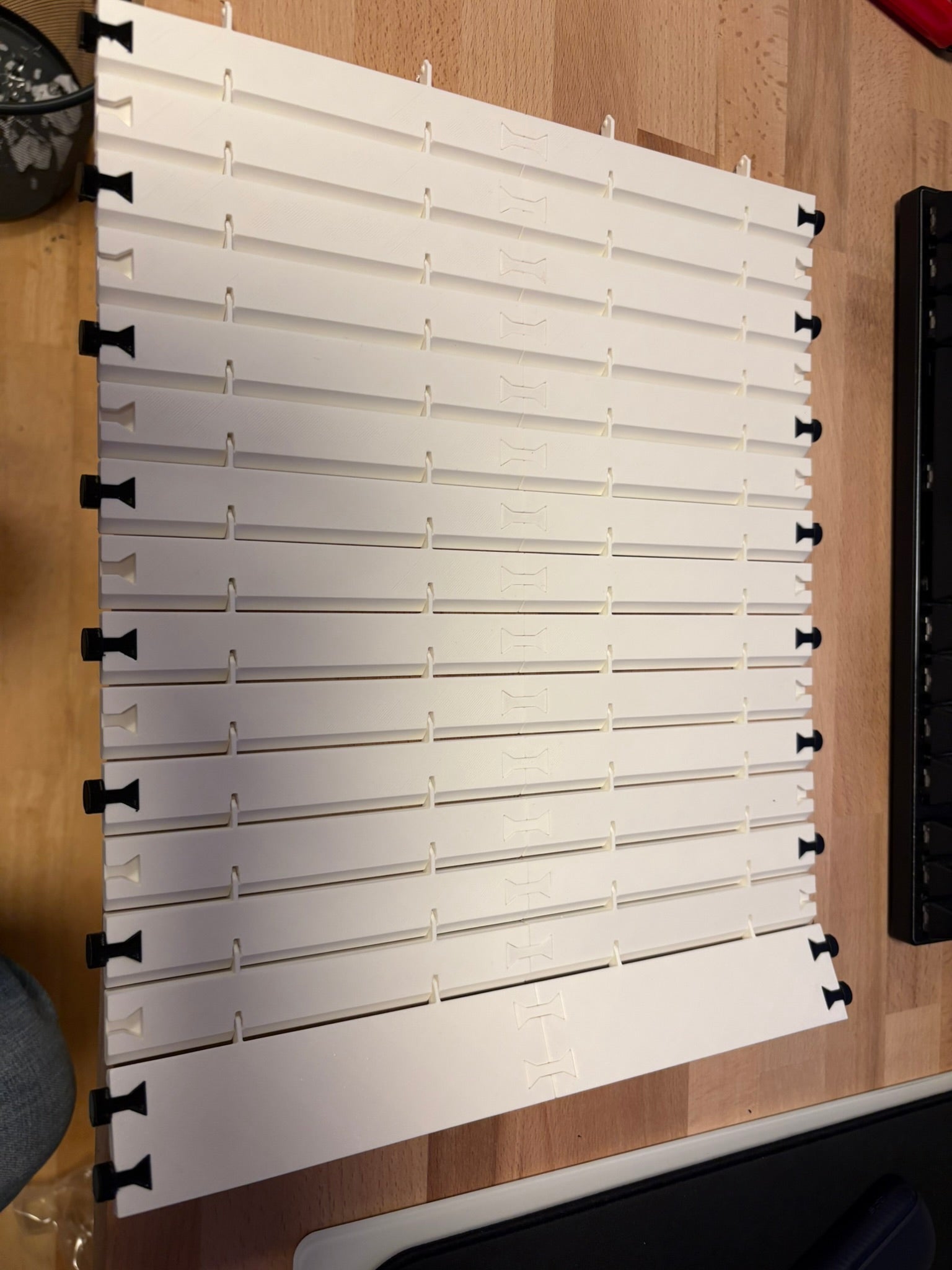

All components are mirrored except for the roller shutter end profile.
I printed the roller shutter using both PLA and PETG; both materials work flawlessly.
The shutter moves smoothly and does not jam.

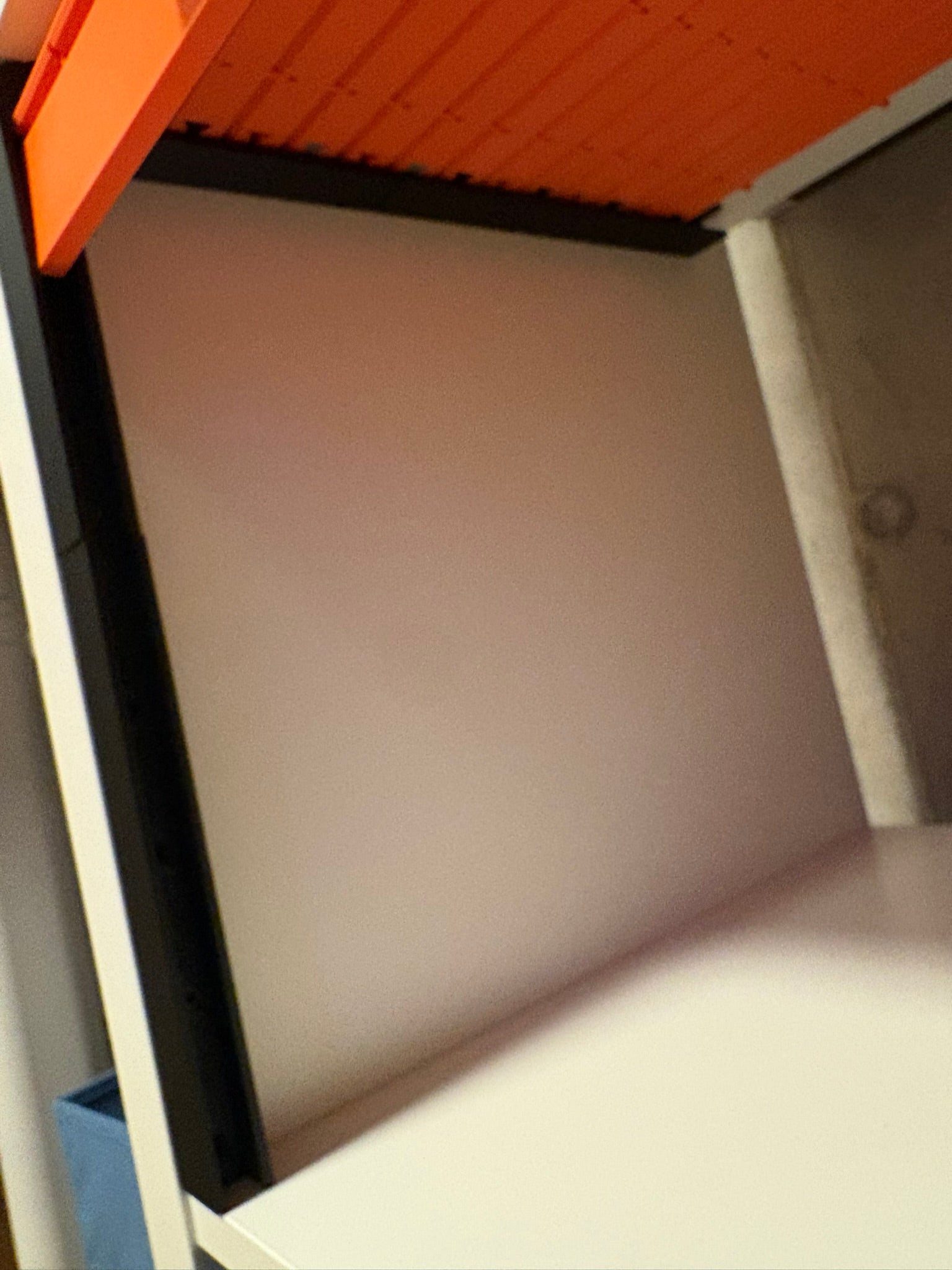

One limitation is that Kallax shelves are not manufactured with tight dimensional tolerances.
As a result, the front guide rails may occasionally have 1–2 mm of play.
IMPORTANT!!! The length of the strips with the 5 holes must be checked and, if necessary, adjusted in the studio.
I would greatly appreciate any feedback, suggestions, or constructive input.
Design by freddl on MakerWorld (license: BY-ND).
