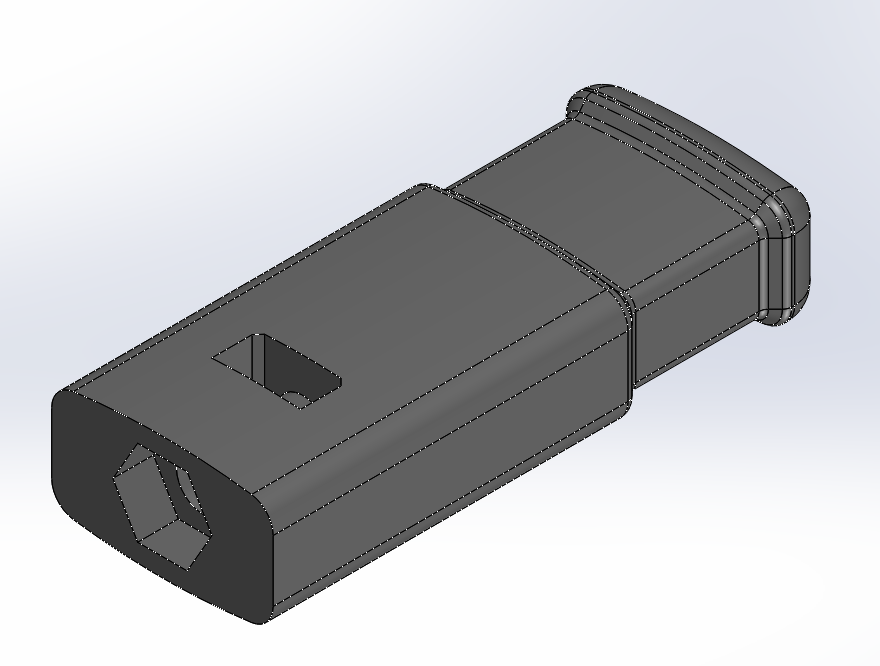

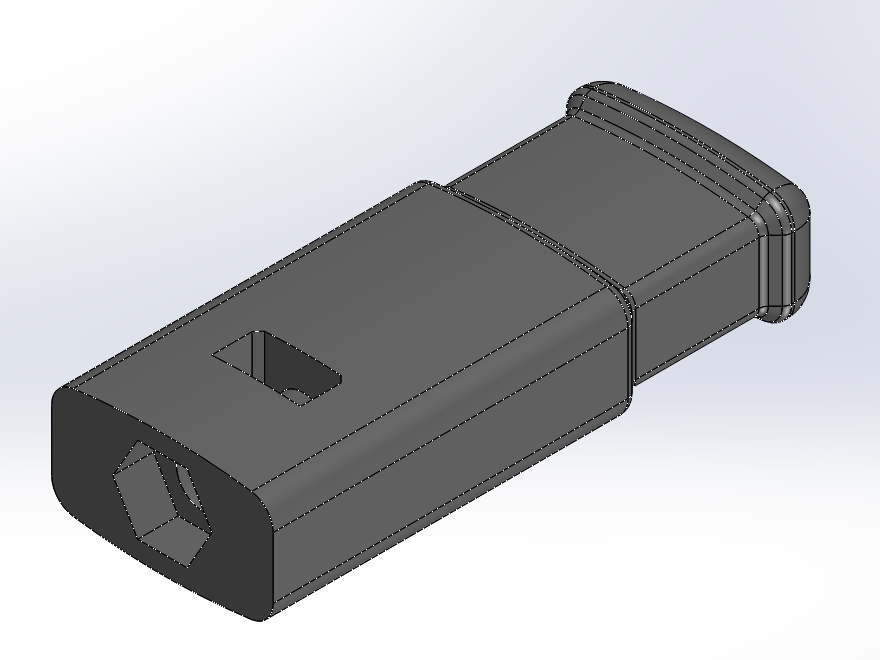

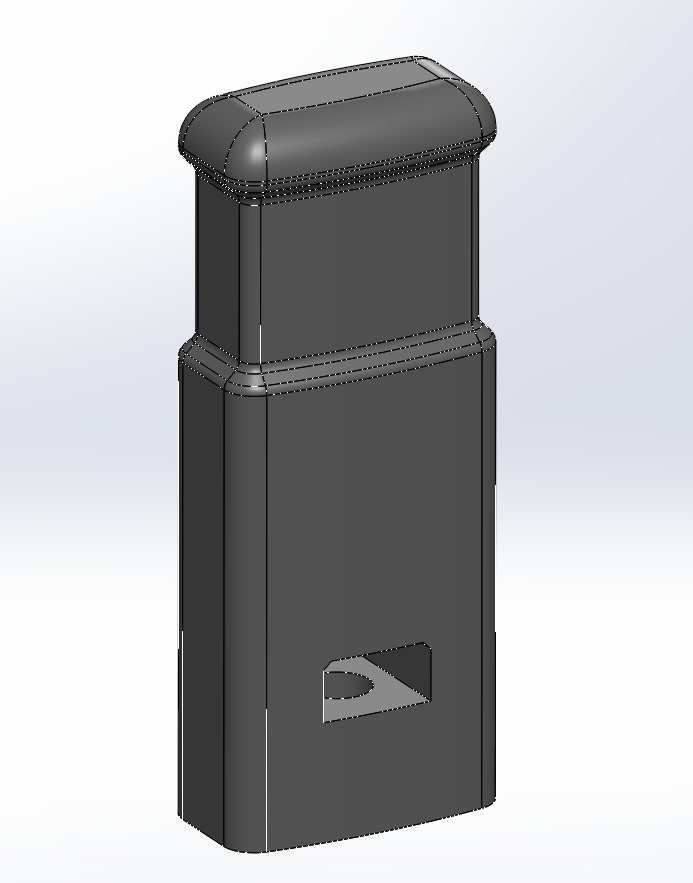

Impala 06 Lock Stud - GM-24-436-817

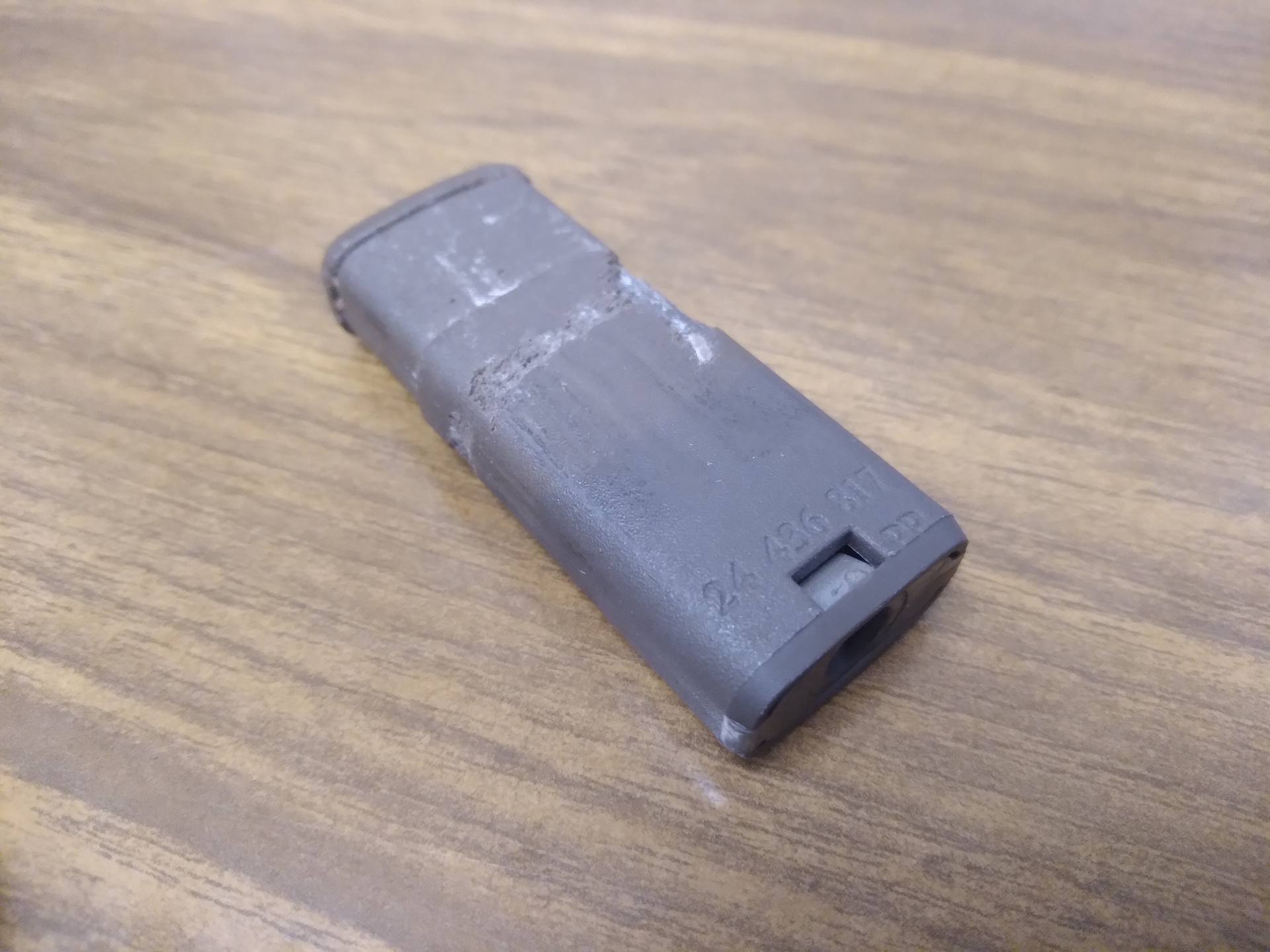

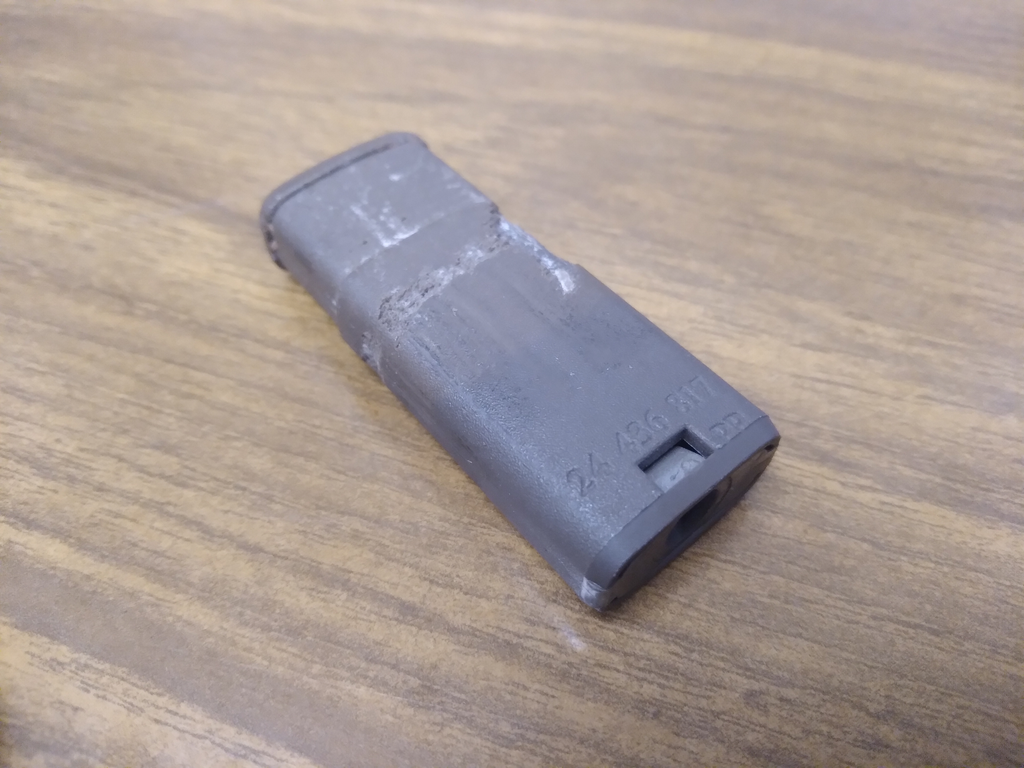

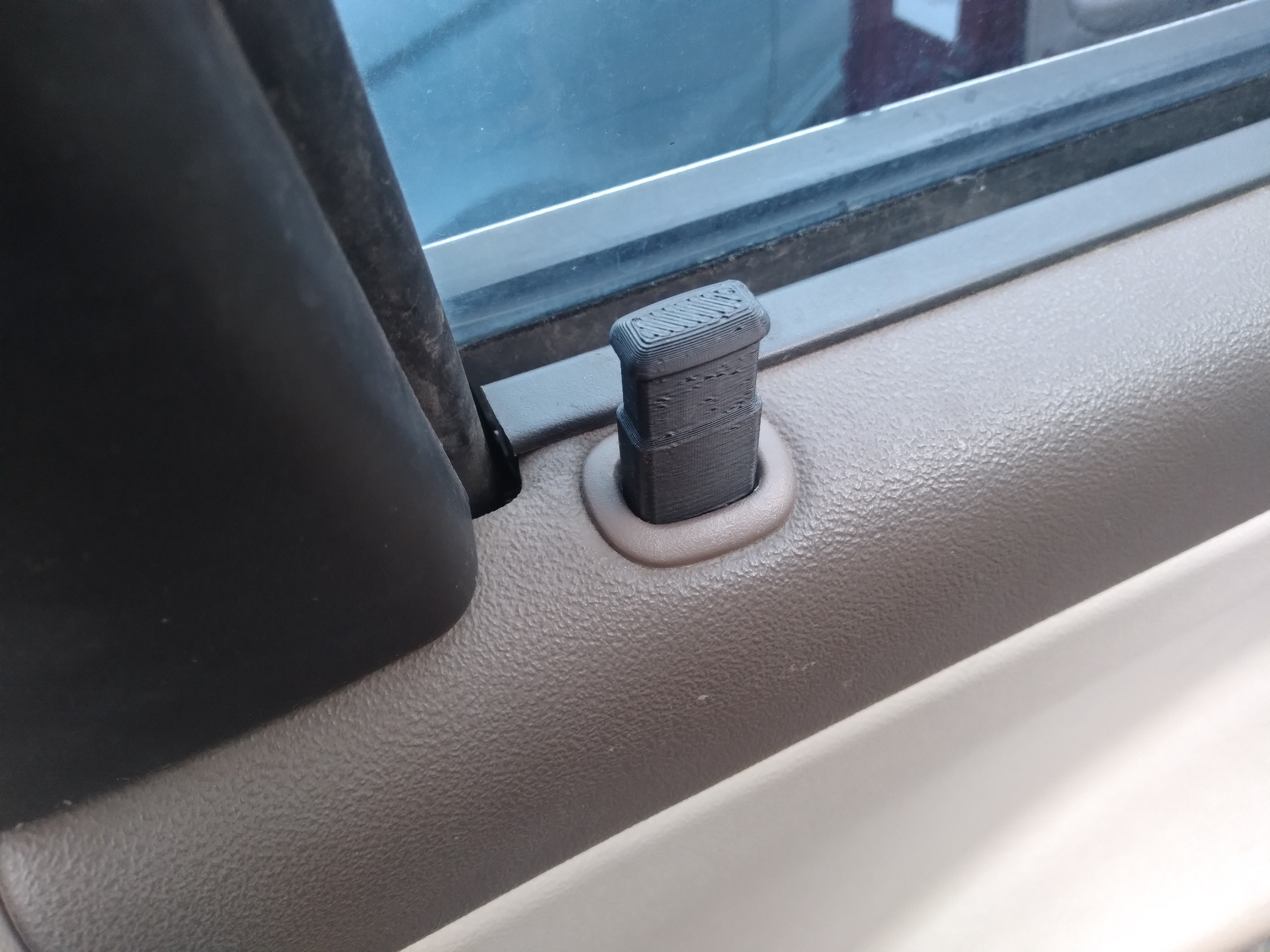

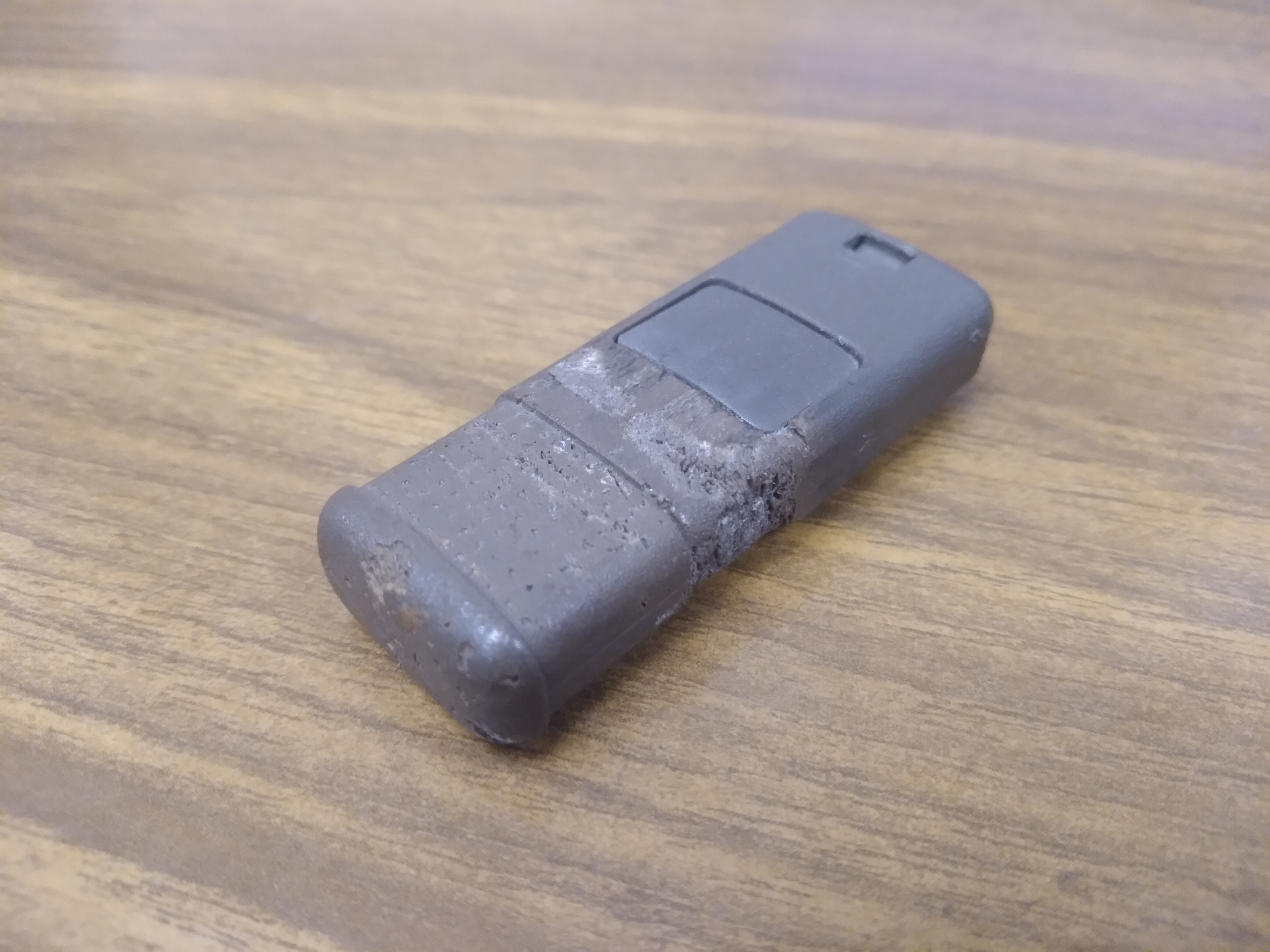

Door lock pull stud for a Chevy Impala 2006. Screws onto the door lock rods on all 4 doors. I have printed and installed this and it works well to replace the old brown one as shown in pictures.

Recommend printing this vertically. use a brim around the base. No supports needed, the hex prints fine enough without using them. Just clean a couple strings out with a razor blade before you press in the M4 nut.

Installation: You'll need 2x M4 nuts. One presses into the hex at the bottom of the part, the other slides into the slot just before installation.

For years 2006 - 2009 at least and possibly up to 2014.

Part #: GM-24-436-817

Door lock rod assembly parts #s for reference: 15920299 15804634 / 15920300 15804633 / 15920295 15804628 / 15920296 15804627

Design by Tangled_Tech on MakerWorld (license: BY).
