Improved Y-Splitter for the Bambu X1 Carbon AMS

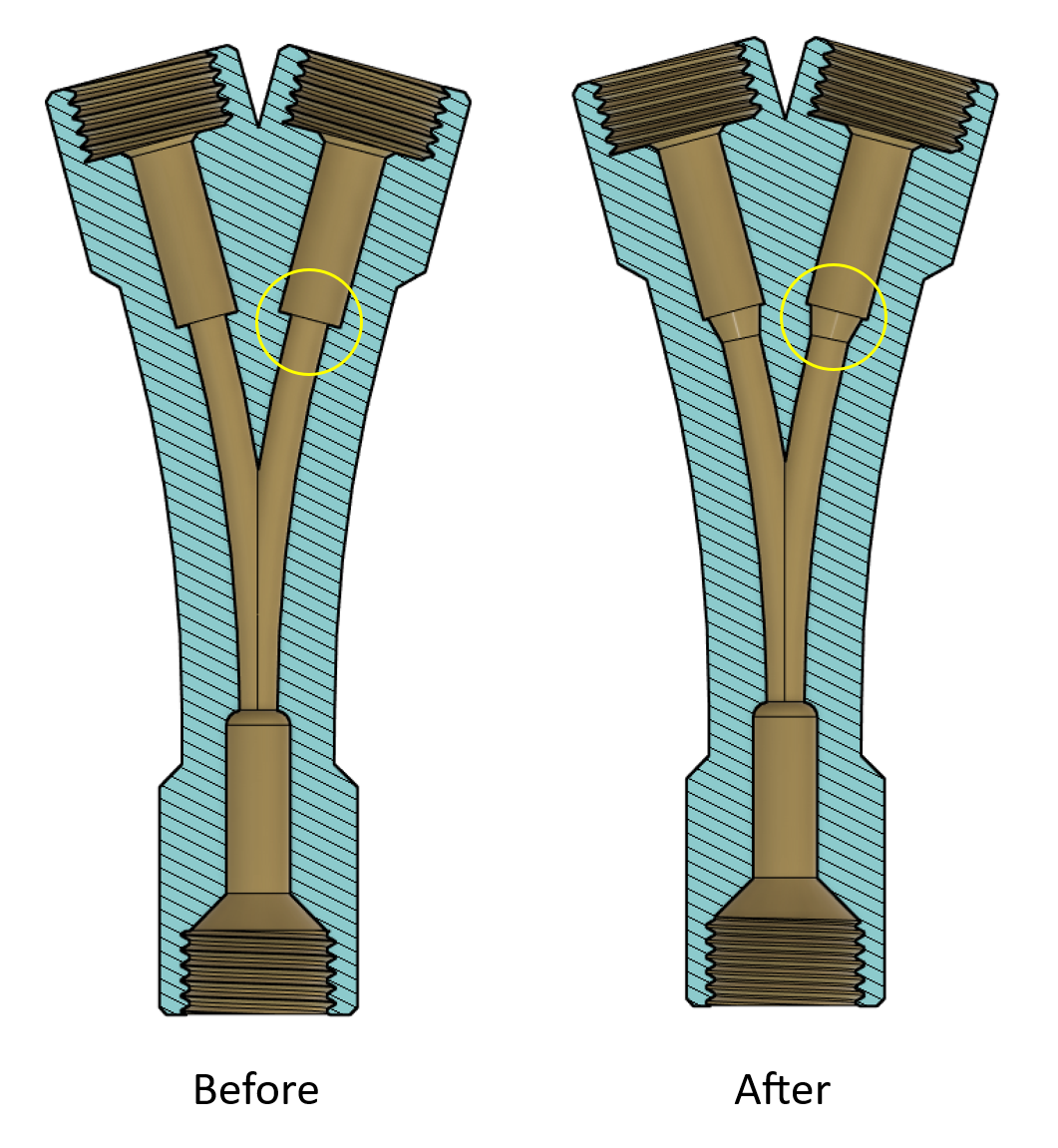

Added a very gentle 75 degree internal chamfer (see images) to help with filament getting stuck when loading, which happened to me every time with the original. There is still about 0.5mm of flat for the ptfe tube to square up against, and I believe this chamfer opening up the channel should allow for larger ID tubes to be used other than the 2.5mm ID Bambu stock the original designer stressed using. Although I am using 2.5mm and its probably the best option if you have it. Also increased the retaining clip base thickness by 2mm so instead of an m3x6 screw to mount, use an m3x8. Same print setting recommendations as the original. Fusion 360 source and .STEP files included.

Design by z3d___ on MakerWorld (license: BY).
