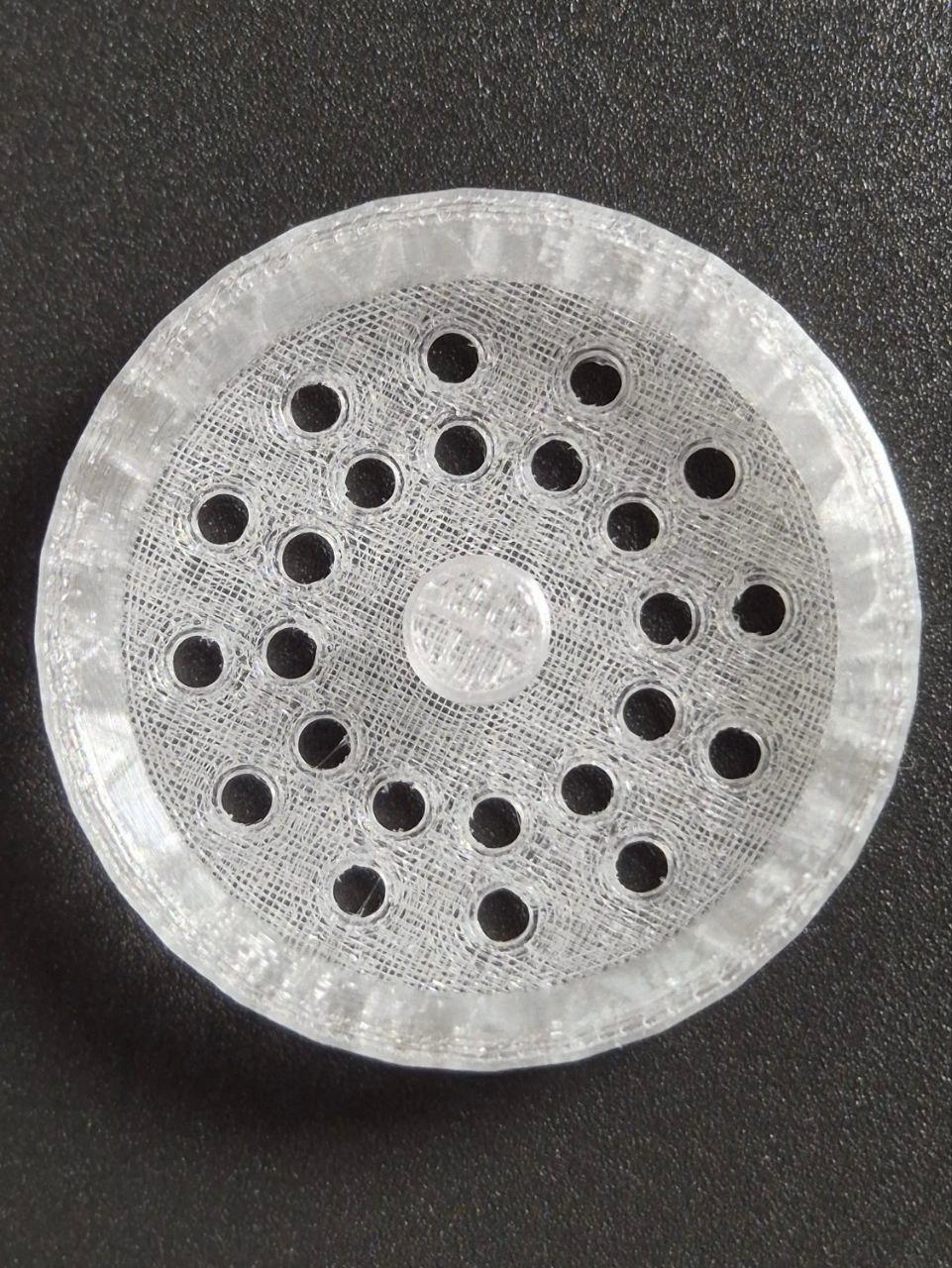

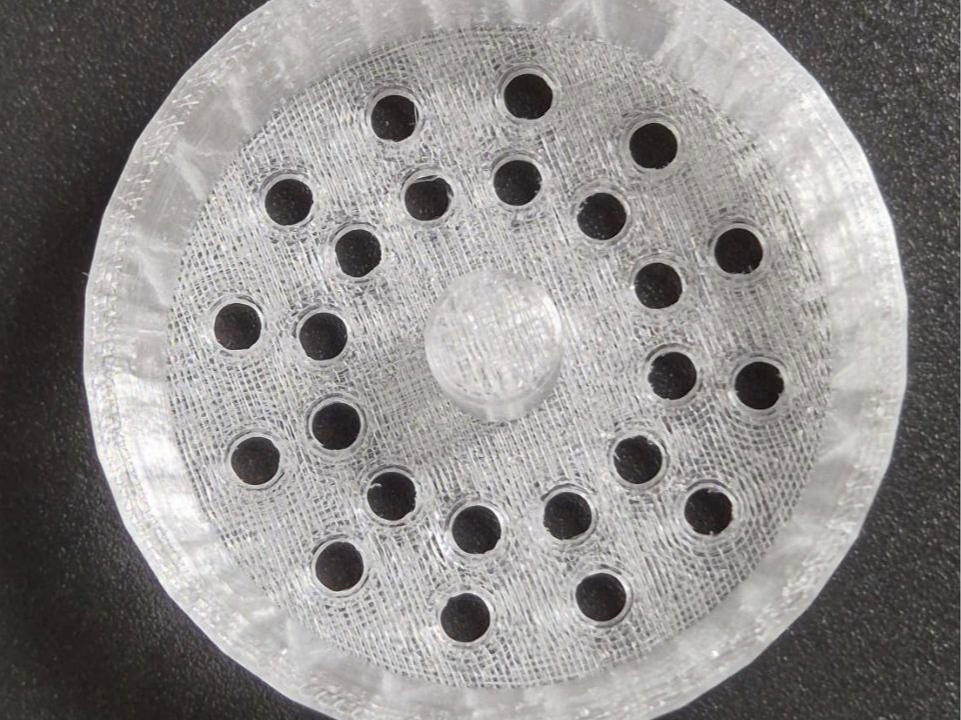

The kitchen and shower sink drain holes were too big, so I had to design something that would fit for my kitchen and shower. It has very tiny holes, so it stops almost all particles from entering the drain, but the water can flow easily and clearly. Also has a handle for easy removal.

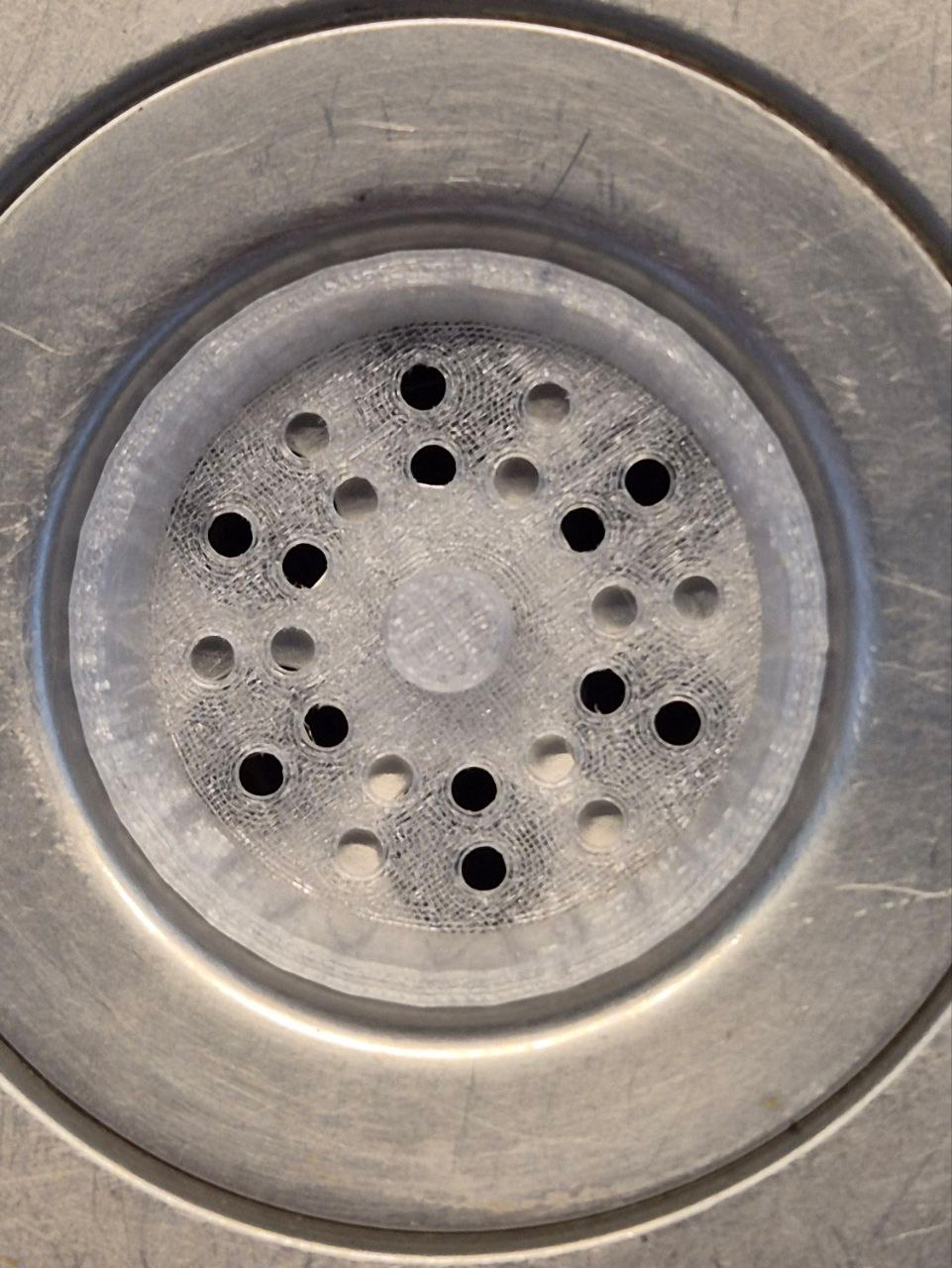

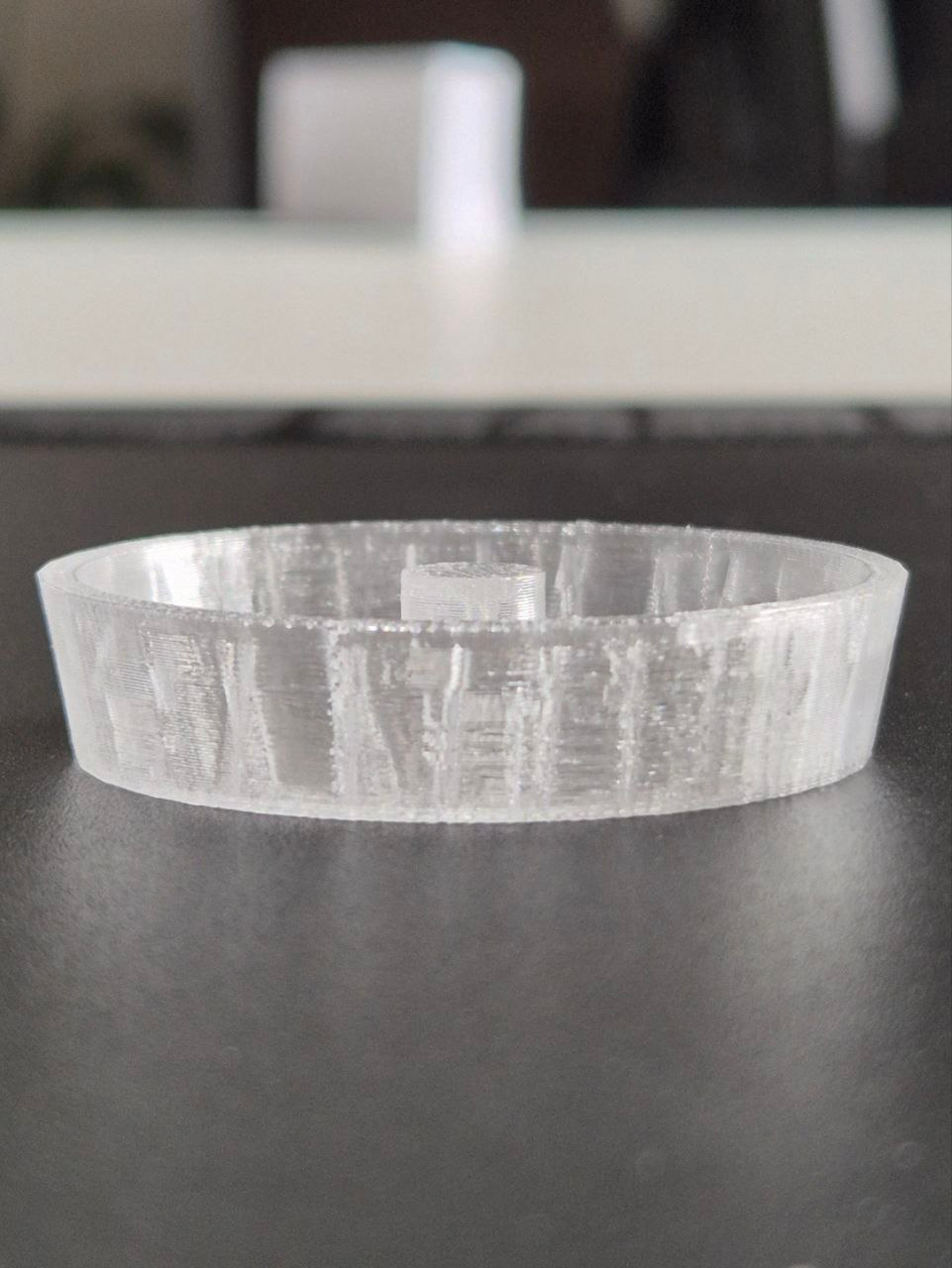

The kitchen sink drain was slightly concaved, so the upper circle radius is larger.
For the kitchen sink strainer:
Total depth: 9.5mm
Upper diameter: 45mm
Lower diameter: 41.5mm
For the shower sink stainer:
Total depth: 8mm

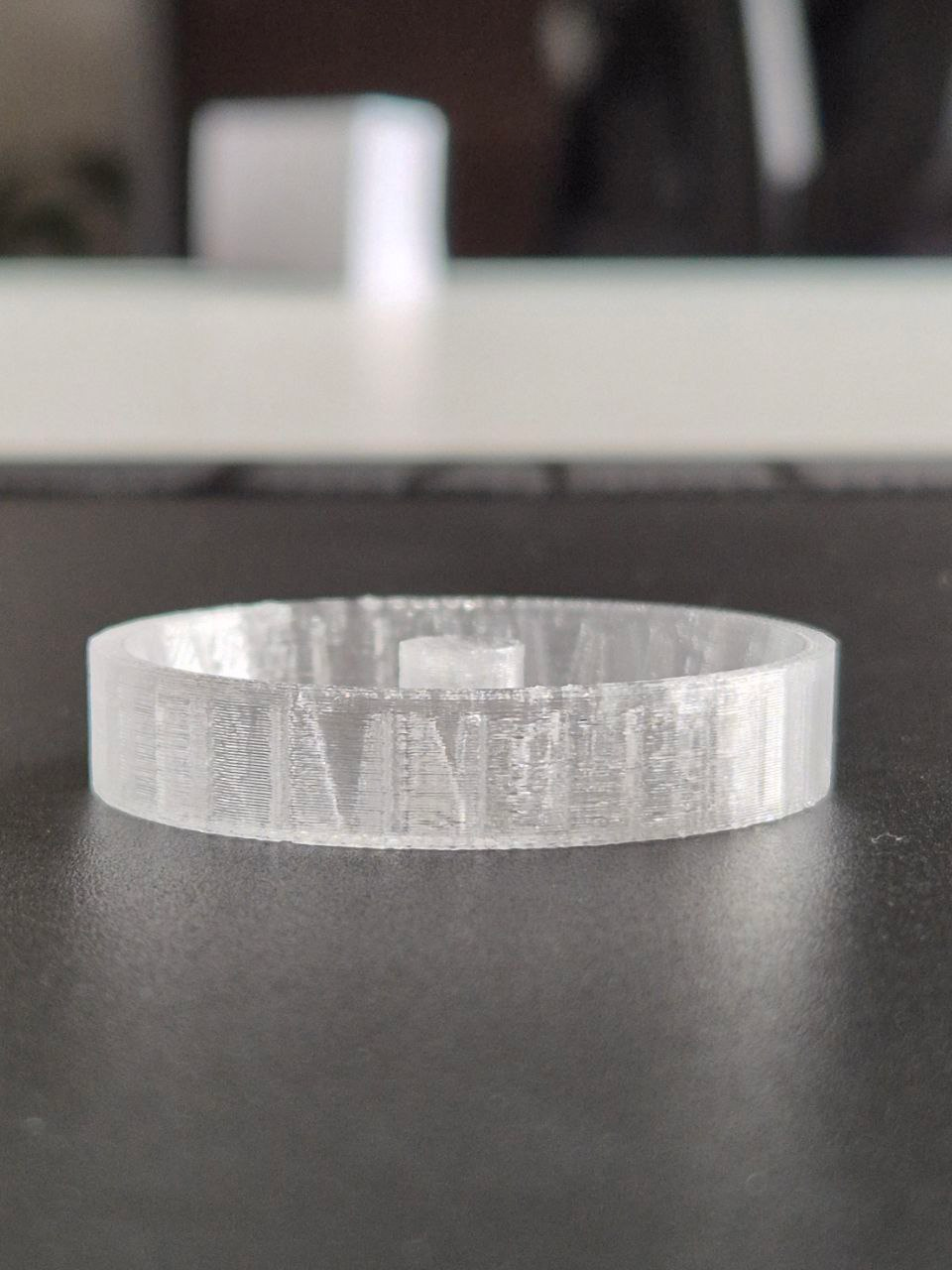

Upper diameter == Lower diameter = 42mm (the shower stainer is not concave)
You can scale down or up, based on the measurements provided, and your own drain's measurement.
Design by Astra 3d on MakerWorld (license: BY).
