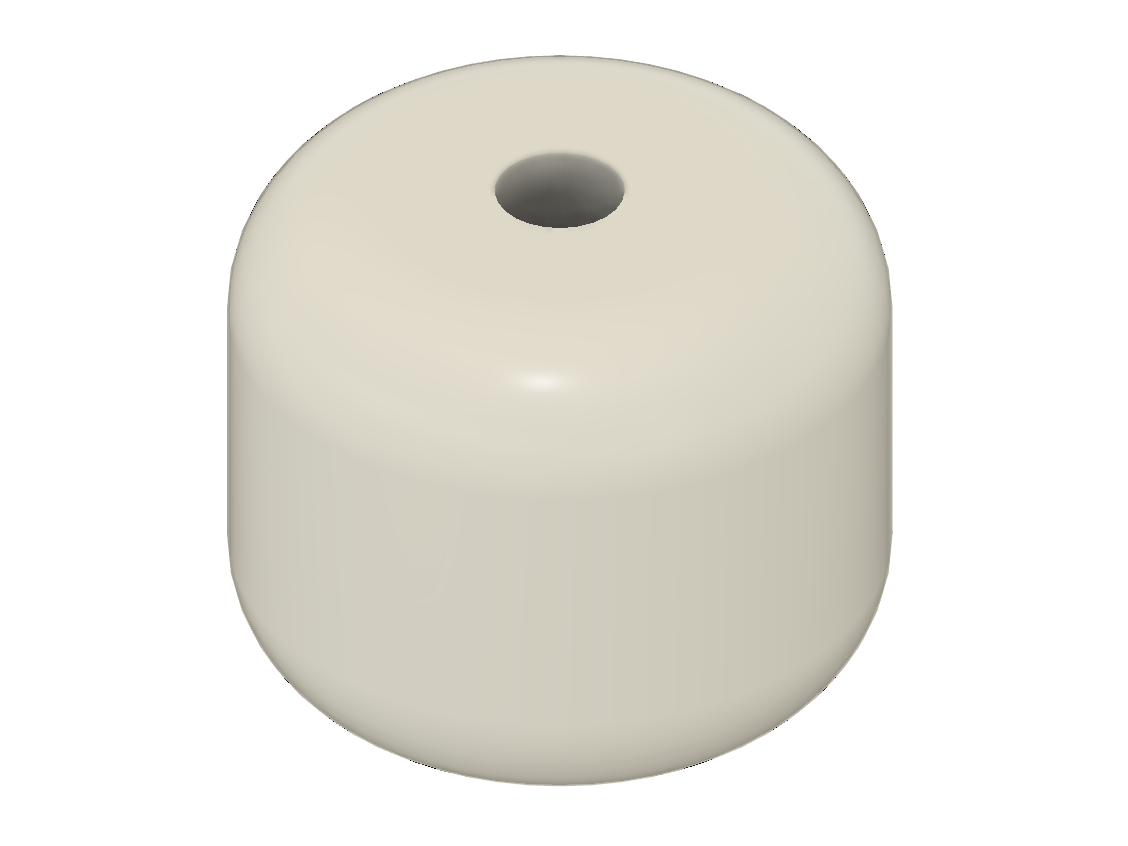

Klask Biscuit

A Klask game biscuit with characteristics very close to the original one. Uses 4x1mm magnets.

Notes on magnets

• 3 magnes sizes supported:
  • 3x2: untested, but should be close to original (this is the original magnets size)
  • 4x1: tested, recommended (behaviour very close to original)
  • 5x1: tested, not recommended (magnets are stronger than the original ones)

Print notes

• No supports needed

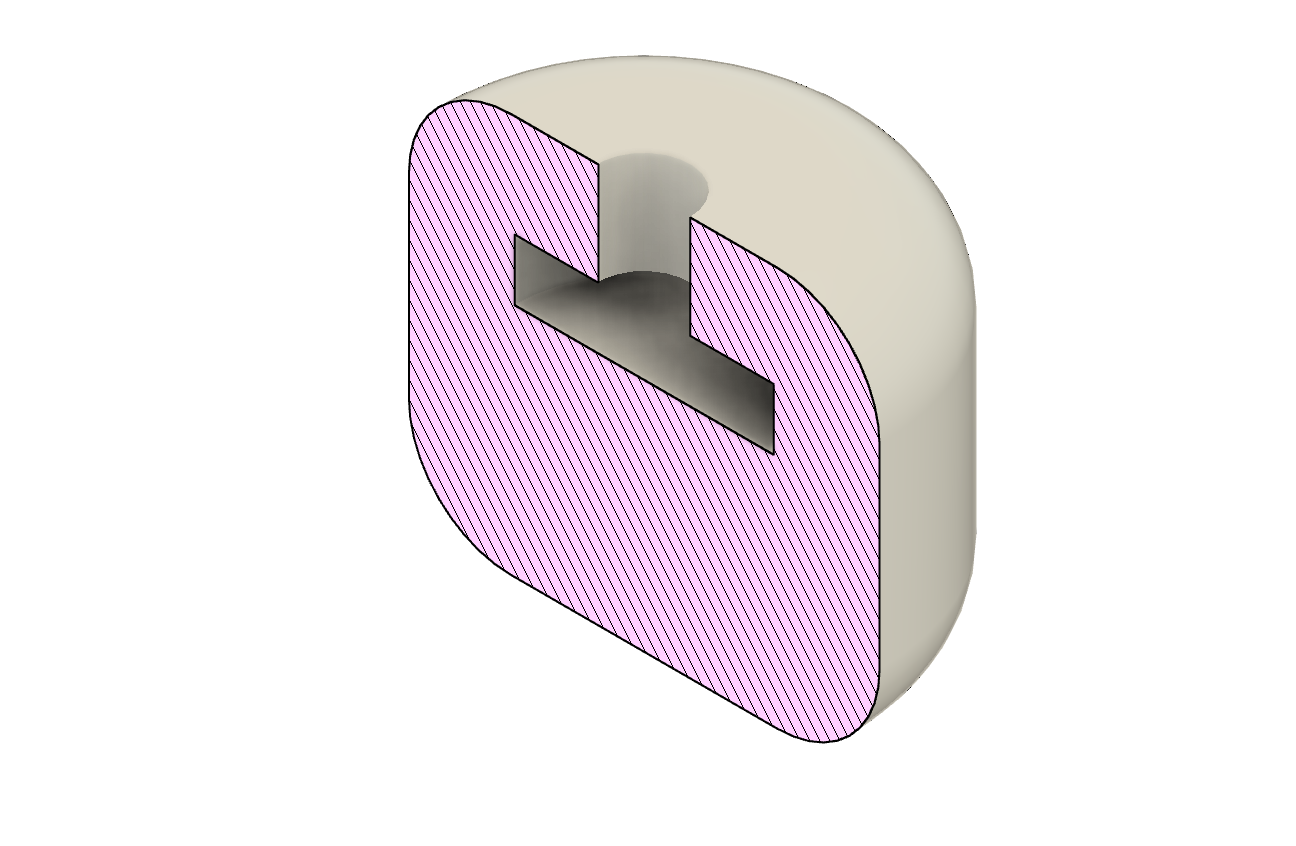

• Set up a pause on the last layer before the magnet hole is getting closed, push the magnet in and then restart printing
  • Note that the south pole of the magnet should be pointing towards the top! If in doubt, compare with the original magnet
• I played with settings to get the closest characteristics to the original and I recommend these: 1 top shell layer, 1 bottom shell layer, 1 wall loop, gyroid 56% infill

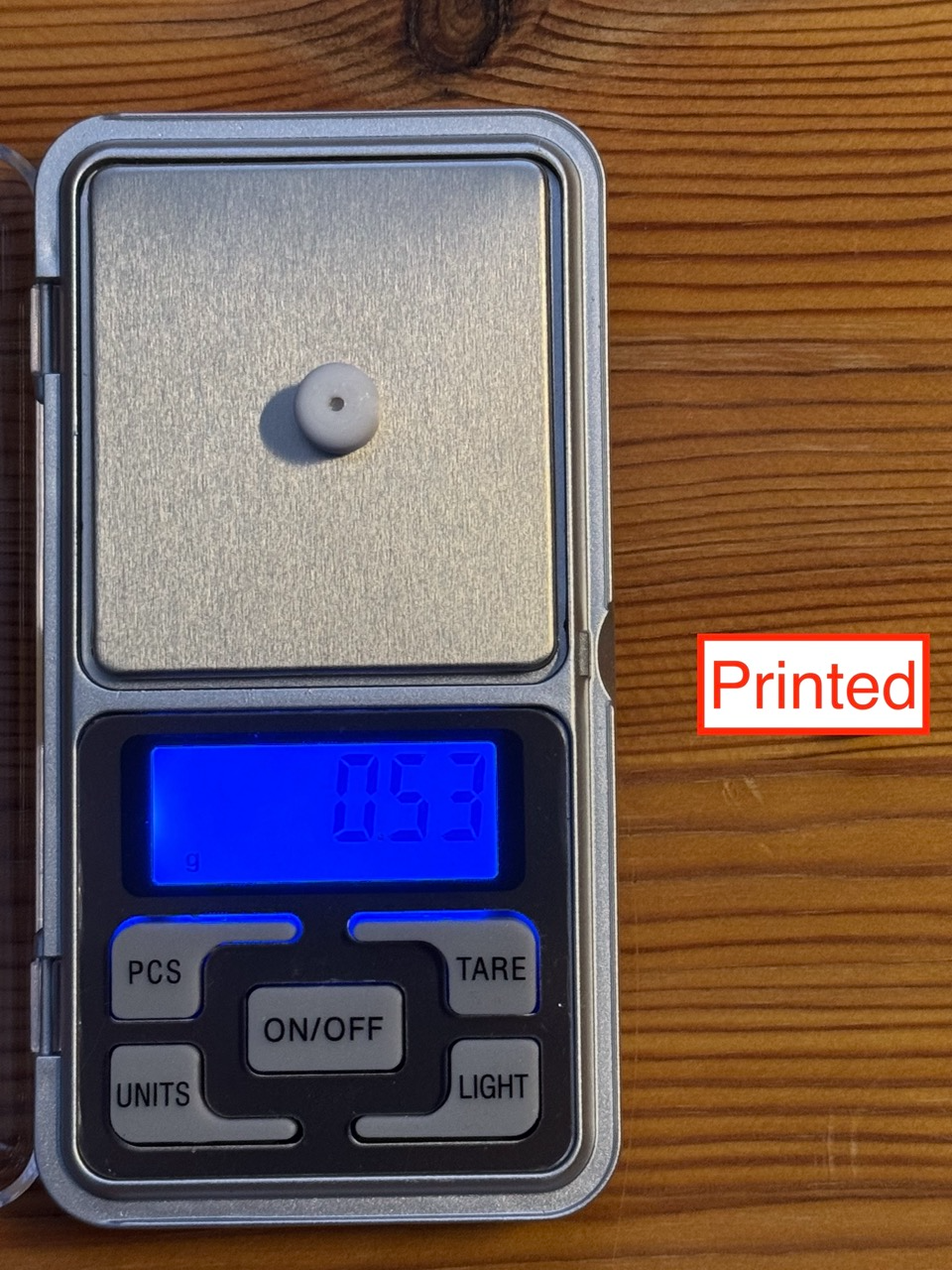

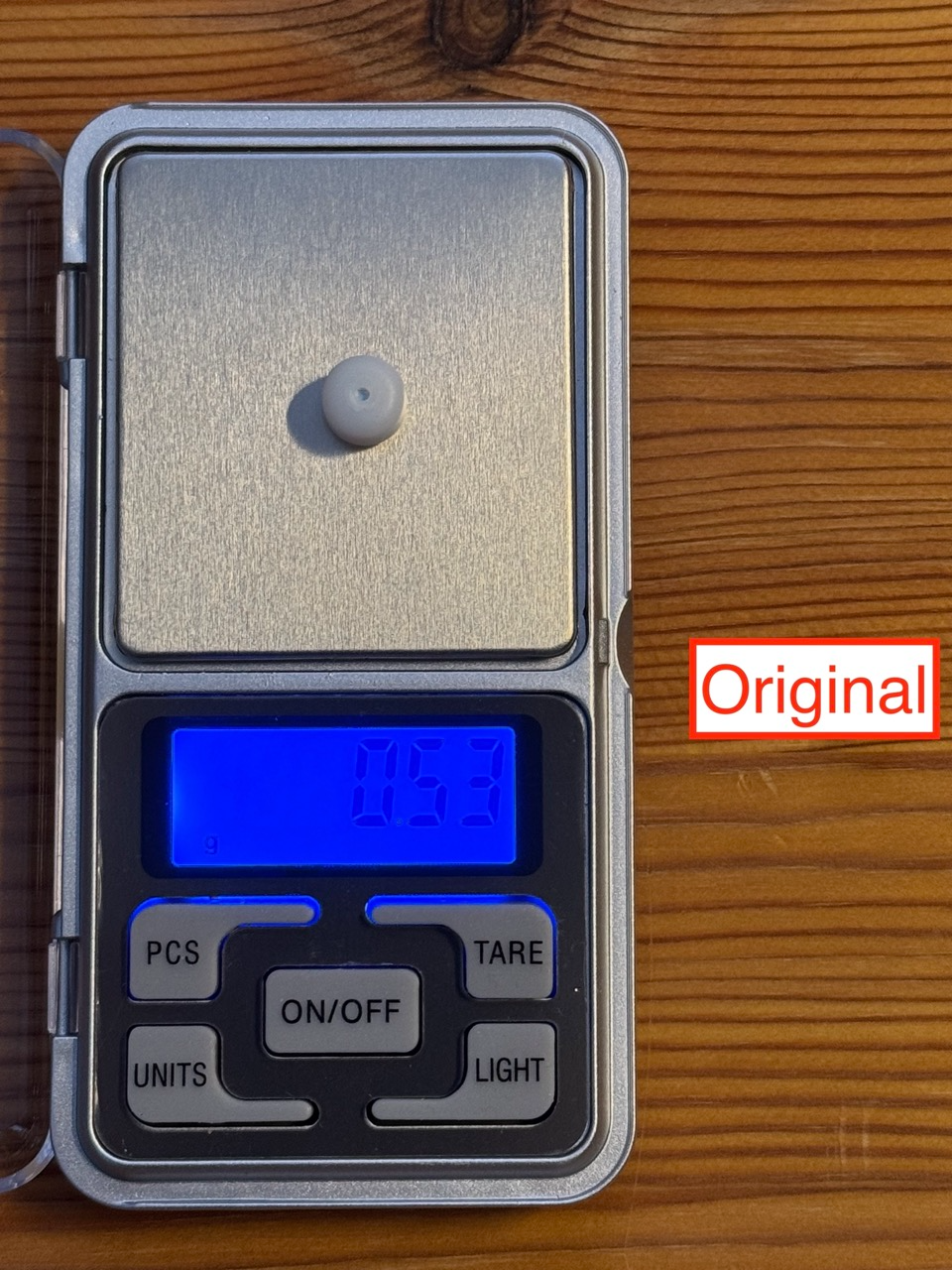

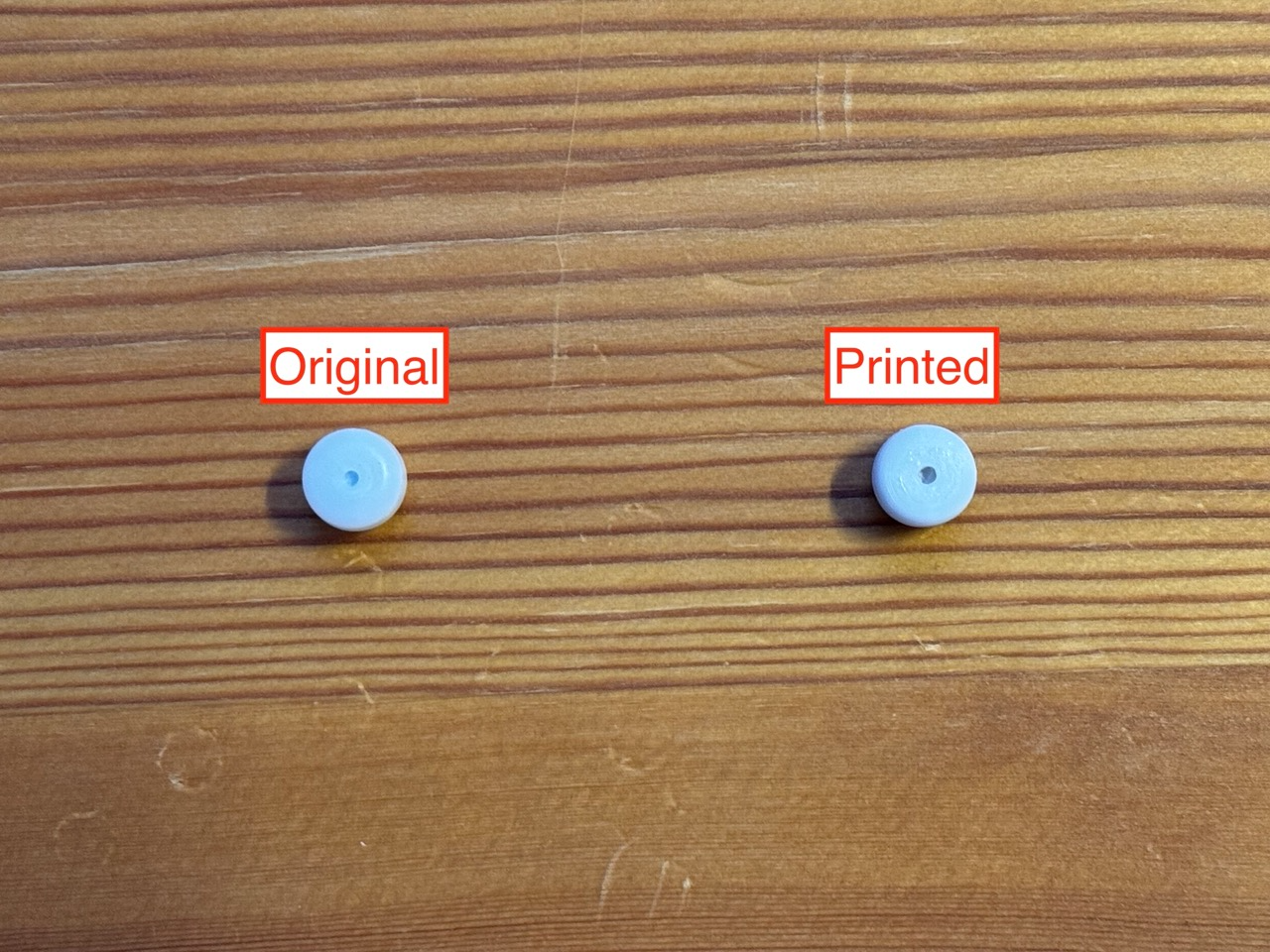

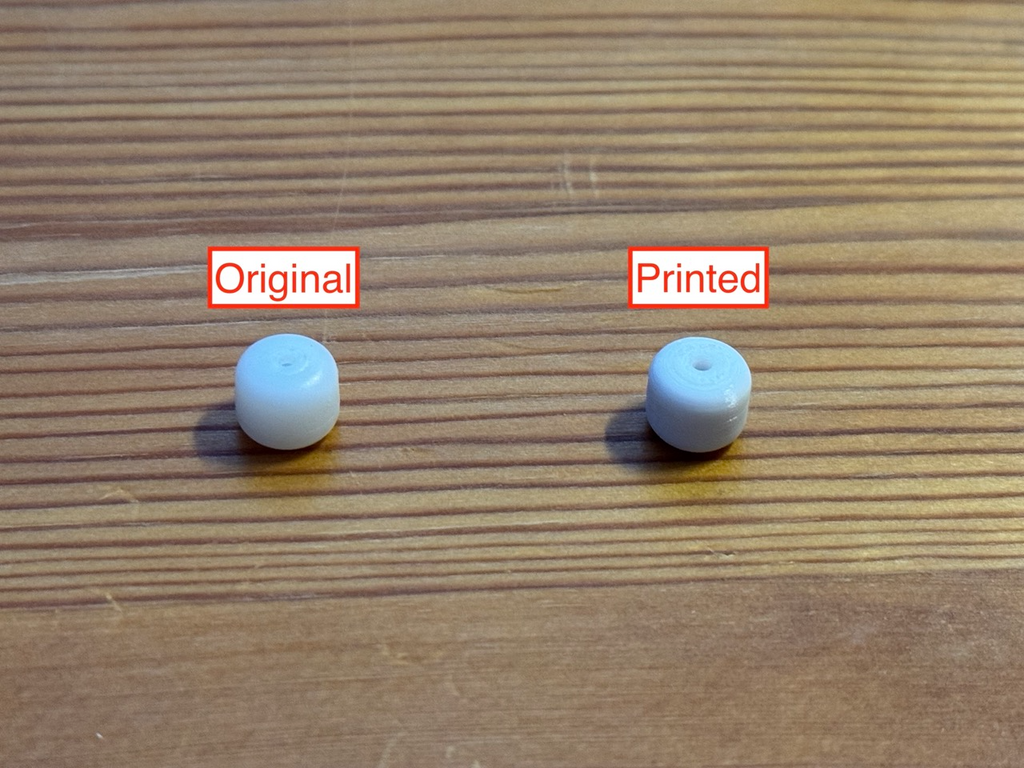

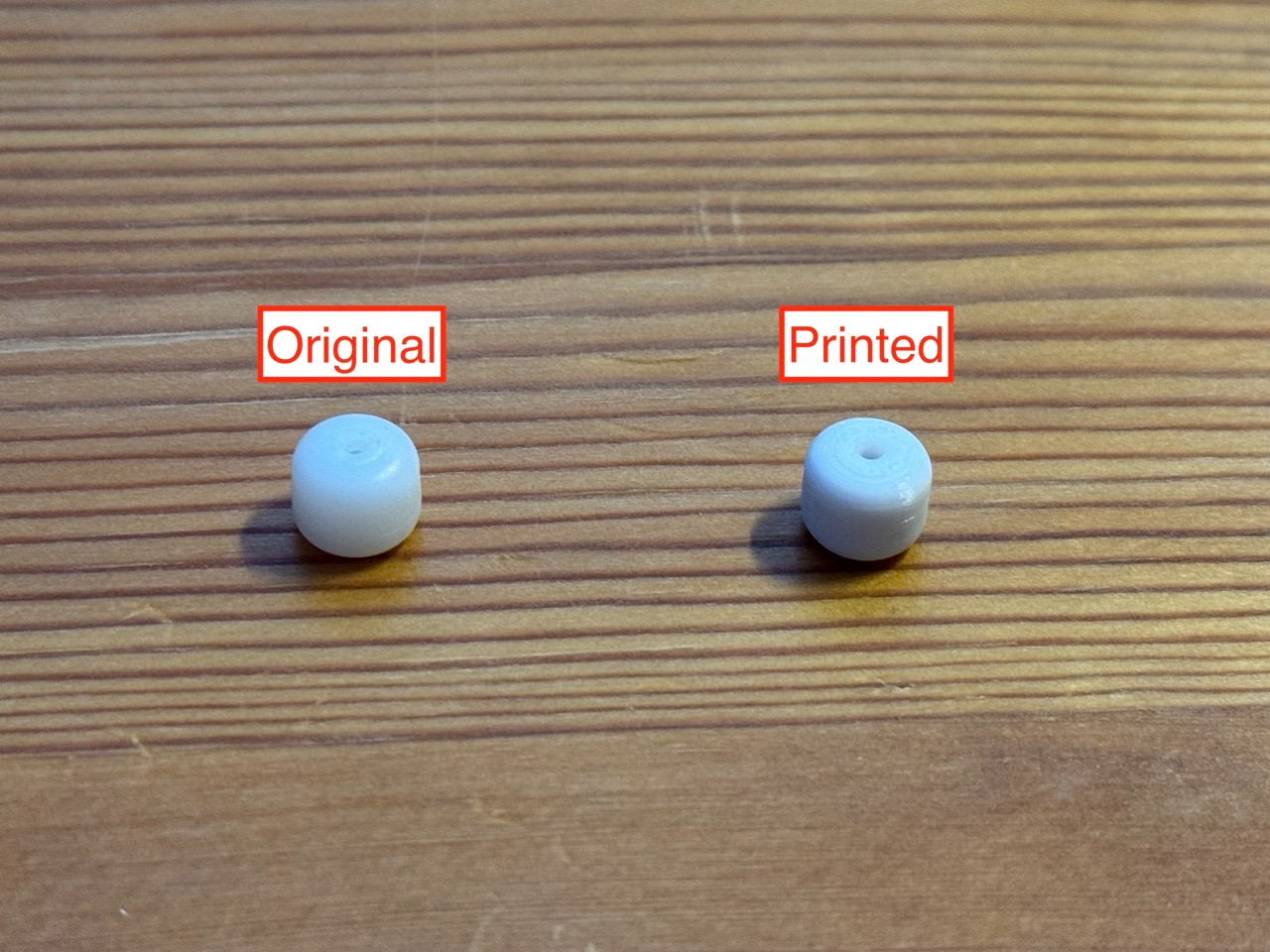

If you have the original one for reference, compare it after the printing (if you have precise scales - by mass, but also by the distance from the striker magnet where it gets attached to it.

Updates log

• 2025-09-27: added 3x2mm version
• 2025-01-09: V2 added (4mm). The new version behaves closer to the original in terms of weight distribution / magnet force
• 2024-12-29: Initial version released

Support the author

The model is free to use and published under CC-BY licence, however if you want to support the model author you can do it here: BuyMeACoffee

Design by Watchmaking Planet on MakerWorld (license: BY).
