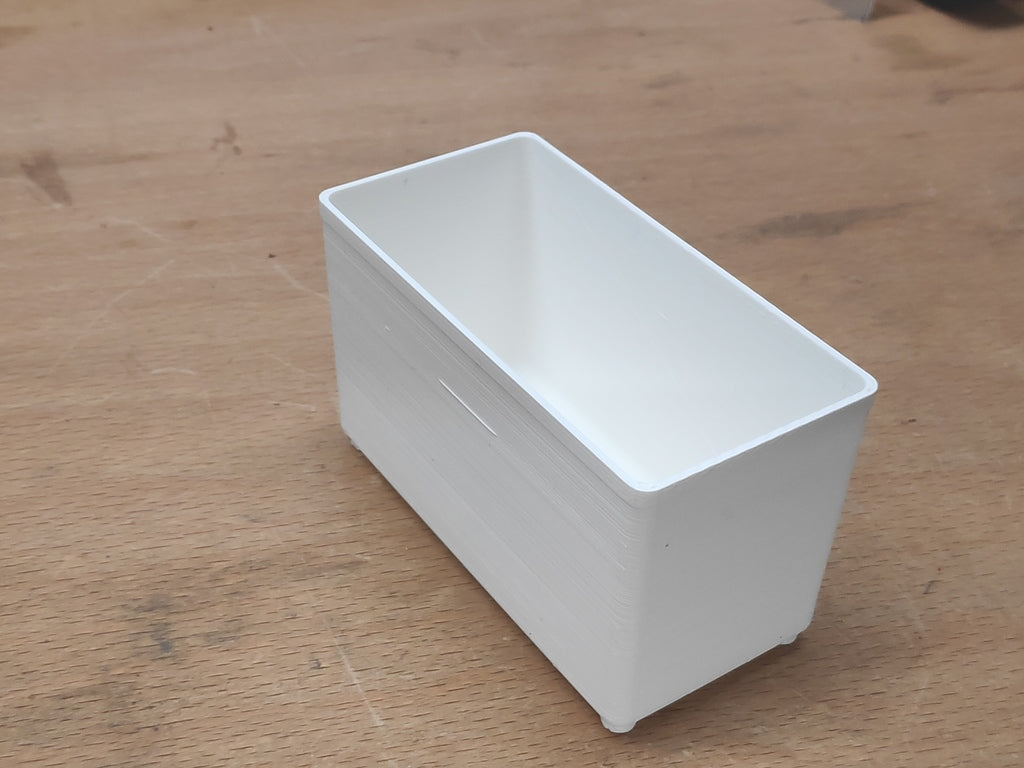

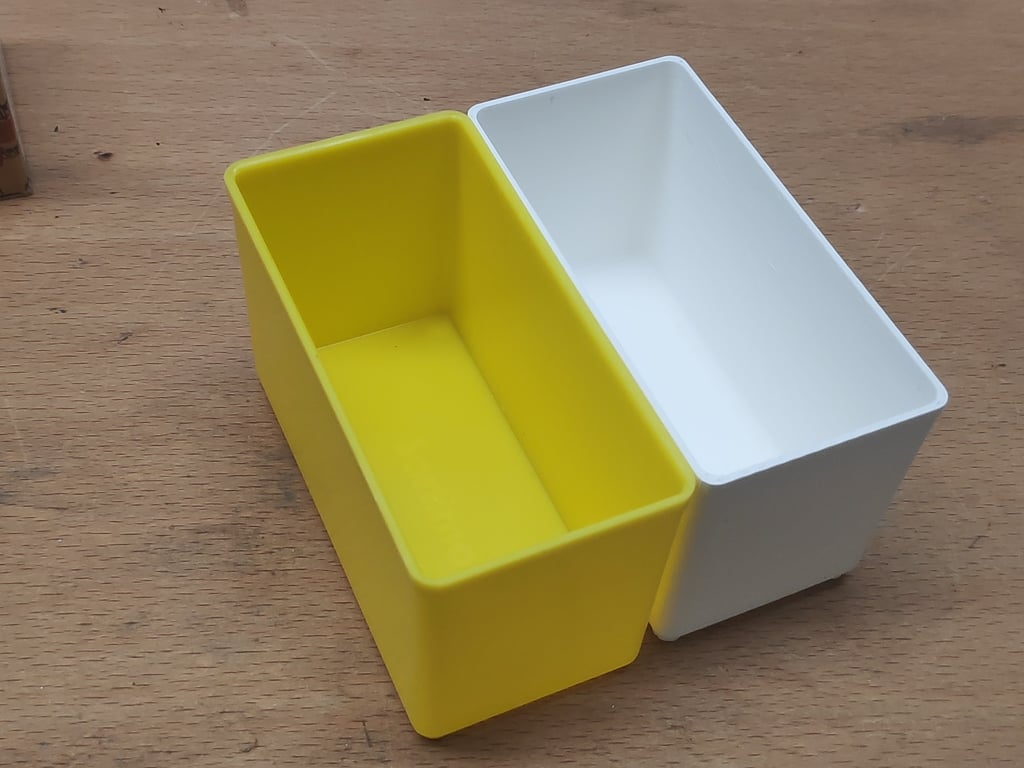

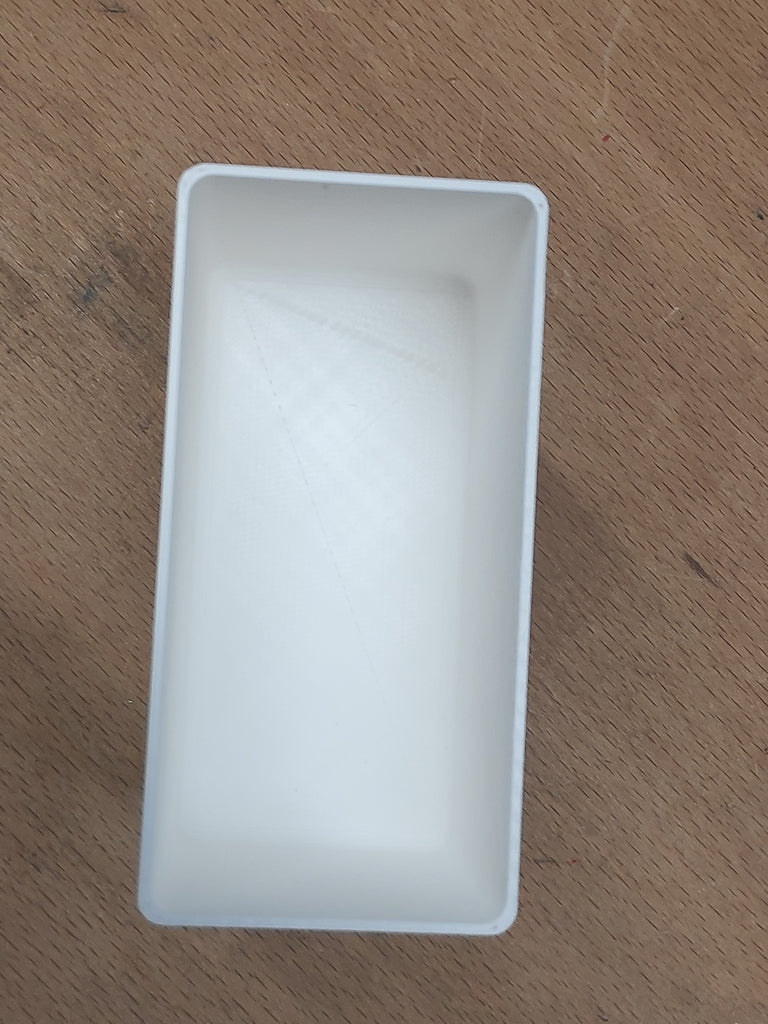

This is a compatible insert for the L-Boxx system in size 2x1 (104mm x 52mm).
The height is 60mm (62mm incl. feet) which is the standard height for L-Boxx 102 inserts.

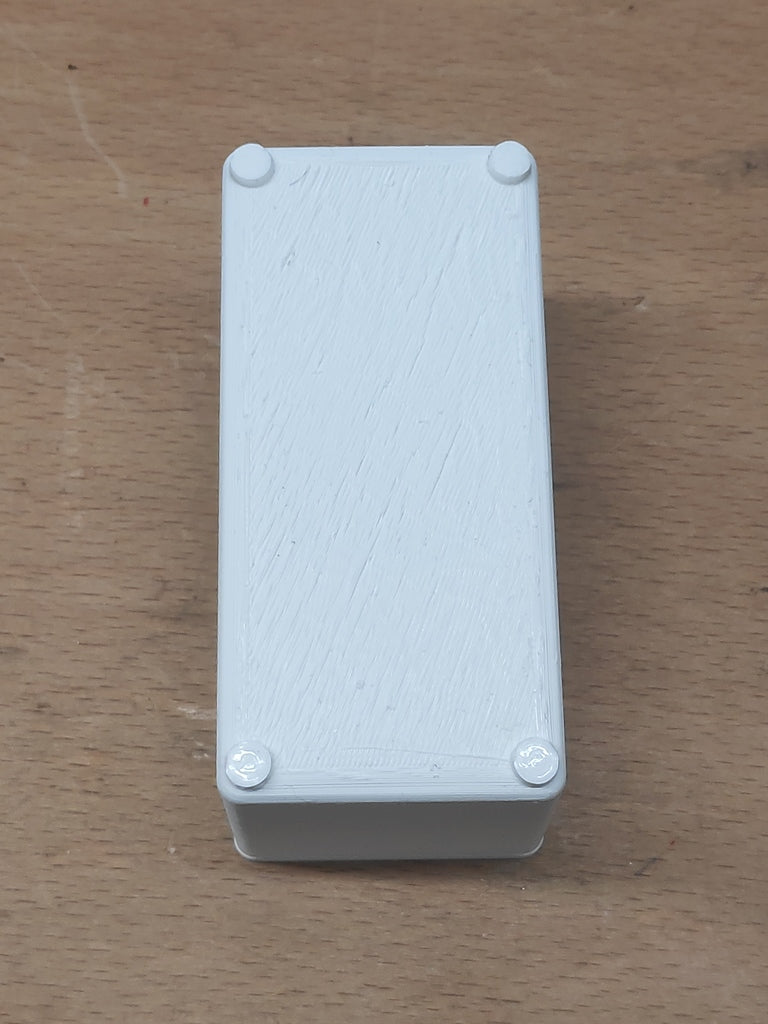

The design has feet (which prevent the insert from sliding in the L-Boxx when the L-Boxx is only partly filled with inserts.

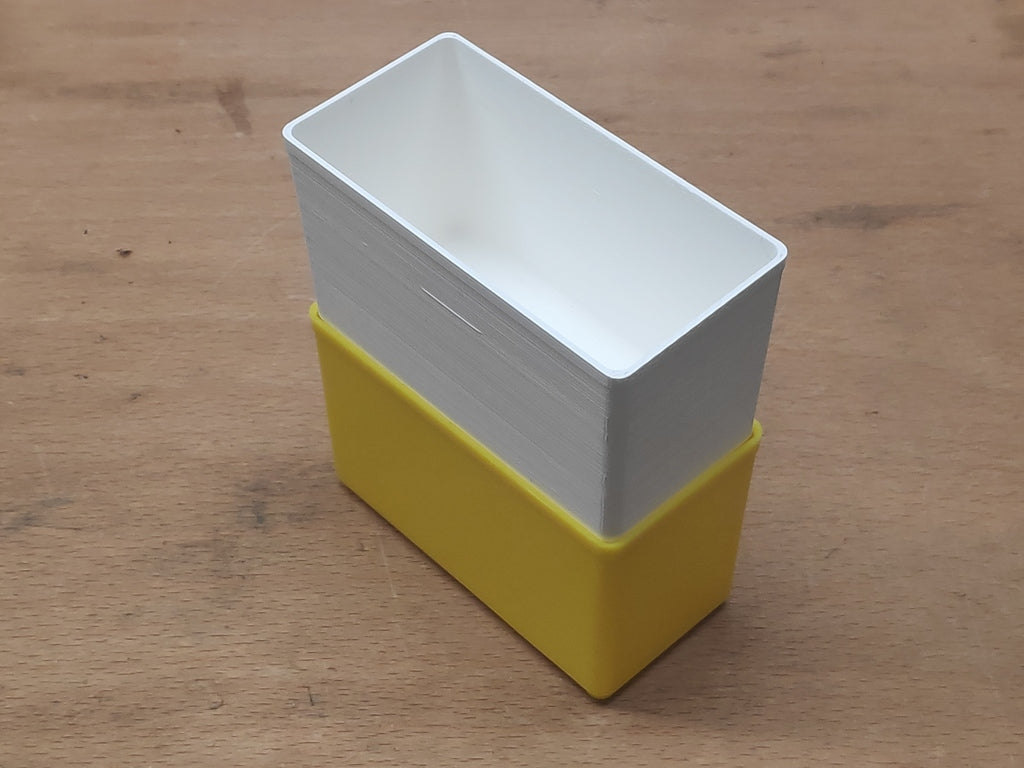

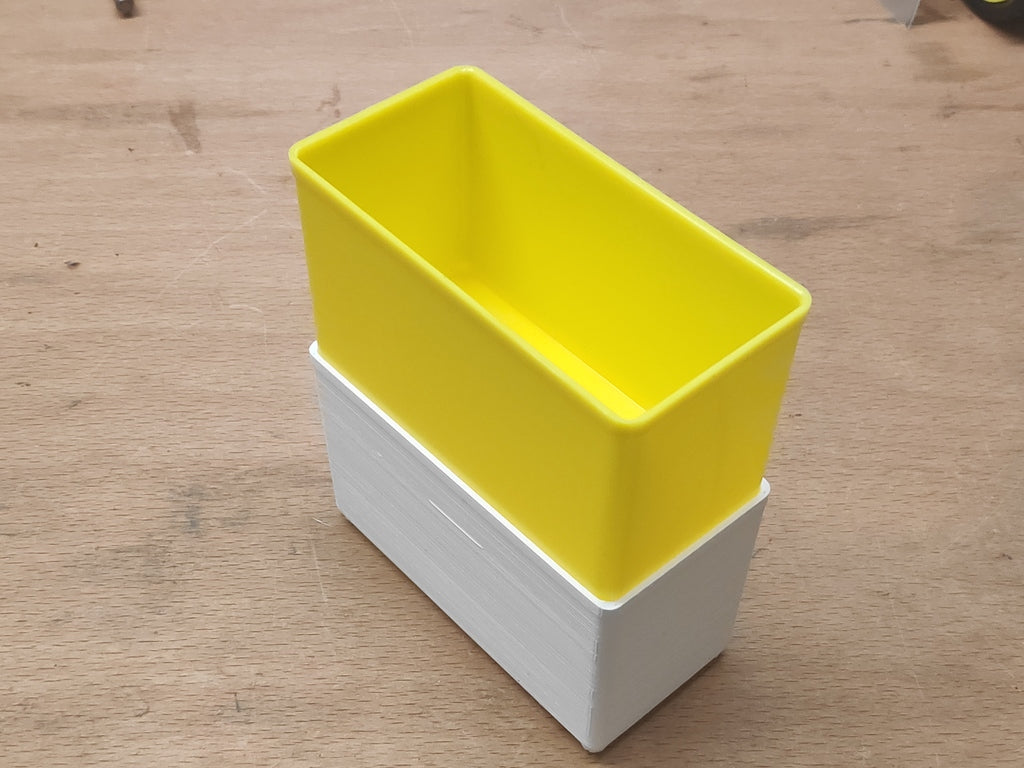

The design is also moderately stackable.
I will publish different sizes of this design, or alternatively feel free to use my Fusion360 model or step file to improve or extend the design range.
Print Settings
Printer Brand:
Ultimaker
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
25%
Filament:Colorfabb PLA white
Notes:
Nozzle diameter 0.4mm
Layer thickness 0.2mm
Printed with a wall thickness of 1.5 (= 4 walls).
Top and bottom printed with a thickness of 1.6
I used the experimental "tree support" option in Cura. Only very little support is needed (just the first 2mm) and the tree support is extremely easy to remove. I highly recommend using the experimental tree support setting.
Print speed 100mm/s
Post-Printing
The tree support can easily be removed using a putty knife.
How I Designed This

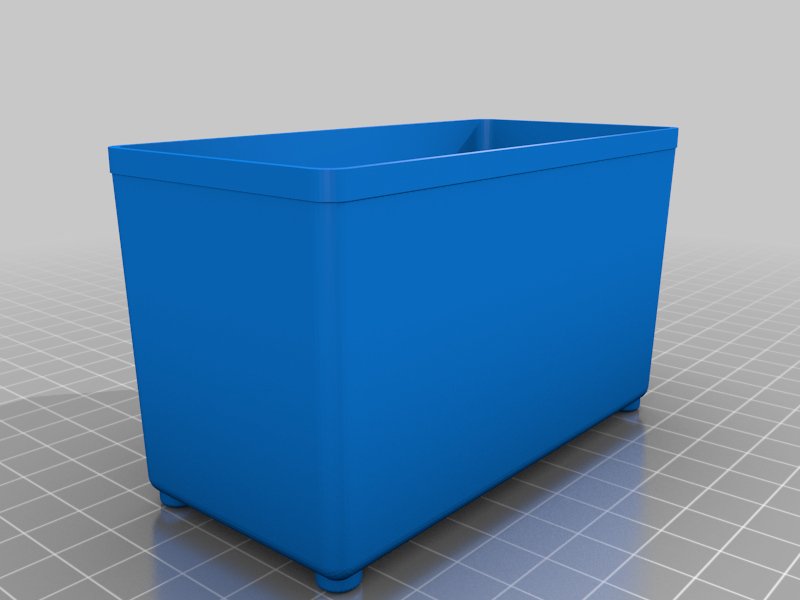

I designed the model with the help of Fusion 360.
Design by R4C3R-911 on MakerWorld (license: BY).
