Large Desiccant Drying Tray for Generic Food Dehydrator

Large Desiccant Tray to be used in generic food dehydrator sold on Amazon

(https://www.amazon.co.uk/dp/B0C1FZWK3F?psc=1&ref=ppx_yo2ov_dt_b_product_details)

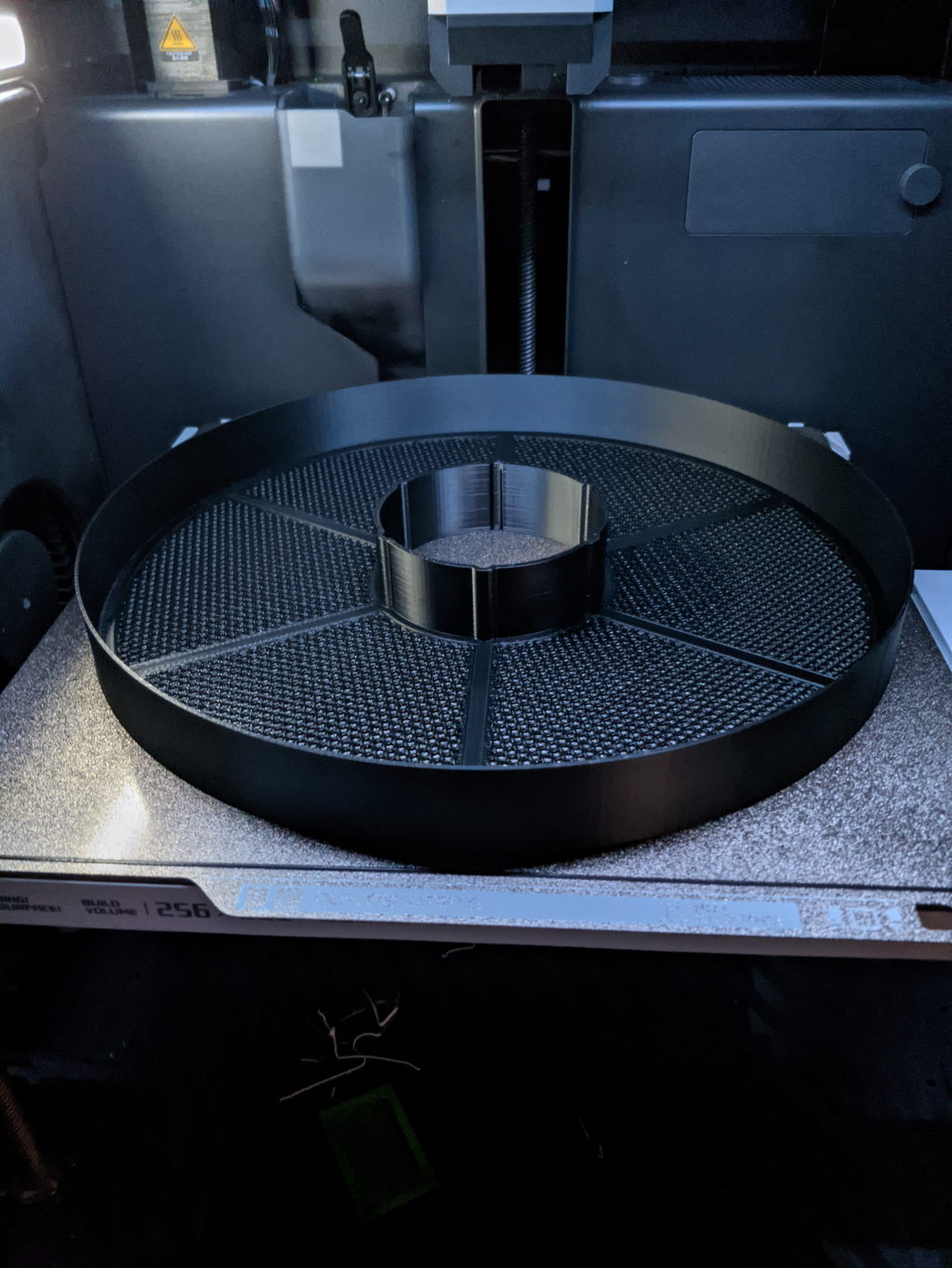

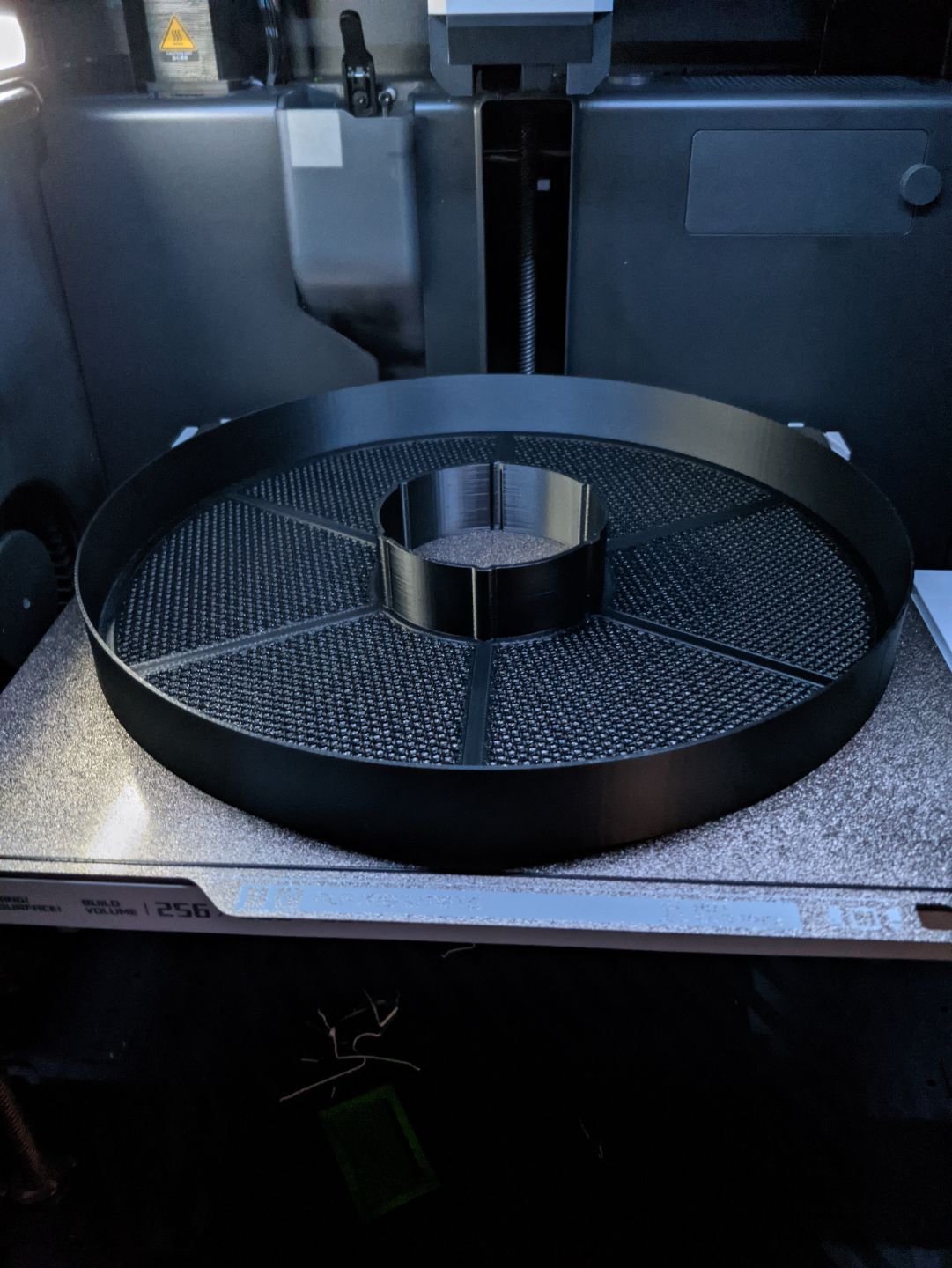

Please note that the model provided is the base model printed, but with some chamfers, draft angle on the wall of the main container to make it easier when emptying and a bulge at the top of the central spine for grip. Should be functionally the same print though and I've not needed to reprint after tuning.

Material Selection:

Utilise a filament that can tolerate the heat you are using to Dry. I printed this in ABS to not have to worry, but would recommend at least PETG and keep the temps below the glass transition temp.

To Use:

Slide onto spine of spare basket while you're drying filament if you have some desiccant to dry out.

Note:

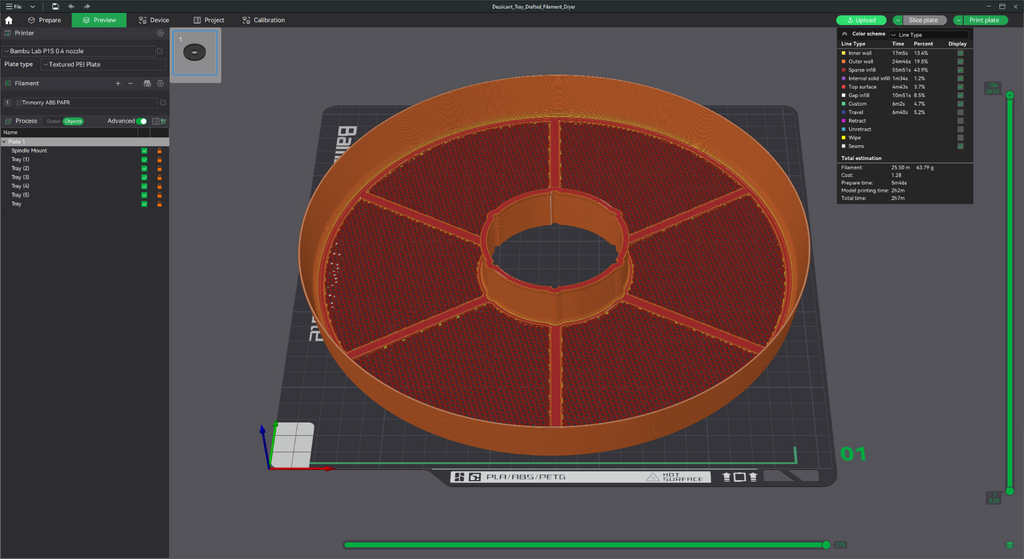

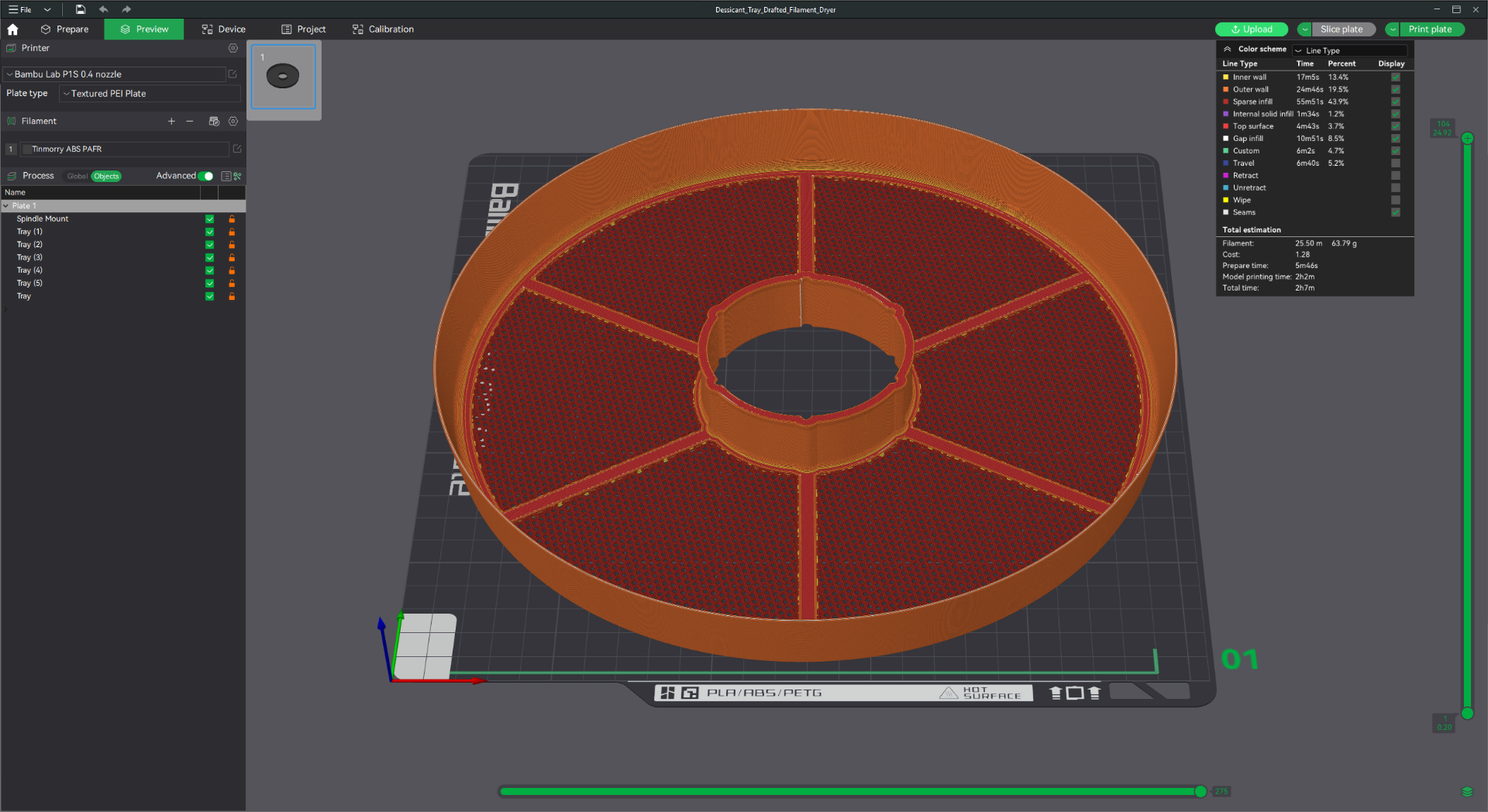

The model itself is a multi-part model. The tray parts settings must be modified to use no top/bottom layers and the infill setting of your preference that allows air through and does not have holes too large for your desiccant.

Please be aware: I've yet to attempt to dry desiccant in the dryer while drying out some filament. Will report back if there is enough heat.

Design by Enly1 on MakerWorld (license: BY).
