Litho-Frame - The Lithophane Frame

PRINT PROFILES:

The following are the print profiles which I have tested and verified. The description in this list will be reflective of the description in the print profile rather than the name of the model. If the print profile is not listed, I cannot guarantee successful results.

1. Lithophane Frame - Snowman Decor
2. 0.2mm layer, 2 walls, 5% infill (By StatusD112) - Frame
3. 0.2mm layer, 2 walls, 5% infill (By StatusD112) - Decor

SUMMARY:

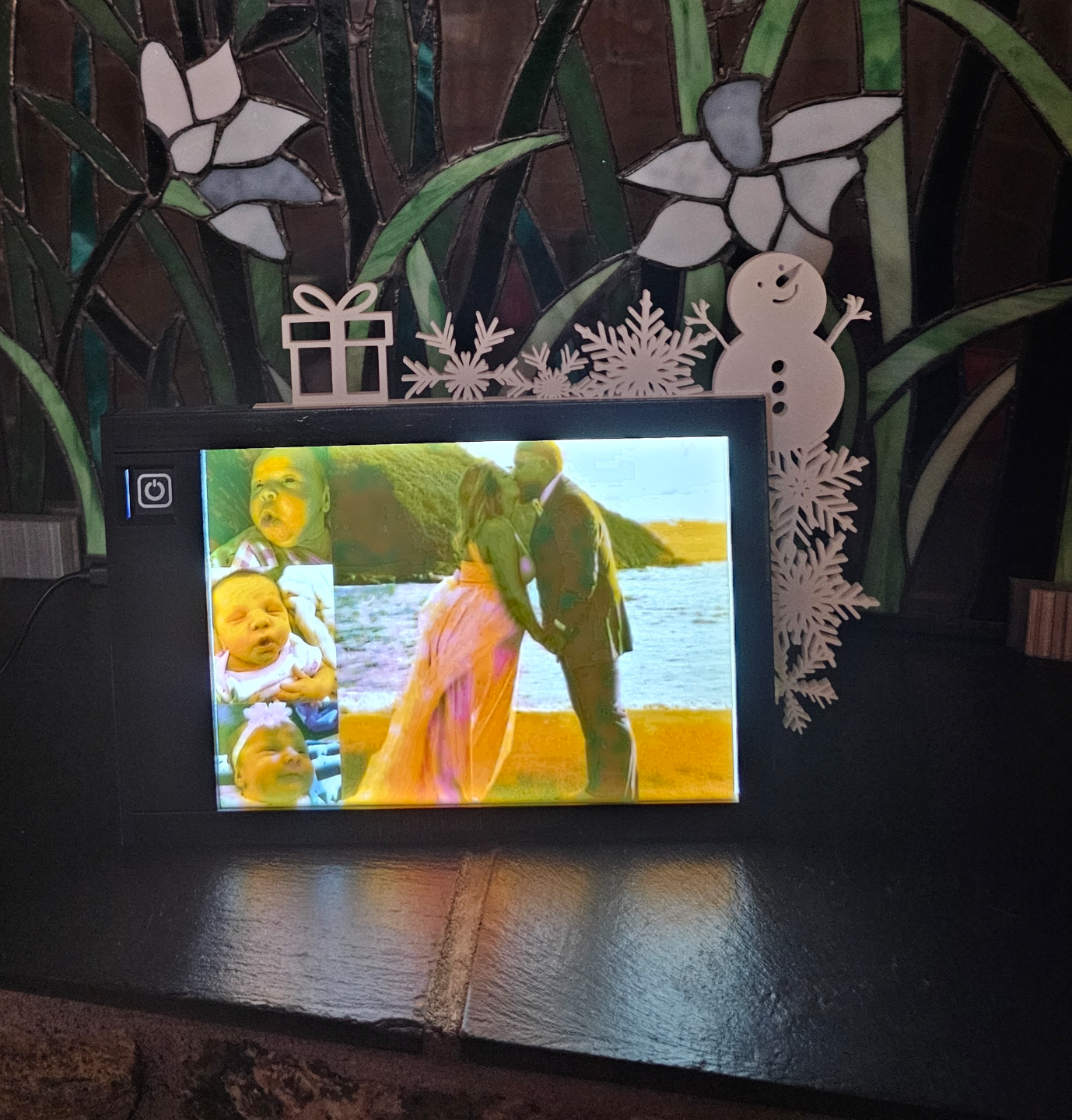

This model was designed to use a tracing pad as the backlight and provide a frame with a customizable decorative corner piece. The frame requires a lithophane size of 200mm W x 143mm H x 4.7mm (Maximum Thickness). The thickness can be smaller but should be no thicker than 4.7mm to fit properly.

Find the tracing pad here (~$10): https://a.co/d/g5xiM8i

Create your lithophane here: Color Lithophane Maker

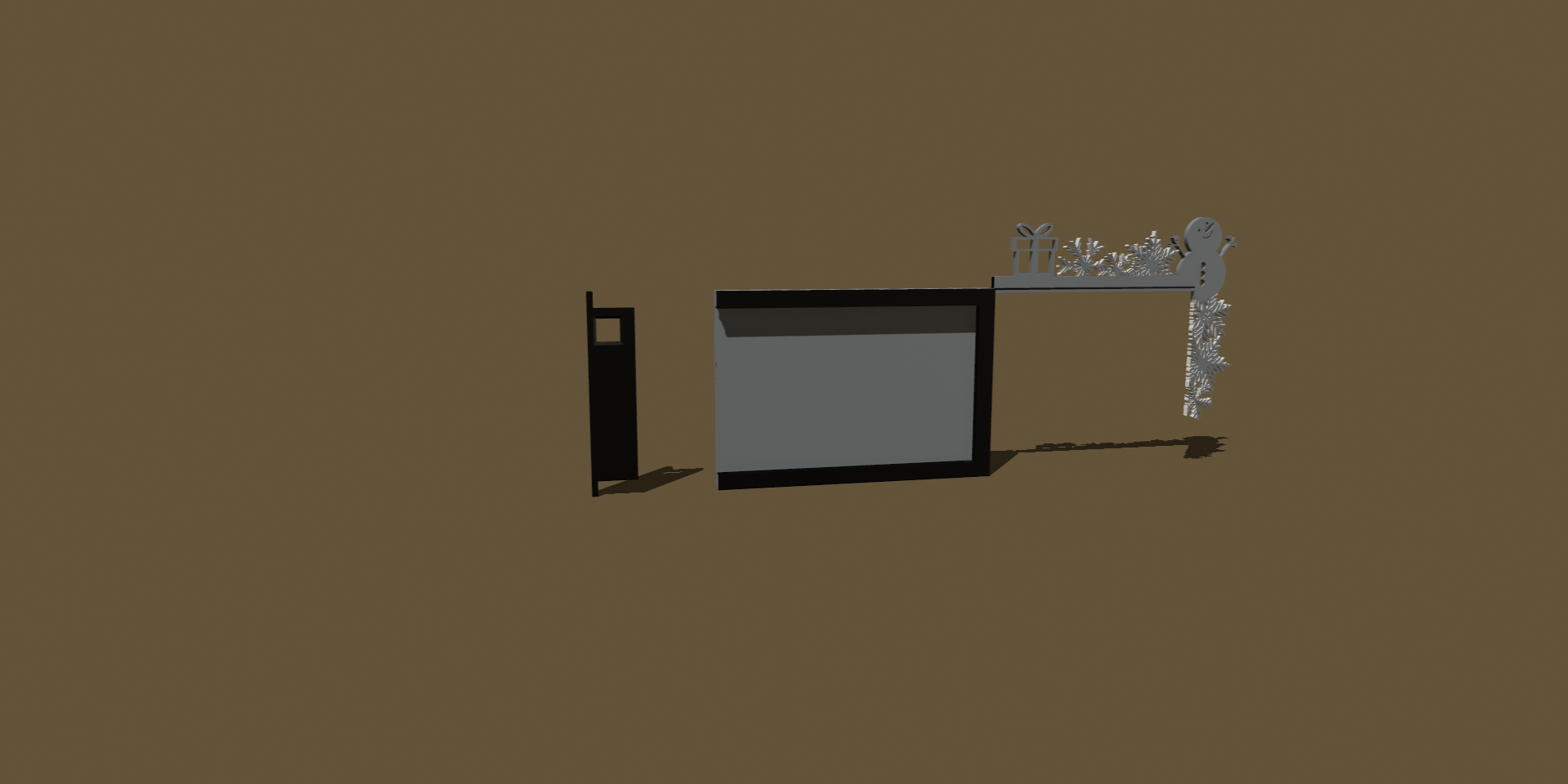

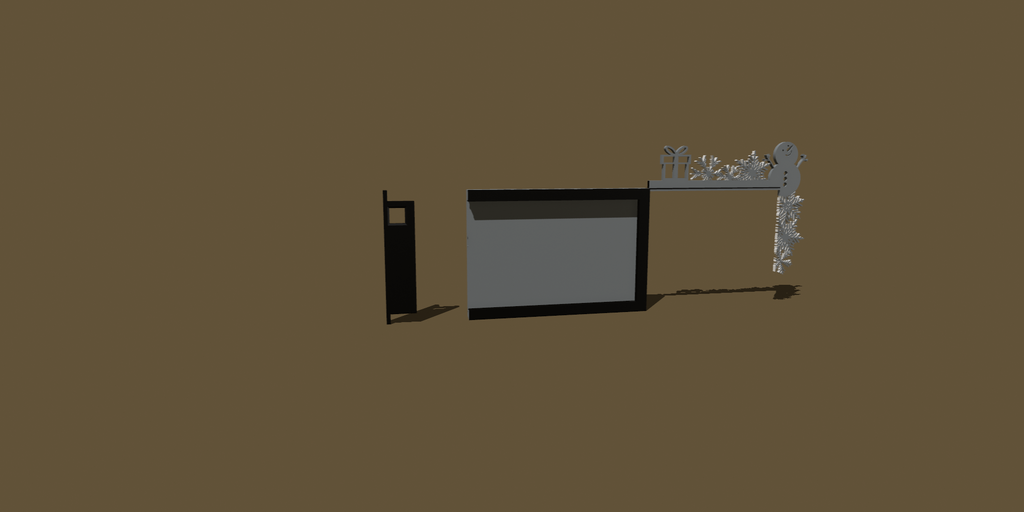

Once you've got the frame, the light pad, and the lithophane, just slide the tracing pad and lithophane into the provided slots, and press the end cap into place. You can glue this piece, but I recommend not getting glue on the exterior parts to avoid residue showing up. The snowflakes and snowman slide into the top with a small groove. The track for the decorative piece is fairly simple such that others can create custom corner pieces and attach them via the same track.

If anyone finds issues with the model or print profiles, please reach out and I will do my best to correct it.

Design by R C 3D on MakerWorld (license: BY-SA).
