Summary

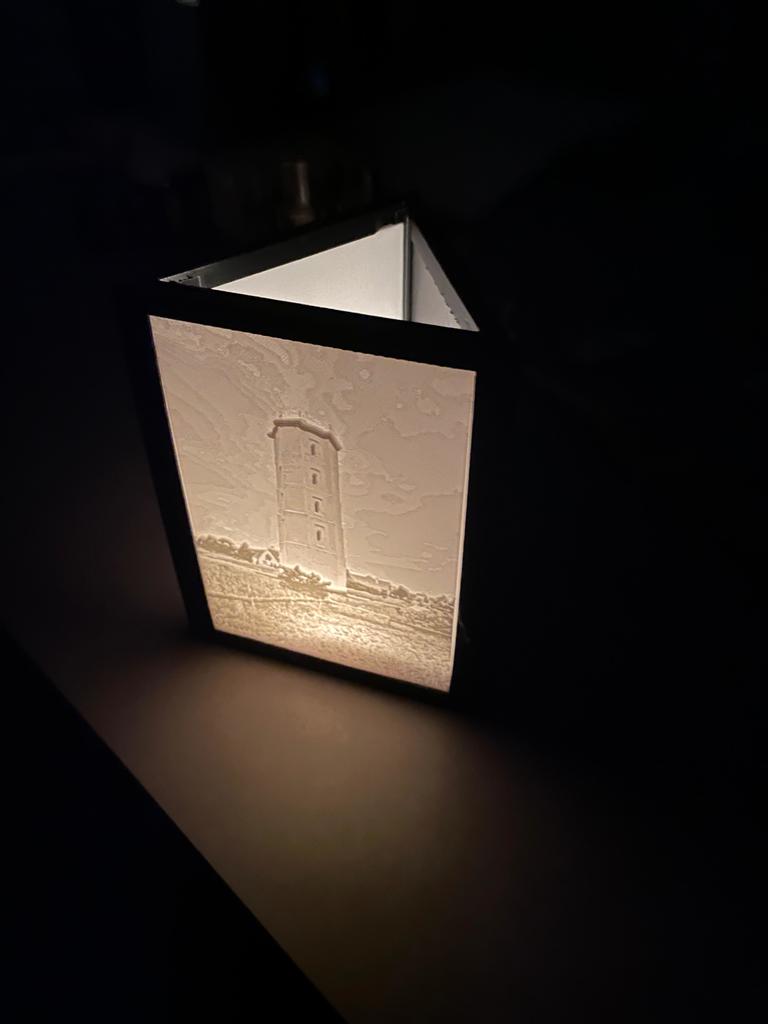

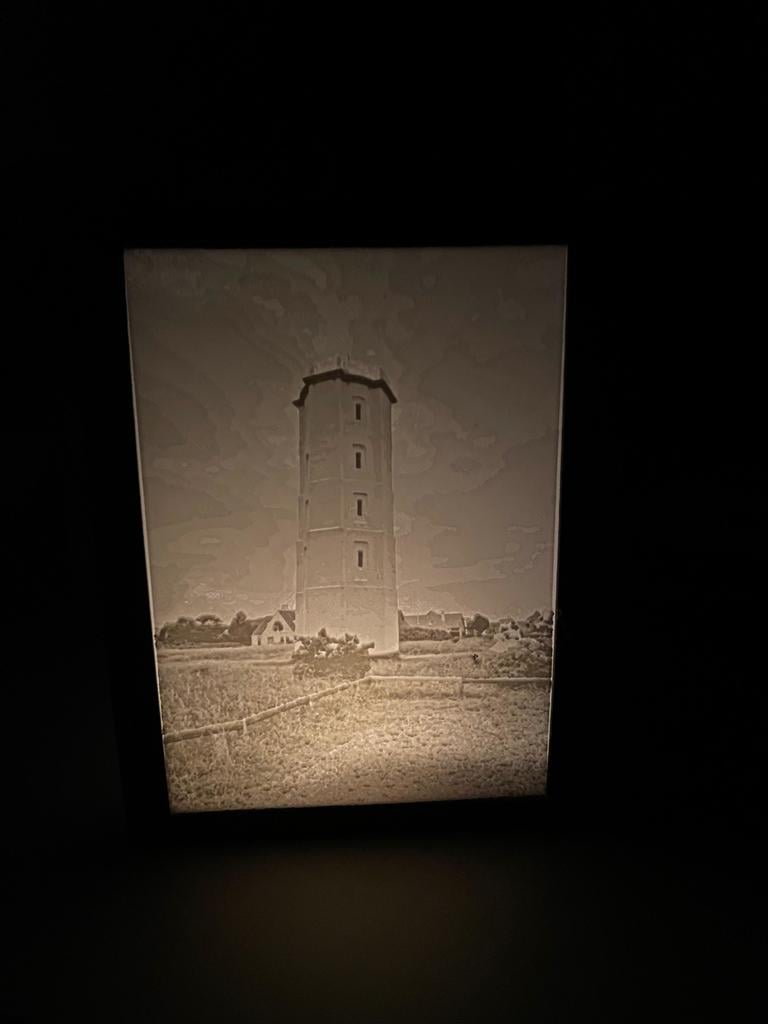

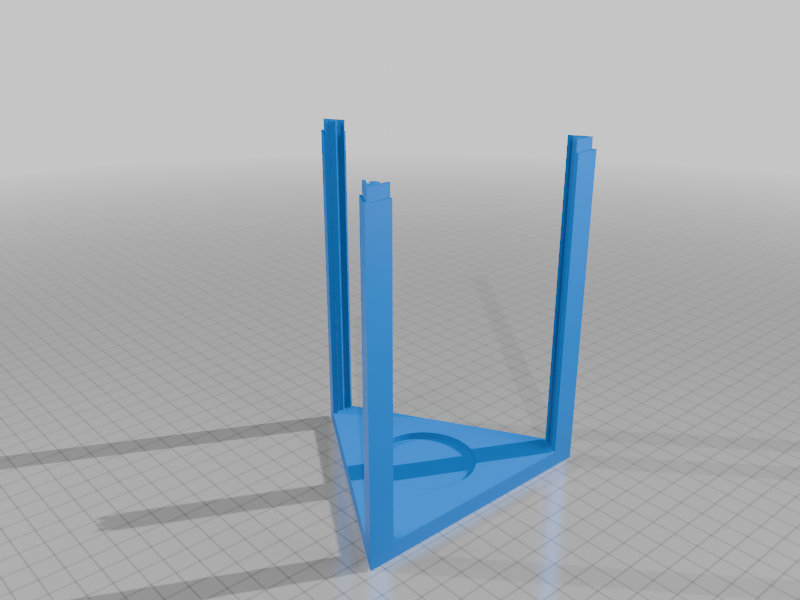

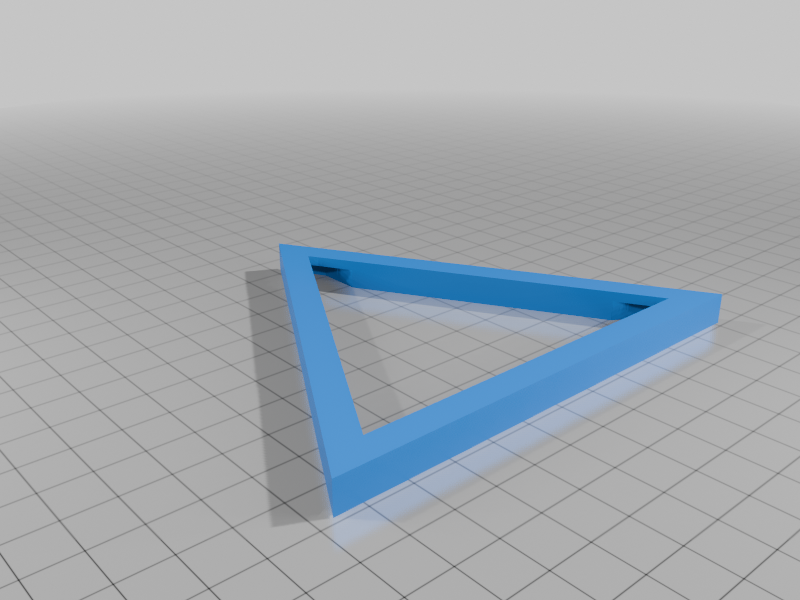

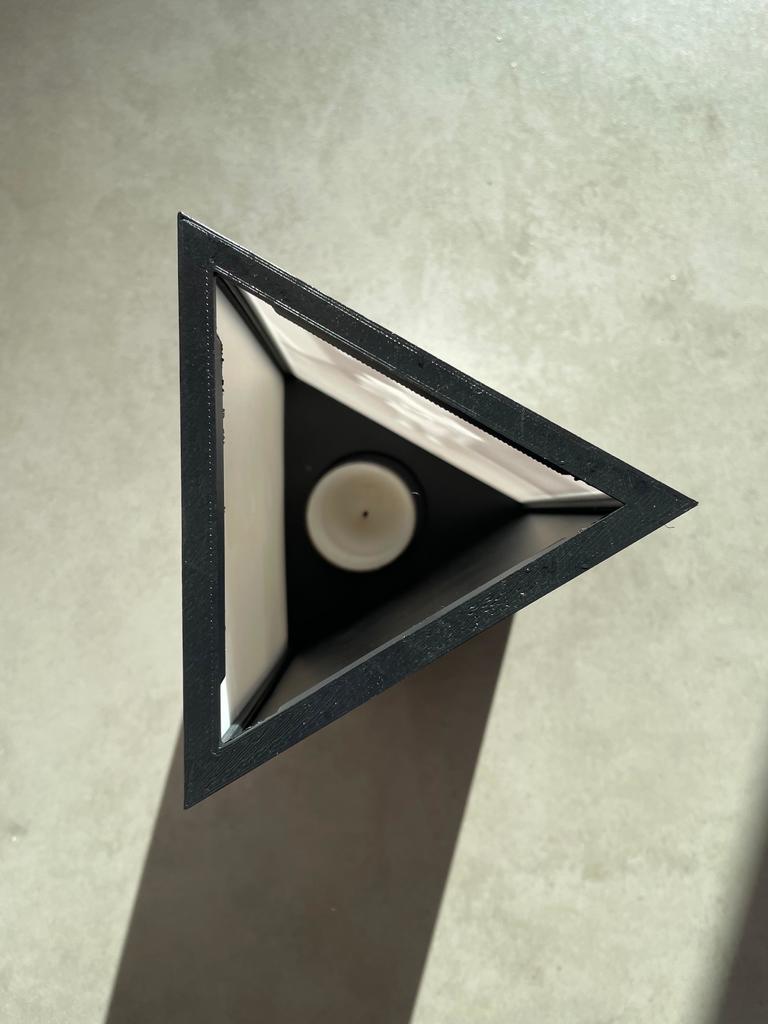

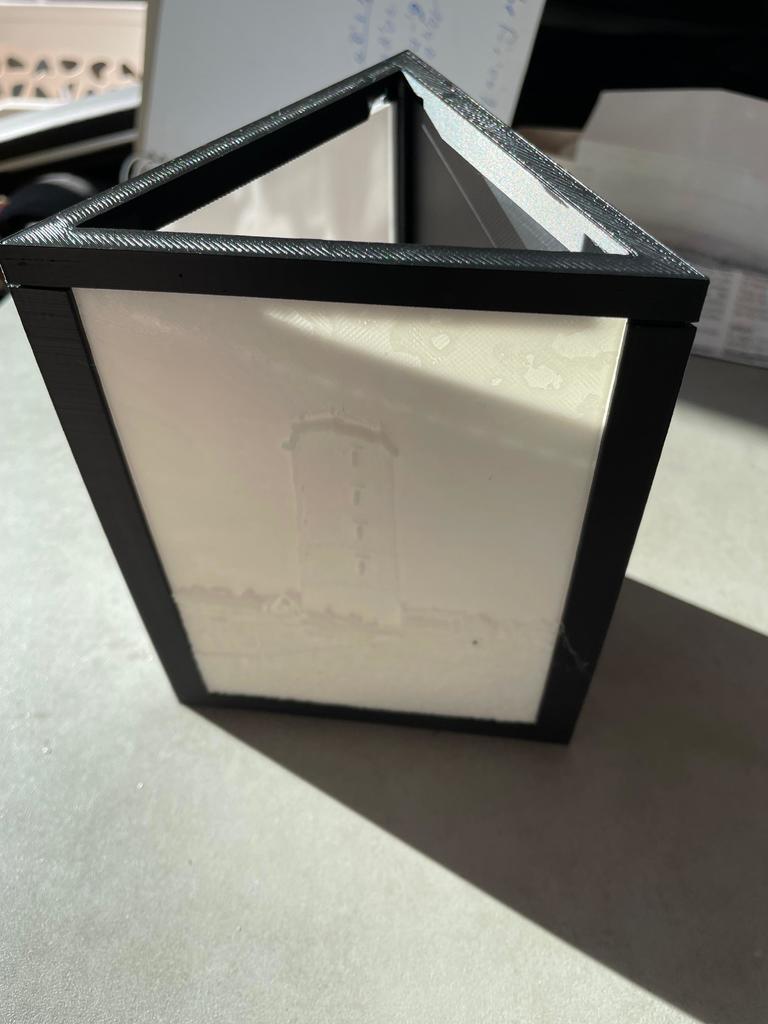

This is a little holder, that can hold up to 3 different Litophanes, which can be lid by an electrical or normal tealight. To secure the litophane panels, use the cover model.(might be very tight)

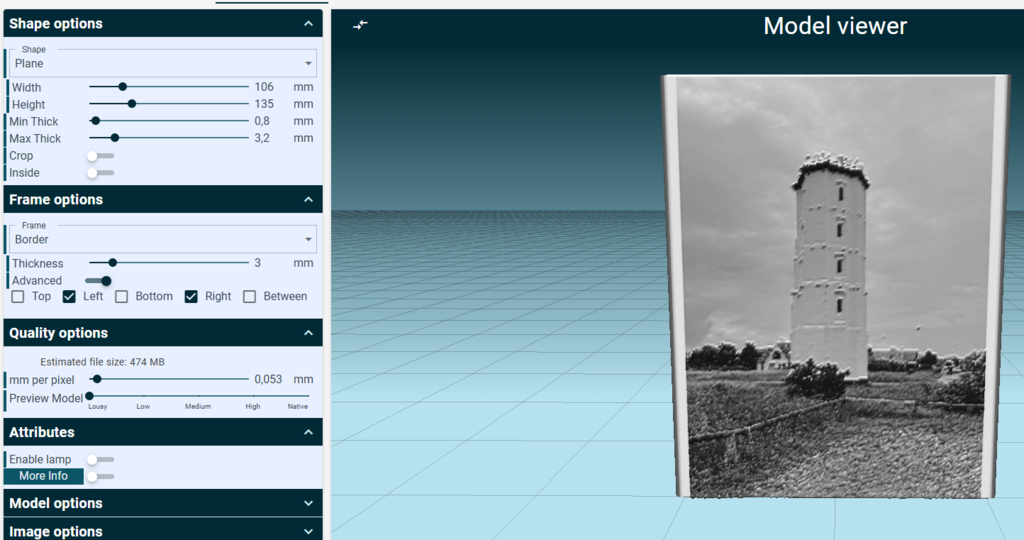

The Litos i used were made by "its Litho" - https://tool.itslitho.com/UploadImg - with a panel size of 106 x 135 . If you use the linked tool, make sure you use advanced Border mode, with 3mm and deactivate crop (you have to activate it first to make the size changes) so that you have a smaller getting border on the left and right. (settings shown in last picture). I used 3x4 Pictures and a white filament but you can use every filament color you like(consider changing the max height, so that its lid strong enough).
Print Settings
Printer Brand:
Creality
Printer:
K1
Rafts:
No
Supports:
No
Resolution:
0,2 mm for Holder/Cover and max (0,08) for Litos
Infill:
45 % for Holder/Cover due to stability (less propably works too). 100% for litos (light should not be diffused due to patterns)
Filament: eSun ASA/ABS for Base PETG for Litos( Hight Temp if you like to use a real light). If you use aan electrical, it doesnt really matter
i have used black for the holder and white for the litophanes, but you can use pretty much every color
Notes:
watch out for first layer adhesion problems with ASA/ABS, i have used normal glue and it worked pretty well without raft.
Design by KiroSup on MakerWorld (license: BY).
