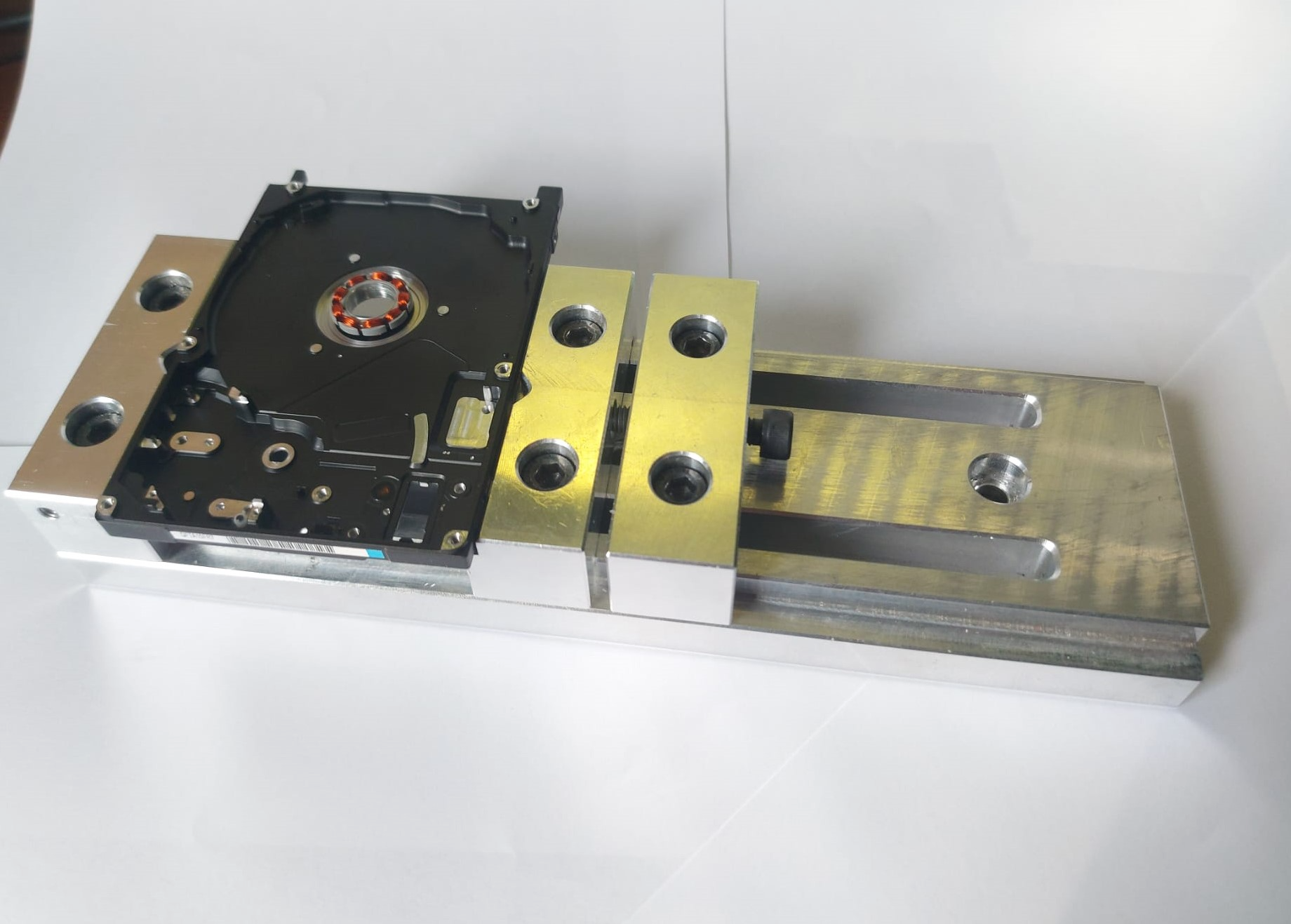

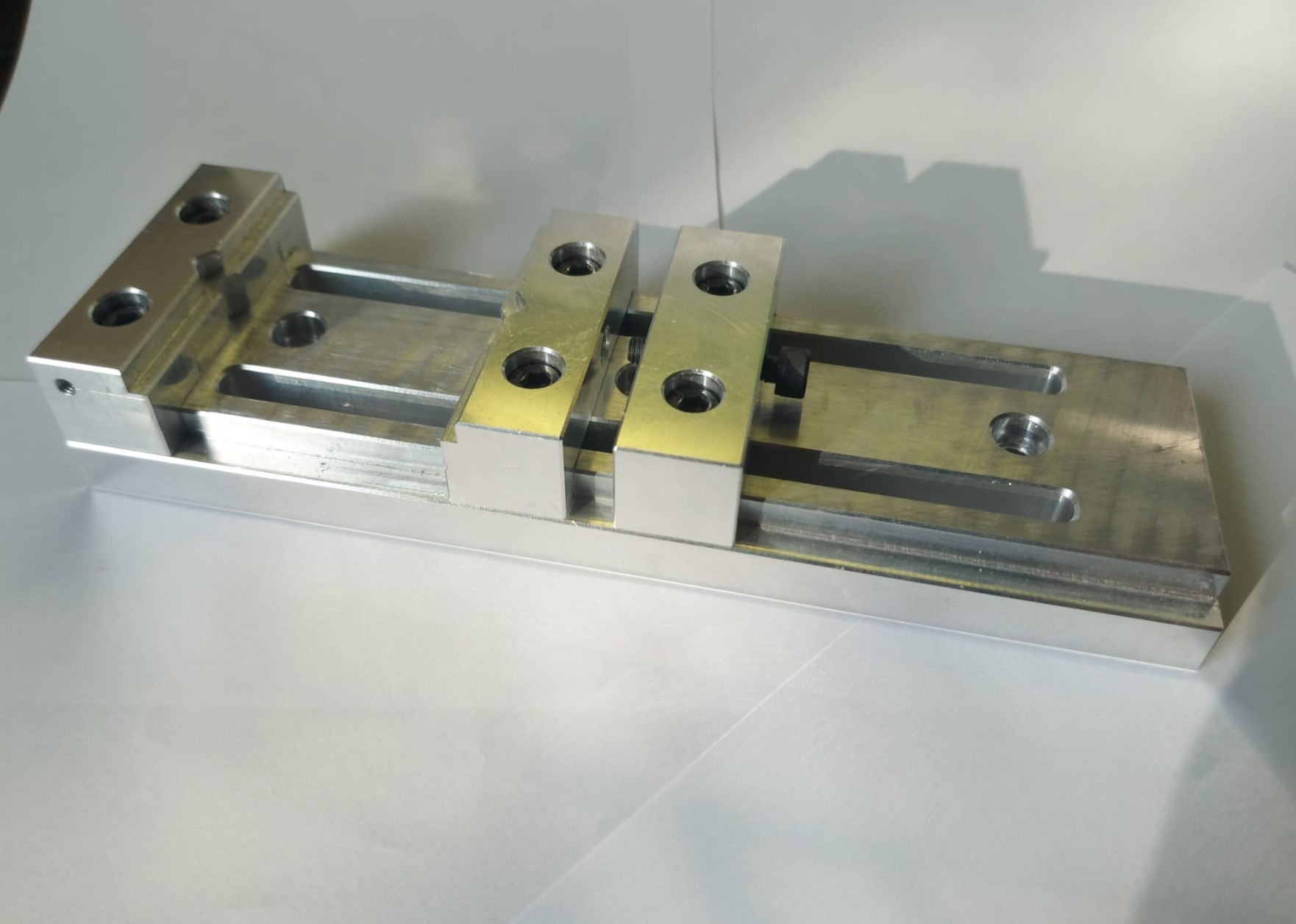

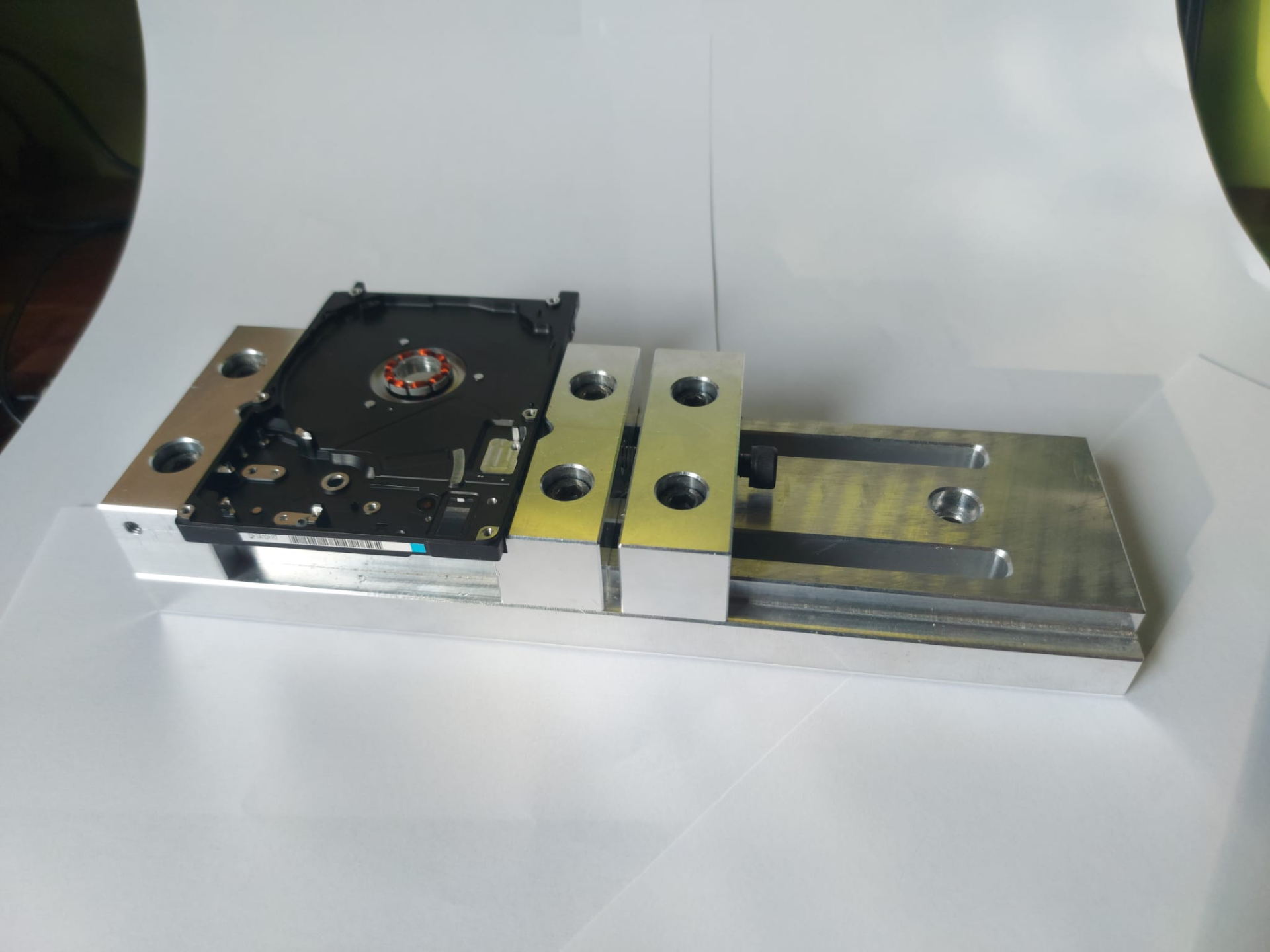

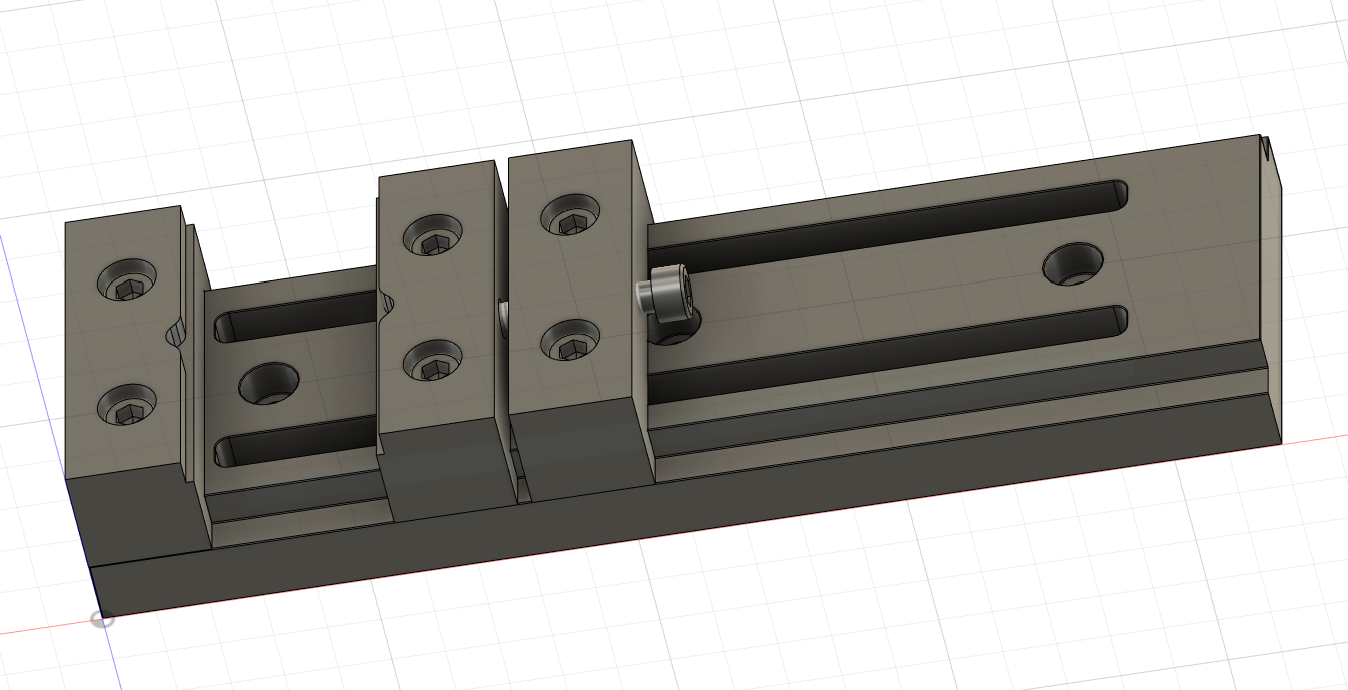

Low Profile CNC Vise

Just 20mm tall! ~15$ to make in aluminium!

A ultra-low-profile vice for CNC machines, fits everything from a 3018 to professional mills,

hole spacing is 75mm on center

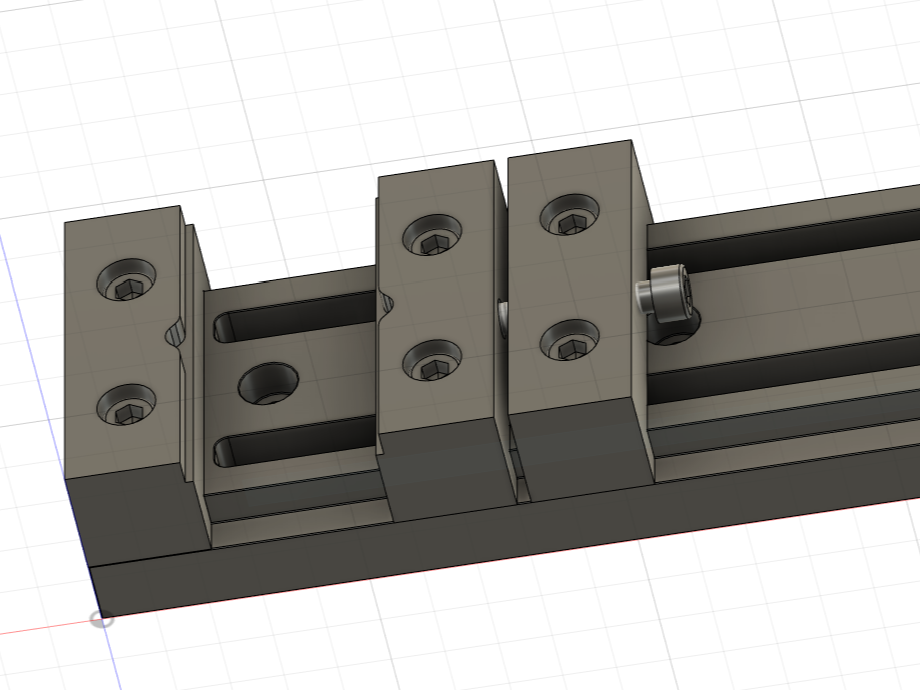

Can be 3d printed just as well, files are provided, holds tightly onzo workpices for your Laser, Mill or Electronic parts while soldering

• These are verry easy to make on a Milling-machine, no special tooling needed, so no added cost.

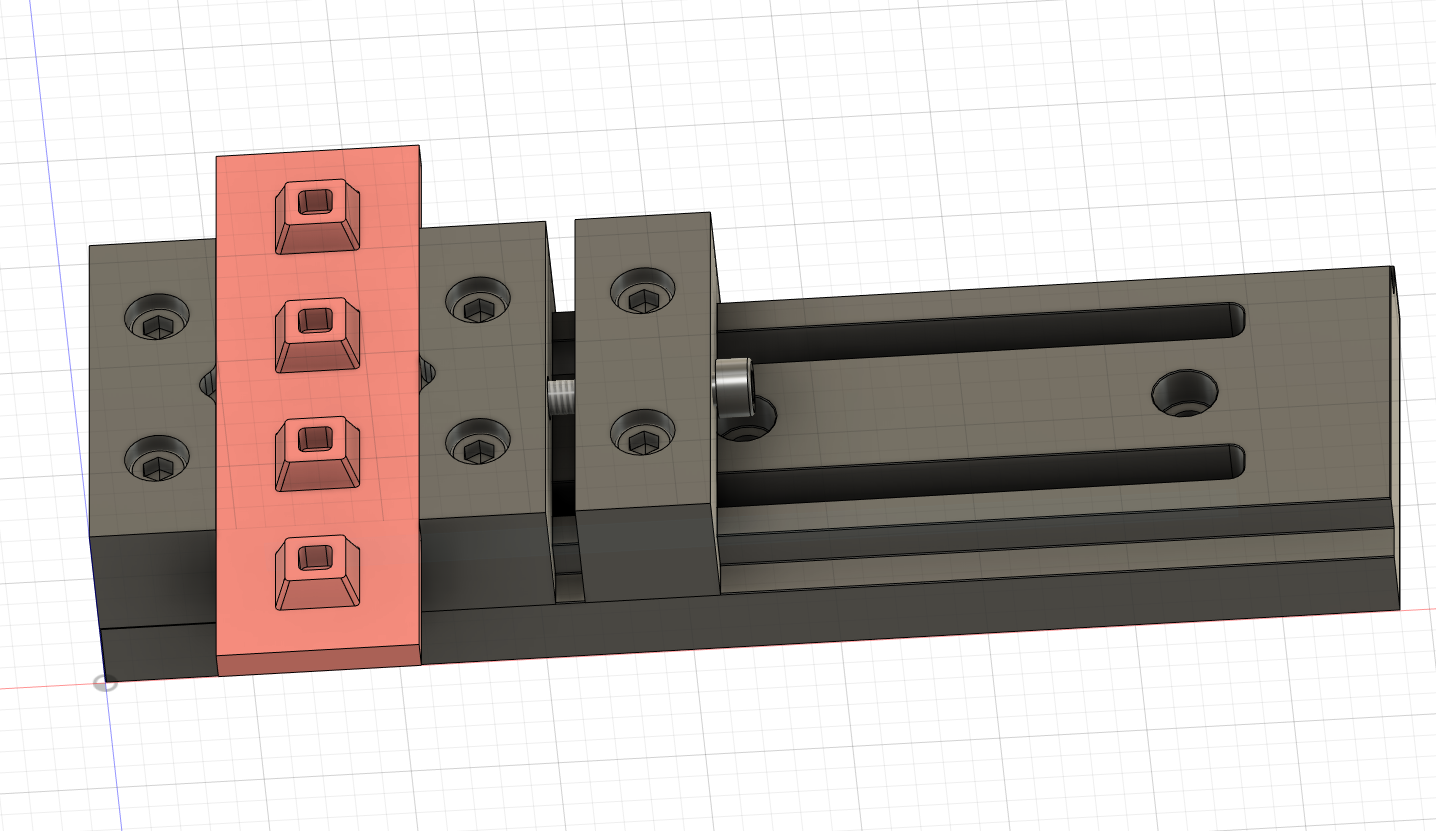

• Works great as a dual station vice
• They sell well for roughly 55$ , so easy mony made if you have a cnc
• All in all, it took me 25$ in material to make a pair of these for my small cnc mill, and the work GREAT

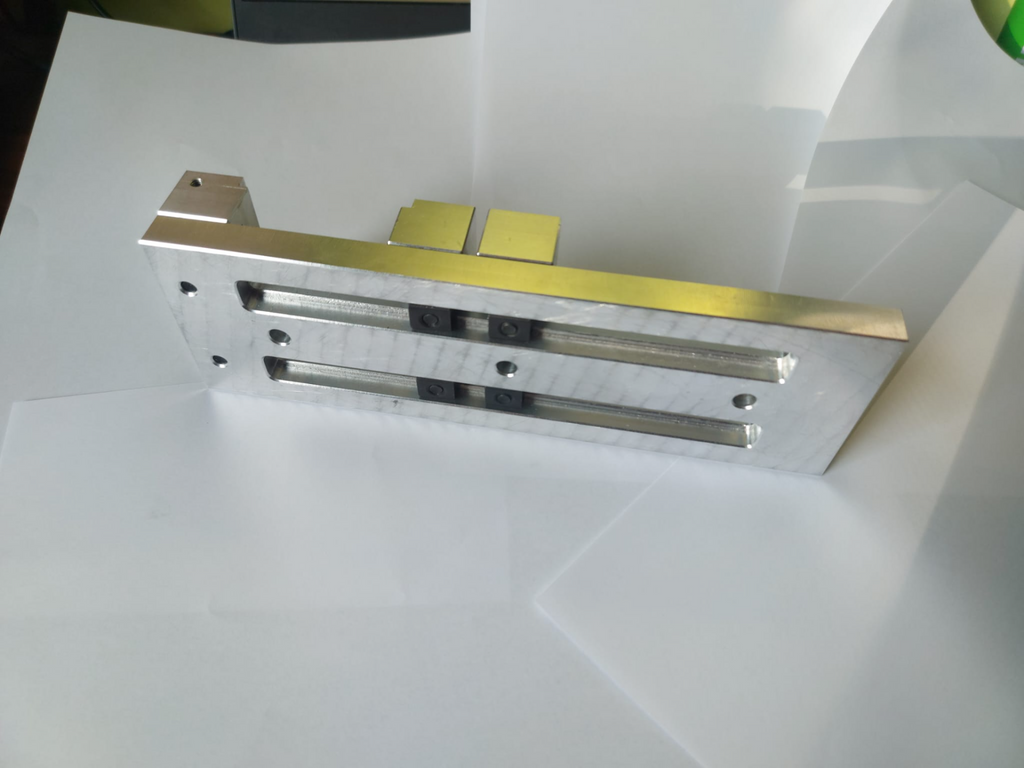

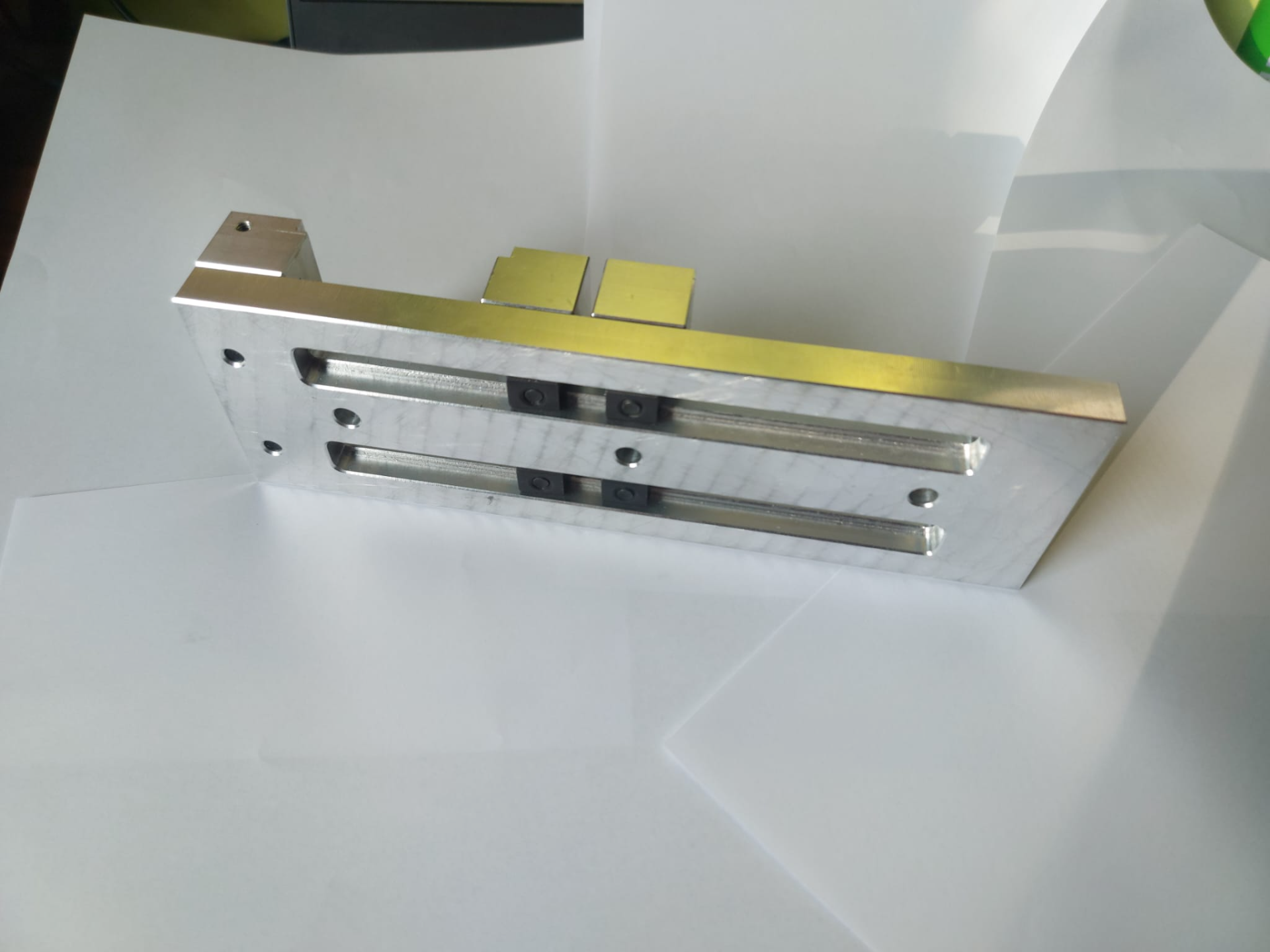

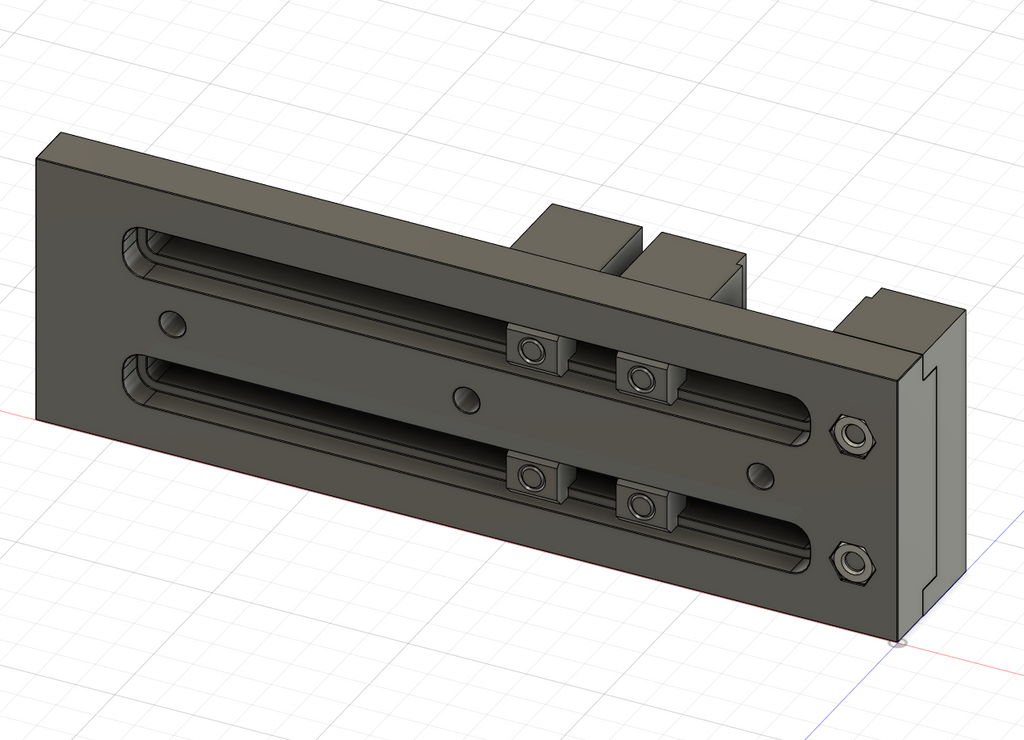

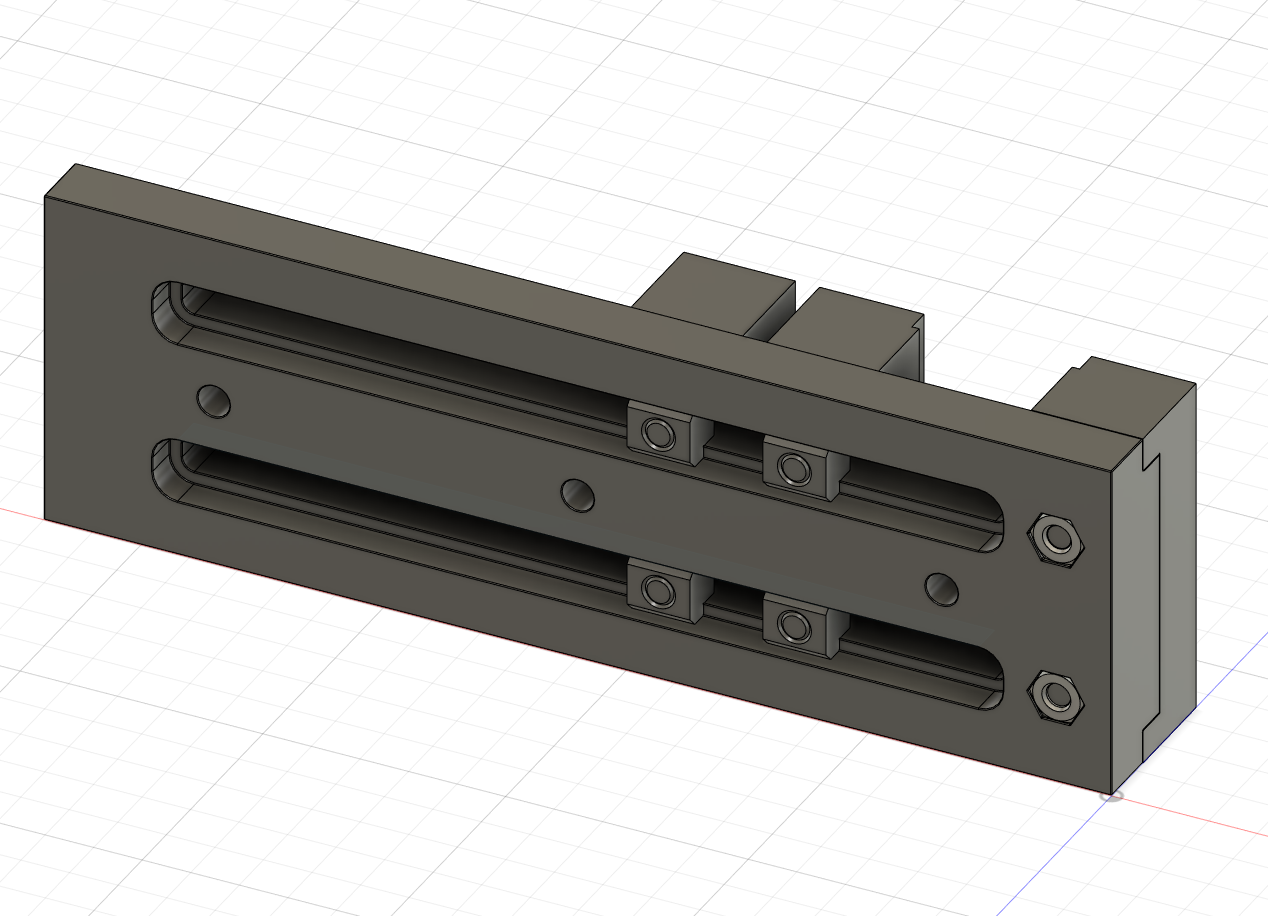

• For making these you need : 6x M6x25 Screw, 1x M6x30 Screw, 2x M6 nut, 4x M6 T-slot Nut and one M3 x10 screw
• along with Aluminium stock in the size 1X 225x75x20 and 3X 75x25x22

Design by BasementCNC on MakerWorld (license: BY-SA).
