Magnetic Cheeseburger Fidget

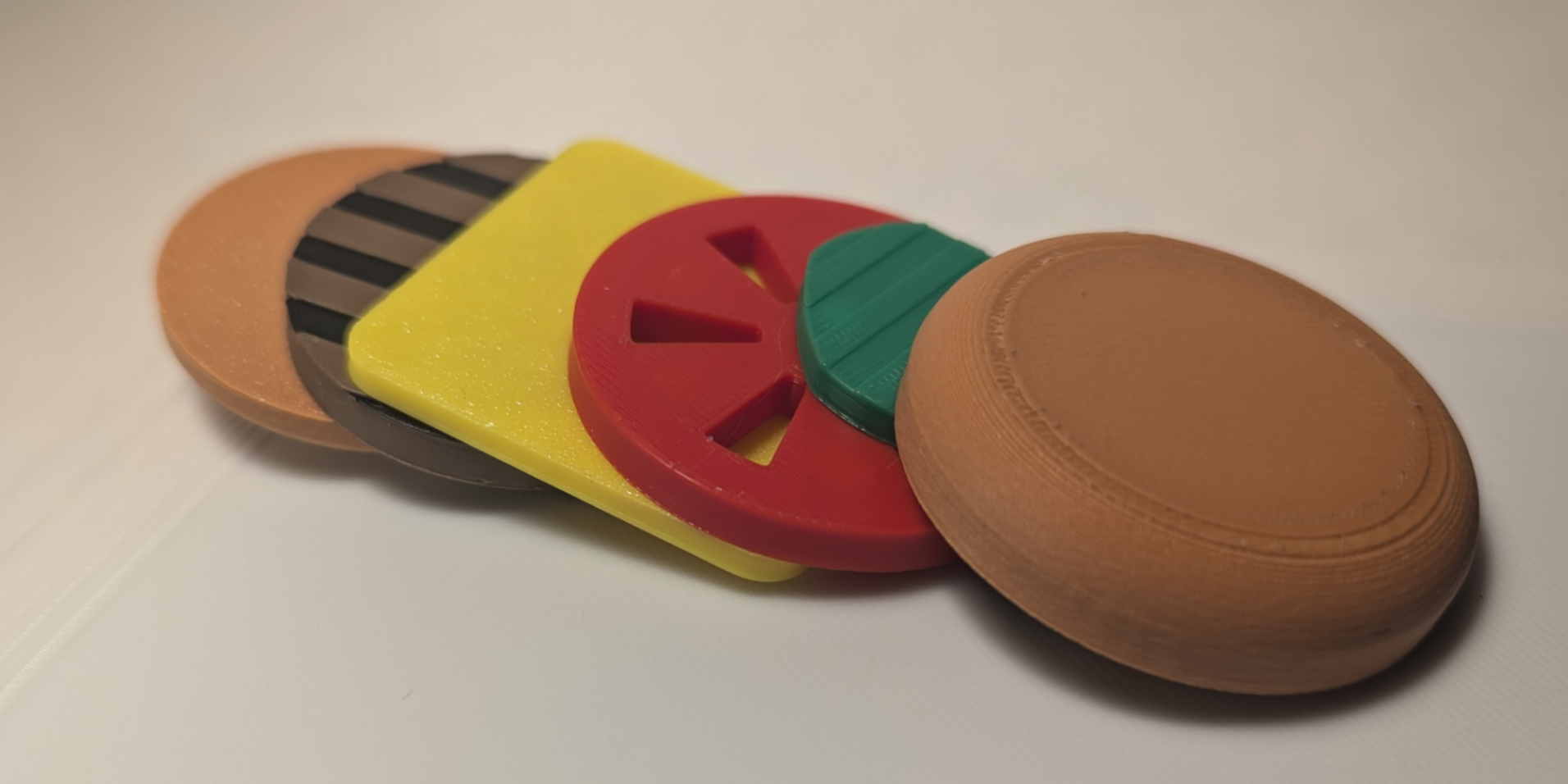

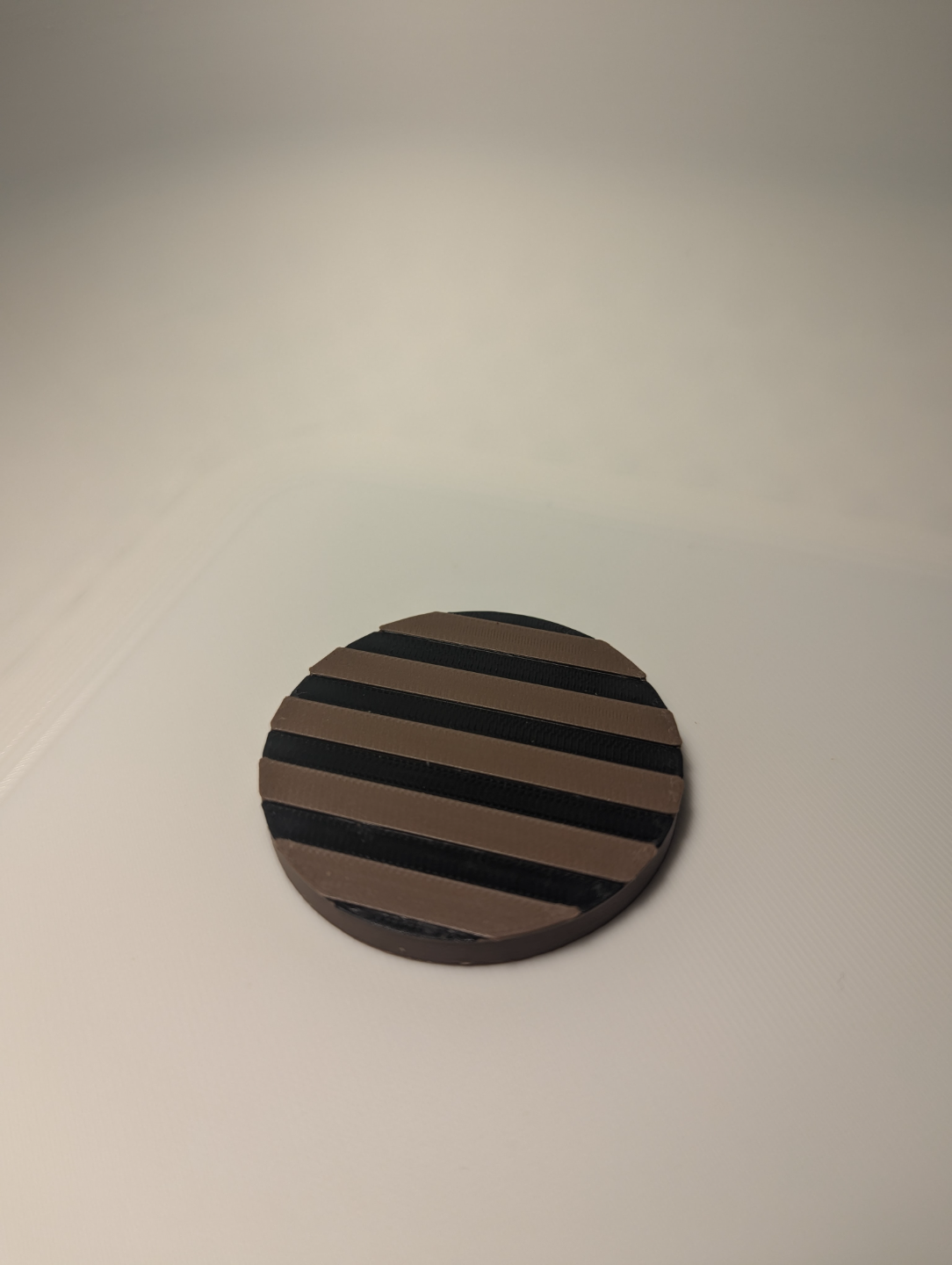

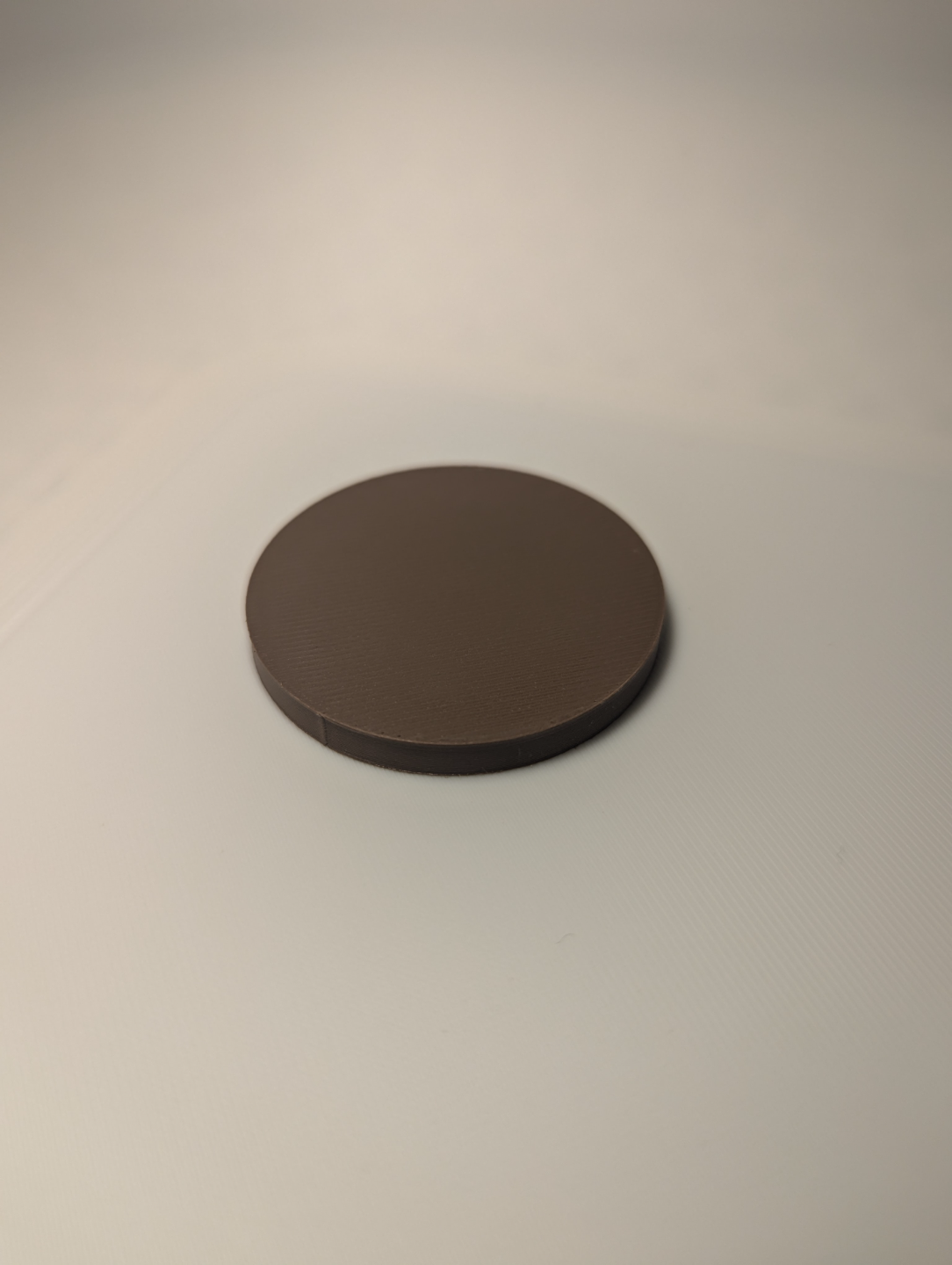

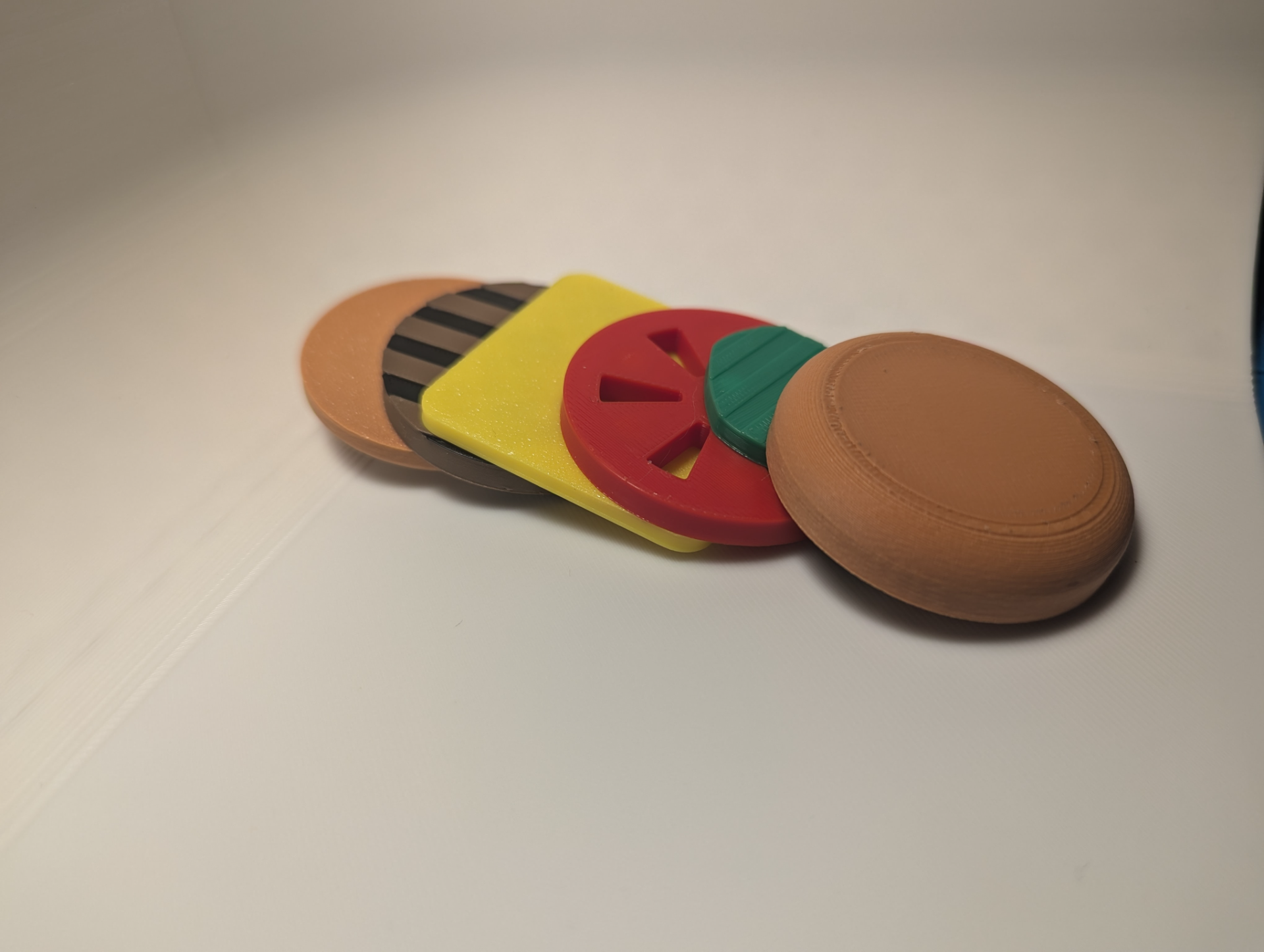

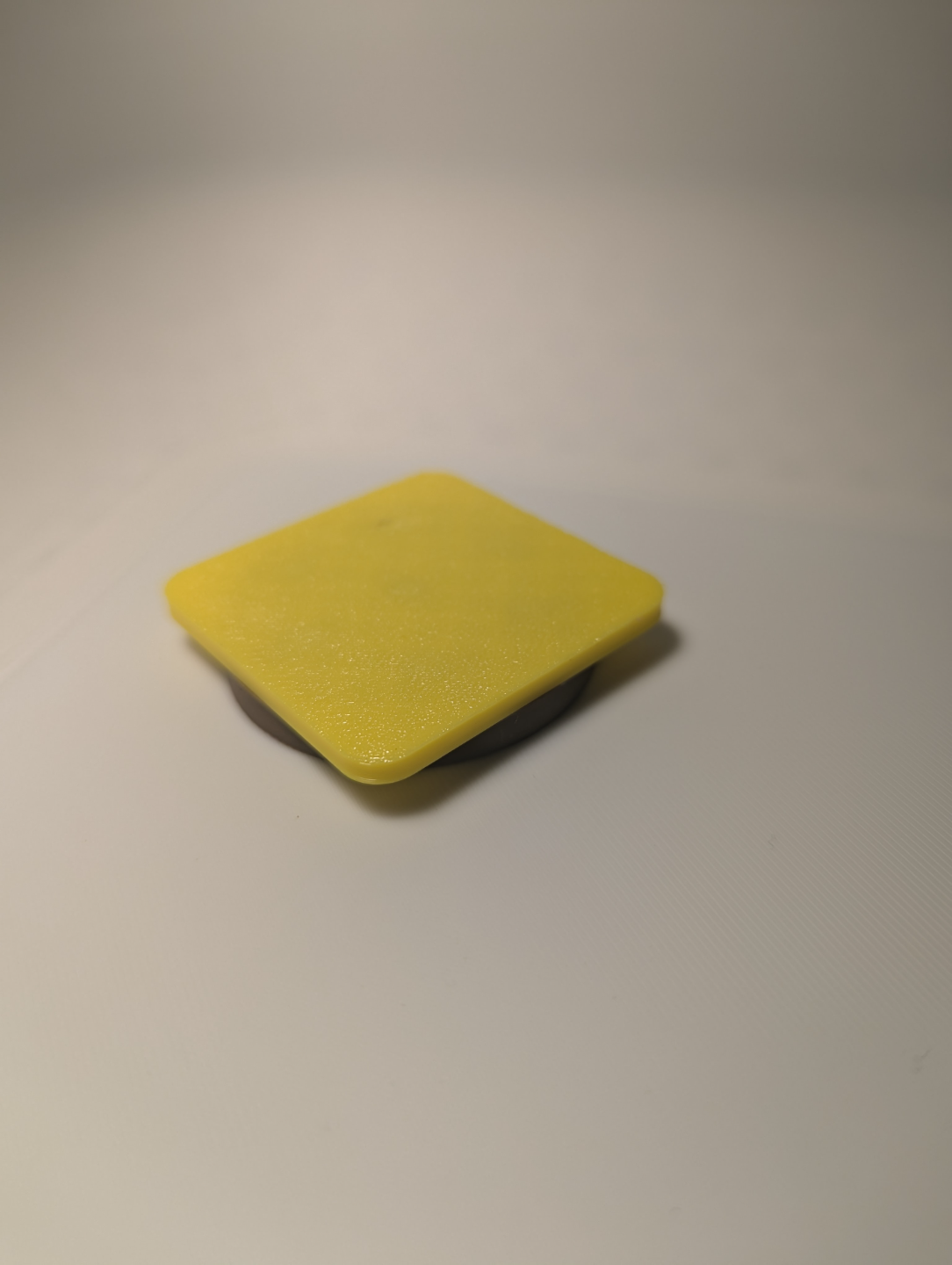

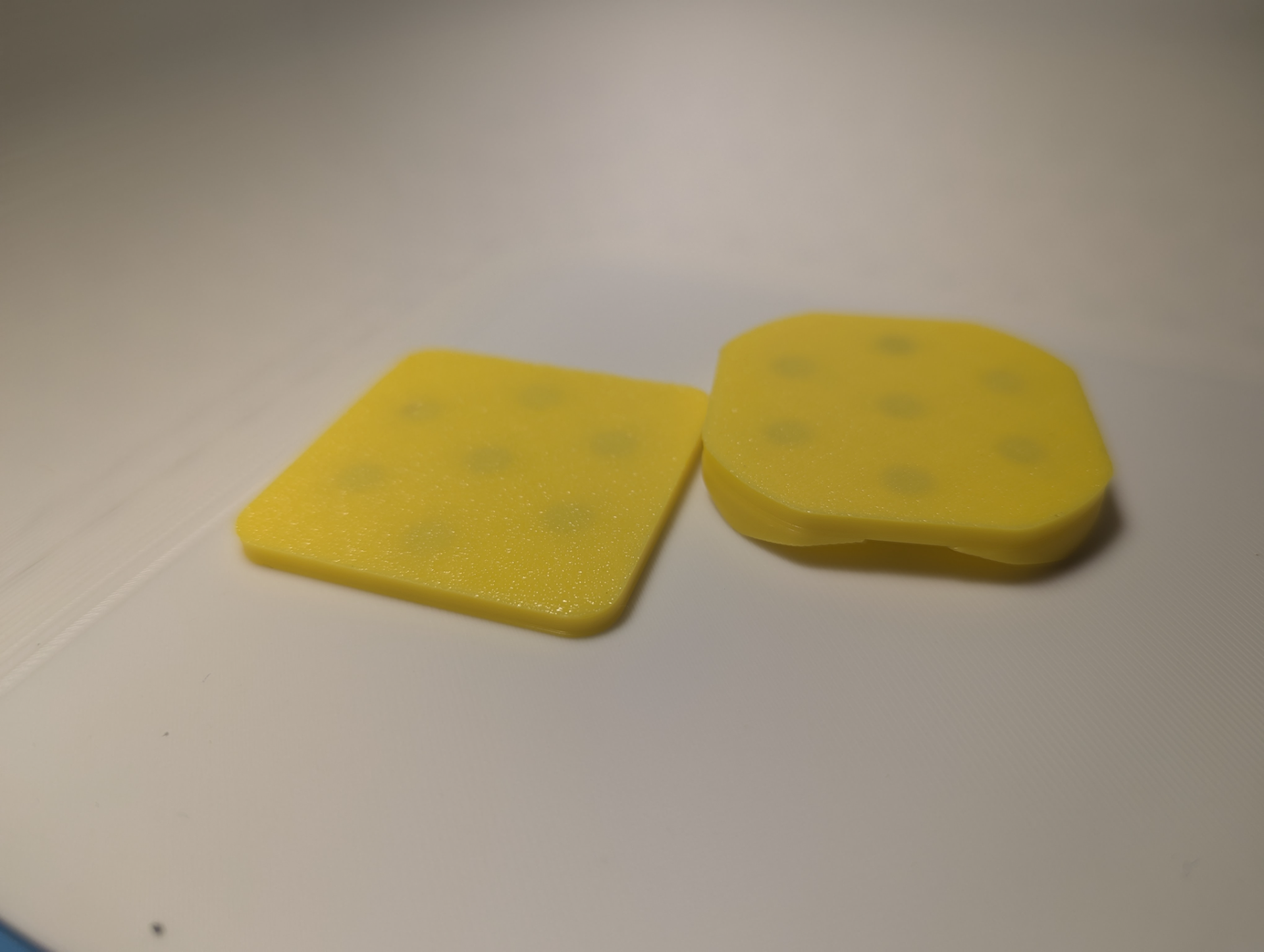

After seeing other magnetic fidgets, I wanted to make a magnetic fidget based on a cheeseburger but have the option to customize your burger. Currently I have two variations of burgers (charred and plain) and two variations of cheese (melted and unmelted). Each piece offers a different feature or texture.

I also decided to utilize 6mmx3mm & 5mmx2mm for different magnetic strengths as well as so the different pieces could have different thicknesses.

Each piece has the magnets inset in the print with a pause set at the right layer to put the magnets in to the piece.

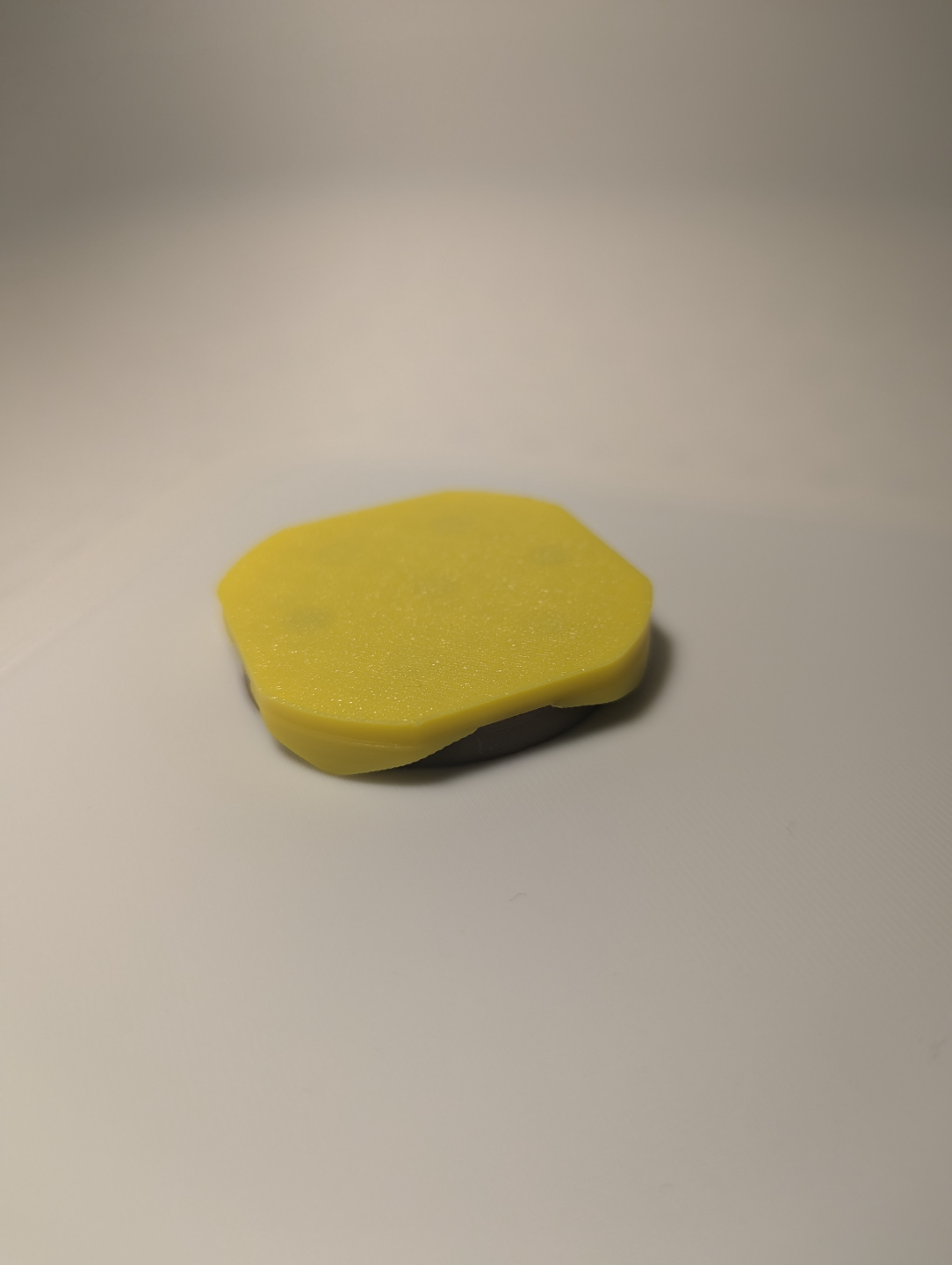

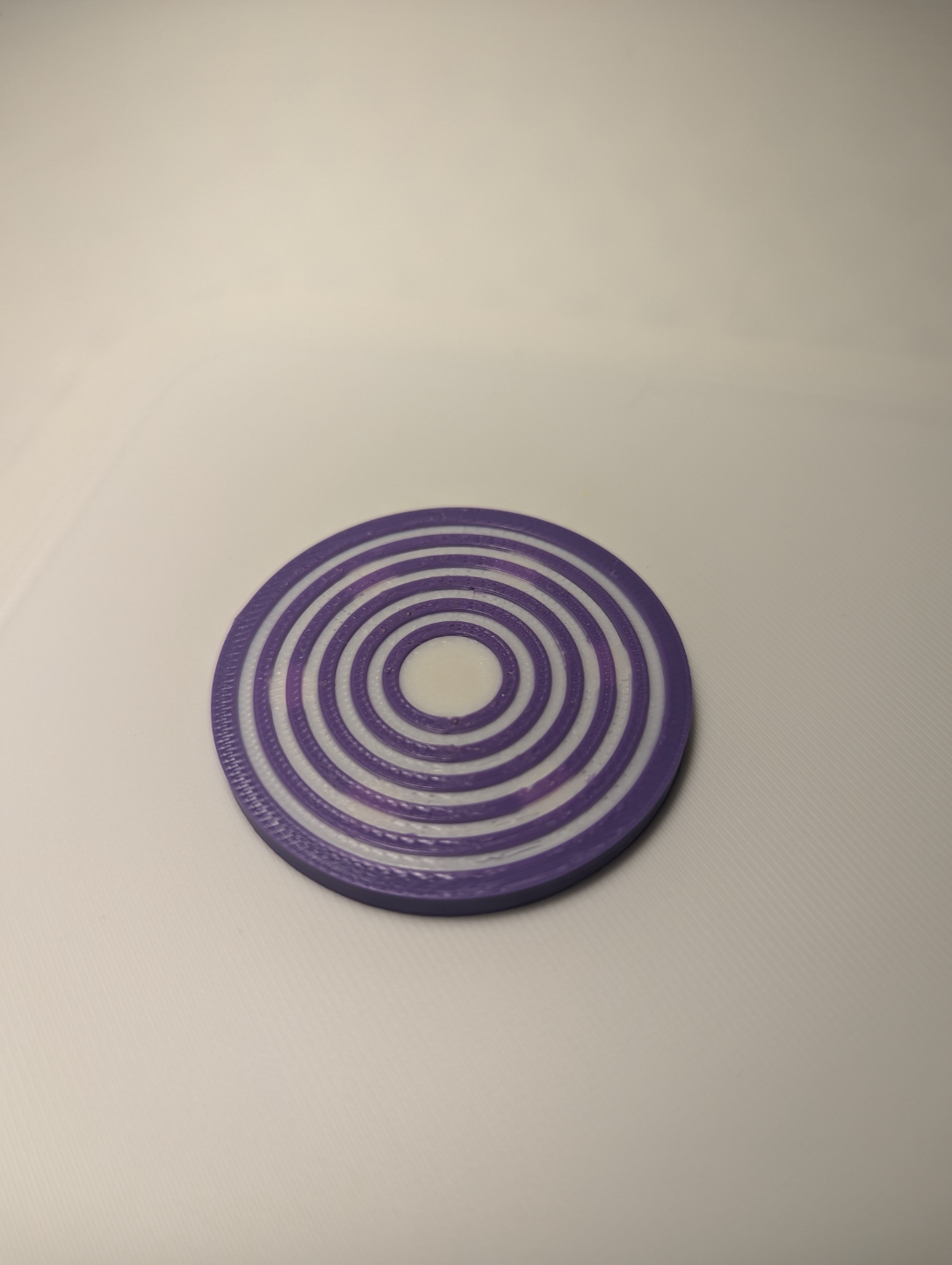

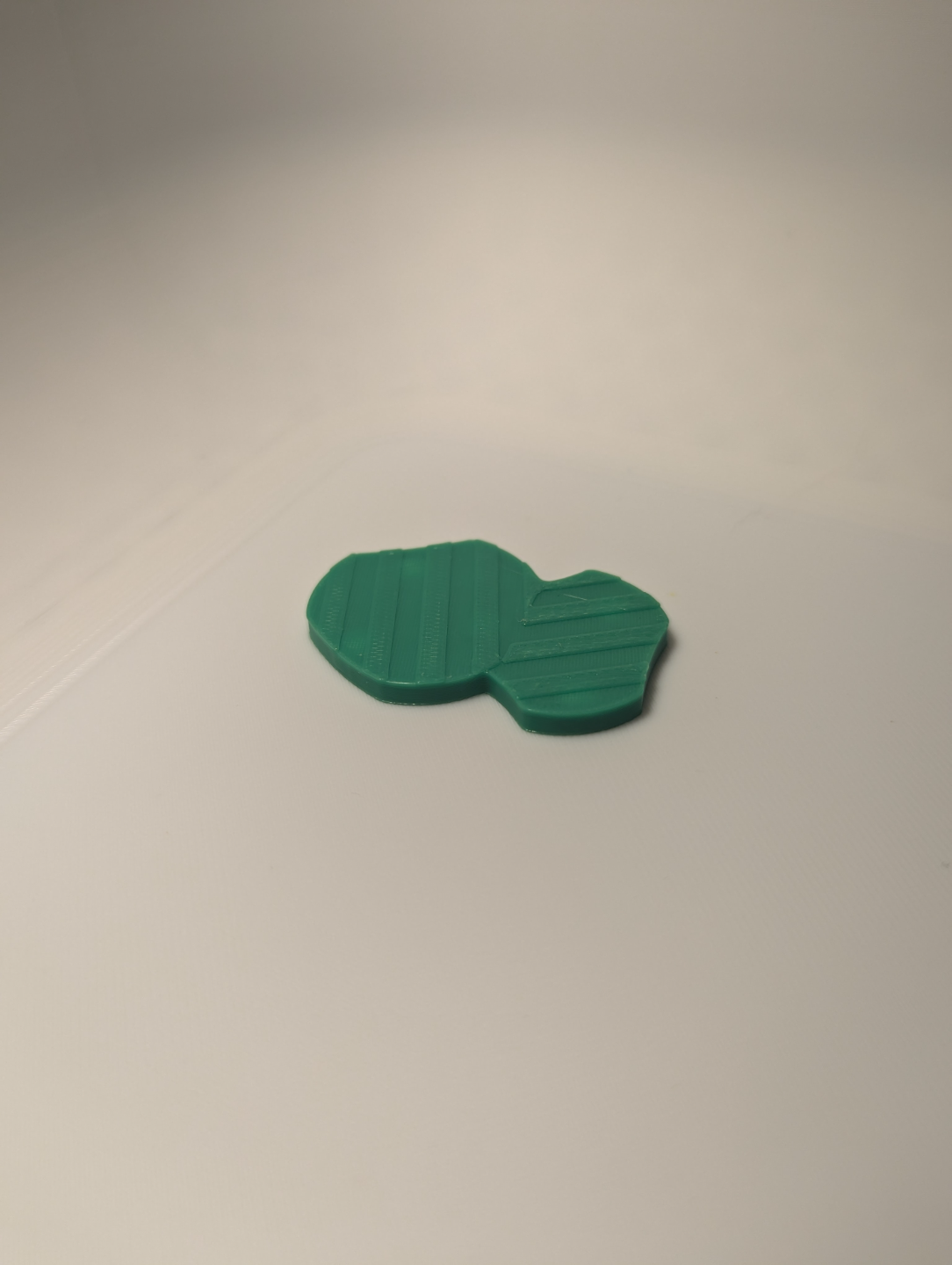

The buns, tomato and burgers us 7x 6mmx3mm magnets each, while the flat cheese and onion uses 7x 5mmx2mm magnets. The pickle uses 5x 5mmx2mm magnets. The melted cheese has space for 7x 5mmx2mm magnets but I suggest reducing it down to 3 around the edge and 1 in the middle to allow the cheese to spin better around the burger.

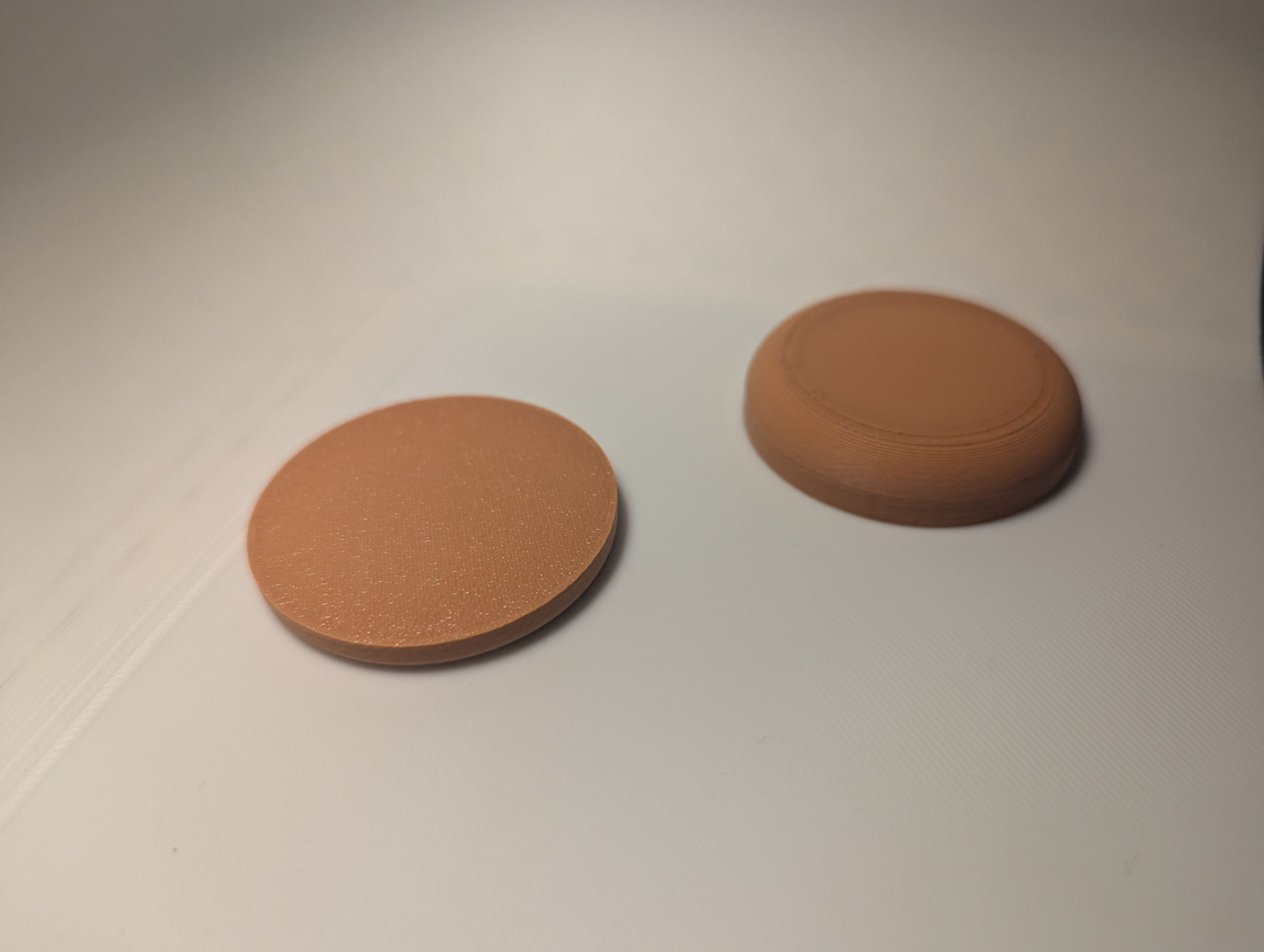

The top and bottom buns need to have the opposite orientation magnets. The charred burger, onion and pickles need to be the same orientation as the top bun. While the melted cheese should have the same orientation as the bottom bun. The plain burger, square unmelted cheese and the tomato can have either orientation.

Design by Keaton on MakerWorld (license: BY).
