Marble Kit 4.0

New version of the project available: Marble Kit V

https://makerworld.com/es/models/1637872-marble-kit-v?from=search#profileId-1758539

Summary

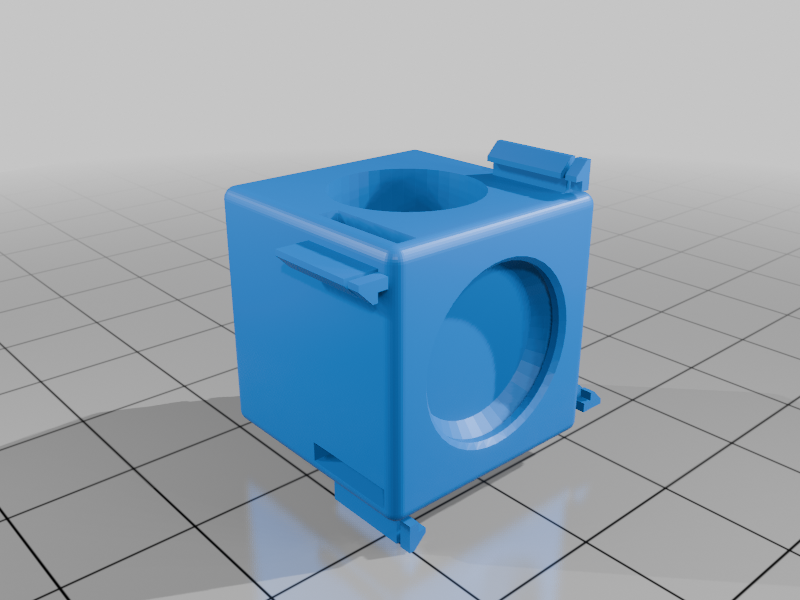

Marble Kit is a project that I have been doing since I started with 3D printing, improving it with each version that I release. Version 4.0 is the definitive design of this great project that mixes the best of all the old versions.

The most relevant changes from this version to the previous one are:

-The size of the marble has been changed to a more standard one, in this case 11mm.

-The size of the piece has been reduced, making it faster to print.

-It is not necessary to use supports because the parts that need them have a support placed in the model itself.

-The union of the pieces has been improved so that they are more comfortable to join together.

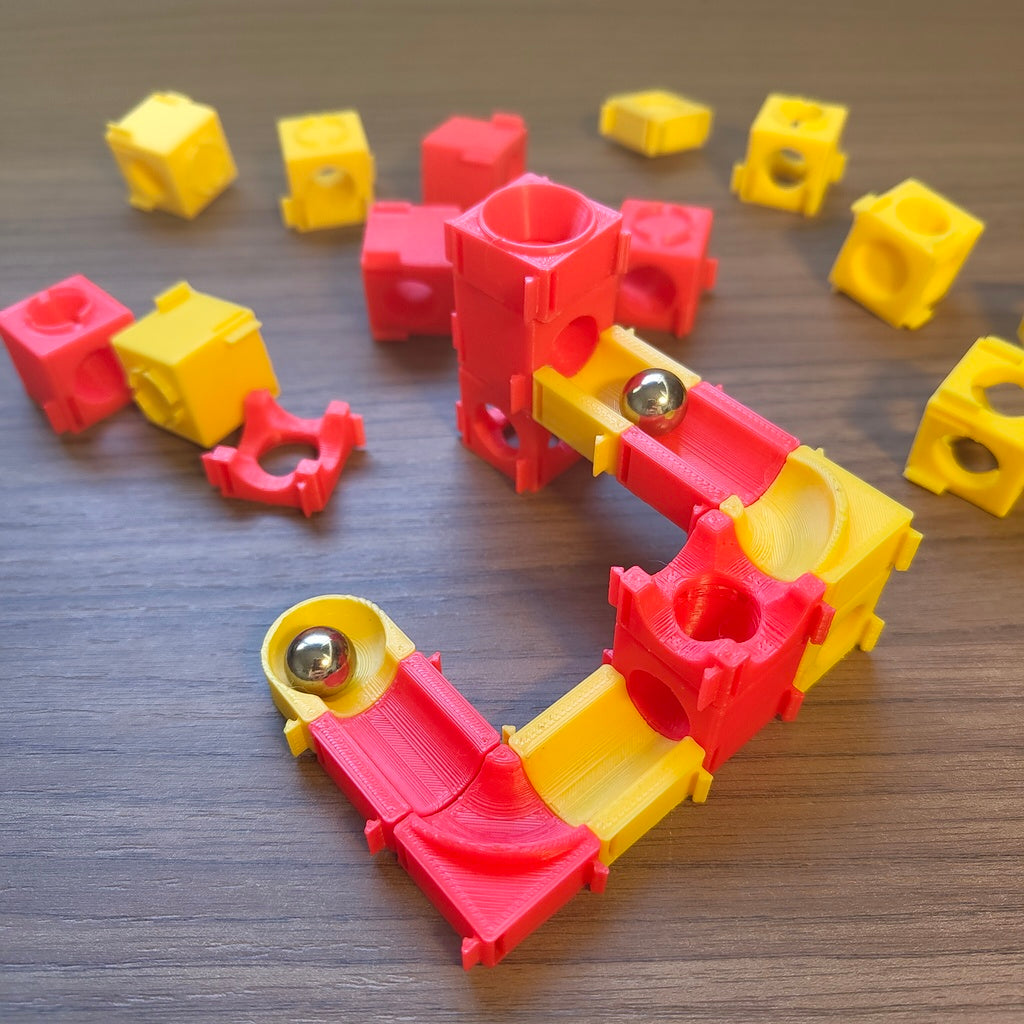

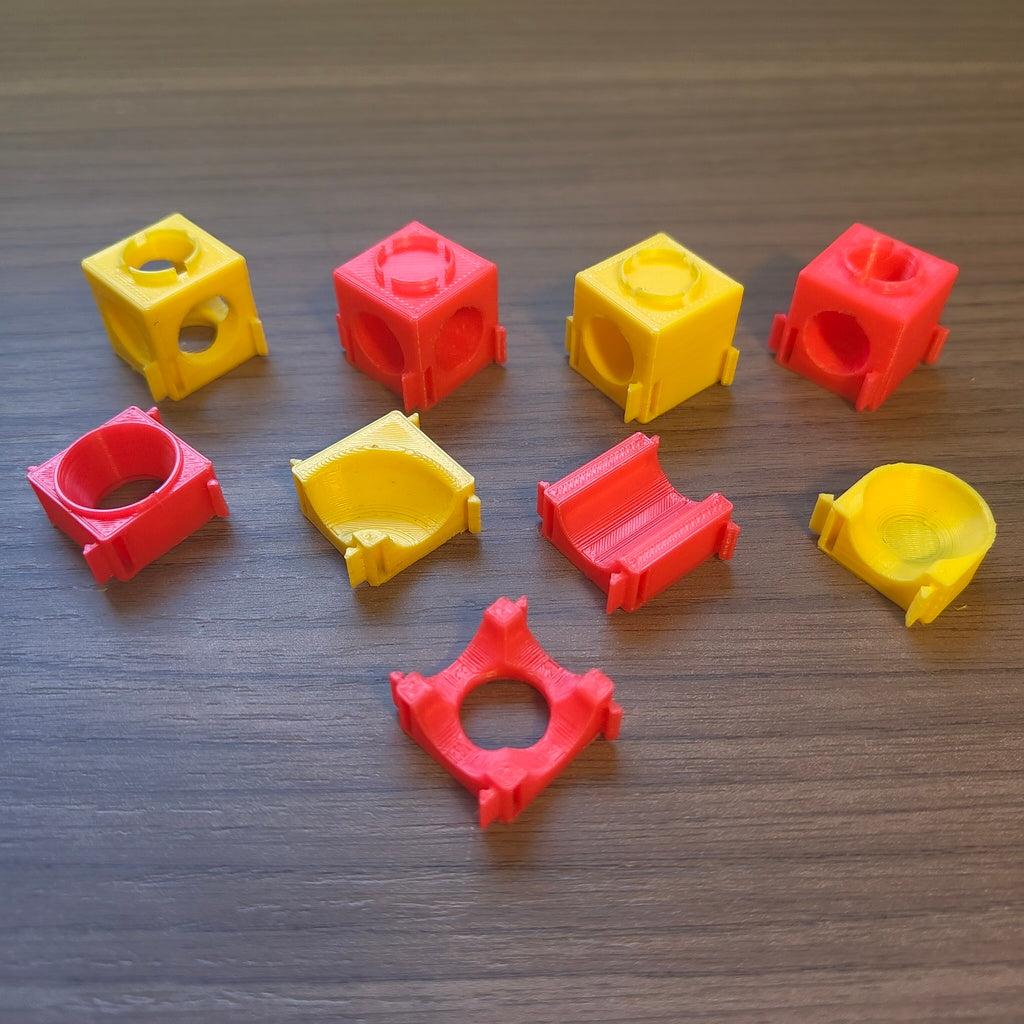

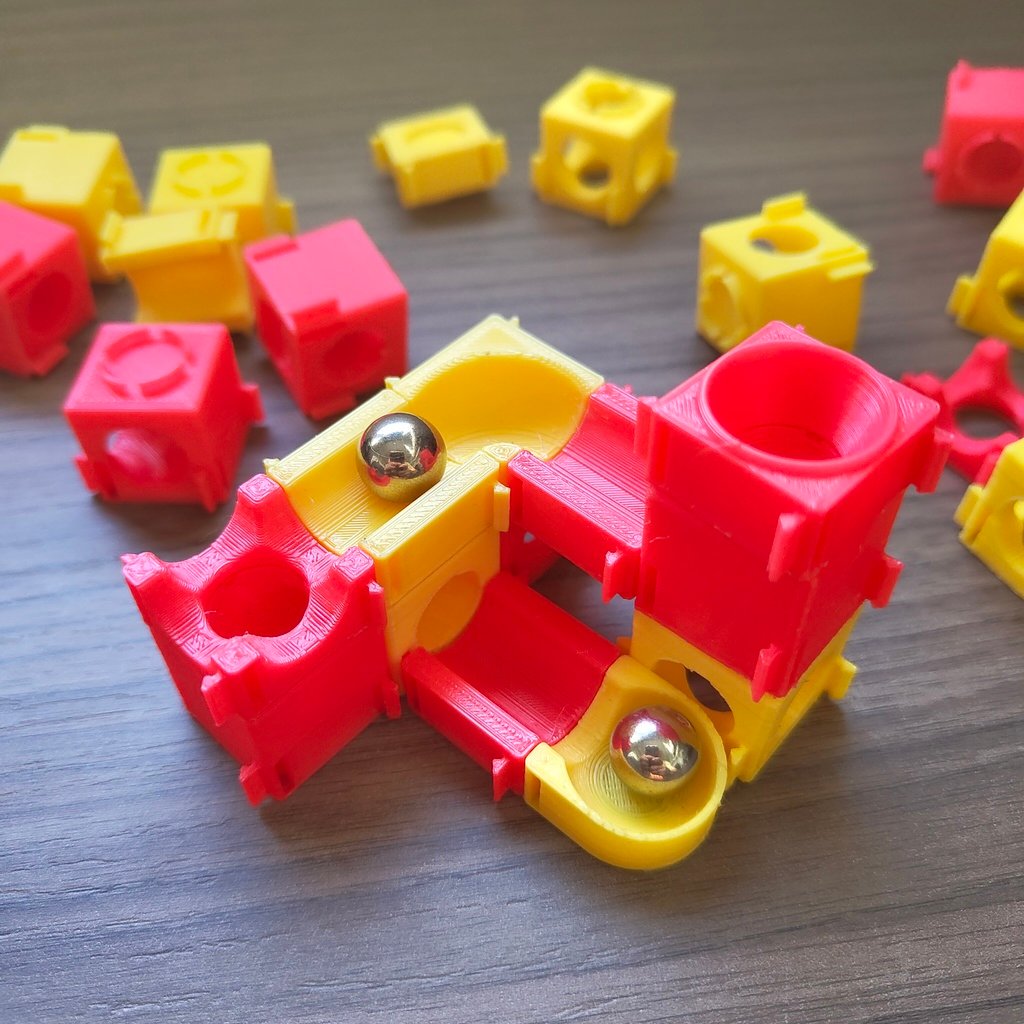

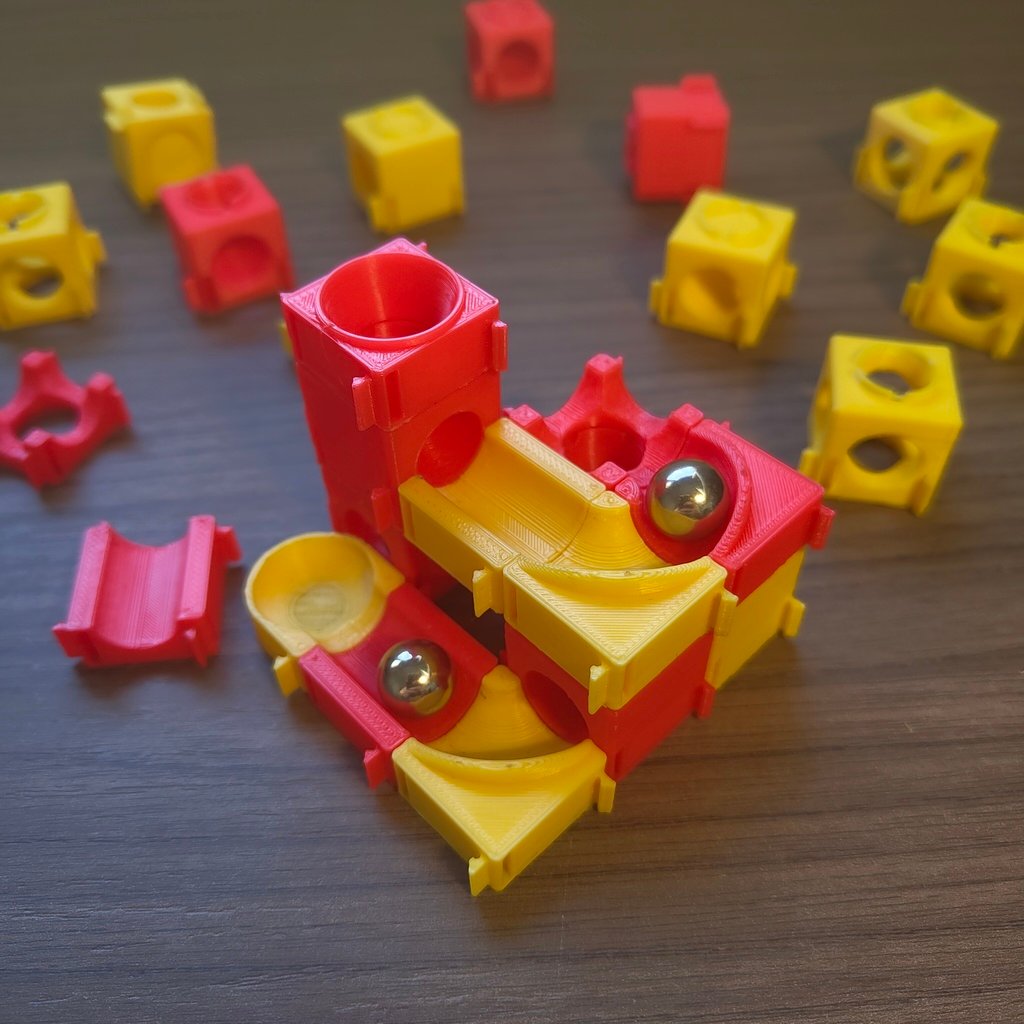

This publication contains the most basic pieces to build a circuit. Future pieces will be published in different sets. All of these sets will be placed in the same collection to make it more convenient to find all the existing pieces.

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 v2

Rafts:

Yes

Supports:

No

Resolution:

0,2 mm and the nozzle diameter 0,4 mm

Infill:

Doesn't Matter

Filament: . PLA

Update 4.1

The hooks in the part of the piece where the marble does not pass have been eliminated.
Structure piece piece and Open structure piece do not have a new version.

I have made this change for the larger, more complex circuits, which may allow for easier assembly. Also the previous version may come in handy in some cases, for smaller circuits or areas that need to be tightly joined.

The previous version is fully compatible with the new version.

Colección Kit de Mármol 4.0

Marble Kit 4.0 Collection

https://makerworld.com/es/collections/3823394

Design by Sergiode21 on MakerWorld (license: BY).
